Holybro Pixhawk 6X Pro

Holybro Pixhawk 6X Pro: פריט בקטלוג Holybro, בקטגוריית טייסים אוטומטיים ובקרי טיסה. הדף מיועד לבדיקת התאמה ולפנייה לגבי אספקה לשימוש אזרחי.

מפרט הדגם

הערות טכניות מהיצרן

High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications

All-New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications

Triple redundant IMU & double redundant barometer on separate buses

High-performance STM32H753 Processor

Modular flight controller: separated IMU, FMU, and Base system

The safety-driven design incorporates sensors from different manufacturers and model lineups

Independent LDO powers every sensor with independent power control.

Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination).

Temperature-controlled IMU board, allowing the optimum working temperature of IMUs

Hardware switchable 3.3V or 5V signal mode (requires baseboard modification)

This new vibration isolation design uses a custom-formulated, durable silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drones.

FC Module + a baseboard is required for this product to function. An FC Module or a Baseboard by itself will not function.

Processors & Sensors

FMU Processor: STM32H753 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM

32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM

IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors Accel/Gyro: ADIS16470 ±40g, Vibration Isolated, Industrial IMU Accel/Gyro: IIM-42652 ±16g, Vibration Isolated, Industrial IMU Accel/Gyro: ICM-45686 with BalancedGyro™ Technology ±32g, Hard Mounted Barometer: ICP20100 Barometer: BMP388 Mag: BMM150

Accel/Gyro: ADIS16470 ±40g, Vibration Isolated, Industrial IMU

±40g, Vibration Isolated, Industrial IMU

Accel/Gyro: IIM-42652 ±16g, Vibration Isolated, Industrial IMU

±16g, Vibration Isolated, Industrial IMU

Accel/Gyro: ICM-45686 with BalancedGyro™ Technology ±32g, Hard Mounted

±32g, Hard Mounted

Barometer: ICP20100

Barometer: BMP388

NXP EdgeLock SE050 Plug & Trust hardware secure element

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

Telem1 & GPS2 combined current limit: 1.5A

All other ports combined current limit: 1.5A

Operating Temperature: -25-85°C

Mechanical data

Flight Controller Module: 38.8 x 31.8 x 30.1mm

Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)

Mini Baseboard: 43.4 x 72.8 x 14.2 mm

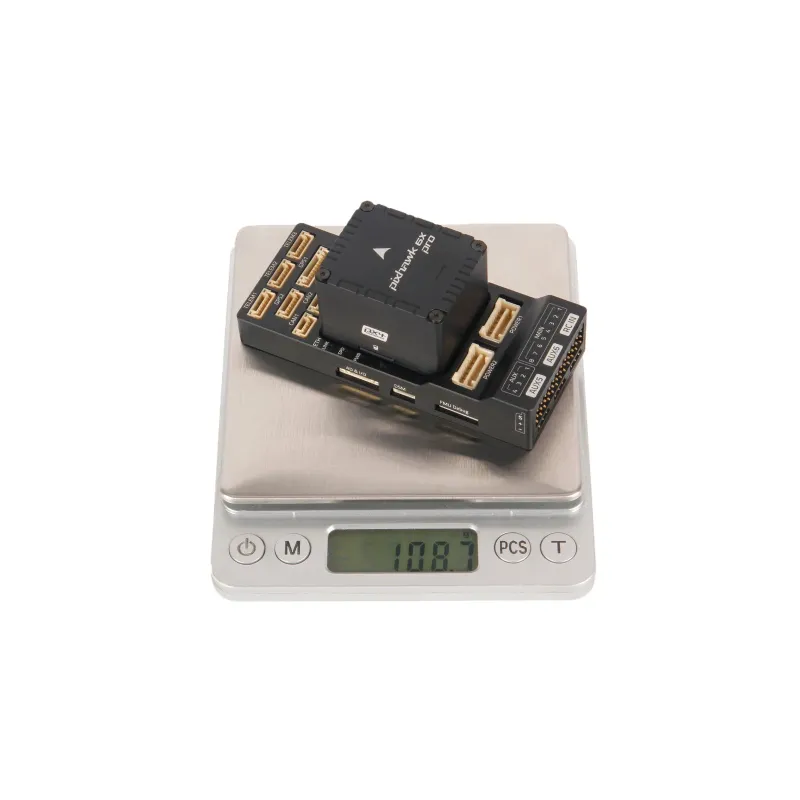

Flight Controller Module: 50g

Standard Baseboard: 72.5g (Aluminum)

Mini Baseboard: 26.5g

Isolation Material Testing Data

Power module comparison chart

PX4 & Ardupilot Guide

Sample Wiring Diagram

Firmware Support

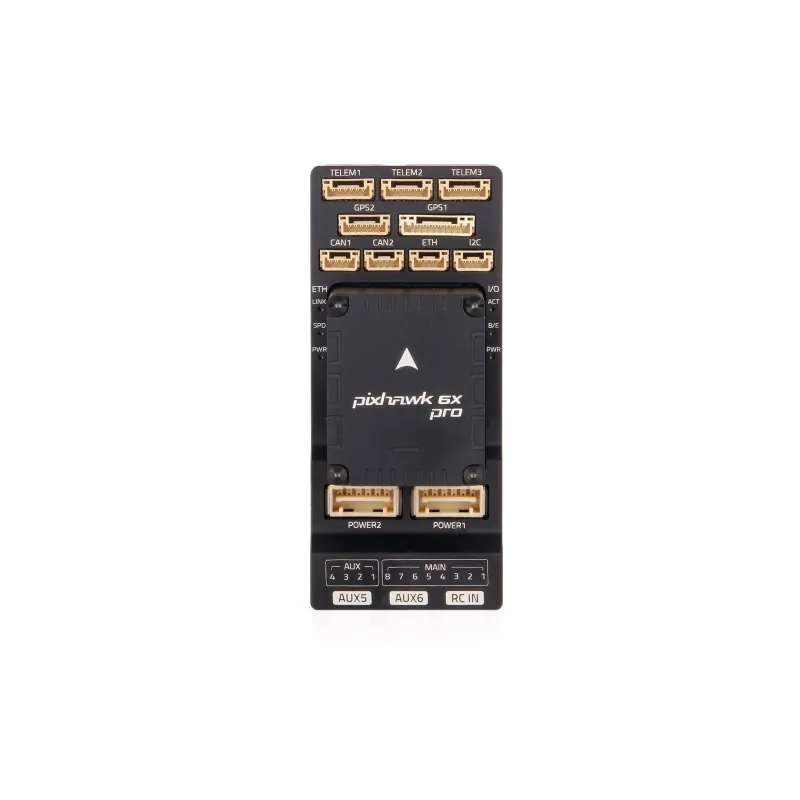

Pixhawk Baseboards Ports

Power Module Setup Guide

SKU 11070 Includes:

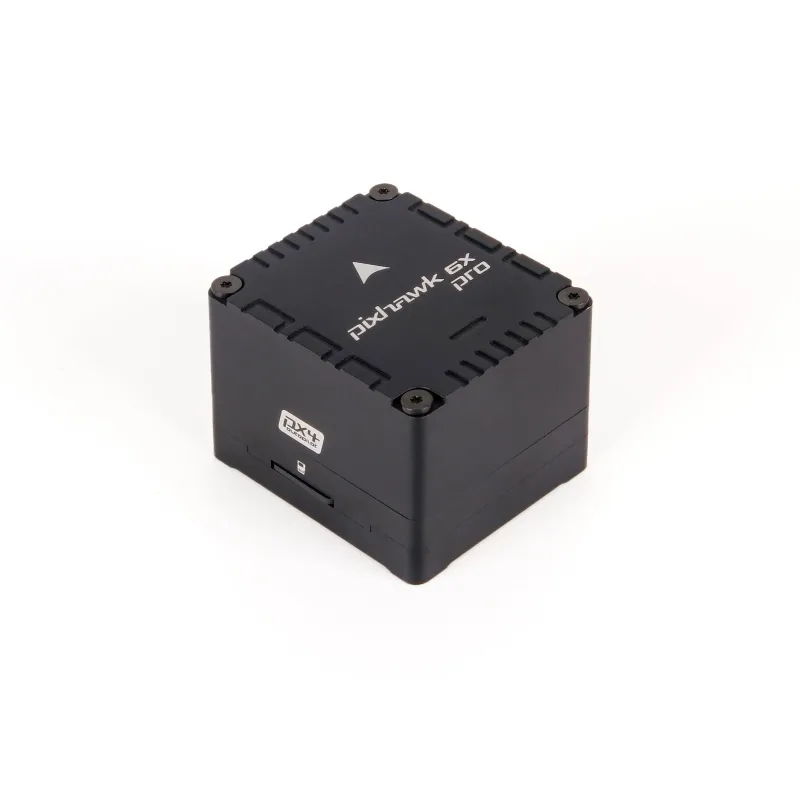

Pixhawk 6X Pro Flight Controller Module

Optional IMU Damping Replacement (softer than pre-installed)

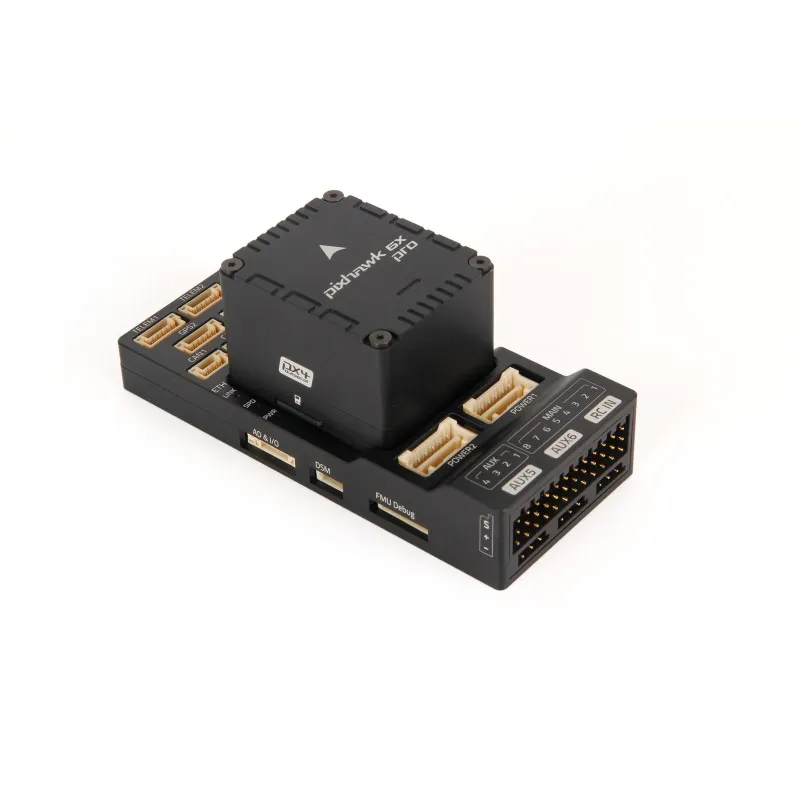

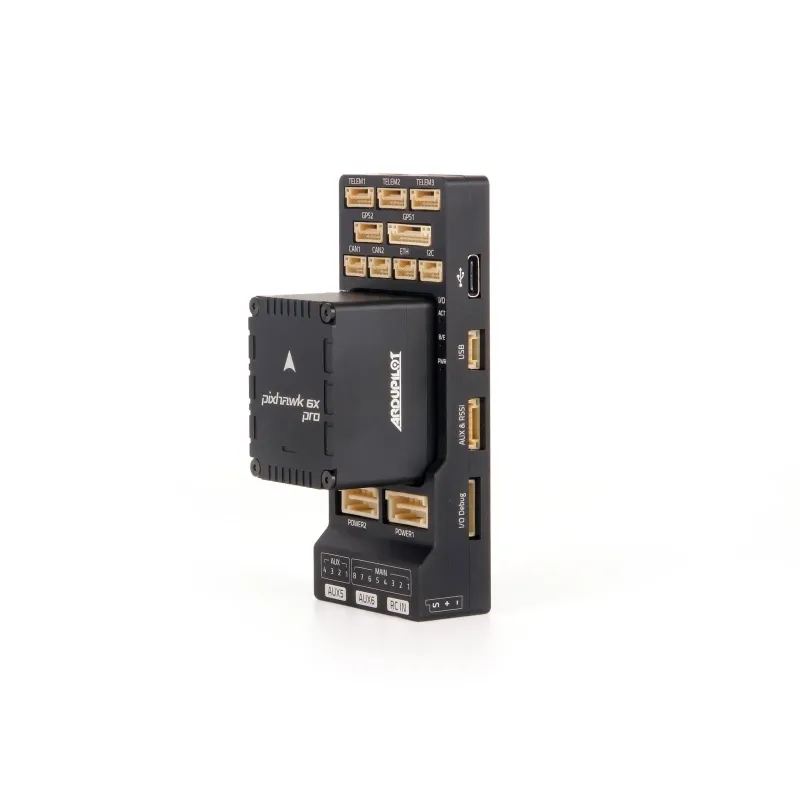

Controller + Baseboard + Power Module Set Includes:

Pixhawk Standard Baseboard v2A/ Pixhawk Standard Baseboard v2B/ Mini Baseboard

PM02D HV Power Module

Pixhawk PWM Cable for Tekko32 4in1 ESC

Standard Baseboard Mounting Plate

גרסאות ותצורות בקטלוג היצרן

פנייה לגבי המוצר

זמינות, מחיר, תכולת החבילה וגרסת החומרה יאושרו בפנייה. אין בדף התחייבות למלאי מקומי, זמן אספקה או מעמד של נציגות רשמית. יש לוודא התאמה למתח, למחברים, לקושחה ולדרישות ההפעלה לפני שימוש.
