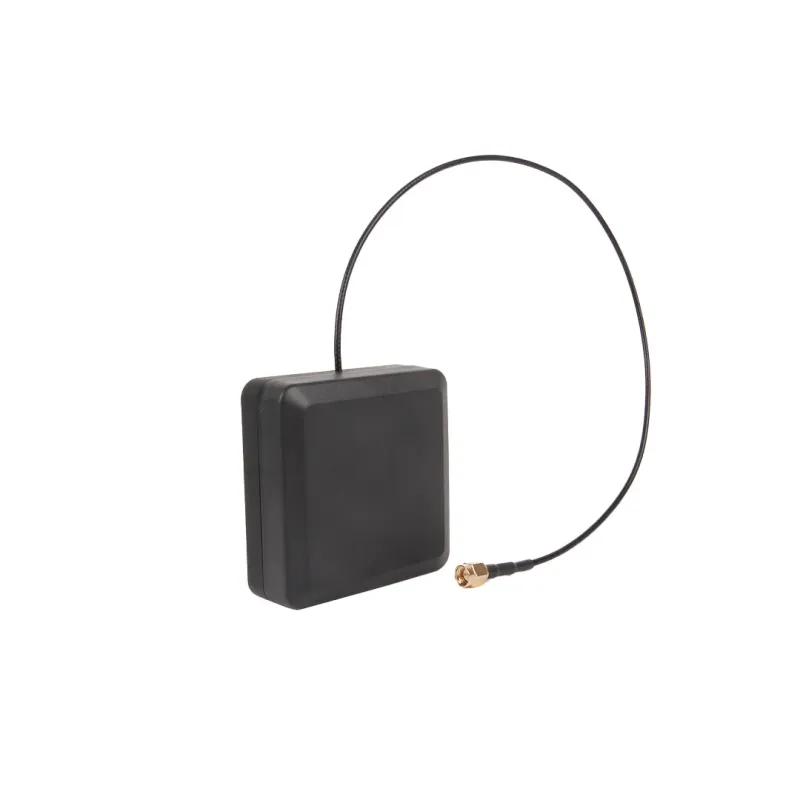

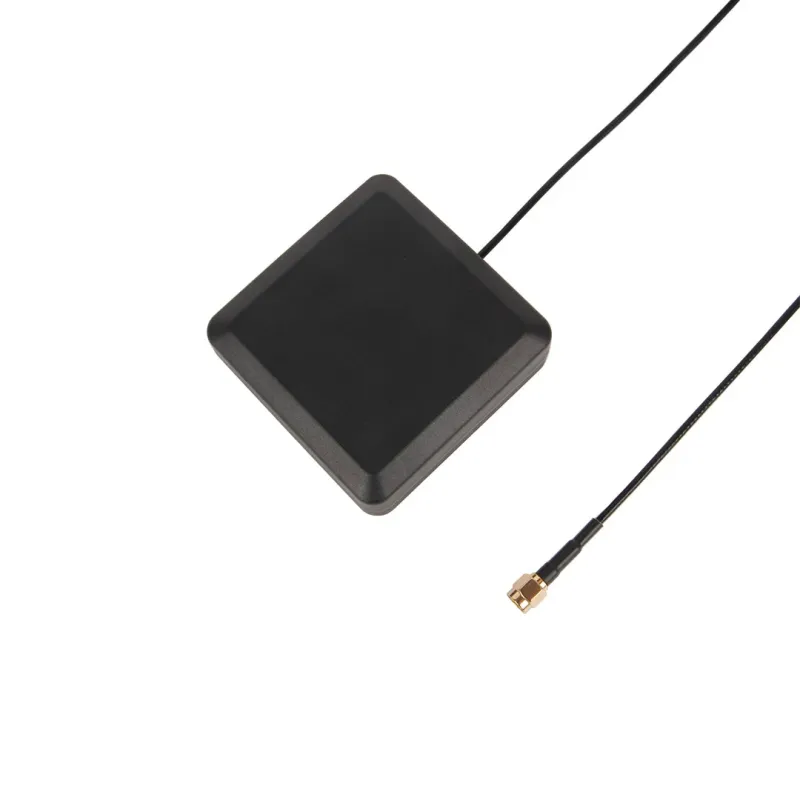

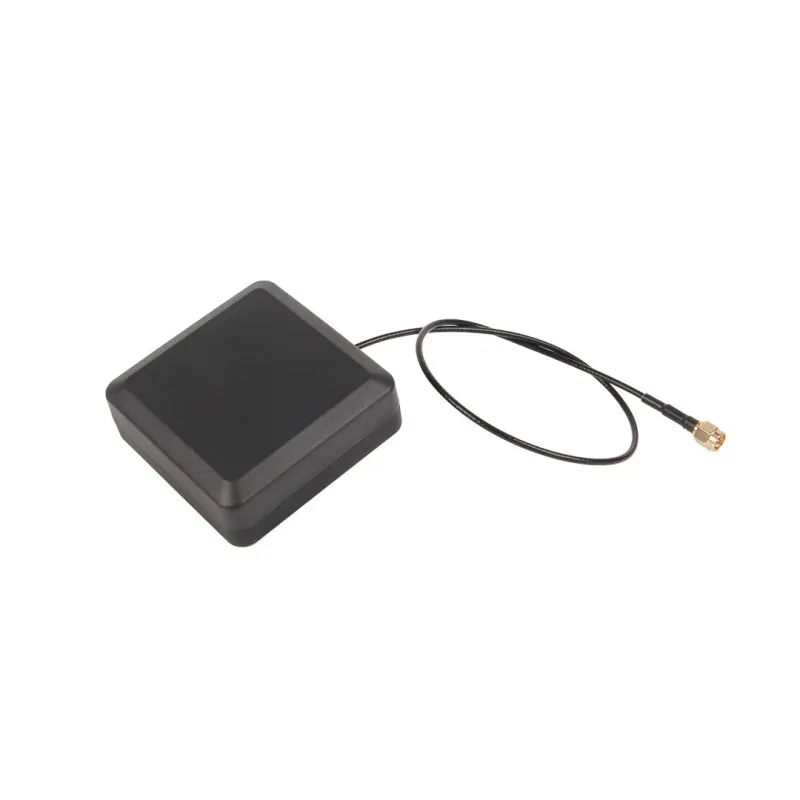

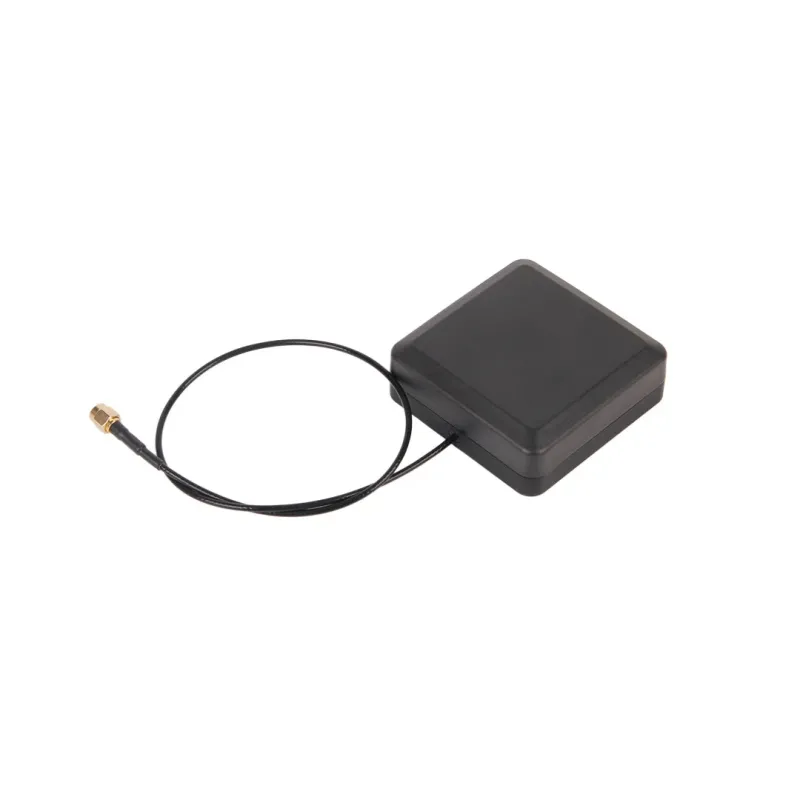

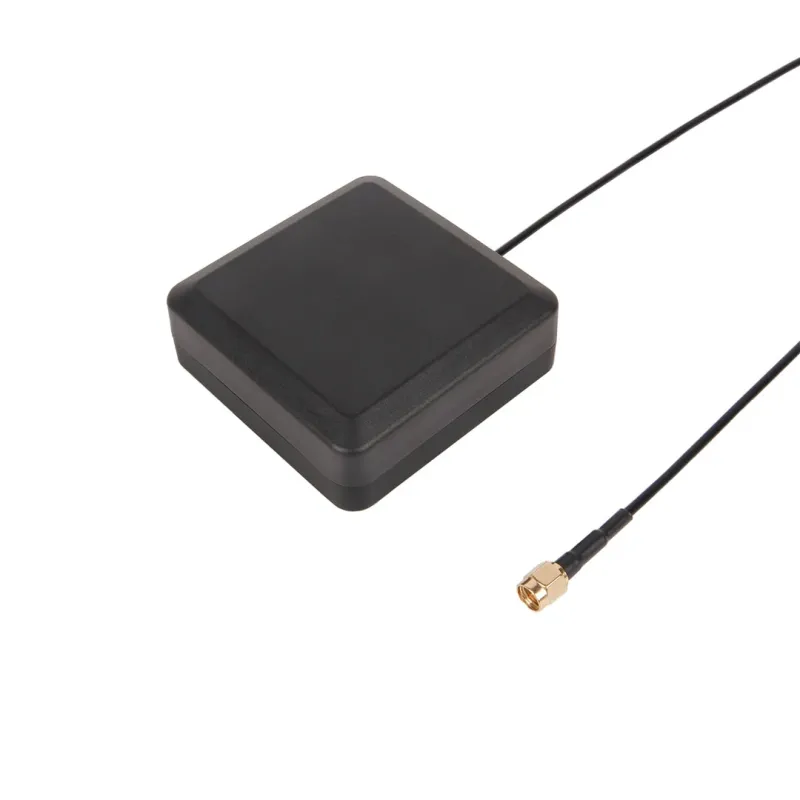

Holybro High-Precision Vertical Array Patch Antennas (IP67)

Holybro High-Precision Vertical Array Patch Antennas (IP67): פריט בקטלוג Holybro, בקטגוריית טלמטריה וקישורי נתונים. הדף מיועד לבדיקת התאמה ולפנייה לגבי אספקה לשימוש אזרחי.

מפרט הדגם

הערות טכניות מהיצרן

The High-Precision Vertical Array Patch Antenna is a high-gain, advanced antenna system tailored for professional UAV applications, providing unmatched navigation, tracking, and control across multiple satellite constellations. It supports full-band coverage for GPS (L1/L2/L5), GLONASS (L1/L2/L3), BeiDou (B1/B2/B3), and Galileo (E1/E5a/E5b/E6), ensuring superior global positioning accuracy in diverse operational environments.

At its core, the system integrates a durable stacked ceramic patch antenna, further enhanced by four precision-crafted vertical antenna arrays positioned on each side. This innovative design maximizes signal reception and accuracy, while effectively minimizing the impact of signal degradation in complex terrains and urban areas.

Delivering 4.5 dBi high-gain performance with ultra-low signal loss, the antenna also boasts a wide beam width that covers a broad frequency range with impressive marginal gain. The advanced Low Noise Amplifier (LNA) features enhanced signal filtering, strong out-of-band rejection, reduced electromagnetic interference, and robust multi-path reduction capability. With its IP67-rated durability, the antenna is designed to perform reliably in the harshest environments, ensuring long-lasting performance in demanding applications.

Multi-Constellation Support: Works with GPS, GLONASS, BeiDou, and Galileo systems for precise global positioning.

Vertical Array Design: Four vertical antennas combined with a centrally stacked ceramic patch enhance signal reception and minimize degradation in challenging environments.

High-Gain Performance: Delivers 4.5 dBi gain with minimal signal loss, ensuring strong and long-range connectivity.

Wide Frequency Coverage: Offers a broad beam width for consistent performance across various frequencies.

Advanced LNA Technology: Filters signals effectively, strong anti-interference capability, and reduces multi-path effects for better signal integrity.

Durable Design: IP67, built to withstand harsh conditions, offering protection against dust and water for reliable performance in demanding environments.

Typical Applications:

Drones and UAVs

Surveying Equipment

Precision Agriculture

Autonomous Vehicles

Geographical Information Systems (GIS)

High-Precision Navigation Systems

Frequency range BDS B1/B2/B3, GPS L1/L2/L5 GLONASS L1/L2/L3 Galileo E1/E5a/E5b/E6

BDS B1/B2/B3, GPS L1/L2/L5

GLONASS L1/L2/L3

Galileo E1/E5a/E5b/E6

Impedance: 50 ohms

Polarization: right-hand circular polarization

Antenna axial ratio: ≤3dB

Horizontal coverage angle: 360°

Maximum gain: 4dBi

Low Noise Amplifier (LNA)

Output standing wave ratio: ≤2.0

Noise figure: ≤2.0dB

Electrical Data

Working voltage: +3.3V～+12VDC

Working current: ≤60mA

Mechanical Data

Antenna size: 75mm75mm26mm (excluding connector cable)

Connector type: SMA-J, RG316 black cable

Working environment: Working temperature: -40℃～+85℃ Storage temperature: -55℃～+85℃ Humidity: 95% non-condensing

Working temperature: -40℃～+85℃

Storage temperature: -55℃～+85℃

Humidity: 95% non-condensing

IP Rating: IP67

H-RTK Unicore UM982

DroneCAN H-RTK F9P Helical

H-RTK F9P Helical

Any GNSS system using similar frequency bands and an SMA connector

Antenna datasheet

1x High-Precision Vertical Array Patch Antennas

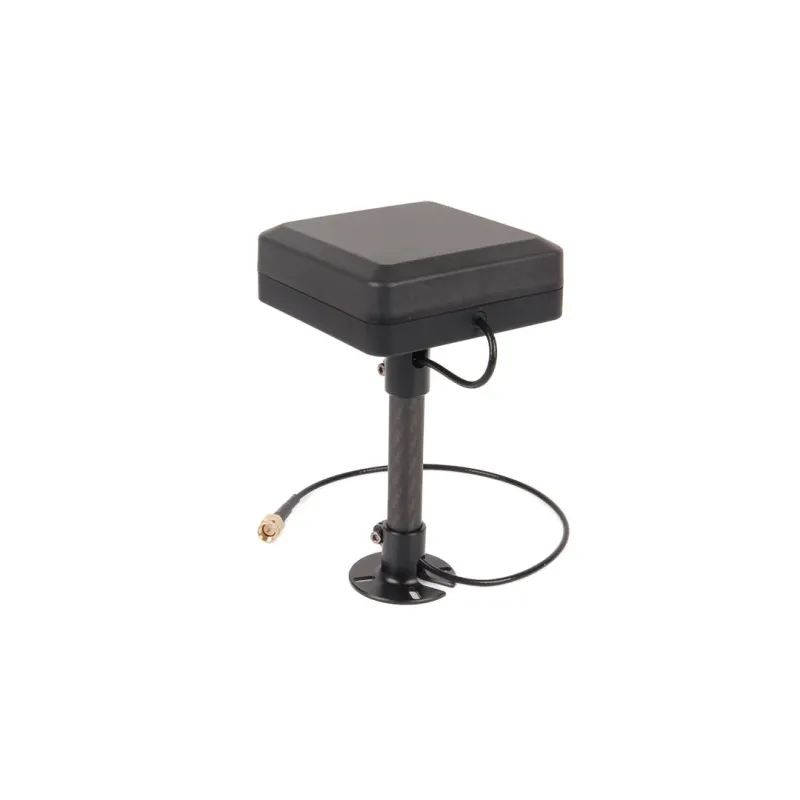

1x Fixed Carbon Fiber GPS mount
