Holybro H-Flow (Optical Flow and Distance Sensor Module)

Holybro H-Flow (Optical Flow and Distance Sensor Module): פריט בקטלוג Holybro, בקטגוריית חיישנים וזיהוי מרחוק. הדף מיועד לבדיקת התאמה ולפנייה לגבי אספקה לשימוש אזרחי.

מפרט הדגם

הערות טכניות מהיצרן

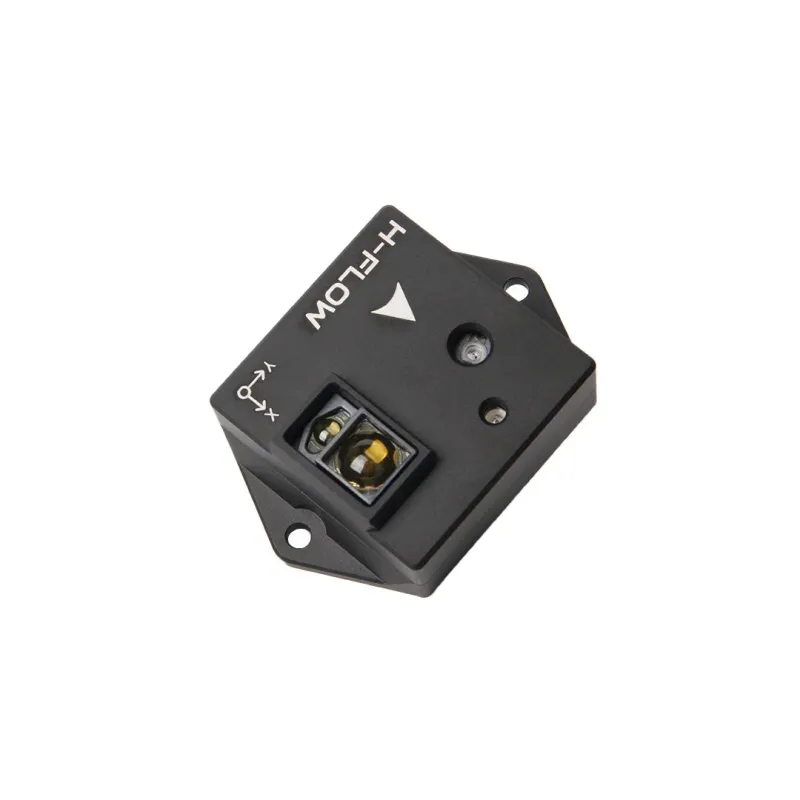

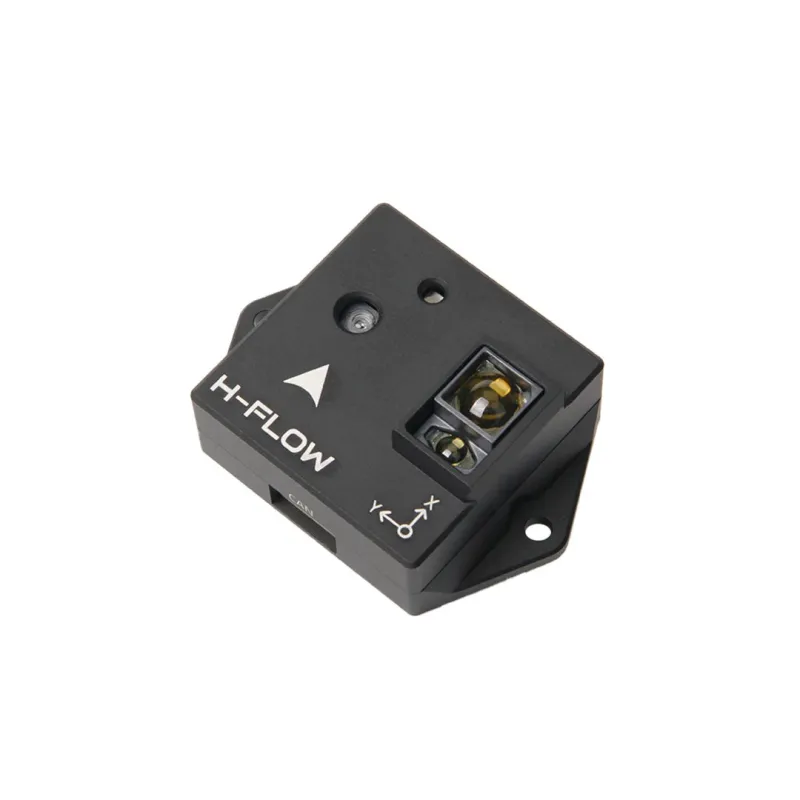

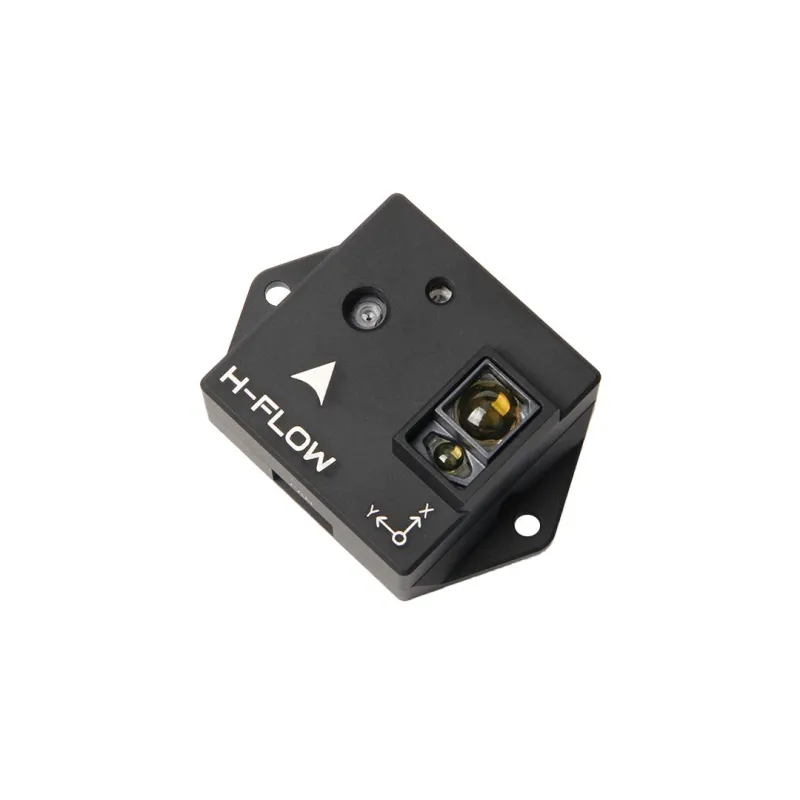

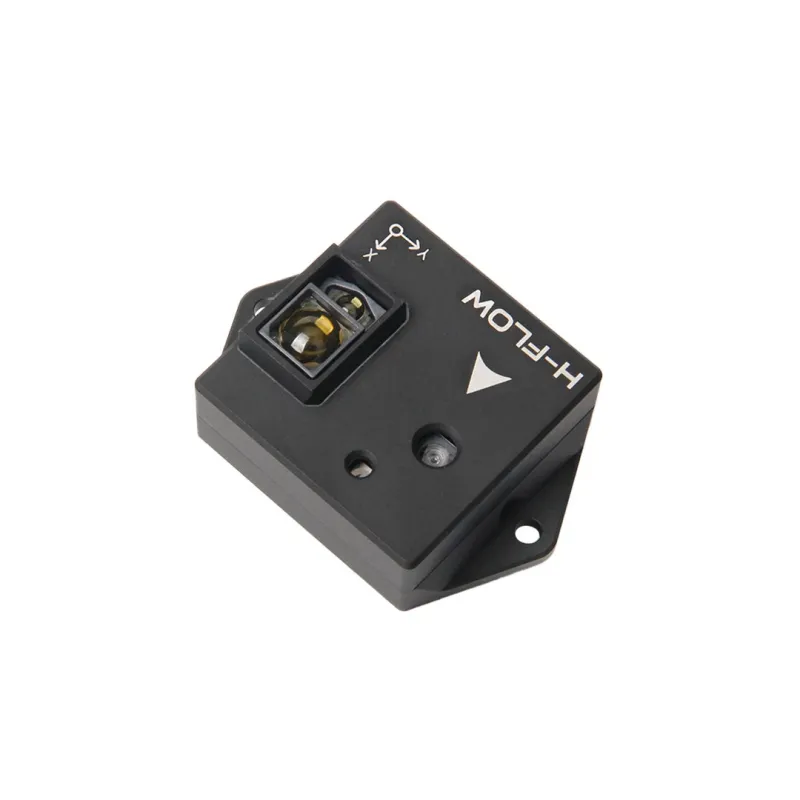

The Holybro H-Flow is a compact optical flow and distance sensor module that combines a PixArt PAA3905E1 optical flow sensor, a Broadcom AFBR-S50LV85D distance sensor, and an InvenSense ICM-42688-P 6-axis IMU. This all-in-one design simplifies installation, while the onboard infrared LED enhances visibility in low-light conditions.

The H-Flow features a Pixhawk-standard 4-pin CAN connector, ensuring seamless integration with Pixhawk-compatible controllers via the CAN port. Utilizing the DroneCAN protocol offers reliable and high-speed data transmission between the sensor and the flight controller.

Integrated Optical Flow and Rangefinder Module

PixArt Optical Flow Sensor for Accurate Motion Tracking

Broadcom ToF Sensor for Precise Distance Measurement

Infrared LED for Optical Low-Light Performance

DroneCAN Protocol

PixArt PAA3905E1 Optical Flow Sensor Tracks under low light conditions of >5 lux Effective Viewing angle up to 42° Wide working ranges from 80mm up to 30m Up to 7.4 rad/s 40 mW 120° viewing angle IR LED built onto the board for improved low-light operation

Tracks under low light conditions of >5 lux

Effective Viewing angle up to 42°

Wide working ranges from 80mm up to 30m

Up to 7.4 rad/s

40 mW 120° viewing angle IR LED built onto the board for improved low-light operation

Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor Integrated 850 nm laser light source Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels Typical distance sensing range up to 30m Operation of up to 200k Lux ambient light Works well on all surface conditions Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels

Integrated 850 nm laser light source

Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels

Typical distance sensing range up to 30m

Operation of up to 200k Lux ambient light

Works well on all surface conditions

Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels

InvenSense ICM-42688-P 6-Axis IMU

STM32F412CEU6 MCU

Pixhawk Standard CAN Connector (4 Pin JST GH)

Compact Form Factor

Software-Controlled CAN Termination

Weight: 15.2g (3.5g without casing)

Firmware Setup & Upgrade

AFBR-S50LV85D Datasheet

2x M2.5 Nylon Locking Hex Nuts
