Holybro H-RTK mosaic-G5 (Dual Antenna Heading)
מחירים אינם מוצגים באתר בכוונה.
צרו קשר עם RC-MODEL לקבלת זמינות עדכנית, התאמה טכנית, אביזרים תואמים והצעת מחיר מסודרת.
Holybro H-RTK mosaic-G5 (Dual Antenna Heading): פריט בקטלוג Holybro, בקטגוריית ניווט GNSS ו-RTK. הדף מיועד לבדיקת התאמה ולפנייה לגבי אספקה לשימוש אזרחי.
מפרט הדגם
| מותג | Holybro |
|---|---|
| דגם | H-RTK mosaic-G5 (Dual Antenna Heading) |
| מק״ט יצרן | 12067 |
| Product | Holybro H-RTK mosaic-G5 |
| Receiver | Septentrio mosaic-G5 P3H |
| Application | Rover Moving Baseline Rover |
| GNSS | GPS: L1C/A, L1C, L2C, L2P(Y), L5 GLONASS: L1CA, L2CA, L2P, L3 CDMA Beidou: B1I, B1C, B2a, B2I, B2b, B3I Galileo: E1, E5a, E5b, E6 QZSS: L1C/A, L1C/B, L2C, L5, L6 (future update) |
| Positioning accuracy | Mode Horizontal Vertical Standalone 1.2m 1.9m DGNSS 0.4m 0.7m RTK 0.6cm+0.5ppm 1.0cm+1ppm |
| GNSS attitude accuracy | Antenna Separation Heading Pitch/Roll 1m 0.15° 0.25° 5m 0.03° 0.05° |
| Time to first fix | Cold start: ≤ 35s Warm start: ≤ 10s Re-acquisition: 1 s |
| Magnetometer (Compass) | RM3100 |
| Antennas Peak Gain (MAX) | 2dBi |
| LNA Gain | 33±2dB |
| Time precision | PPS resolution: 1.4 ns Event accuracy: < 3 ns |
| Maximum update rate | Position: 20Hz |
| Ports | Port 1: USB Type-C Port 2: UART1 (GH1.25 10pin) Port 3: UART2 (GH1.25 6pin) |

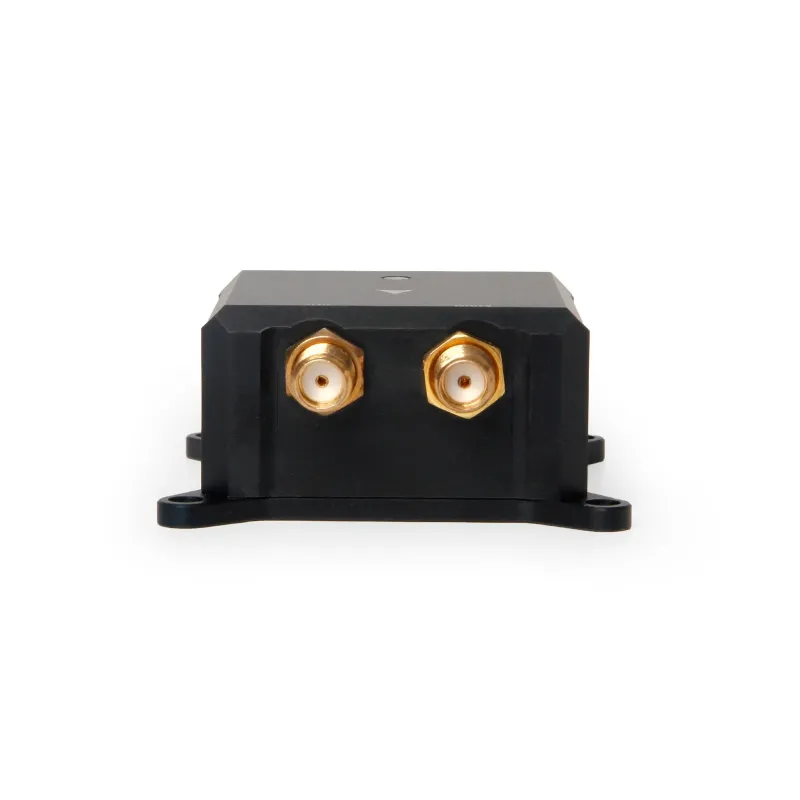

| Antenna Connection Type | Board: SMA female Antenna: SMA male |
| Baud rate: (Adjustable) | 230400 5Hz default |
| Working voltage: | 4.75V~5.25V |
| Power Consumption | 1.4 W typ(without antennas) 1.8 W max |
| Operating Temperature | -40℃ to 85℃ |
| Dimension | Board: 48*52.3*22mm Antenna Diameter: 40mm Antenna height: 76mm |
| Weight | 48.5g (without antennas) |
| Advanced Technologies inside | AIM+ Advanced functionality with jamming and spoofing detection automatic interference mitigation LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations APME+ a posteriori multipath estimator for code and phase multipath mitigation IONO+ provides advanced protection against ionospheric disturbances. RAIM+ receiver autonomous integrity monitoring |
| Velocity Accuracy | 3cm/s |
| Heading accuracy | 0.15deg (1m baseline) |
| Anti-jamming and anti-spoofing | AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations APME+ a posteriori multipath estimator for code and phase multipath mitigation IONO+ provides advanced protection against ionospheric disturbances. RAIM+ receiver autonomous integrity monitoring |
| OSNMA Support | Yes |
| Raw Measurement | Yes |
הערות טכניות מהיצרן

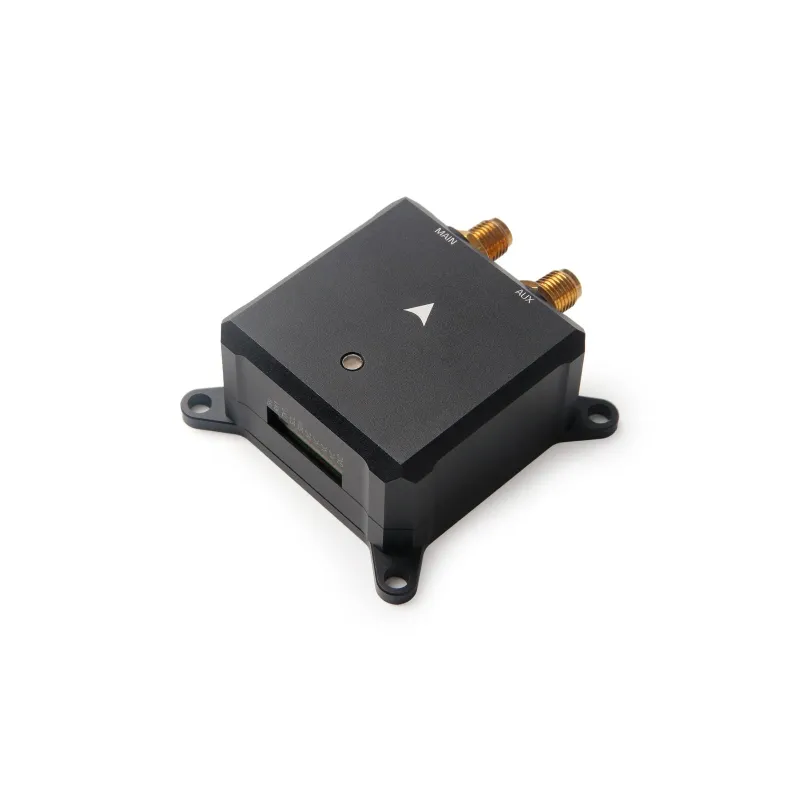

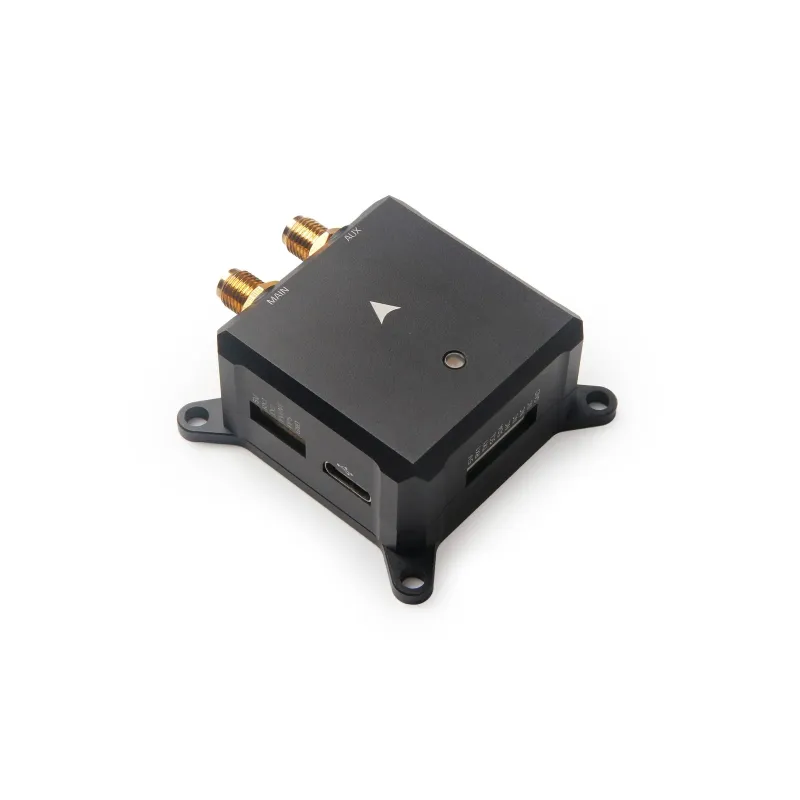

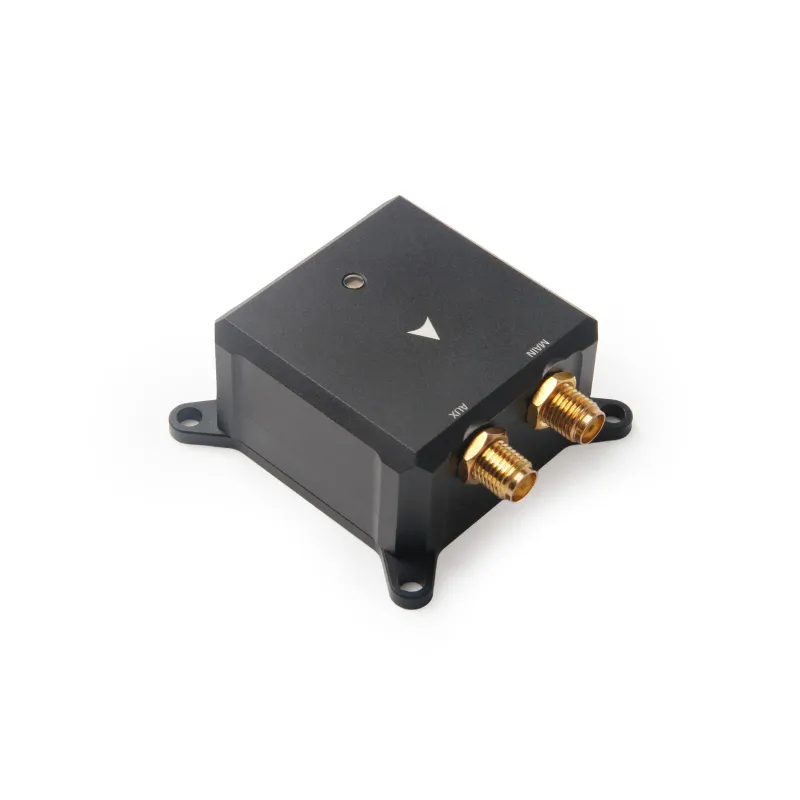

The Holybro H-RTK mosaic-G5 is a compact dual-antenna RTK GNSS receiver designed for UAVs, robotics, and autonomous systems. Built around the Septentrio mosaic-G5 P3H module, it provides centimeter-level positioning together with GNSS-based heading and pitch or roll measurements.
Dual-antenna GNSS heading reduces reliance on magnetic compasses, helping maintain accurate orientation in environments affected by motors, power wiring, metallic structures, and other sources of magnetic interference. An integrated RM3100 magnetometer provides an additional backup heading source.
The receiver supports quad-band GNSS positioning in single-antenna operation and tri-band heading in dual-antenna operation. It also includes onboard microSD data logging, USB-C, two UART interfaces, dual high-performance antennas, and a CNC-machined aluminum enclosure.
Septentrio’s AIM+ technology monitors, detects, and mitigates RF interference, including jamming and spoofing. Additional GNSS+ technologies improve tracking under vibration, multipath, and ionospheric disturbances, supporting reliable operation in demanding environments.
Best-in-class centimeter-level RTK positioning accuracy
Advanced Septentrio GNSS+ technologies for enhanced resilience against interference, multipath, vibration, and ionospheric disturbances
Quad-band single-antenna positioning and triple-band dual-antenna heading
Command-selectable single- or dual-antenna operation
Compact design with a rugged CNC-machined aluminum enclosure
Setup & Getting Started (Ardupilot)
Setup & Getting Started (PX4)
Septentrio RXTools (GNSS receiver control and analysis software)

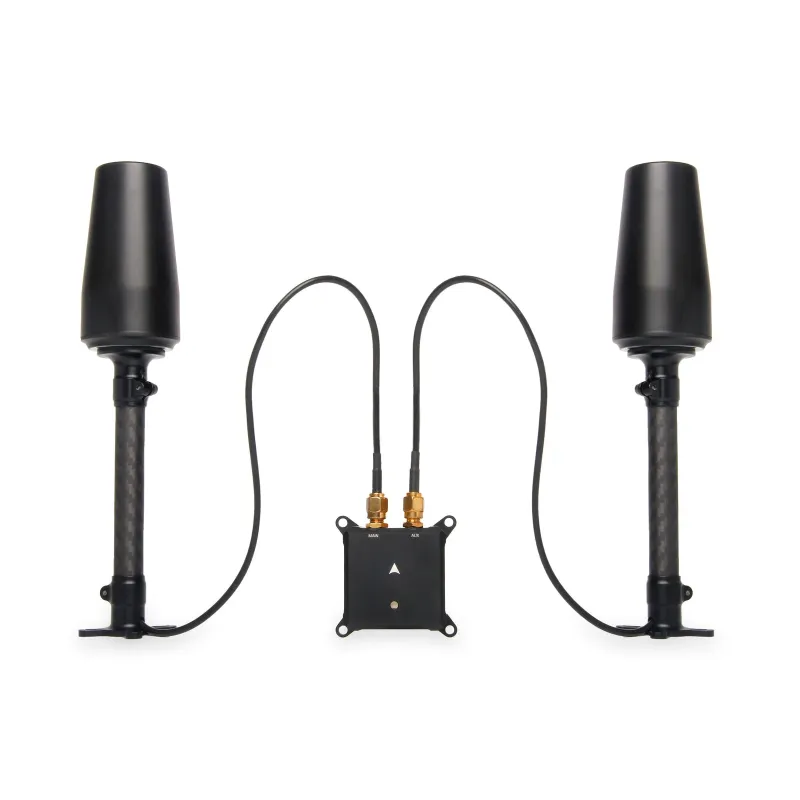

1x H-RTK mosaic-G5
2x High Performance Antenna
2x Antenna Mount for H-RTK
2x SMA Cable(40CM)
2x GH 10P Cable
1x GH 10P to 6P Cable
טבלאות טכניות ותצורות מהיצרן
| Product | Holybro H-RTK mosaic-G5 | |
| Receiver | Septentrio mosaic-G5 P3H | |
| Application | Rover Moving Baseline Rover | |
| GNSS | GPS: L1C/A, L1C, L2C, L2P(Y), L5 GLONASS: L1CA, L2CA, L2P, L3 CDMA Beidou: B1I, B1C, B2a, B2I, B2b, B3I Galileo: E1, E5a, E5b, E6 QZSS: L1C/A, L1C/B, L2C, L5, L6 (future update) | |
| RTK performance | Horizontal accuracy 0.6 cm + 0.5 ppm Vertical accuracy 1 cm + 1 ppm | |
| Positioning accuracy | Mode Horizontal Vertical Standalone 1.2m 1.9m DGNSS 0.4m 0.7m RTK 0.6cm+0.5ppm 1.0cm+1ppm | |
| Mode | Horizontal | Vertical |
| Standalone | 1.2m | 1.9m |
| DGNSS | 0.4m | 0.7m |
| RTK | 0.6cm+0.5ppm | 1.0cm+1ppm |
| GNSS attitude accuracy | Antenna Separation Heading Pitch/Roll 1m 0.15° 0.25° 5m 0.03° 0.05° | |
| Antenna Separation | Heading | Pitch/Roll |
| 1m | 0.15° | 0.25° |
| 5m | 0.03° | 0.05° |
| Time to first fix | Cold start: ≤ 35s Warm start: ≤ 10s Re-acquisition: 1 s | |
| Latency | < 10 ms | |
| Magnetometer (Compass) | RM3100 | |
| Antennas Peak Gain (MAX) | 2dBi | |
| LNA Gain | 33±2dB | |
| Time precision | PPS resolution: 1.4 ns Event accuracy: < 3 ns | |
| Maximum update rate | Position: 20Hz | |
| Ports | Port 1: USB Type-C Port 2: UART1 (GH1.25 10pin) Port 3: UART2 (GH1.25 6pin) | |
| Antenna Connection Type | Board: SMA female Antenna: SMA male | |
| Baud rate: (Adjustable) | 230400 5Hz default | |
| Working voltage: | 4.75V~5.25V | |
| Power Consumption | 1.4 W typ(without antennas) 1.8 W max | |
| Operating Temperature | -40℃ to 85℃ | |
| Dimension | Board: 48*52.3*22mm Antenna Diameter: 40mm Antenna height: 76mm | |
| Weight | 48.5g (without antennas) | |
| Advanced Technologies inside | AIM+ Advanced functionality with jamming and spoofing detection automatic interference mitigation LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations APME+ a posteriori multipath estimator for code and phase multipath mitigation IONO+ provides advanced protection against ionospheric disturbances. RAIM+ receiver autonomous integrity monitoring |
| Mode | Horizontal | Vertical |
| Standalone | 1.2m | 1.9m |
| DGNSS | 0.4m | 0.7m |
| RTK | 0.6cm+0.5ppm | 1.0cm+1ppm |
| Antenna Separation | Heading | Pitch/Roll |
| 1m | 0.15° | 0.25° |
| 5m | 0.03° | 0.05° |
| mosaic-H | mosaic-G5 P3H | |
| Bands supported | GPS: L1, L2 Galileo: E1, E5b GLONASS: L1, L2 Beidou: B1, B2, B3 QZSS: L1C/A, L1C/B, L2 SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1) | GPS: L1C/A,L1C, L2C, L2P(Y), L5 Galileo: E1, E5a, E5b, E6 GLONASS: L1CA, L2CA, L2P, L3CDMA Beidou: B1I, B1C, B2a, B2I, B2b, B3I QZSS: L1C/A, L1C/B, L2C, L5, L6 (future update) |
| RTK Performance | Horizontal: 0.6cm + 0.5ppm Vertical: 1cm + 1ppm | |
| Other Positioning Modes Accuracy | Standalone: 1.2m DGNSS: 0.4m SBAS: 0.6m | Standalone: 1.2m DGNSS: 0.4m |
| Velocity Accuracy | 3cm/s | |
| Heading accuracy | 0.15deg (1m baseline) | |
| Maximum update rate | Measurements only: 100Hz Standalone: 50Hz RTK: 20Hz | 20Hz |
| Latency | <10ms | |
| Acquisition | 33dBHz | 30dBHz |
| Time Precision | PPS resolution: 5ns Event accuracy: <20ns | PPS resolution: 1.4ns Event accuracy: <3ns |
| Anti-jamming and anti-spoofing | AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations APME+ a posteriori multipath estimator for code and phase multipath mitigation IONO+ provides advanced protection against ionospheric disturbances. RAIM+ receiver autonomous integrity monitoring | |
| OSNMA Support | Yes | |
| Base/Rover | Base and Rover | Rover and Base (with latest firmware) |
| Protocols | NMEA, SBF, RINEX, RTCM, CMR | NMEA, SBF, RTCM input |
| Web interface and Ethernet | Yes | No |
| Raw Measurement | Yes | |
| 30° Antenna Mount | Antenna Extension Cable | GPS Extension Cable |
פנייה לגבי המוצר
זמינות, מחיר, תכולת החבילה וגרסת החומרה יאושרו בפנייה. אין בדף התחייבות למלאי מקומי, זמן אספקה או מעמד של נציגות רשמית. יש לוודא התאמה למתח, למחברים, לקושחה ולדרישות ההפעלה לפני שימוש.
