Holybro H-RTK Unicore UM982 (Dual Antenna Heading)

Holybro H-RTK Unicore UM982 (Dual Antenna Heading): פריט בקטלוג Holybro, בקטגוריית ניווט GNSS ו-RTK. הדף מיועד לבדיקת התאמה ולפנייה לגבי אספקה לשימוש אזרחי.

מפרט הדגם

הערות טכניות מהיצרן

The Holybro UM982 Dual Antenna RTK GPS provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for controllers with a single GPS module.

One of the best applications of this GPS is to provide compass-less YAW information to the controller (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as a yaw source prevents magnetic interference from the vehicle motors and electrical systems, and any environmental interference sources, such as metallic structures or equipment, that can cause incorrect yaw reports to the controller.

This works even if the GPSs are not receiving RTCM data from a fixed RTK station or NTRIP server. The device is based on the Unicore UM982 NMEA GNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS, Beidou, Galileo, and QZSS global positioning systems.

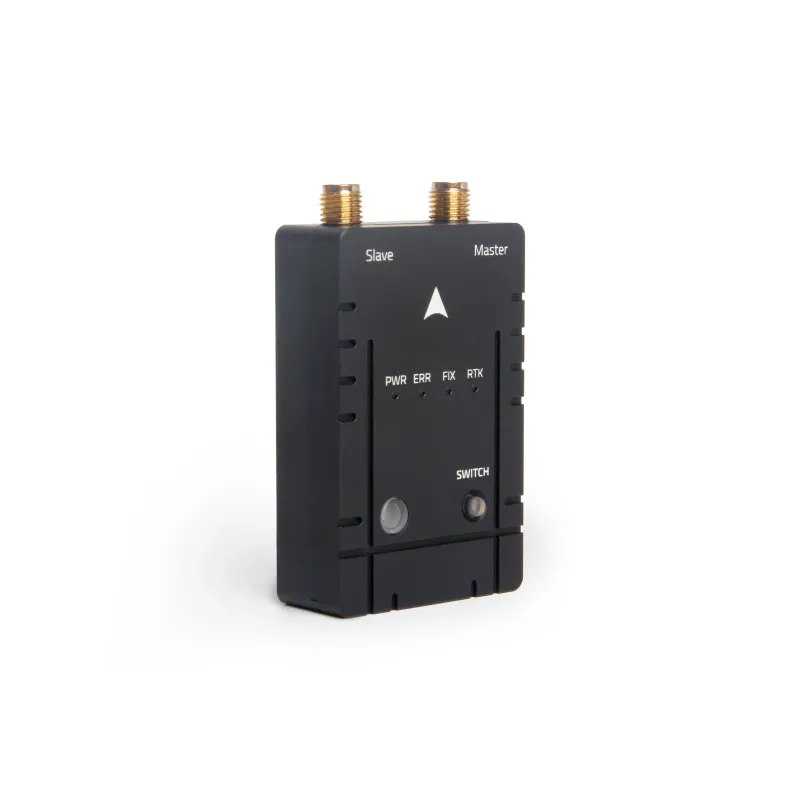

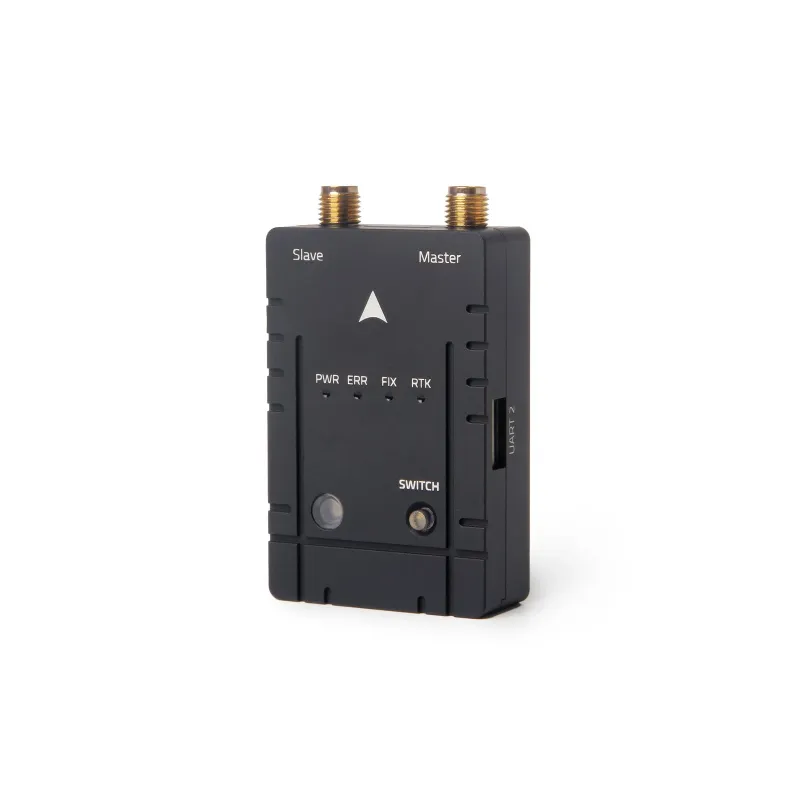

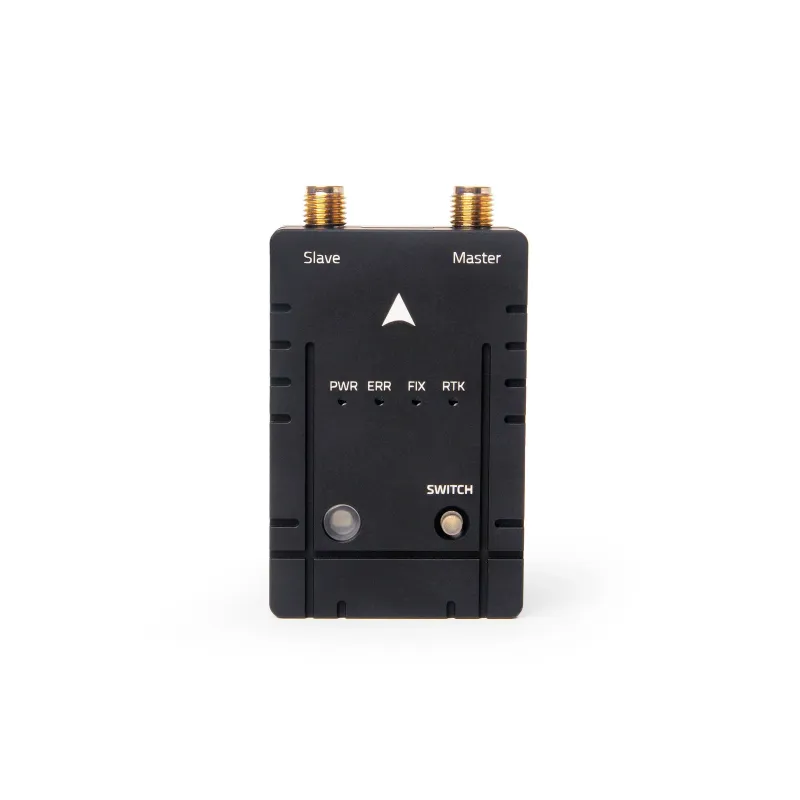

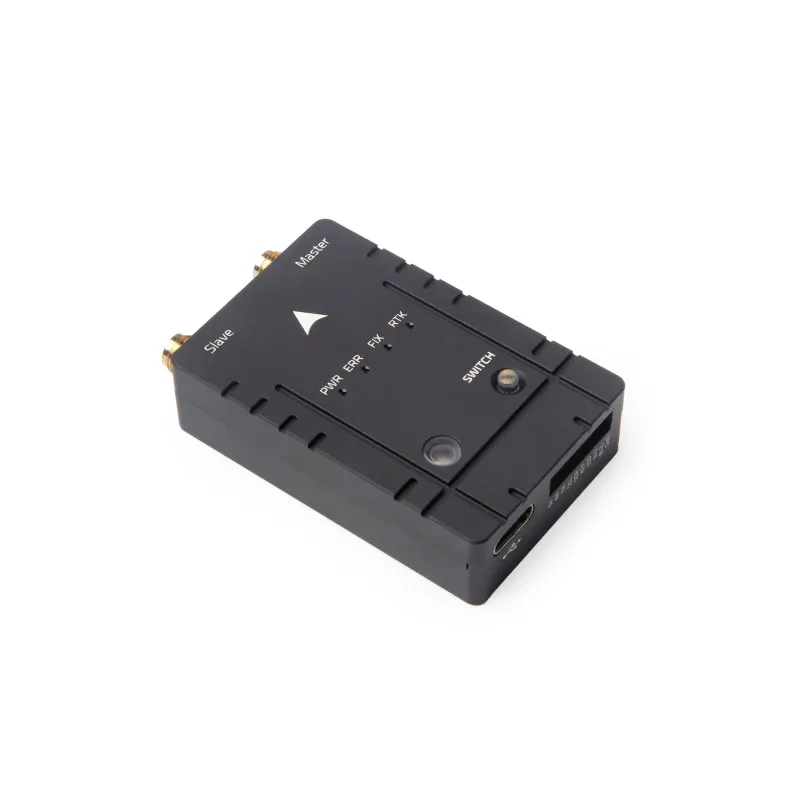

It also includes a magnetometer, LED indicators, and a safety button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as a base station GPS for sending RTCM data to a ground control station to provide an RTK source for the vehicle via telemetry.

Note: The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)

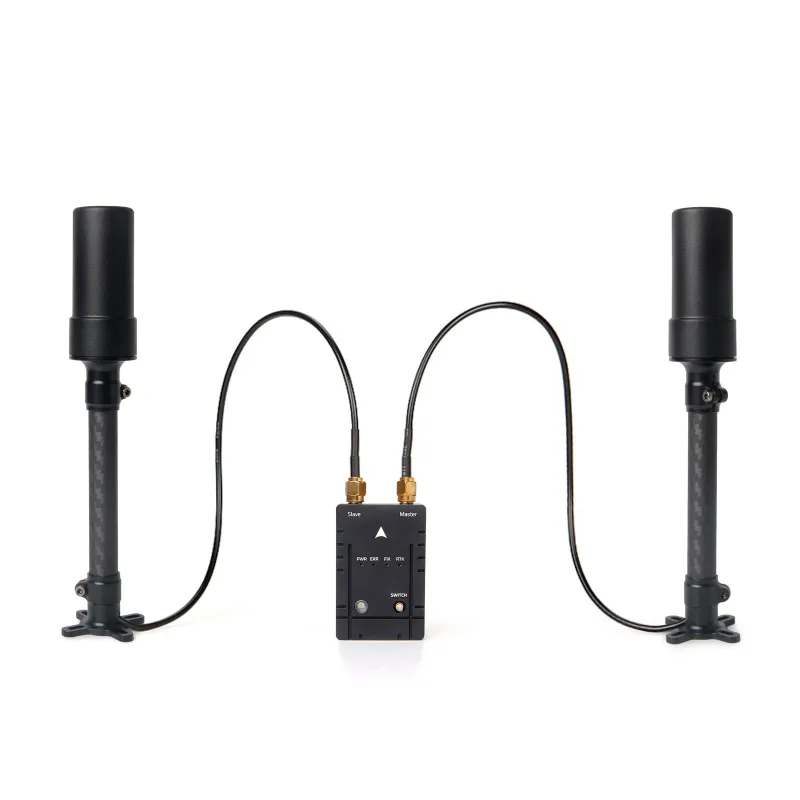

Dual antennas allow Moving Baseline Yaw (GPS Heading) with just one module

Can replace the traditional compass/magnetometer

Perfect for a system/environment with high magnetic interference

Excellent RTK performance

Tips: It is recommended to use the H-RTK F9P-Base or F9P Helical as your base station because it's a simple setup procedure in Mission Planner & QGroundControl. Currently, QGC cannot configure the UM982 automatically as a base station; additional manual setup is required.

For other technical details and setup guides, please refer to the Holybro Documentation Page

Setup & Getting Started (Ardupilot)

Setup & Getting Started (PX4)

Uprecise Download

Firmware supports details

Package Included:

2x High Precision Helical Antennas

2x Antenna Mounts

2x SMA Cables (40cm)

2x 10pin - 10pin JST-GH Cables

1x 10pin - 6pin JST-GH Cable

1x 6pin - 6pin JST-GH Cable

טבלאות טכניות ותצורות מהיצרן

פנייה לגבי המוצר

זמינות, מחיר, תכולת החבילה וגרסת החומרה יאושרו בפנייה. אין בדף התחייבות למלאי מקומי, זמן אספקה או מעמד של נציגות רשמית. יש לוודא התאמה למתח, למחברים, לקושחה ולדרישות ההפעלה לפני שימוש.
