FrSky TD R12 Dual Band Receiver with 12 Channel Ports

FrSky TD R12 Dual Band Receiver with 12 Channel Ports הוא מוצר מקורי של FrSky מתוך משפחת Tandem TD dual-band radio system. העמוד נבנה כדי לעזור לבחור נכון לפי התאמה לדגם, פרוטוקול, מספר ערוצים, מתח עבודה, אביזרים תואמים ותפקיד המוצר במערכת ה-RC.

המוצר מתאים ל-radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. המידע מוצג בצורה מסודרת עבור לקוח קצה, ללא מחירי ספק וללא הפניה לרכישה מחוץ ל-RC-MODEL.

נקודות חשובות

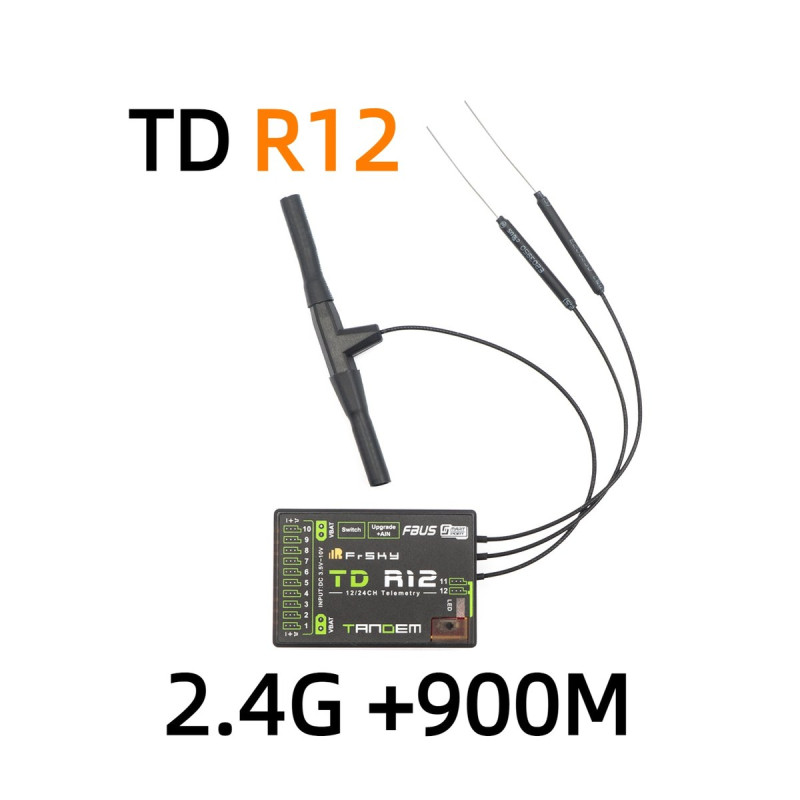

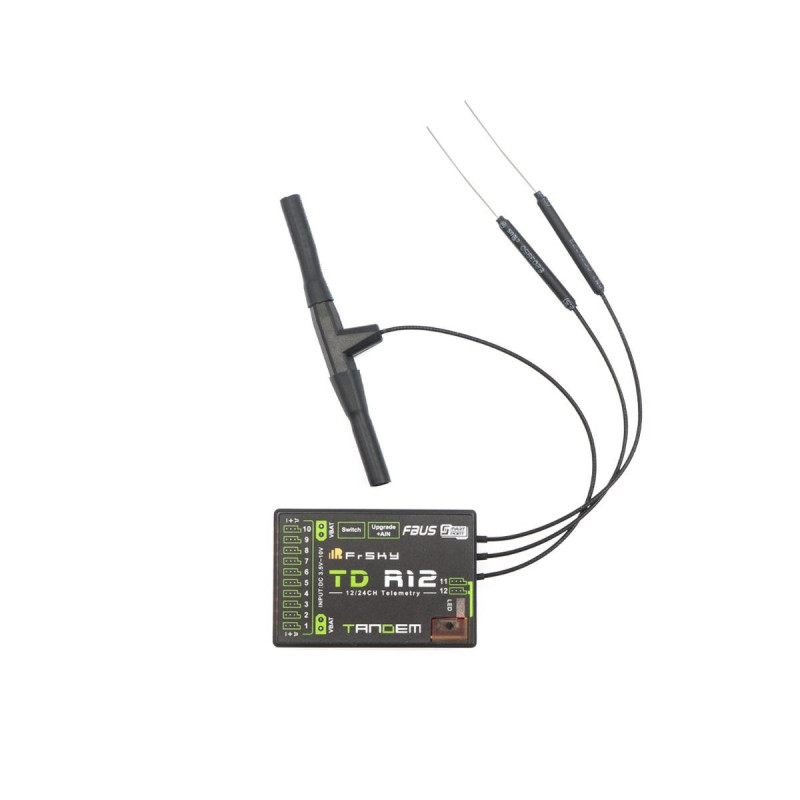

• FrSky TD R12 equipped with a triple antenna (2×2.4G & 1×900M)
• The Tandem (TD) dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means TD receivers provide not only low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.
• The TD R12 receiver is equipped with a triple antenna (2×2.4G & 1×900M) design that provides multi-directional wide coverage for the remote signal and is designed for RC users who want to benefit from resilience and long-range in their radio communications.
• TD R12 also provides a socket that can be used to connect the NFC Switch panel to enable the built-in Power Switch function. Dual-power provides a safe and efficient way to power the system with your power sources connected via a pair of standard XT30 connections. The dual-power consumption system is designed to operate in balance mode, where it consumes the power line from either power source depending on which has the higher voltage. With a built-in black box module, the data (Power & Signal related) under unusual status during the flight can be recorded by TD receivers.
• The configurable 12-channel ports are a big feature of TD R12, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.
• Simultaneous Working Dual-Band (900M/2.4G) TD Mode

מפרט מרכזי

• מק"ט מוצר: FRSKY-TD-R12-DUAL-BAND-RECEIVER
• משפחת מוצר: Tandem TD dual-band radio system
• פרוטוקול / RF: Tandem TD 2.4GHz + 900MHz, 2.4GHz, 900MHz, FBUS, S.Port
• ערוצים: 12 channels, 16 channels, 24 channels
• מתח: 10V, 35V
• תאימות: Tandem series radio & TD protocol capable RF module
• משקל: 23g
• CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.)
• CP2-12: PWM / SBUS Out / FBUS / S.Port
• Frequency: 900MHz & 2.4GHz
• Dimension: 48.5*33*17.9mm (L*W*H)
• Operating Voltage: 3.5-10V (Recommend 2S Li Batteries)
