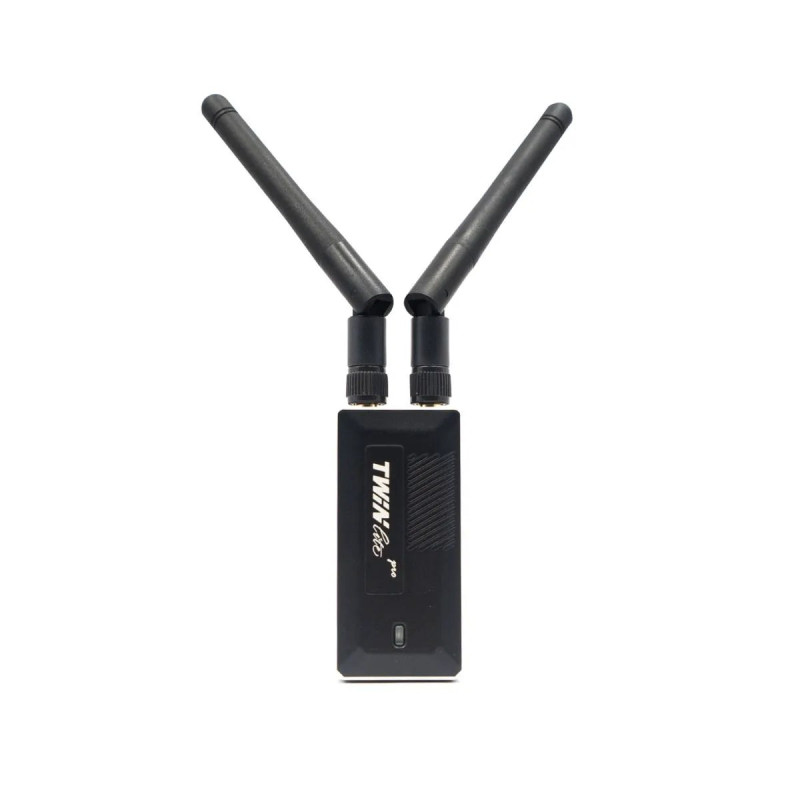

FrSky TWIN Lite Pro RF module

FrSky TWIN Lite Pro RF module הוא מוצר מקורי של FrSky מתוך משפחת Twin TW dual 2.4GHz radio system. העמוד נבנה כדי לעזור לבחור נכון לפי התאמה לדגם, פרוטוקול, מספר ערוצים, מתח עבודה, אביזרים תואמים ותפקיד המוצר במערכת ה-RC.

המוצר מתאים ל-FrSky transmitter setups for pilots who need flexible RF protocols, model memory and telemetry integration. המידע מוצג בצורה מסודרת עבור לקוח קצה, ללא מחירי ספק וללא הפניה לרכישה מחוץ ל-RC-MODEL.

נקודות חשובות

• The Twin Lite PRO is a powerful RF module that enables ETHOS capable radios to bind to the TW series receivers and support the TW protocol’s dual 2.4G frequencies simultaneously on the same receiver. The TW active-active protocol is different from the general active-standby redundancy solutions (where one receiver takes over signal control only when the other is in Failsafe mode), with the TW protocol, dual 2.4G frequency bands are active on the TW series module, and receiver at the same time.
• The RF module has two 2.4G external antennas RF mounted to provide multi-directional and wider coverage for transmitting signals compared to a single antenna design. Taking advantage of these features, the Twin system can provide less latency and higher reliability at a faster data rate with confidence.
• In addition to the TW mode, this module also supports ACCST D16 and ACCESS modes, this means users can benefit from a wide range of compatible receiver options to choose from and bind to when building the RC model. The Twin Lite Pro module offers resilient RF power options up to 500mW, constructed with the CNC machined metal module shell that helps aid heat dissipation, this system can ensure a stable long-range control further around tens of kilometers under long working hours.
• Less latency with more range and higher reliability at a faster data rate
• CNC machined metal module shell designed to aid heat dissipation
• Adjustable RF Power (Up to 500mW)

מפרט מרכזי

• מק"ט מוצר: FRSKY-TWIN-LITE-PRO-RF-MODULE
• משפחת מוצר: Twin TW dual 2.4GHz radio system
• פרוטוקול / RF: ACCESS, Twin TW dual 2.4GHz, 2.4GHz
• משקל: 36.8g (without antenna)
• Supports multiple RF protocols: ACCST D16 / ACCESS / TW modes
• Dimension: 62.8×30×17.2mm (L*W*H)
• Operating current: 84mA@100mW
• RF power: 10mW/25mW/100mW/200mW/500mW
• Antenna: 2* external 2.4G antenna
• יצרן: FrSky
• מותג: FrSky
• קטגוריות מקור FrSky: Modules, MODULES, Radio Parts & Accessories
