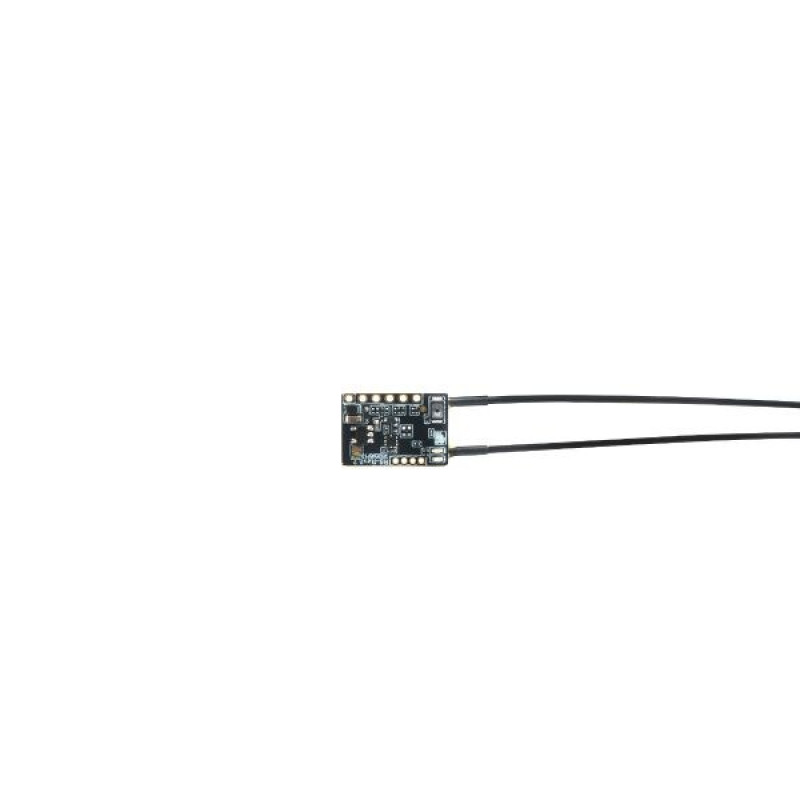

FrSky Archer Plus RS Receiver

FrSky Archer Plus RS Receiver הוא מוצר מקורי של FrSky מתוך משפחת ACCESS / Archer receiver system. העמוד נבנה כדי לעזור לבחור נכון לפי התאמה לדגם, פרוטוקול, מספר ערוצים, מתח עבודה, אביזרים תואמים ותפקיד המוצר במערכת ה-RC.

המוצר מתאים ל-radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. המידע מוצג בצורה מסודרת עבור לקוח קצה, ללא מחירי ספק וללא הפניה לרכישה מחוץ ל-RC-MODEL.

נקודות חשובות

• The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.
• The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid and stable RF performance, and this is in addition to existing anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they support even more functions like configurable telemetry power (RS), S.Port / F.Port / FBUS switching, and VFR indicators.
• The RS supports full-range signal control with an equivalent telemetry range. Dual detachable/replaceable antennas assure optimal antenna reception and maximum range with their lightweight design thanks to the extremely tiny form factor. Features an inverted S.Port that allows for easily connecting flight controllers, in addition to all this, the RS can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with an SBUS port. The best available signal will be used to ensure superior connectivity.
• Tiny and super lightweight
• S.Port / F.Port / FBUS (Configurable via S.Port)
• Over-The-Air (OTA) FW update

מפרט מרכזי

• מק"ט מוצר: FRSKY-ARCHER-PLUS-RS-RECEIVER
• משפחת מוצר: ACCESS / Archer receiver system
• פרוטוקול / RF: ACCESS, Twin TW dual 2.4GHz, FBUS, S.Port, SBUS
• ערוצים: 16 channels, 24 channels
• מתח: 10V, 5V
• תאימות: All FrSky ACCESS/ACCST D16 transmitters.
• משקל: 1.3g
• Dimension: 16*11mm (L*W)
• Operating Voltage: 3.5-10V
• Operating Current: 60mA@5V
• Antenna Connector: IPEX4
• Control Range: Full range* with telemetry
