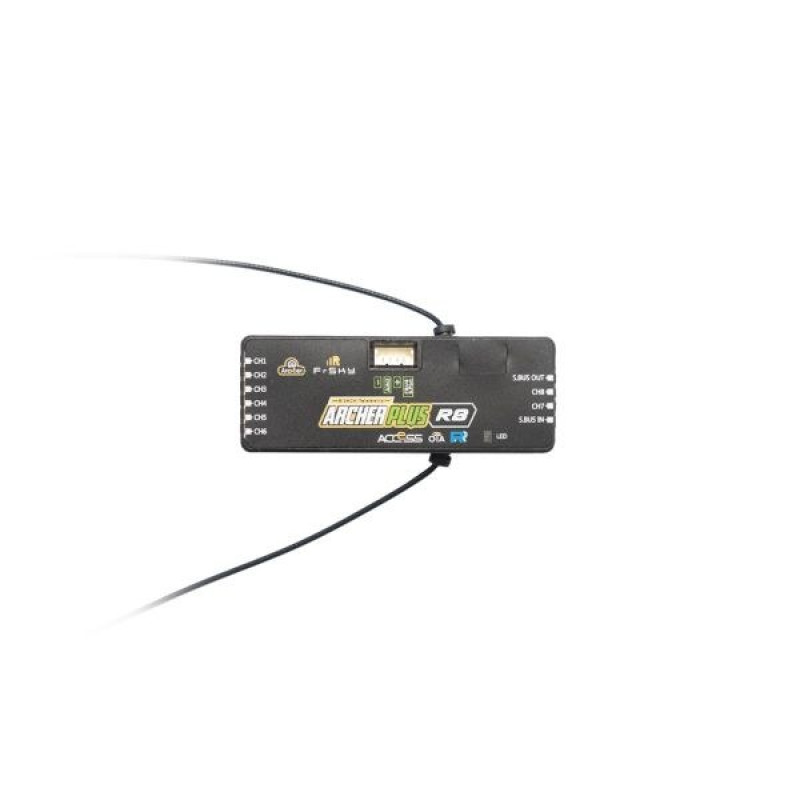

FrSky ACCESS Archer Plus R8 Receiver with 8 Channel Ports

FrSky ACCESS Archer Plus R8 Receiver with 8 Channel Ports הוא מוצר מקורי של FrSky מתוך משפחת ACCESS / Archer receiver system. העמוד נבנה כדי לעזור לבחור נכון לפי התאמה לדגם, פרוטוקול, מספר ערוצים, מתח עבודה, אביזרים תואמים ותפקיד המוצר במערכת ה-RC.

המוצר מתאים ל-radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. המידע מוצג בצורה מסודרת עבור לקוח קצה, ללא מחירי ספק וללא הפניה לרכישה מחוץ ל-RC-MODEL.

נקודות חשובות

• The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.
• The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to the receivers with anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function, some basic flight data (like Power & Signal related) can be well preserved.
• The Archer Plus R8 8 high-precision PWM channel receivers support full-range signal strength with dual detachable antennas and guarantee optimal antenna reception and range. The R8 can be used as a Primary receiver in a redundant solution by wiring the SBUS In port and connecting to any other FrSky receiver equipped with an SBUS Out port. With the FBUS protocol, the Archer Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT servos, ADV Sensors, etc.) as well as simplifying the builds setup.
• (*Some features require the support of ACCESS and ETHOS.)
• Enhanced Anti RF-Interference capability with more solid RF performance
• Smart-matched ACCESS & ACCST D16 modes

מפרט מרכזי

• מק"ט מוצר: FRSKY-ACCESS-ARCHER-PLUS-R8-RECEIVER
• משפחת מוצר: ACCESS / Archer receiver system
• פרוטוקול / RF: ACCESS, 2.4GHz, FBUS, S.Port, SBUS
• ערוצים: 8 channels, 24 channels
• מתח: 10V, 5V, 35V
• תאימות: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
• משקל: 9.8g
• האריזה כוללת: FrSky Archer Plus R8*1
• Dimension: 54*20*10mm (L*W*H)
• Number of Channels: 8/24 channels
• טווח מתח עבודה: 3.5 -10V
• Operating Current: ＜65mA@5V
