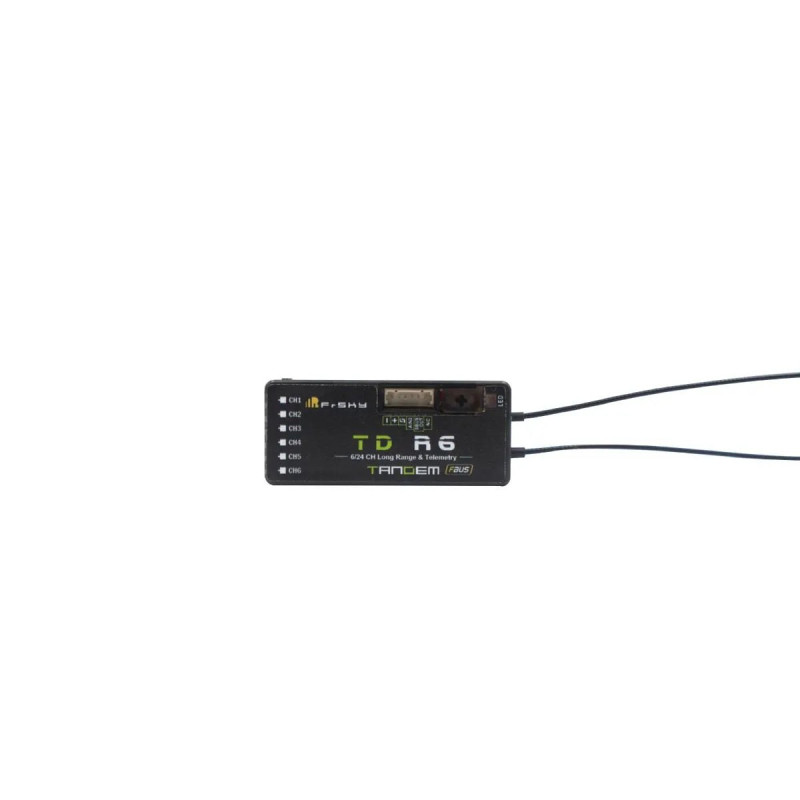

FrSky Tandem TD R6 Dual-Band Receiver with 6 Channel Ports

FrSky Tandem TD R6 Dual-Band Receiver with 6 Channel Ports הוא מוצר מקורי של FrSky מתוך משפחת Tandem TD dual-band radio system. העמוד נבנה כדי לעזור לבחור נכון לפי התאמה לדגם, פרוטוקול, מספר ערוצים, מתח עבודה, אביזרים תואמים ותפקיד המוצר במערכת ה-RC.

המוצר מתאים ל-radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. המידע מוצג בצורה מסודרת עבור לקוח קצה, ללא מחירי ספק וללא הפניה לרכישה מחוץ ל-RC-MODEL.

נקודות חשובות

• The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.
• The Tandem series receivers adopt a dual-band antenna design (2.4GHz & 900MHz) that provides multi-directional wide coverage for the remote signal. The telemetry data (Power & Signal related) can be recorded using the built-in black box module within the Tandem receiver, useful for capturing data from any unusual status during the flight.
• TD R6 receiver offers 6 PWM channel outputs and is bundled in a compact lightweight design, the receiver also provides two 3-pin ports accordingly for SBUS Out and FBUS/S.Port. By setting the S.Port to the FBUS protocol, the TD receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the build setup.
• Simultaneous working 2.4G&900M dual-band TD mode
• Dual-band antenna design for multi-directional coverage
• Compact lightweight design

מפרט מרכזי

• מק"ט מוצר: FRSKY-TANDEM-TD-R6-DUAL-BAND-RECEIVER
• משפחת מוצר: Tandem TD dual-band radio system
• פרוטוקול / RF: Tandem TD 2.4GHz + 900MHz, Twin TW dual 2.4GHz, 2.4GHz, 900MHz, FBUS
• ערוצים: 6 channels, 16 channels, 24 channels
• מתח: 10V, 8.4V, 5V
• תאימות: TANDEM series radio & RF module in TD mode.
• משקל: 11.5g
• Frequency: 2.4GHz & 900MHz
• Dimension: 47.5*20.4*10.9mm (L*W*H)
• Operating Voltage: 3.5-10V(recommend 3.7-8.4V)
• Operating Current: ≤110mA@5V
• 2.4G/900M antenna connector: IPEX1
