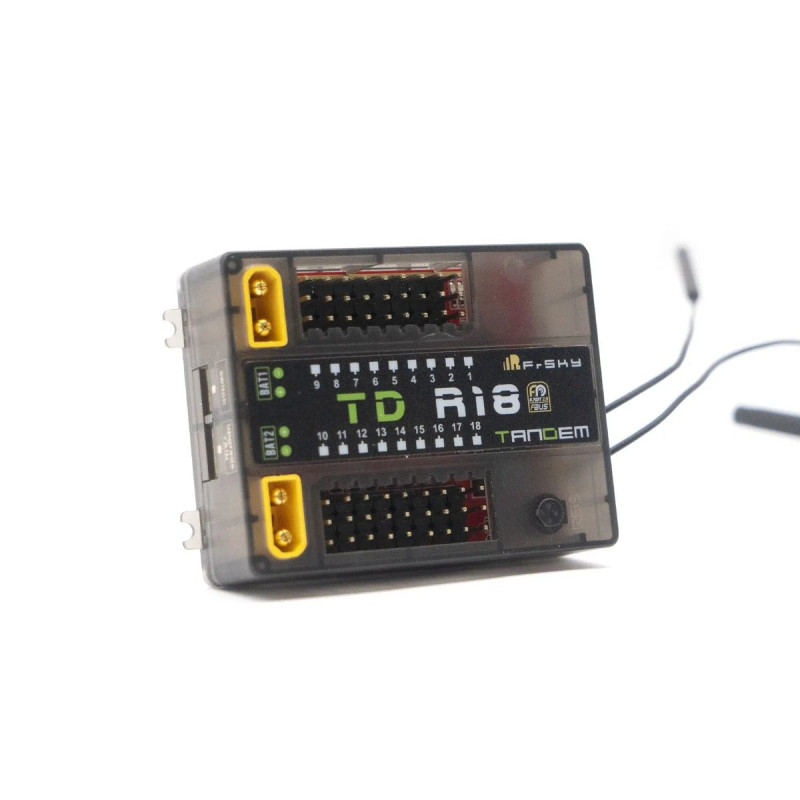

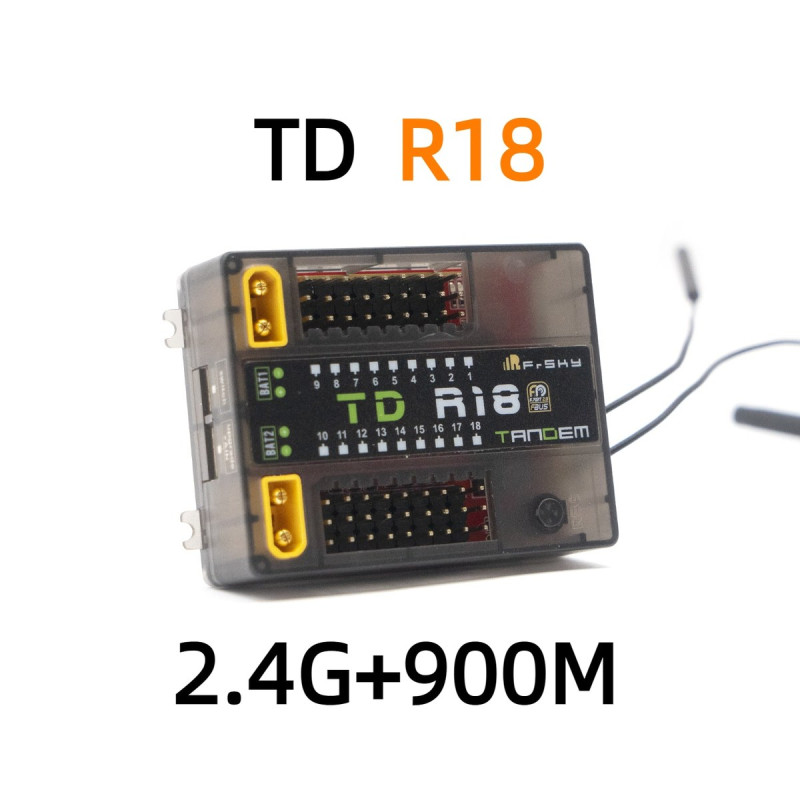

FrSky Tandem TD R18 Dual-Band Receiver with 18 Channel Ports

FrSky Tandem TD R18 Dual-Band Receiver with 18 Channel Ports הוא מוצר מקורי של FrSky מתוך משפחת Tandem TD dual-band radio system. העמוד נבנה כדי לעזור לבחור נכון לפי התאמה לדגם, פרוטוקול, מספר ערוצים, מתח עבודה, אביזרים תואמים ותפקיד המוצר במערכת ה-RC.

המוצר מתאים ל-radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. המידע מוצג בצורה מסודרת עבור לקוח קצה, ללא מחירי ספק וללא הפניה לרכישה מחוץ ל-RC-MODEL.

וריאציות זמינות: TDR-18; TDR-18 with [03072002] audio switch panel

נקודות חשובות

• The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal and long range control, also benefits from enhanced level of high reliability and anti-interference performance.
• The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The 900Mhz antenna is a newly designed small form factor, but has the equivalent high-performance as with previous 900mhz antennas.
• The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module, and TD R18 can additionally save the complete and long-term data (Control & Flight Attitude data log, etc.) by SD card through the external module. TD R18 also provides a socket that can be used to connect the switch panel/NFC Switch panel to enable the built-in Power Switch function.
• The configurable 18 channel ports are a big feature of TD R18, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.

מפרט מרכזי

• מק"ט מוצר: 03072002
• משפחת מוצר: Tandem TD dual-band radio system
• פרוטוקול / RF: Tandem TD 2.4GHz + 900MHz, 2.4GHz, 900MHz, FBUS, S.Port
• ערוצים: 18 channels
• יצרן: FrSky
• מותג: FrSky
• כל מק"טי הווריאציות: 03072002
• וריאציות זמינות: TDR-18; TDR-18 with [03072002] audio switch panel
• קטגוריות מקור FrSky: Receivers, TD (2.4G+900M) Receivers
• יישום: radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups
