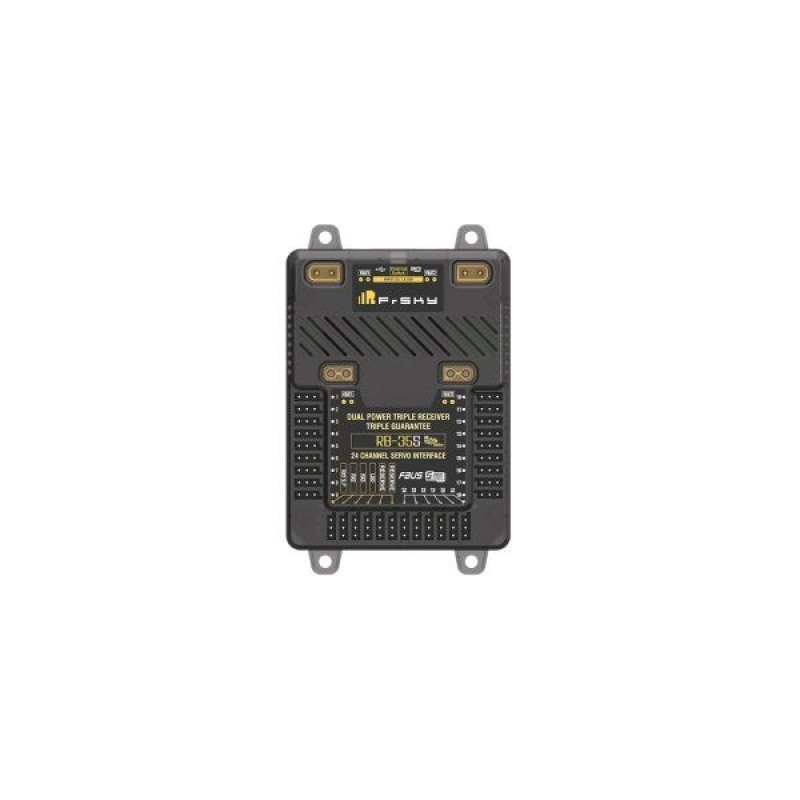

FrSky RB35 Dual Power and Triple Receiver Redundancy Bus

FrSky RB35 Dual Power and Triple Receiver Redundancy Bus הוא מוצר מקורי של FrSky מתוך משפחת FrSky power and redundancy range. העמוד נבנה כדי לעזור לבחור נכון לפי התאמה לדגם, פרוטוקול, מספר ערוצים, מתח עבודה, אביזרים תואמים ותפקיד המוצר במערכת ה-RC.

המוצר מתאים ל-radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. המידע מוצג בצורה מסודרת עבור לקוח קצה, ללא מחירי ספק וללא הפניה לרכישה מחוץ ל-RC-MODEL.

נקודות חשובות

• Built-in Power Switch Match with Different External Switches (Optional, like NFC, etc.)
• The RB-35/RB-35S builds on the success of the previous trusted Redundancy Bus series by adding many new features, such as configurable dual power input, dual BEC outputs, overload / current detection, the new ADV stabilizer (RB-35S), etc. The RB-35/RB-35S system has been designed to meet the needs of users who want the ultimate flight-safe performance and safety for their RC Models.
• Triple Receiver Redundancy & Dual Power Input
• RB-35/RB-35S has been designed to offer both dual-power and triple-receiver redundancy. This provides the user triple receiver signal and telemetry redundancy by adding multiplex ports (RX1-3 IN / S.Port). Dual-power provides a safe and efficient way to power the system with your power sources connected via a pair of standard XT30 connections.
• The dual-power consumption system can operate either in Balance or Backup mode. In Balance Mode (default), it consumes the power line from either power source depending on which has the higher voltage. When switching to the Backup Mode, the system consumes the power line with the priority that the user selected under the set voltage range.
• Dual BEC Outputs & Overload Protection & Current Detection

מפרט מרכזי

• מק"ט מוצר: 03071611
• משפחת מוצר: FrSky power and redundancy range
• פרוטוקול / RF: ACCESS, Twin TW dual 2.4GHz, FBUS, S.Port, SBUS
• ערוצים: 1 channels
• מתח: 5V, 8.4V, 26V, 12V
• טווח מתח כניסת סוללה: DC7.4-26V (It is recommended to use 3S-6S Li batteries)
• משקל: 99g
• (Note: Only the S.Port on the RX1 channel port can be used to upgrade firmware.); 2S Li Batteries will not have sufficient input supply voltage to reach the 8.4V BEC output configuration.)
• (BEC 1: VOut1 & CH1-9 | BEC 2: VOut2 & CH10-24 & all other Ports)
• Dimension: 114.4*73.4*18.7mm (L*W*H)
• Number of Configurable Channel Ports: 24 (PWM/FBUS/S.Port/SBUS Out)
• Operating Current: 200mA@12V
