T-Motor A16-18S A16-18S T-Motor A16-18S A16-18S T-Motor A16-18S A16-18S T-Motor A16-18S A16-18S T-Motor A16-18S A16-18S T-Motor A16-18S A16-18S
16

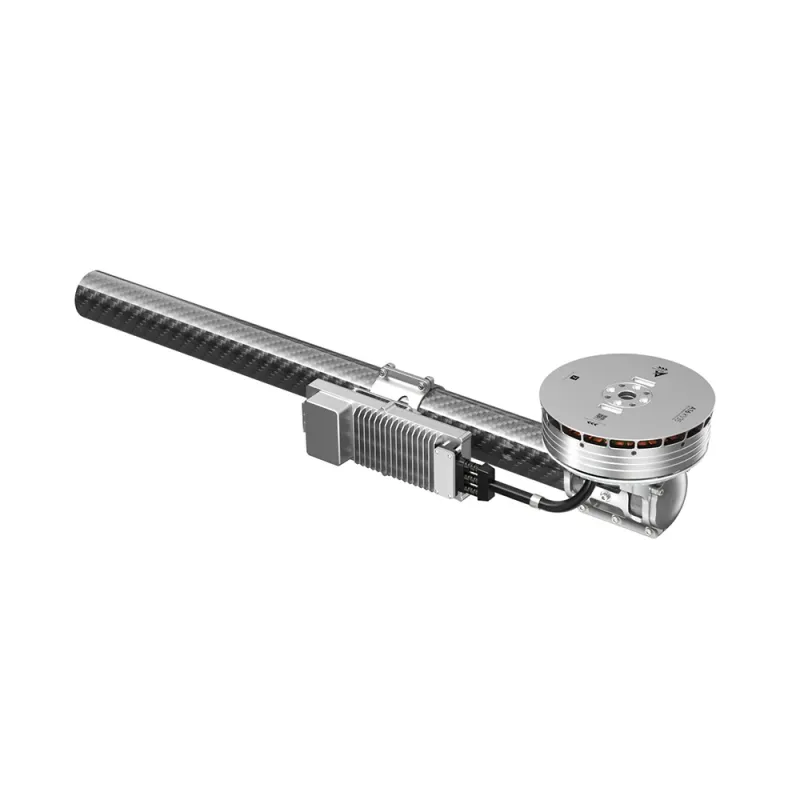

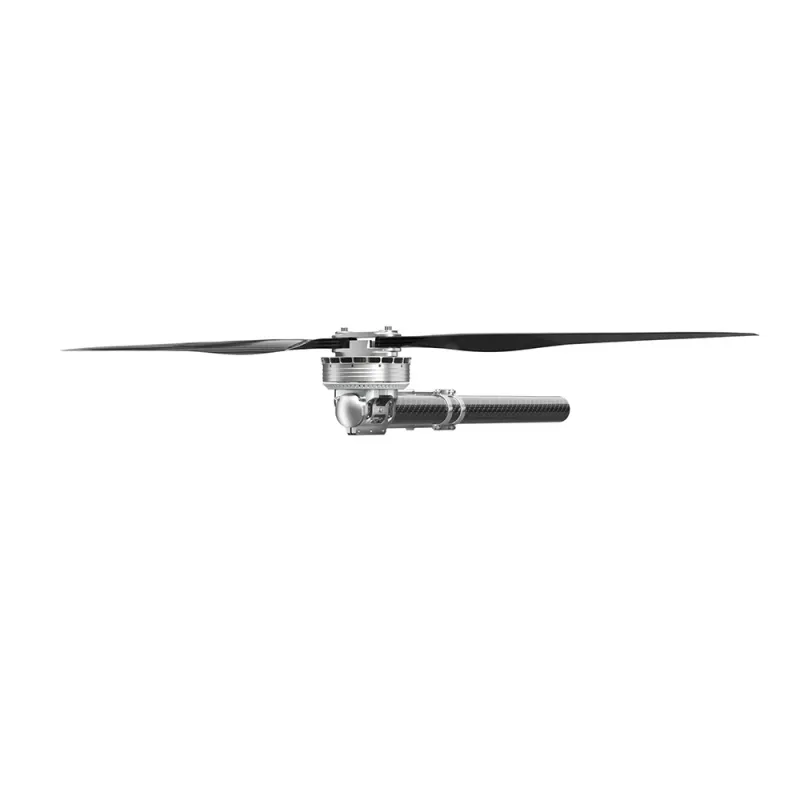

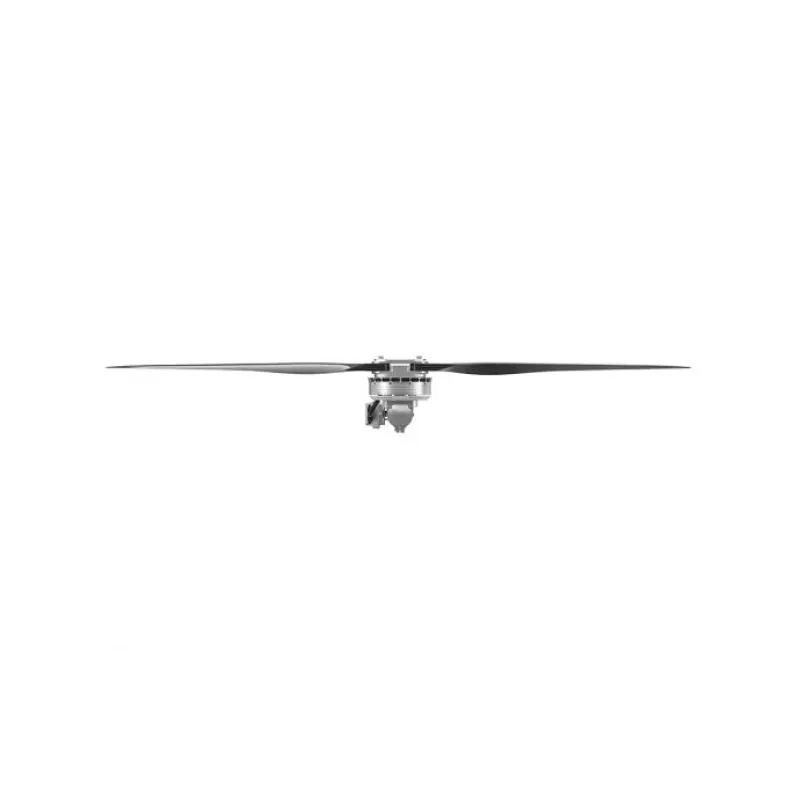

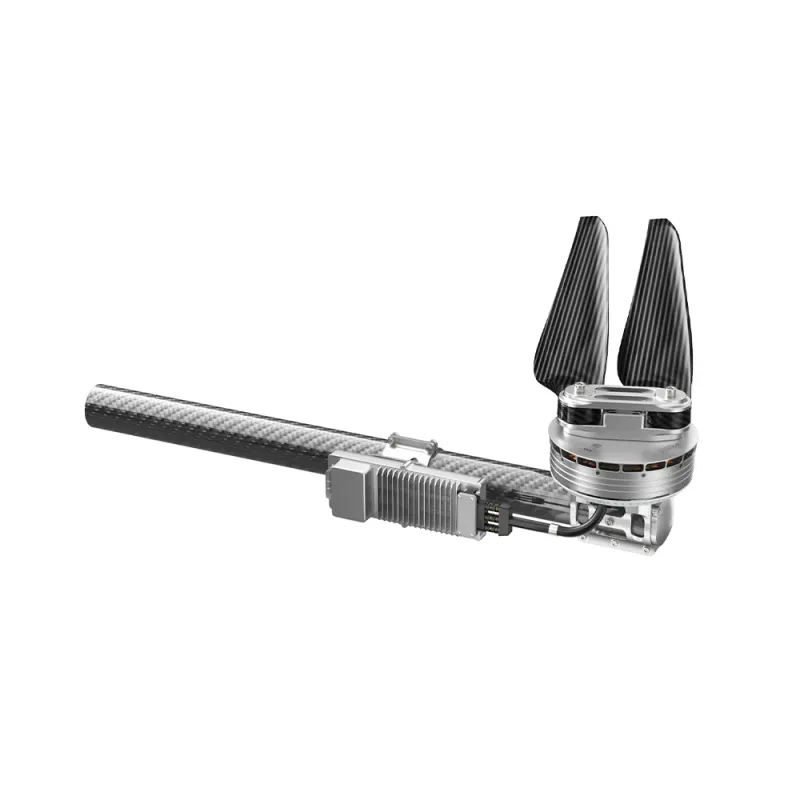

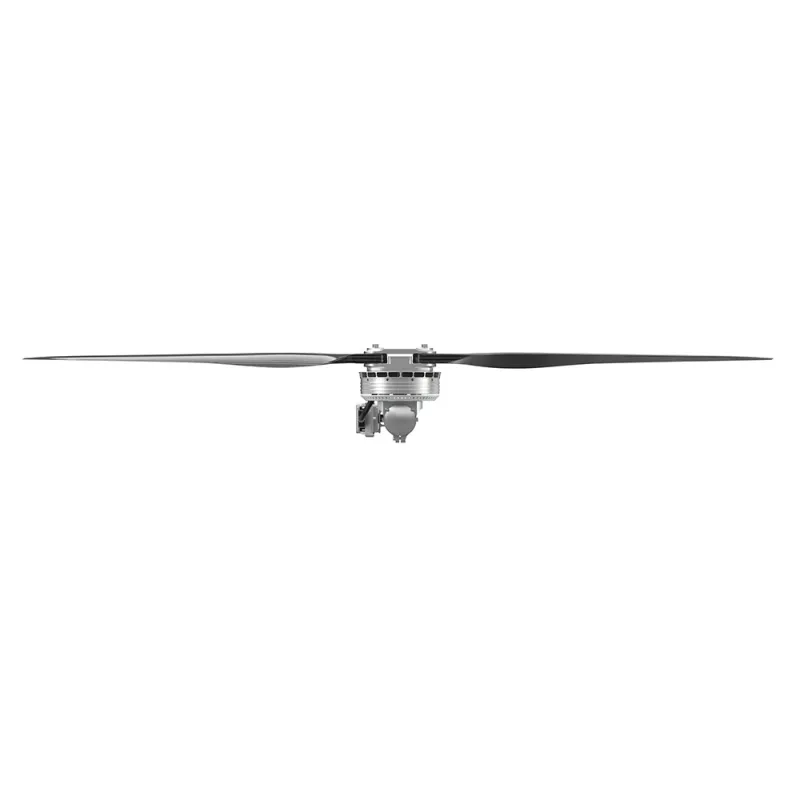

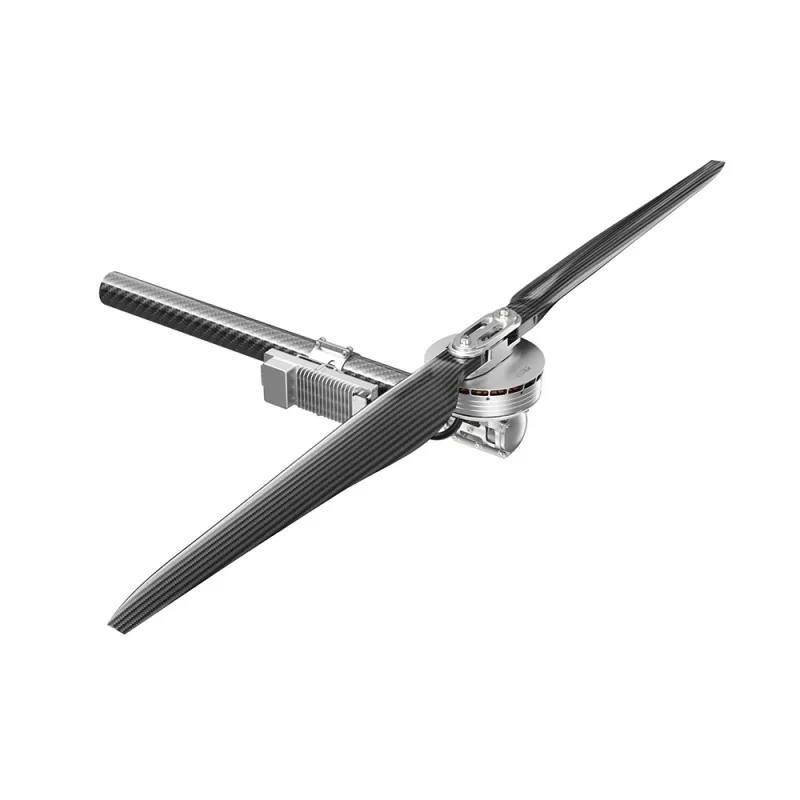

T-Motor A16-18S A16-18S

  • Brand:T-Motor
  • Product Code:T-MOTOR001581
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor A16-18S A16-18S is a T-Motor catalog item in Integrated Propulsion Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelA16-18S A16-18S
Manufacturer SKUT-MOTOR001581

Manufacturer technical and configuration tables

Model No.A16-18S-KV54Tube Size60mm
SetupA16-18S (Motor)+18S FOC 260A (ESC)+EFZ6324 (Propeller)Wire Material,Wire Gauge, ColorPower Wires: 8#AWG Red & BlackSignal Wires: 5P Teflon
Recommended Battery14~18S (LiPo)Wire Length2000±5mm
Rated Thrust35~40kgWeight5970±2%g (Incl. Wires+Propeller)
Efficiency At Rated Thrust8.7g/W (38kg)IPIPX5
Max. Thrust74.5kgRecommendedAmbient Temperature-20~55℃
Motor Specs
Stator Size155*23.5mmKV54
ESC Specs
Throttle Range1100~1940us (Fixed)Max. Voltage83V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak Current(For A Short Time)260A(OpenEnvironmentAndTemperature≤60℃)
Control MethodPWM/CANBECNO
Prop Specs
Model No.EFZ6324 (Folding Carbon Fiber)Length63 Inch (1600.2mm)
Motor Specs
Stator Size155*23.5mmKV54
ESC Specs
Throttle Range1100~1940us (Fixed)Max. Voltage83V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak Current(For A Short Time)260A(OpenEnvironmentAndTemperature≤60℃)
Control MethodPWM/CANBECNO
Prop Specs
Model No.EFZ6324 (Folding Carbon Fiber)Length63 Inch (1600.2mm)
TypeVoltage(V)ThrottleCurrent(A)Thrust(gf)Torque(N·m)RPMMotorEfficiency(%)OverallEfficiency(gf/W)OperatingTemperature(℃)
A16-18S KV54+18S FOC 260A+EFZ63246930%10.96114687.5084687.4015.1088(Ambient Temperature: 25)
35%16.05149129.8097289.6013.40
40%22.531912012.49108690.9012.20
45%29.832316615.06120692.0011.20
50%39.072784718.01132892.5010.30
55%50.143272921.23142891.409.40
60%62.923812124.76152190.508.70
65%76.894316728.25161489.708.10
70%93.124832231.81173189.407.50
75%109.885348535.18179486.807.00
80%129.985897538.88191186.406.50
85%151.736412842.48197483.906.10
90%166.936702644.63203482.505.80
95%185.997051147.20207079.805.50
100%208.217453749.86216078.605.20

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
