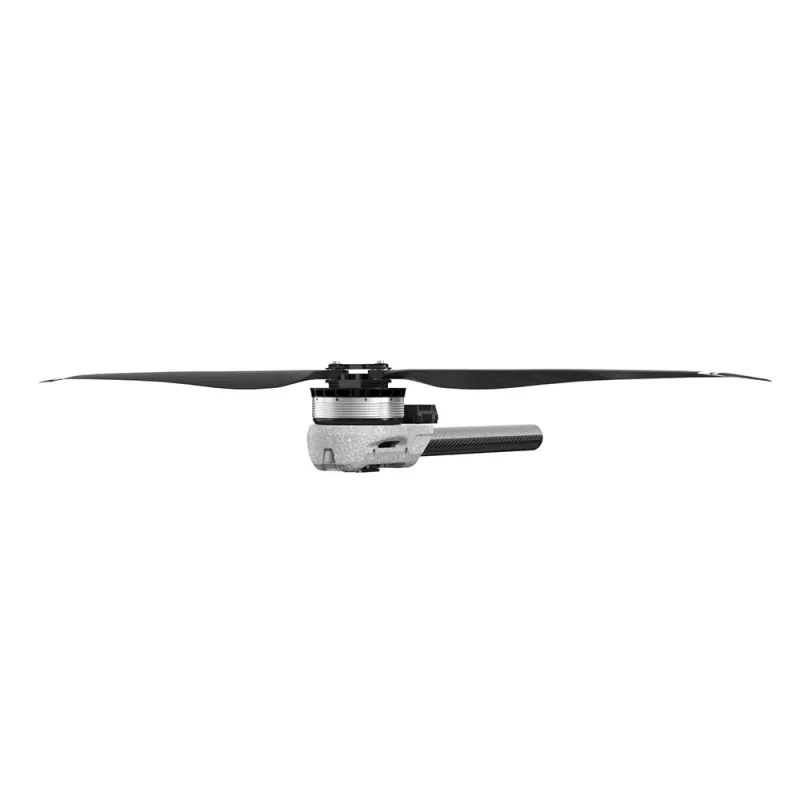

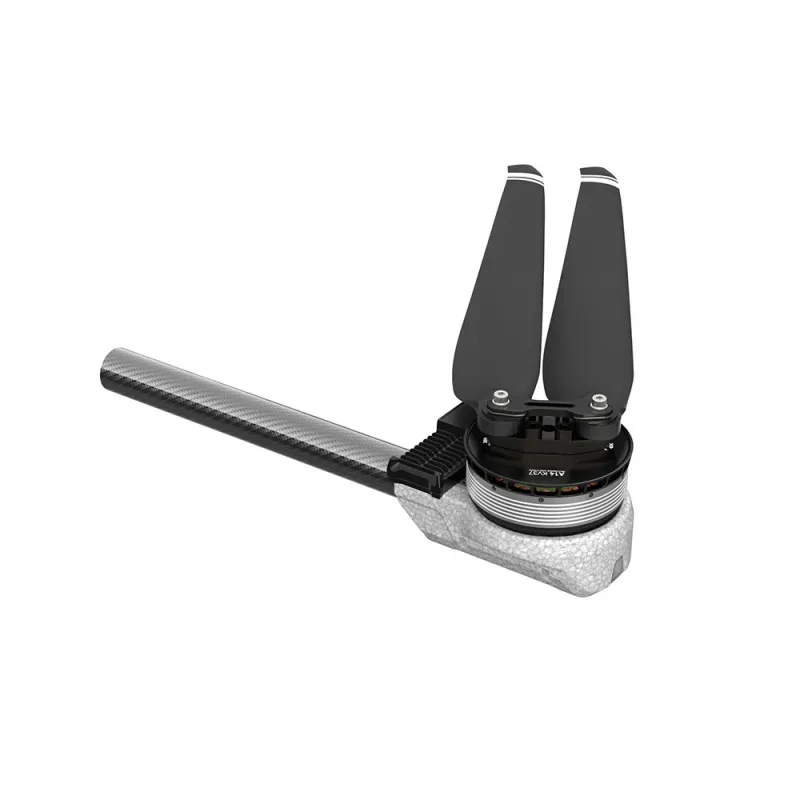

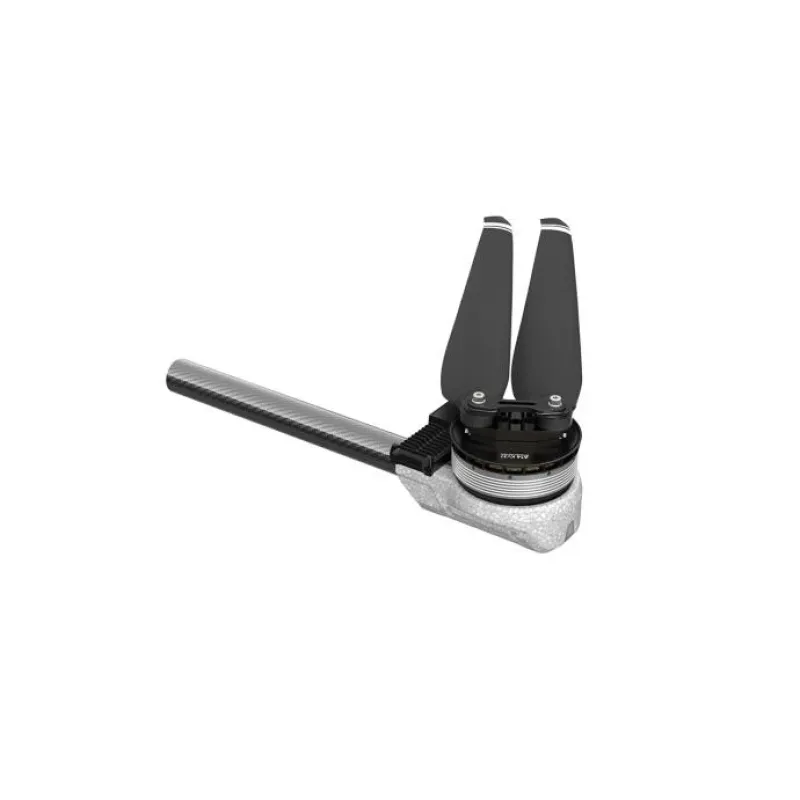

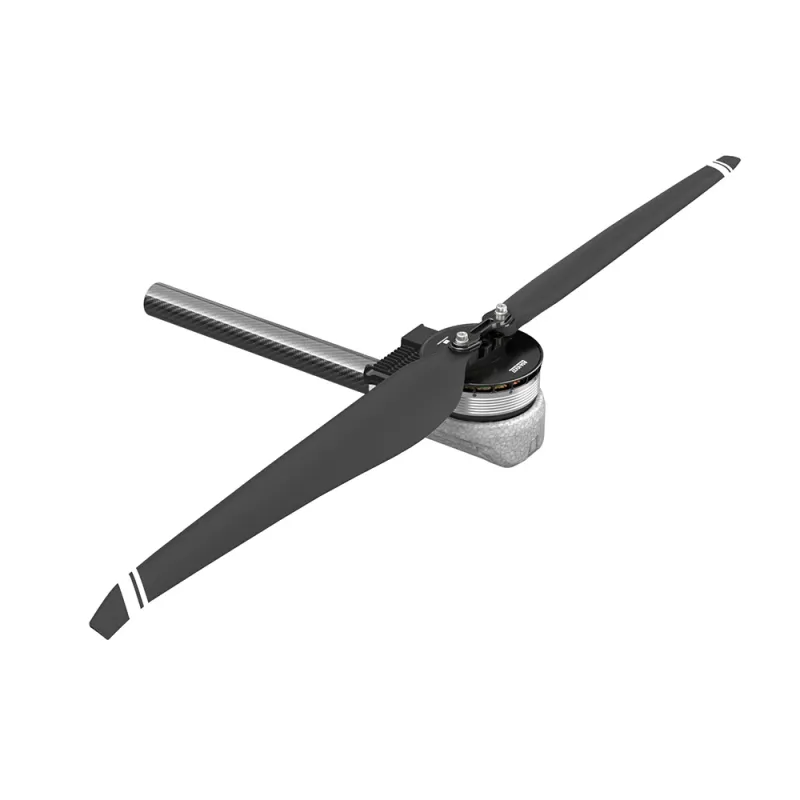

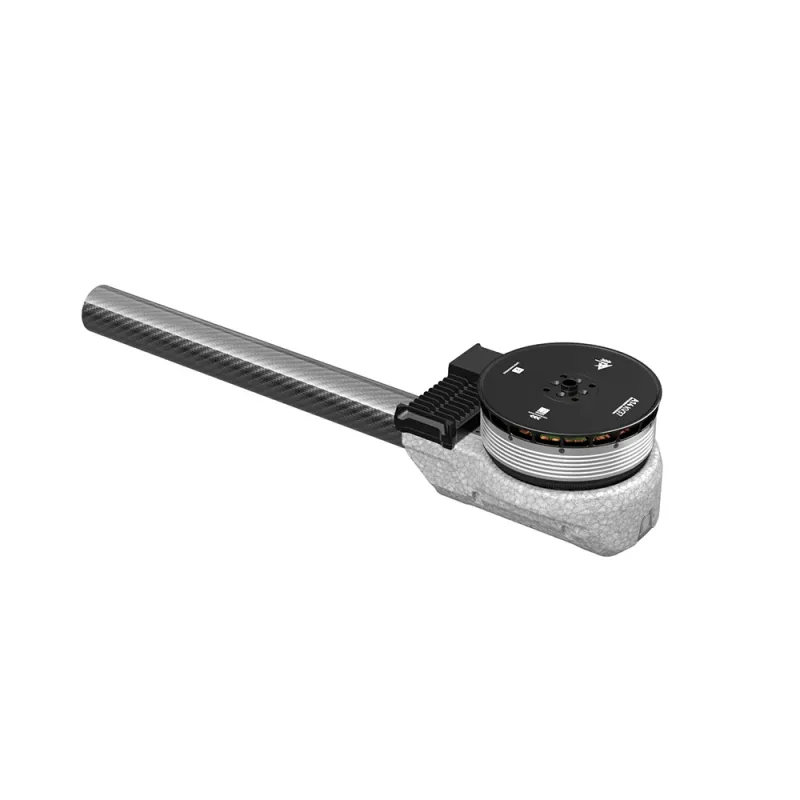

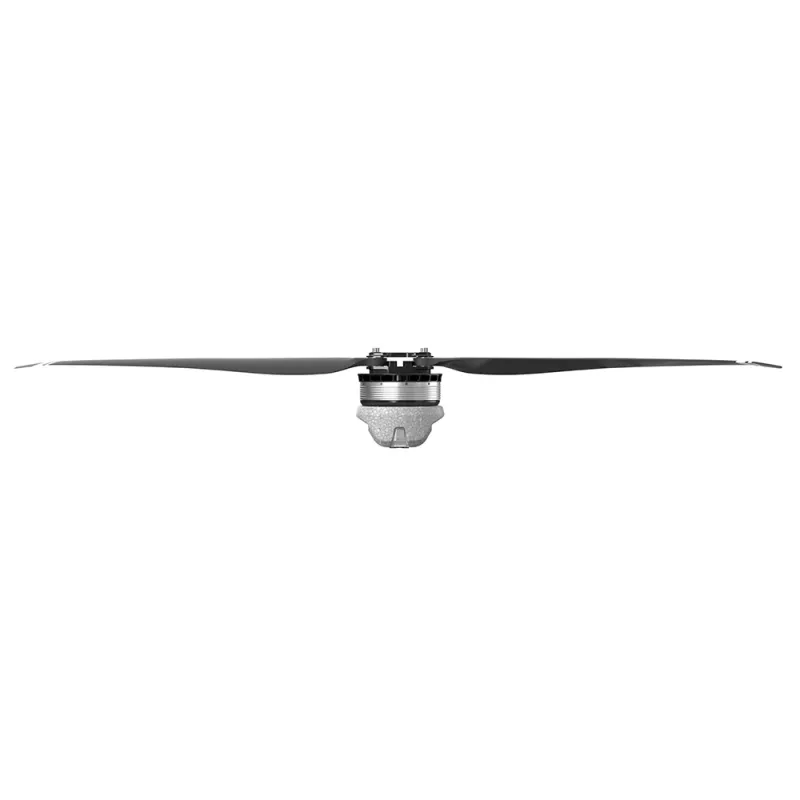

T-Motor A14-24S A14-24S

  • Brand:T-Motor
  • Product Code:T-MOTOR001580
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor A14-24S A14-24S is a T-Motor catalog item in Integrated Propulsion Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelA14-24S A14-24S
Manufacturer SKUT-MOTOR001580

Manufacturer technical and configuration tables

Model No.A14-24S KV37Tube Size50mm
SetupA14-24S (Motor)+24S FOC 120A (ESC)+MF56P (Propeller)Wire Material,Wire Gauge, ColorPower Wires: 10#AWG Red & BlackSignal Wires: 5P Teflon
RecommendedBattery24S (LiPo)Wire Length1550±5mm
Rated Thrust25~27kgWeight4330±2%g (Incl. Wires+Propeller)
Efficiency At Rated Thrust9.5g/W (25kg)IPIPX6
Max. Thrust60kgRecommendedAmbient Temperature-20~55℃
Motor Specs
Stator Size138*25mmKV37
ESC Specs
Throttle Range1100~1940us (Fixed)Max. Voltage100V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak Current(For A Short Time)120A(OpenEnvironmentAndTemperature≤60℃)
Control MethodPWM/CANBECNO
Prop Specs
Model No.MF56P (Polymer Folding)Length56 Inch (1424mm)
Motor Specs
Stator Size138*25mmKV37
ESC Specs
Throttle Range1100~1940us (Fixed)Max. Voltage100V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak Current(For A Short Time)120A(OpenEnvironmentAndTemperature≤60℃)
Control MethodPWM/CANBECNO
Prop Specs
Model No.MF56P (Polymer Folding)Length56 Inch (1424mm)
TypeVoltage(V)ThrottleCurrent(A)Thrust(gf)Torque(N·m)RPMMotorEfficiency(%)OverallEfficiency(gf/W)OperatingTemperature(℃)
A14-24S KV37+24S FOC 120A+MF56P9230%7.95101716.1498486.2013.9075(Ambient Temperature: 25)
35%11.72133368.07112687.9012.30
40%16.171681510.14125489.3011.30
45%21.522048512.33139590.7010.30
50%27.922448114.67152791.309.50
55%35.102869617.18163290.908.90
60%43.683297119.91175891.408.20
65%53.223764522.77187291.307.70
70%64.074214625.66199291.207.20
75%75.984674728.72208290.106.70
80%86.955090831.29217489.606.40
85%94.055338832.91221788.806.20
90%100.575559934.24224787.706.10
95%108.225795435.84230787.805.90
100%116.386049137.38233686.305.70

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
