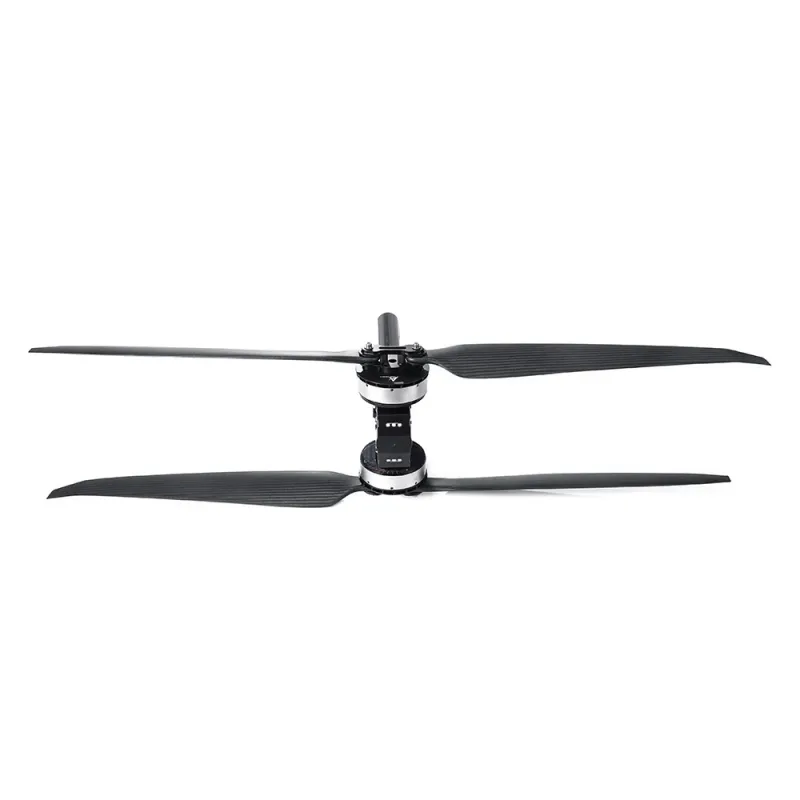

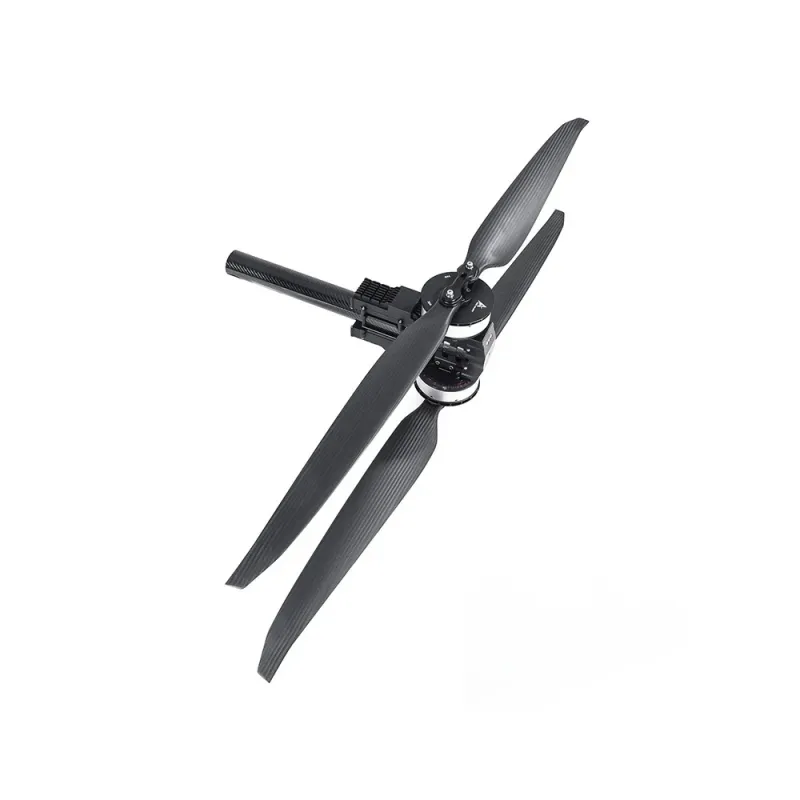

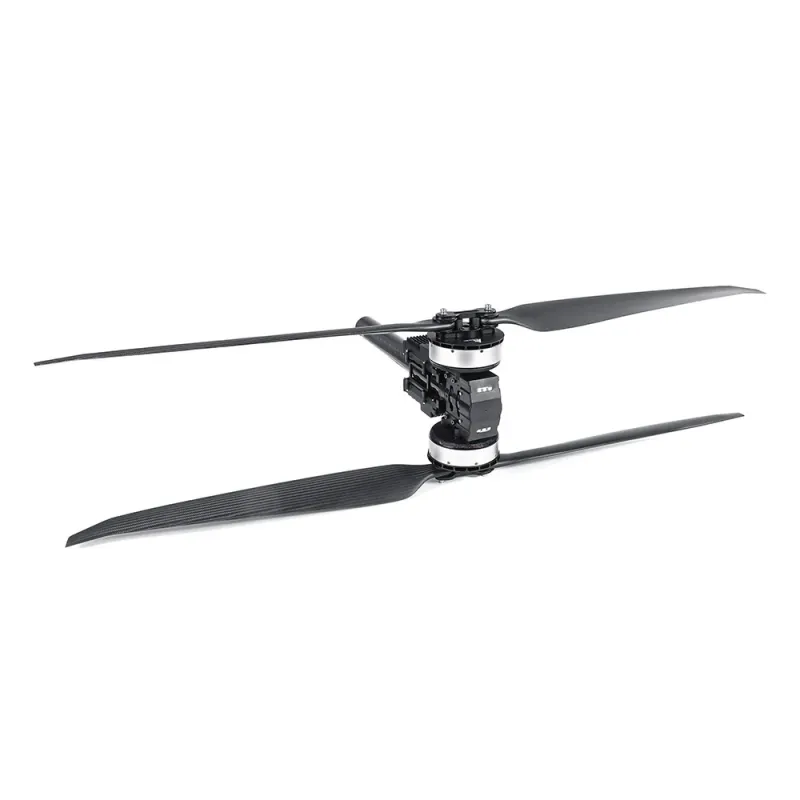

T-Motor X-A12XL-14S

  • Brand:T-Motor
  • Product Code:T-MOTOR001464
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor X-A12XL-14S is a T-Motor catalog item in Integrated Propulsion Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelX-A12XL-14S
Manufacturer SKUT-MOTOR001464

Manufacturer technical and configuration tables

Model No.X-A12XL KV77Tube size50mm
SetupX-A12XL-14S (Motor)+14S FOC 200A (ESC)+PFZ4918P (Prop)Wire material,wire gauge, colorPower wires: 10#AWG red & blackSignal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1700±5mm
Rated thrust30~35kgWeight5170±2%g (incl. Wires+prop)
Efficiency at rated thrust7.4g/W (32kg)IPIPX6
Max. thrust69.7kgRecommended ambient temperature-20～55℃
Motor specs.
Stator size111*22mmKV77
ESC specs.
Throttle range1100~1940usMax. voltage61V
ProtocolDRONE CAN、 UAV CAN、 CUBE CANPeak current(for a short time)200A(Open environmentand temperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.PFZ4918P (Carbon Fiber Folding)Length49 inch (1244.6mm)
Motor specs.
Stator size111*22mmKV77
ESC specs.
Throttle range1100~1940usMax. voltage61V
ProtocolDRONE CAN、 UAV CAN、 CUBE CANPeak current(for a short time)200A(Open environmentand temperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.PFZ4918P (Carbon Fiber Folding)Length49 inch (1244.6mm)
TypeVoltage(V)ThrottleCurrent(A)Thrust(g)Torque(N·m)RPMMotorEfficiency(%)OverallEfficiency(gf/W)OperatingTemperature(℃)
X-A12XL KV77+14S FOC 200A+PFZ4918P5430%10.2281534.60103188.6214.5380(Ambient Temperature:25)
35%18.57121286.93125389.2711.90
40%29.68166329.56146089.6610.21
45%43.672159012.46165890.209.01
50%60.322686115.50184190.248.11
55%79.443225818.66201490.257.40
60%100.913768221.90217490.046.80
65%125.324327425.30232389.526.29
70%151.004878928.47246088.525.89
75%179.025397331.68258587.335.49
80%207.145891634.72269886.355.18
85%233.406313837.21278784.834.93
90%260.086636739.32286282.574.65
95%283.306971441.18292581.124.48
100%285.516971341.14292680.444.45

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
