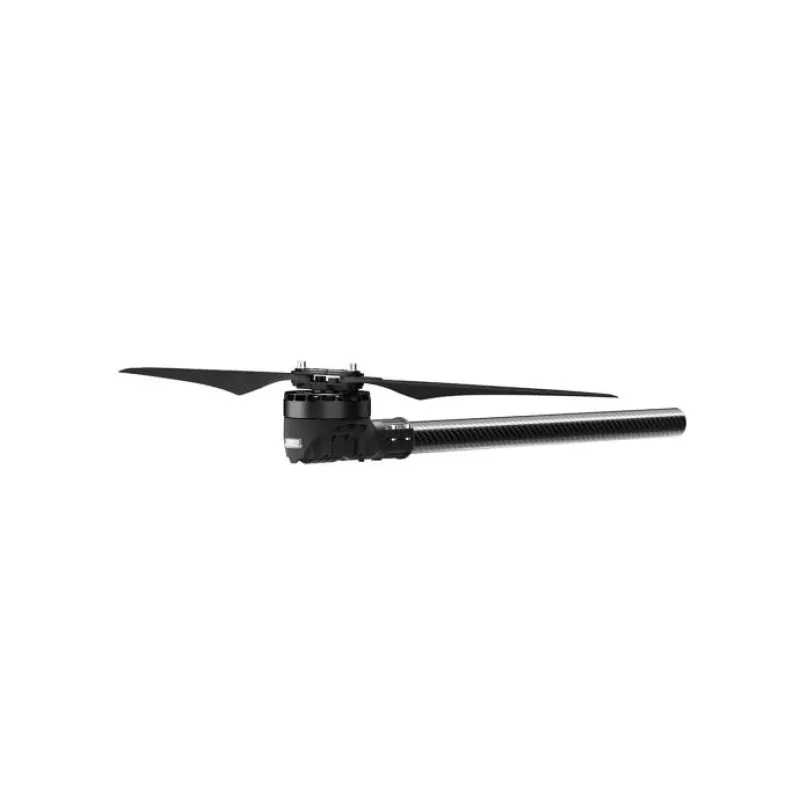

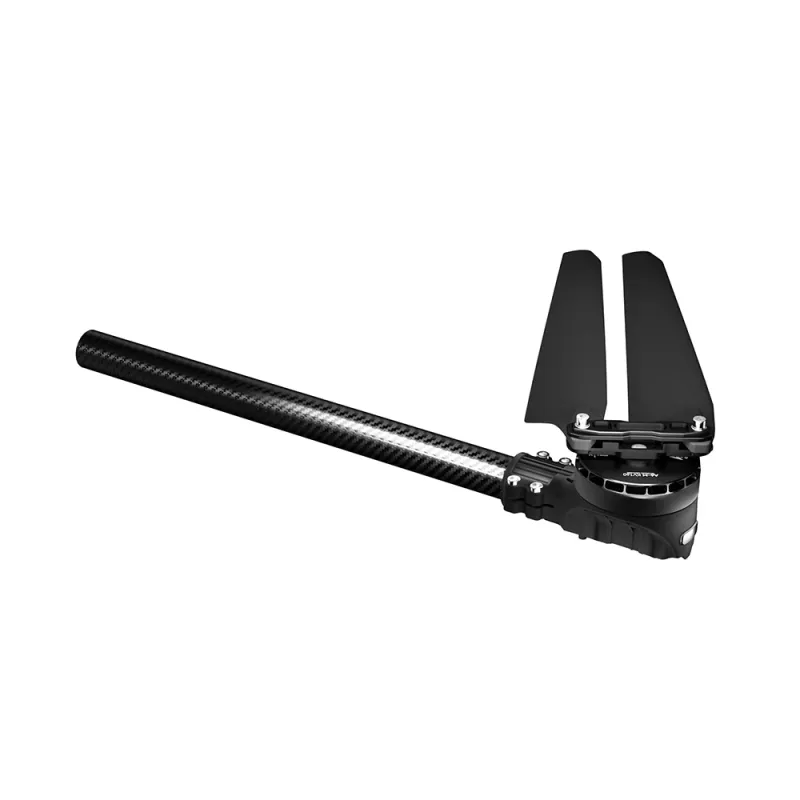

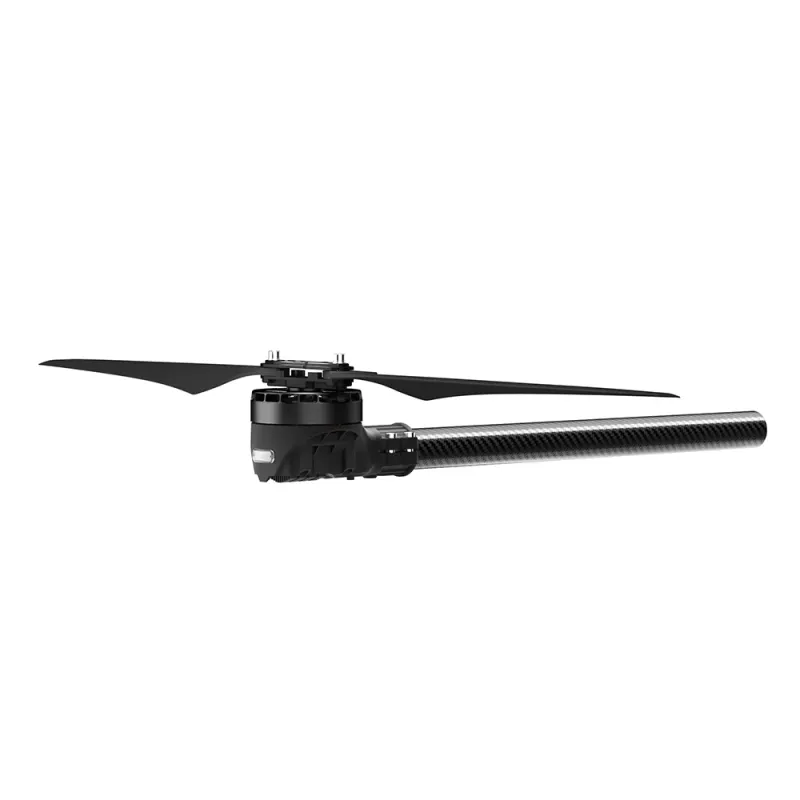

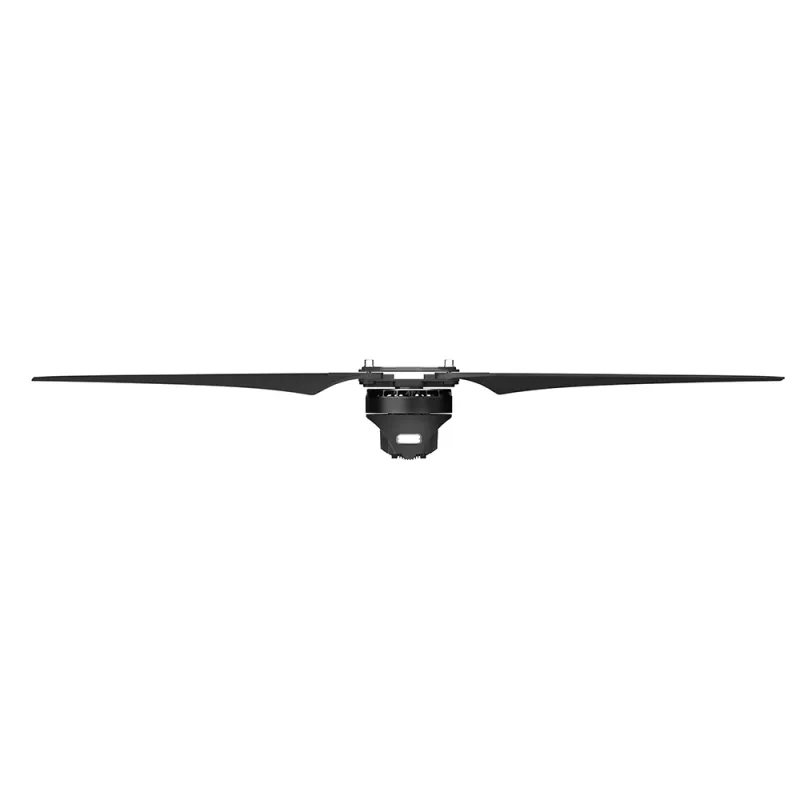

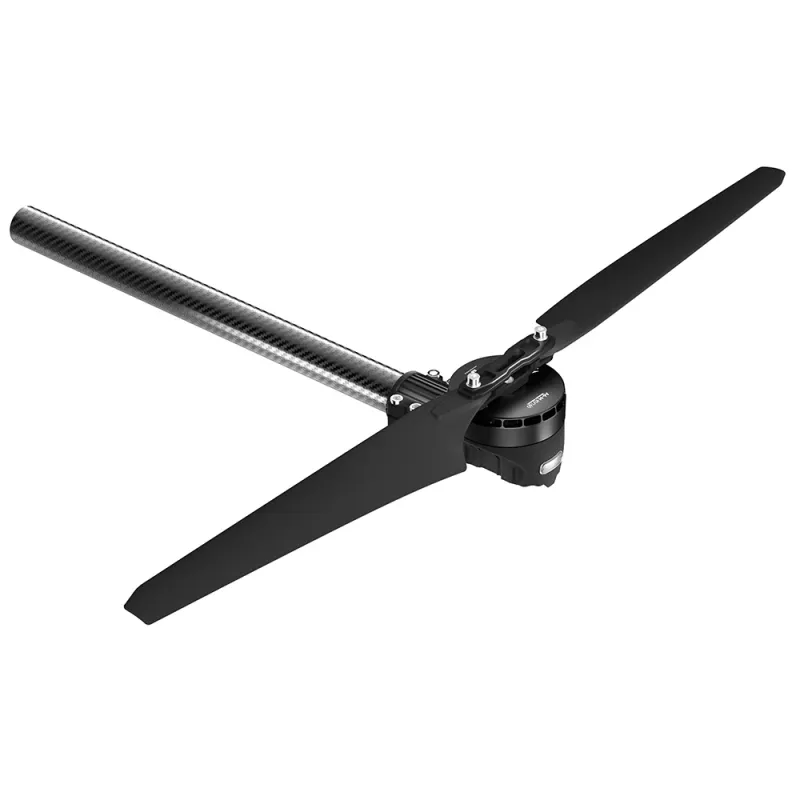

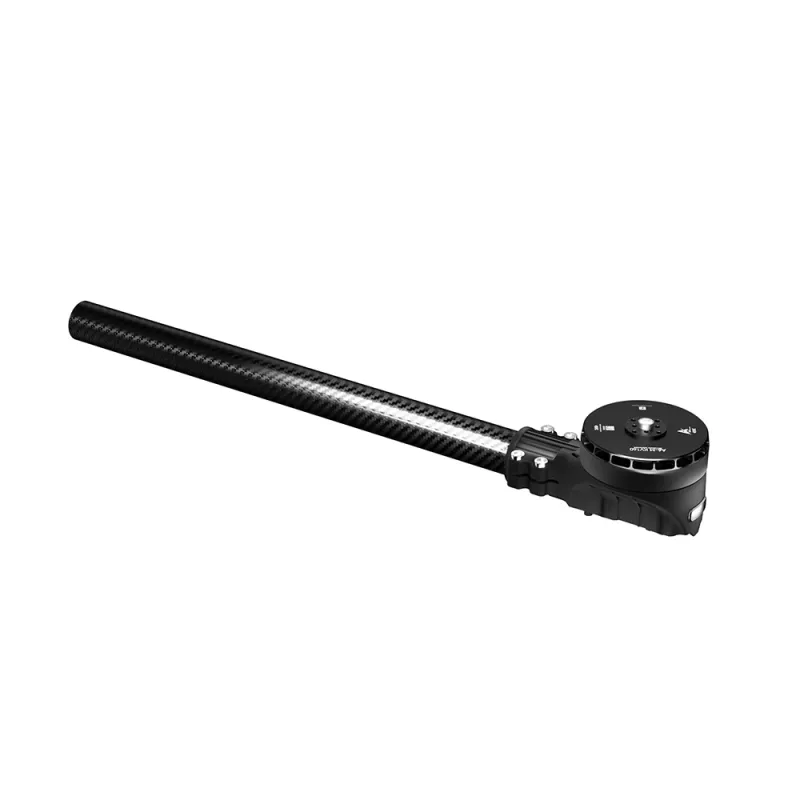

T-Motor A6-M-12S

  • Brand:T-Motor
  • Product Code:T-MOTOR001444
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor A6-M-12S is a T-Motor catalog item in Integrated Propulsion Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelA6-M-12S
Manufacturer SKUT-MOTOR001444

Manufacturer technical and configuration tables

Model No.A6-M KV160Tube Size25mm
SetupA6-M (Motor)+12S FOC 40A (ESC)+MF23P-M (Propellers)Wire Material,Wire Gauge, ColorPower Wires: 16#AWG Red & BlackSignal Wires: 5-Core Shielded Cable
RecommendedBattery12S (LiPo)Wire Length410±10mm
Rated Thrust2~2.5kgWeight390±2%g (Incl. Wires+Prop)
Efficiency AtRated Thrust10.3g/W (2.3kg)IPIPX6
Max Thrust7.4kgRecommended Ambient Temperature-20~50℃
Motor Specs
Stator Size60*9mmKV160
ESC Specs
Throttle Range1100~1940us (Fixed)Max Voltage63V
ProtocolDRONE CAN, UAV CAN,CUBE CANPeak Current (For A Short Time)40A (OpenEnvironmentAndTemperature≤60℃)
Control MethodPWM/CANBECNO
Prop Specs
Model No.MF23P-M (Polymer Folding)Length23 Inch (585mm)
Motor Specs
Stator Size60*9mmKV160
ESC Specs
Throttle Range1100~1940us (Fixed)Max Voltage63V
ProtocolDRONE CAN, UAV CAN,CUBE CANPeak Current (For A Short Time)40A (OpenEnvironmentAndTemperature≤60℃)
Control MethodPWM/CANBECNO
Prop Specs
Model No.MF23P-M (Polymer Folding)Length23 Inch (585mm)
TypeVoltage(V)Throttle(%)Current(A)Thrust(gf)Torque(N·m)RPMMotorEfficiency(%)OverallEfficiency(gf/W)OperatingTemperature(℃)
A6-M KV160+12S FOC 40A+MF23P48V301.5010370.30184780.4714.38122(Ambient Temperature:32)
352.3014020.40215081.4912.69
403.3118290.51244582.1011.50
454.5822910.63273381.8110.39
506.1527910.76301781.079.42
557.9533200.90329081.058.68
6010.0638671.04354979.817.99
6512.4144221.19379479.137.40
7015.0249701.33402677.556.87
7517.8055171.48424076.676.44
8020.8260491.62443975.106.03
8523.7965241.74461773.445.70
9026.9569761.86477671.705.38
9529.8373551.96490370.075.12
10030.9174521.98493768.795.01

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
