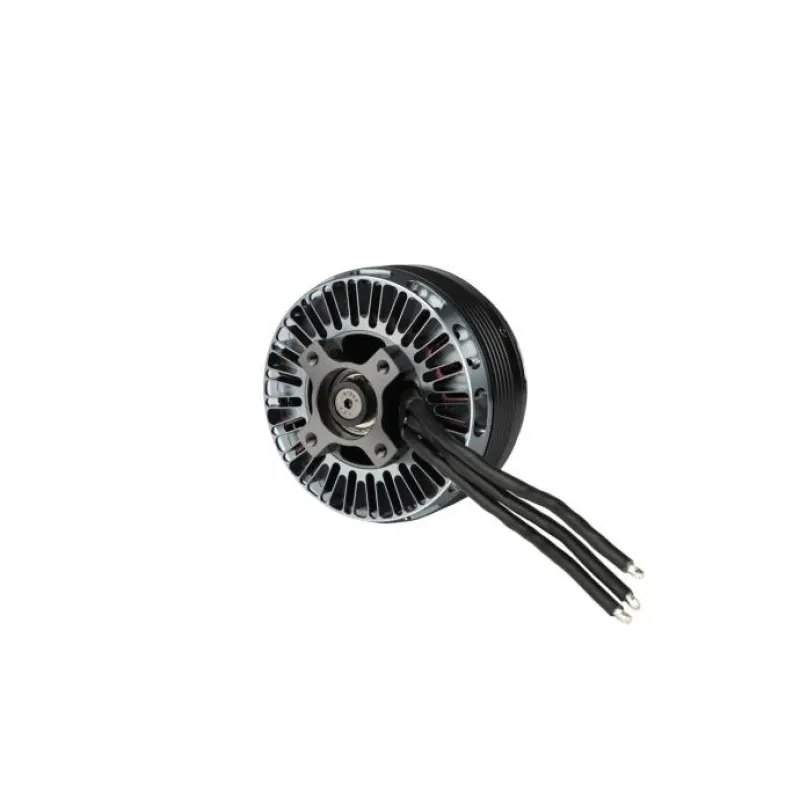

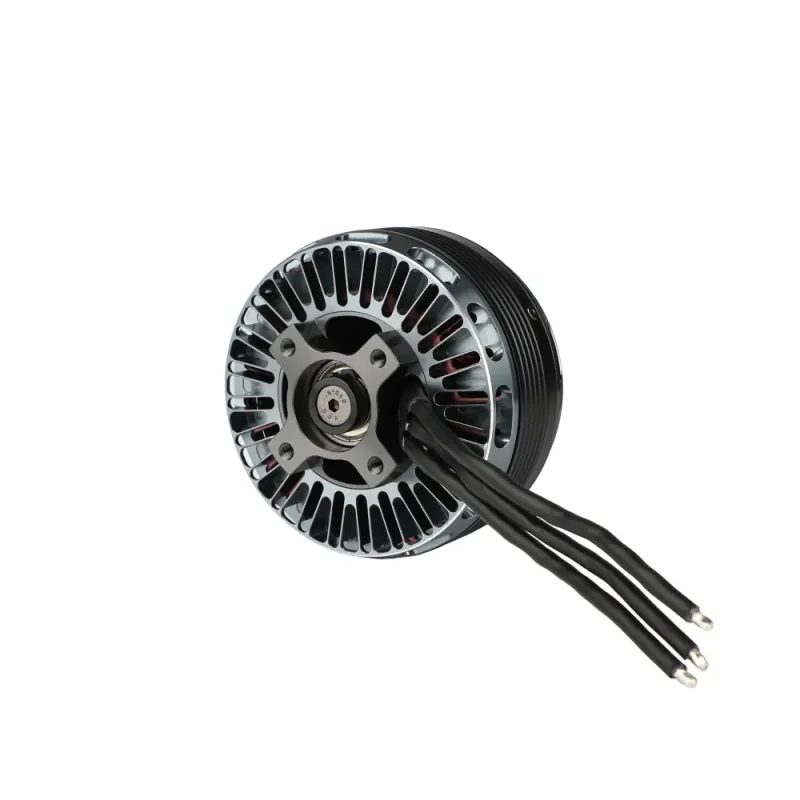

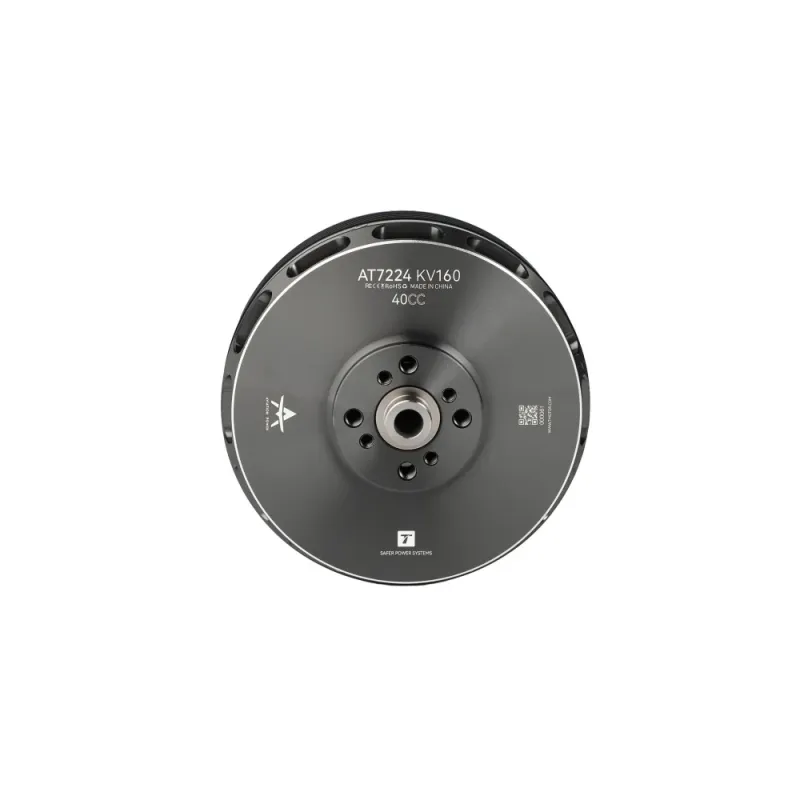

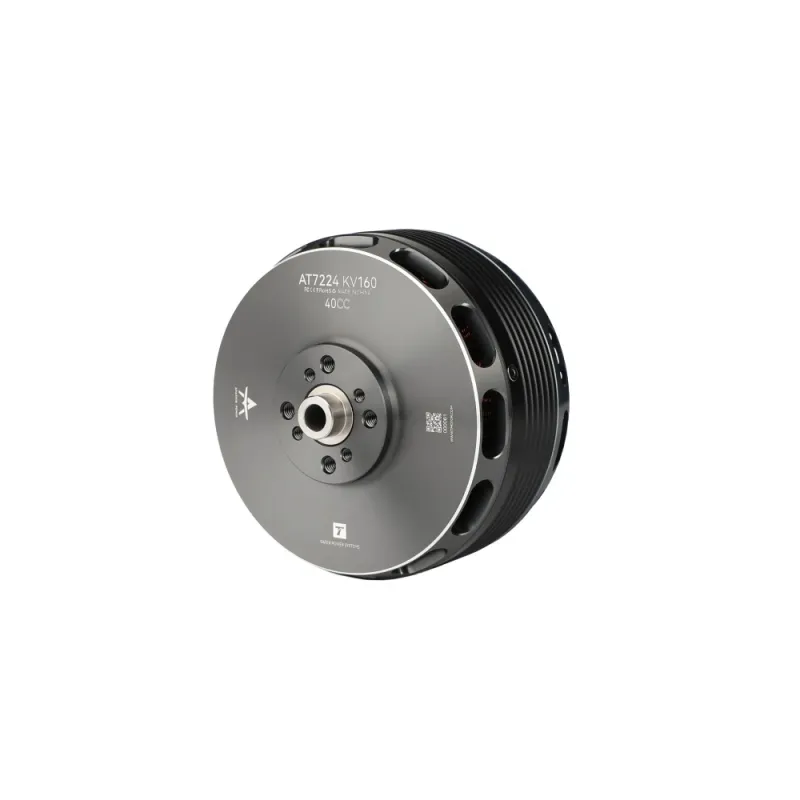

AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160/KV190

AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160/KV190

Brand:T-Motor
Product Code:T-MOTOR001094
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160/KV190 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160/KV190
Manufacturer SKU	T-MOTOR001094

Manufacturer technical and configuration tables

Test Item	Long Shaft KV160	Weight (Incl. Cable)	780g
Motor Dimensions	Φ81.4*66.9mm	Internal Resistance	24mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	3.1A	Peak Current(180s)	105A
Max Power (180S)	4800W/12S
Test Item	Long Shaft KV190	Weight (Incl. Cable)	780g
Motor Dimensions	Φ81.4*66.9mm	Internal Resistance	16mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	3.5A	Peak Current(180s)	135A
Max Power (180S)	6000W/12S

Test Item	Long Shaft KV190	Weight (Incl. Cable)	780g
Motor Dimensions	Φ81.4*66.9mm	Internal Resistance	16mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	3.5A	Peak Current(180s)	135A
Max Power (180S)	6000W/12S

Type	Propeller	Throttle	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N*m)	Thrust(g)	Efficiency(g/W)	OperatingTemperature(℃)
AT7224KV160	21*10	40%	44.31	4.80	212.87	2893	0.539	1766	8.30	80(AmbientTemperature:/)
		45%	44.27	6.25	276.86	3225	0.624	2212	7.99
		50%	44.22	8.79	388.73	3629	0.795	2814	7.25
		55%	44.16	11.35	501.16	4000	0.965	3429	6.84
		60%	44.11	13.79	608.49	4326	1.146	4022	6.61
		65%	44.04	16.93	745.62	4639	1.293	4622	6.20
		70%	43.95	20.86	916.88	4988	1.501	5365	5.85
		75%	43.83	26.42	1158.06	5373	1.773	6280	5.42
		80%	43.71	32.04	1400.68	5745	2.061	7144	5.10
		90%	43.46	44.15	1918.79	6360	2.592	8933	4.66
		100%	43.16	58.20	2511.99	6896	3.114	10676	4.25
	21*10	40%	47.93	5.34	255.98	3105	0.597	2045	7.99	/
		45%	47.89	6.96	333.46	3434	0.704	2501	7.50
		50%	47.83	9.69	463.32	3876	0.896	3196	6.90
		55%	47.73	13.03	621.96	4291	1.121	3935	6.33
		60%	47.71	15.53	741.01	4633	1.280	4539	6.13
		65%	47.64	18.81	896.24	4960	1.464	5209	5.81
		70%	47.56	23.04	1095.60	5339	1.732	6096	5.56
		75%	47.37	31.09	1472.55	5816	2.125	7315	4.97
		80%	47.25	36.56	1727.56	6144	2.395	8247	4.77
		90%	46.95	50.68	2379.68	6789	2.998	10299	4.33
		100%	46.51	71.24	3313.26	7109	3.711	12494	3.77
	22*10	40%	44.41	5.70	253.30	2850	0.635	2071	8.18	88(AmbientTemperature:/)
		45%	44.37	7.49	332.34	3183	0.809	2608	7.85
		50%	44.30	10.25	454.21	3580	1.022	3269	7.20
		55%	44.23	13.82	611.41	3967	1.215	4002	6.55
		60%	44.15	17.18	758.35	4291	1.425	4723	6.23
		65%	44.10	20.38	898.65	4591	1.631	5427	6.04
		70%	43.97	26.02	1144.24	4934	1.923	6373	5.57
		75%	43.85	32.03	1404.60	5312	2.209	7432	5.29
		80%	43.70	39.36	1720.07	5669	2.627	8549	4.97
		90%	43.39	54.11	2347.54	6261	3.240	10526	4.48
		100%	43.05	70.38	3029.80	6780	3.864	12496	4.12
	22*10	40%	47.99	6.29	301.96	3057	0.732	2426	8.03	/
		45%	47.96	8.27	396.60	3412	0.928	2997	7.56
		50%	47.86	11.62	556.40	3831	1.138	3770	6.78
		55%	47.80	15.20	726.46	4237	1.372	4613	6.35
		60%	47.72	18.93	903.28	4585	1.623	5446	6.03
		65%	47.64	23.17	1103.76	4909	1.903	6315	5.72
		70%	47.50	29.04	1379.32	5278	2.178	7317	5.31
		75%	47.32	38.04	1800.27	5747	2.716	8753	4.86
		80%	47.17	45.06	2125.28	6063	3.013	9742	4.58
		90%	46.83	61.51	2880.40	6678	3.723	12037	4.18
		100%	46.42	81.47	3781.47	7213	4.499	14447	3.82
	23*10	40%	37.07	4.85	179.66	2404	0.462	1631	9.08	78(AmbientTemperature:/)
		45%	37.02	6.54	242.14	2685	0.585	2052	8.48
		50%	36.96	9.11	336.65	3038	0.769	2642	7.85
		55%	36.89	12.16	448.81	3349	0.961	3262	7.27
		60%	36.83	15.32	564.24	3617	1.110	3832	6.79
		65%	36.78	18.07	664.53	3889	1.284	4471	6.73
		70%	36.70	22.32	819.19	4174	1.499	5225	6.38
		75%	36.57	27.90	1020.42	4475	1.739	6058	5.94
		80%	36.48	32.61	1189.50	4732	1.954	6810	5.72
		90%	36.22	45.16	1635.72	5231	2.439	8469	5.18
		100%	35.90	60.17	2160.31	5722	2.880	10050	4.65
	23*10	40%	42.00	5.81	243.81	2691	0.603	2016	8.27	/
		45%	41.95	7.64	320.56	3000	0.754	2542	7.93
		50%	41.87	10.82	452.90	3383	0.959	3269	7.22
		55%	41.80	14.73	615.52	3738	1.166	4019	6.53
		60%	41.72	18.23	760.66	4044	1.387	4821	6.34
		65%	41.64	22.10	920.32	4322	1.622	5609	6.10
		70%	41.53	27.22	1130.31	4648	1.888	6460	5.72
		75%	41.41	33.49	1386.94	4979	2.176	7520	5.42
		80%	41.26	40.27	1661.69	5261	2.458	8508	5.12
90%		40.92	57.16	2338.69	5858	3.045	10599	4.53
100%		40.56	74.08	3004.27	6335	3.587	12486	4.16
23*10	40%	44.24	6.26	276.99	2816	0.678	2252	8.13	86(AmbientTemperature:/)
	45%	44.19	8.38	370.42	3139	0.844	2845	7.68
	50%	44.13	11.56	510.31	3531	1.074	3628	7.11
	55%	44.03	15.77	694.46	3904	1.332	4481	6.45
	60%	43.96	19.48	856.35	4223	1.560	5292	6.18
	65%	43.86	23.88	1047.27	4528	1.782	6082	5.81
	70%	43.73	29.77	1301.86	4857	2.071	7066	5.43
	75%	43.60	36.62	1596.54	5209	2.383	8176	5.12
	80%	43.42	45.32	1967.73	5551	2.717	9386	4.77
	90%	43.08	61.82	2663.09	6121	3.306	11502	4.32
	100%	42.69	80.29	3427.47	6620	3.893	13628	3.98
23*10	40%	47.87	7.06	338.01	3017	0.803	2627	7.77	/
	45%	47.82	9.31	445.30	3356	0.982	3303	7.42
	50%	47.73	13.36	637.77	3770	1.263	4227	6.63
	55%	47.63	17.84	849.98	4161	1.565	5234	6.16
	60%	47.54	22.28	1059.42	4501	1.835	6196	5.85
	65%	47.44	26.97	1279.61	4821	2.089	7098	5.55
	70%	47.32	33.44	1582.04	5181	2.397	8181	5.17
	75%	47.07	44.46	2092.95	5622	2.829	9776	4.67
	80%	46.93	51.86	2433.90	5924	3.145	10876	4.47
	90%	46.52	71.24	3313.98	6511	3.845	13337	4.02
	100%	46.05	93.17	4290.46	7028	4.524	15732	3.67
24*10	40%	36.93	5.21	192.58	2386	0.570	1862	9.67	74(AmbientTemperature:/)
	45%	36.89	6.92	255.28	2664	0.681	2302	9.02
	50%	36.84	9.64	355.22	3015	0.873	2934	8.26
	55%	36.74	13.30	488.44	3326	1.033	3780	7.74
	60%	36.70	16.06	589.29	3596	1.193	4344	7.37
	65%	36.62	19.43	711.53	3858	1.352	4885	6.87
	70%	36.52	24.25	885.55	4148	1.592	5768	6.51
	75%	36.40	29.96	1090.57	4437	1.924	6881	6.31
	80%	36.29	35.28	1280.42	4692	2.201	7698	6.01
	90%	36.02	48.54	1748.45	5181	2.844	9416	5.39
	100%	35.66	65.48	2335.30	5638	3.170	11213	4.80

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
