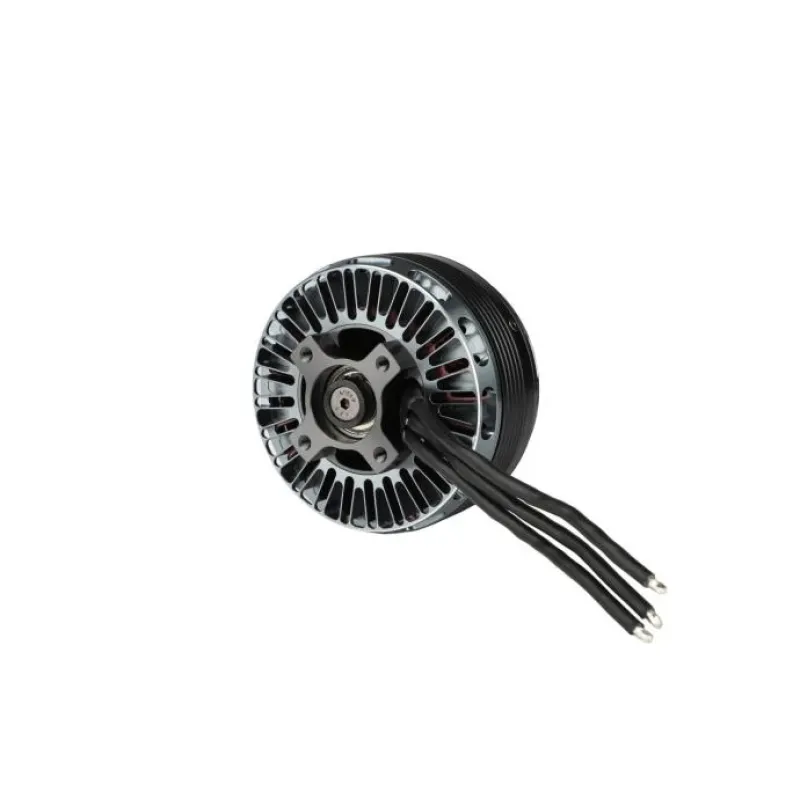

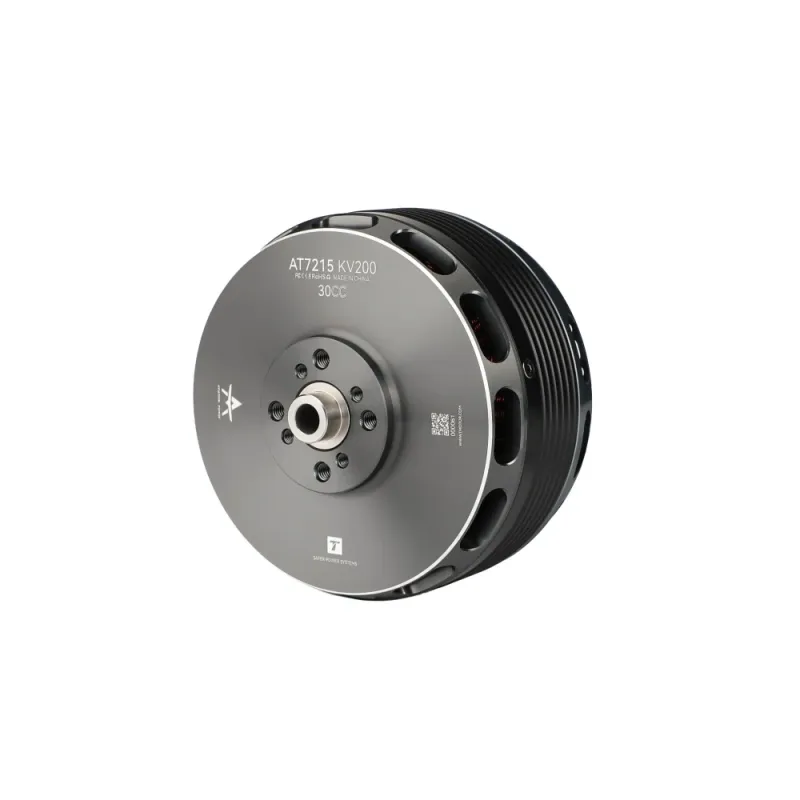

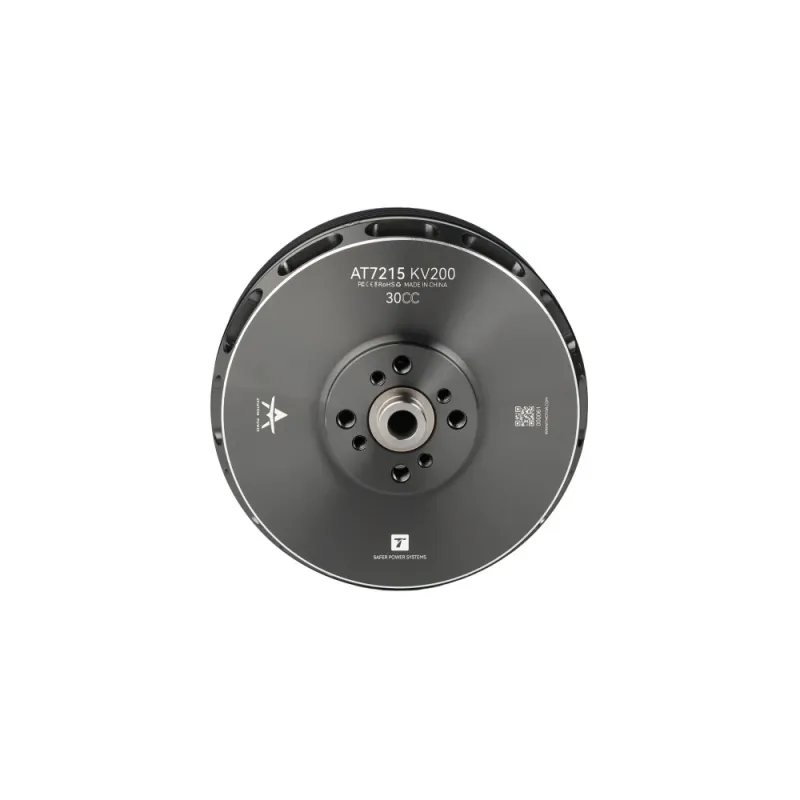

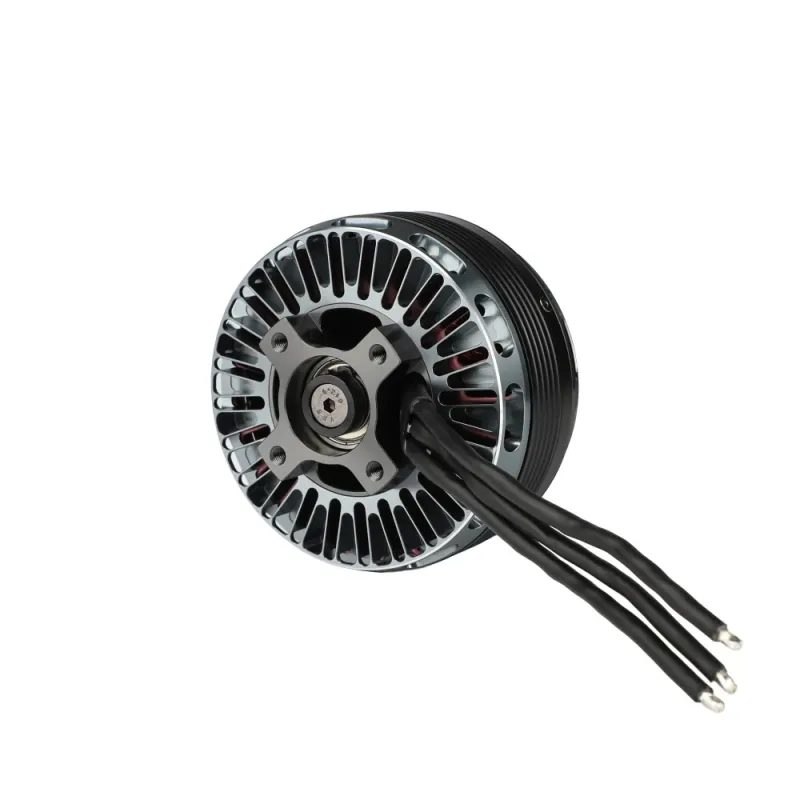

AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200/KV245/KV270/KV220

AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200/KV245/KV270/KV220

Brand:T-Motor
Product Code:T-MOTOR001066
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200/KV245/KV270/KV220 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200/KV245/KV270/KV220
Manufacturer SKU	T-MOTOR001066

Manufacturer technical and configuration tables

Test Item	Long Shaft KV200	Weight (Incl. Cable)	550g
Motor Dimensions	Φ81.4*57.9mm	Internal Resistance	27mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	2.4A	Peak Current(180s)	95A
Max Power (180S)	4400W/12S
Test Item	Long Shaft KV220	Weight (Incl. Cable)	565g
Motor Dimensions	Φ81.4*57.9mm	Internal Resistance	24mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	2.4A	Peak Current(180s)	100A
Max Power (180S)	4500W/12S
Test Item	Long Shaft KV245	Weight (Incl. Cable)	555g
Motor Dimensions	Φ81.4*57.9mm	Internal Resistance	20mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	8-10S
Idle Current(10V)	2.4A	Peak Current(180s)	110A
Max Power (180S)	5000W/12S
Test Item	Long Shaft KV270	Weight (Incl. Cable)	560g
Motor Dimensions	Φ81.4*57.9mm	Internal Resistance	17mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	8S
Idle Current(10V)	2.4A	Peak Current(180s)	120A
Max Power (180S)	4800W/10S

Test Item	Long Shaft KV220	Weight (Incl. Cable)	565g
Motor Dimensions	Φ81.4*57.9mm	Internal Resistance	24mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	2.4A	Peak Current(180s)	100A
Max Power (180S)	4500W/12S

Test Item	Long Shaft KV245	Weight (Incl. Cable)	555g
Motor Dimensions	Φ81.4*57.9mm	Internal Resistance	20mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	8-10S
Idle Current(10V)	2.4A	Peak Current(180s)	110A
Max Power (180S)	5000W/12S

Test Item	Long Shaft KV270	Weight (Incl. Cable)	560g
Motor Dimensions	Φ81.4*57.9mm	Internal Resistance	17mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mmOUT：10mm	Rated Voltage(Lipo)	8S
Idle Current(10V)	2.4A	Peak Current(180s)	120A
Max Power (180S)	4800W/10S

Type	Propeller	Throttle	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N*m)	Thrust(g)	Efficiency(g/W)	OperatingTemperature(℃)
AT7215KV200	19*10	40%	44.25	5.64	249.81	3494	0.532	1833	7.34	/
		45%	44.22	7.41	327.75	3890	0.650	2312	7.05
		50%	44.15	10.26	453.08	4356	0.795	2878	6.35
		55%	44.08	13.28	585.57	4813	0.946	3477	5.94
		60%	44.02	16.59	730.16	5206	1.110	4086	5.60
		65%	43.91	21.80	957.40	5698	1.337	4903	5.12
		70%	43.79	27.16	1189.47	6128	1.562	5710	4.80
		75%	43.66	33.60	1466.85	6547	1.821	6582	4.49
		80%	43.53	39.60	1723.40	6882	2.050	7366	4.27
		90%	43.23	53.83	2327.01	7599	2.537	8911	3.83
		100%	42.84	71.55	3065.09	8208	3.126	10555	3.44
	19*10	40%	47.85	6.24	298.61	3754	0.628	2144	7.18	97(AmbientTemperature:/)
		45%	47.81	8.24	394.17	4168	0.745	2664	6.76
		50%	47.74	11.29	538.84	4655	0.896	3309	6.14
		55%	47.65	15.05	717.02	5130	1.070	4028	5.62
		60%	47.54	20.64	981.02	5702	1.326	4961	5.06
		65%	47.44	24.88	1180.30	6099	1.540	5646	4.78
		70%	47.31	31.04	1468.57	6539	1.845	6599	4.49
		75%	47.16	38.37	1809.84	6967	2.164	7656	4.23
		80%	47.01	45.66	2146.37	7338	2.450	8595	4.00
		90%	46.64	63.09	2942.14	8077	3.018	10449	3.55
		100%	46.17	84.64	3907.52	8681	3.758	11572	2.96
	20*10	40%	36.92	4.81	177.64	2959	0.453	1561	8.79	/
		45%	36.89	6.29	231.88	3295	0.549	1932	8.33
		50%	36.83	8.69	319.91	3712	0.676	2434	7.61
		55%	36.78	11.26	414.10	4096	0.794	2926	7.07
		60%	36.72	14.08	517.13	4437	0.917	3411	6.60
		65%	36.65	16.99	622.72	4739	1.046	3919	6.29
		70%	36.57	21.17	773.99	5108	1.221	4533	5.86
		75%	36.44	27.50	1002.10	5548	1.465	5452	5.44
		80%	36.32	32.85	1192.97	5848	1.677	6155	5.16
		90%	36.06	44.99	1622.41	6452	2.089	7553	4.66
		100%	35.78	58.37	2088.34	6984	2.483	8906	4.26
	20*10	40%	41.86	5.71	239.01	3308	0.544	1730	8.03	83(AmbientTemperature:/)
		45%	41.81	7.58	316.78	3679	0.654	2387	7.54
		50%	41.75	10.44	435.94	4124	0.807	3008	6.90
		55%	41.69	13.63	568.04	4544	0.967	3649	6.43
		60%	41.60	17.16	713.87	4917	1.121	4278	5.99
		65%	41.54	20.64	857.26	5262	1.298	4954	5.78
		70%	41.37	28.11	1162.88	5778	1.597	5987	5.15
		75%	41.24	34.52	1423.40	6165	1.847	6856	4.82
		80%	41.10	41.04	1686.80	6491	2.095	7725	4.58
		90%	40.78	56.18	2291.12	7147	2.593	9423	4.11
		100%	40.42	72.81	2943.12	7726	3.082	11037	3.75
	20*10	40%	44.27	6.15	272.19	3468	0.617	2145	7.88	/
		45%	44.23	8.16	360.87	3862	0.744	2677	7.42
		50%	44.16	11.30	499.16	4322	0.910	3363	6.74
		55%	44.06	15.29	673.65	4748	1.083	4093	6.08
		60%	43.99	18.76	825.33	5157	1.253	4769	5.78
		65%	43.86	25.02	1097.33	5641	1.535	5773	5.26
		70%	43.74	30.86	1349.86	6051	1.813	6646	4.93
		75%	43.59	37.90	1652.12	6466	2.108	7630	4.62
		80%	43.45	44.57	1936.48	6803	2.350	8479	4.38
		90%	43.08	61.70	2658.50	7474	2.901	10381	3.90
		100%	42.67	80.63	3440.97	8063	3.439	12188	3.54
	20*10	40%	47.89	6.97	333.95	3713	0.692	2464	7.38	115(AmbientTemperature:/)
		45%	47.85	9.16	438.13	4124	0.834	3066	7.00
		50%	47.77	12.53	598.59	4602	1.024	3842	6.42
		55%	47.69	16.62	792.70	5082	1.227	4629	5.84
		60%	47.54	23.11	1098.68	5647	1.527	5721	5.21
		65%	47.44	28.18	1336.89	6031	1.785	6549	4.90
		70%	47.30	34.76	1644.07	6468	2.095	7535	4.58
		75%	47.12	43.28	2039.31	6884	2.431	8706	4.27
		80%	46.95	51.19	2403.45	7247	2.714	9693	4.03
90%		46.52	71.10	3307.89	7946	3.354	11886	3.59
100%		46.02	93.67	4310.69	8522	3.978	13850	3.21
21*10	40%	36.93	5.36	198.12	2917	0.528	1822	9.20	/
	45%	36.88	7.22	266.16	3244	0.655	2286	8.59
	50%	36.82	10.16	374.05	3654	0.856	2920	7.81
	55%	36.75	13.47	495.18	4025	1.031	3542	7.16
	60%	36.67	17.10	626.99	4360	1.221	4198	6.70
	65%	36.59	20.60	753.95	4664	1.361	4762	6.32
	70%	36.48	25.92	945.36	5010	1.561	5492	5.81
	75%	36.36	31.98	1162.81	5380	1.810	6361	5.47
	80%	36.20	39.17	1418.05	5722	2.072	7214	5.09
	90%	35.89	53.72	1928.39	6296	2.607	8808	4.57
	100%	35.54	70.32	2499.01	6784	3.102	10457	4.18
21*10	40%	41.86	6.55	274.18	3247	0.621	2290	8.35	121(AmbientTemperature:/)
	45%	41.81	8.77	366.60	3613	0.754	2847	7.77
	50%	41.74	12.04	502.43	4054	0.930	3561	7.09
	55%	41.66	16.10	670.60	4466	1.156	4341	6.48
	60%	41.56	20.57	854.77	4845	1.378	5126	6.00
	65%	41.46	24.84	1029.64	5168	1.585	5836	5.67
	70%	41.28	33.57	1385.77	5658	1.981	7058	5.09
	75%	41.12	41.07	1688.61	6026	2.284	8047	4.77
	80%	40.96	48.72	1995.51	6332	2.568	8992	4.51
	90%	40.57	67.08	2721.25	6930	3.167	10998	4.04
	100%	40.12	87.84	3523.62	7450	3.739	12869	3.65
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT7215KV220	19*10	40%	43.93	6.27	275.62	3667	0.492	1956	7.10	89(AmbientTemperature:/)
		45%	43.88	8.37	367.29	4086	0.612	2469	6.72
		50%	43.82	11.23	492.26	4542	0.769	3066	6.23
		55%	43.72	15.46	675.76	5037	0.948	3795	5.62
		60%	43.62	20.91	911.80	5583	1.173	4709	5.16
		65%	43.50	25.56	1111.85	5972	1.349	5408	4.86
		70%	43.39	31.66	1373.76	6408	1.579	6277	4.57
		75%	43.25	38.52	1665.86	6839	1.798	7139	4.29
		80%	43.11	45.43	1958.91	7206	2.019	7991	4.08
		90%	42.66	62.78	2678.19	7909	2.511	9688	3.62

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
