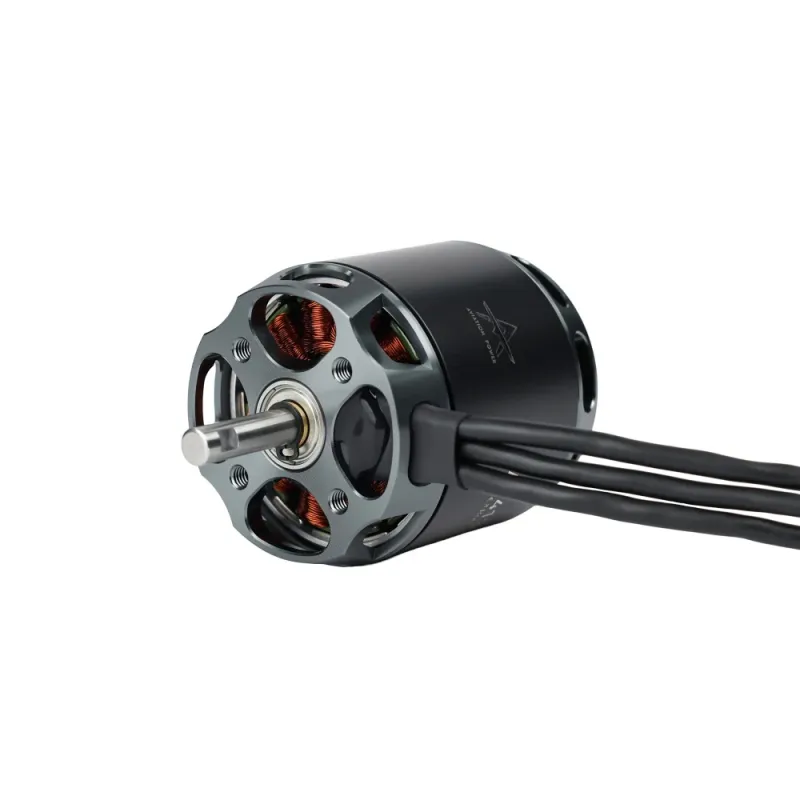

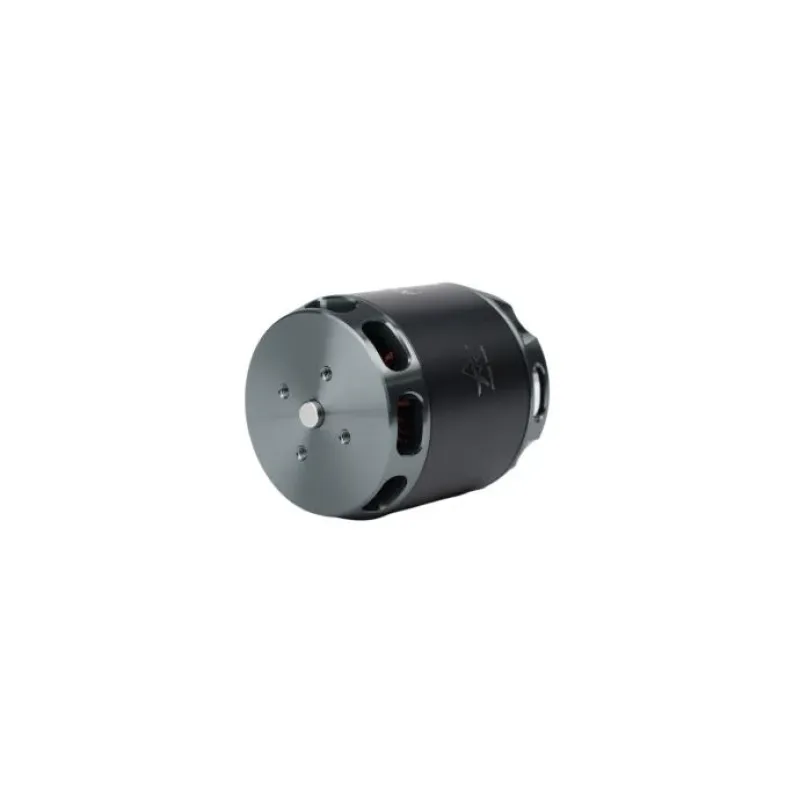

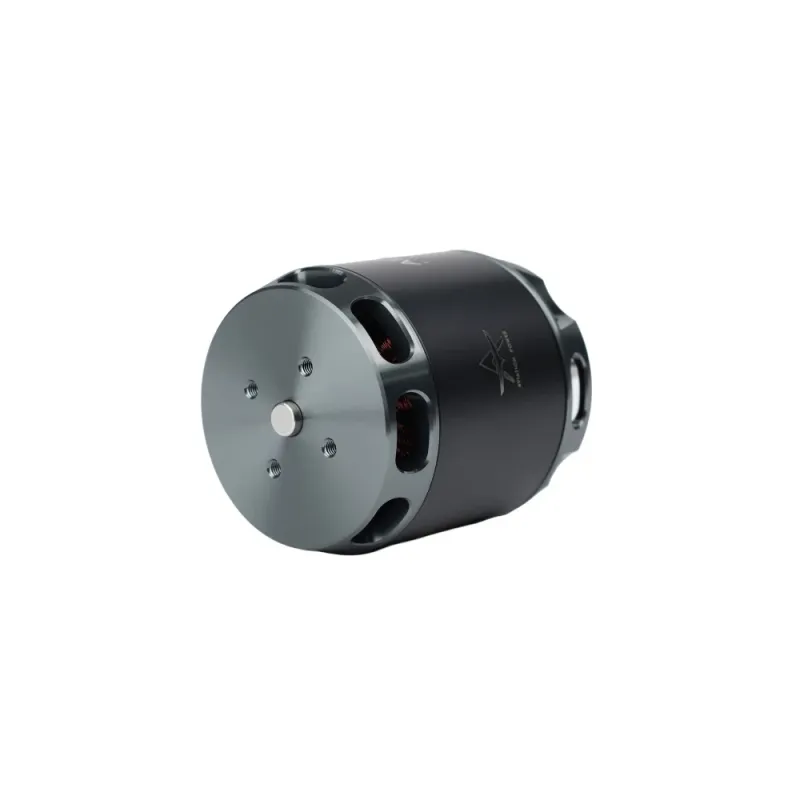

T-Motor AT4130 Long Shaft Fixed Wing VTOL Motor KV230/KV300/KV450

T-Motor AT4130 Long Shaft Fixed Wing VTOL Motor KV230/KV300/KV450

Brand:T-Motor
Product Code:T-MOTOR000828
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

T-Motor AT4130 Long Shaft Fixed Wing VTOL Motor KV230/KV300/KV450 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	AT4130 Long Shaft Fixed Wing VTOL Motor KV230/KV300/KV450
Manufacturer SKU	T-MOTOR000828

Manufacturer technical and configuration tables

Test Item	Long ShaftKV230	Weight (Incl. Cable)	408g
Motor Dimensions	Φ50*79mm	Internal Resistance	60mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mmOUT：6mm	Rated Voltage(Lipo)	12S
Idle Current(10V)	1.4A	Peak Current(180s)	60A
Max Power (180S)	2500W	Recommendation	/
Test Item	Long ShaftKV300	Weight (Incl. Cable)	405g
Motor Dimensions	Φ50*79mm	Internal Resistance	32mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mmOUT：6mm	Rated Voltage(Lipo)	6-12S
Idle Current(10V)	1.8A	Peak Current(180s)	75A
Max Power (180S)	3200W	Recommendation	/
Test Item	Long ShaftKV450	Weight (Incl. Cable)	408g
Motor Dimensions	Φ50*79mm	Internal Resistance	16.8mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mmOUT：6mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	2.5A	Peak Current(180s)	75A
Max Power (180S)	1800W	Recommendation	/

Test Item	Long ShaftKV300	Weight (Incl. Cable)	405g
Motor Dimensions	Φ50*79mm	Internal Resistance	32mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mmOUT：6mm	Rated Voltage(Lipo)	6-12S
Idle Current(10V)	1.8A	Peak Current(180s)	75A
Max Power (180S)	3200W	Recommendation	/

Test Item	Long ShaftKV450	Weight (Incl. Cable)	408g
Motor Dimensions	Φ50*79mm	Internal Resistance	16.8mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mmOUT：6mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	2.5A	Peak Current(180s)	75A
Max Power (180S)	1800W	Recommendation	/

Type	Propeller	Throttle	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N*m)	Thrust(g)	Efficiency(g/W)	OperatingTemperature(℃)
AT4130Long ShaftKV230	APC16*8	40%	44.40	2.87	127.58	3701	0.226	1087	8.52	78(AmbientTemperature:/)
		45%	44.38	3.73	165.46	4105	0.284	1341	8.10
		50%	44.36	5.18	229.88	4664	0.366	1744	7.59
		55%	44.34	6.83	302.67	5143	0.450	2139	7.07
		60%	44.31	8.56	302.67	5546	0.531	2513	6.63
		65%	44.26	10.59	468.76	5941	0.616	2906	6.20
		70%	44.22	13.10	579.10	6363	0.719	3366	5.81
		75%	44.16	16.32	720.88	6827	0.841	3903	5.41
		80%	44.10	19.63	865.54	7215	0.958	4407	5.09
		90%	43.96	27.66	1215.78	7875	1.174	5293	4.35
		100%	43.78	38.25	1674.45	8646	1.521	6395	3.82
	APC17*10	40%	44.52	3.84	171.08	3512	0.349	1459	8.53	97(AmbientTemperature:/)
		45%	44.51	4.81	213.89	3869	0.424	1768	8.27
		50%	44.47	6.96	309.40	4395	0.547	2285	7.38
		55%	44.43	9.59	426.03	4902	0.690	2867	6.73
		60%	44.34	13.34	591.63	5359	0.835	3459	5.85
		65%	44.30	15.79	699.52	5679	0.948	3905	5.58
		70%	44.24	19.07	843.63	6038	1.087	4428	5.25
		75%	44.16	23.84	1052.67	6438	1.248	5069	4.82
		80%	44.08	28.30	1247.65	6806	1.410	5650	4.53
		90%	43.88	39.96	1753.67	7468	1.780	6939	3.96
		100%	43.62	55.63	2426.63	7891	2.101	7630	3.14
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT4130Long ShaftKV300	APC17*10	40%	29.90	4.05	121.08	3148	0.284	1175	9.70	68(AmbientTemperature:/)
		45%	29.88	5.27	157.61	3471	0.351	1458	9.25
		50%	29.82	8.14	242.78	3959	0.458	1903	7.84
		55%	29.76	11.40	339.11	4399	0.566	2355	6.94
		60%	29.73	14.01	416.40	4747	0.669	2773	6.66
		65%	29.66	17.51	519.33	5085	0.772	3187	6.14
		70%	29.59	21.50	636.19	5475	0.900	3696	5.81
		75%	29.50	26.67	787.01	5821	1.027	4198	5.33
		80%	29.43	31.27	920.27	6126	1.145	4662	5.07
		90%	29.21	43.47	1269.79	6717	1.411	5652	4.45
		100%	29.01	55.72	1616.42	7215	1.670	6577	4.07
	APC18*8	40%	29.90	4.08	122.11	3124	0.285	1246	10.20	85(AmbientTemperature:/)
		45%	29.87	5.54	165.57	3478	0.355	1573	9.50
		50%	29.82	8.36	249.20	3969	0.462	2061	8.27
		55%	29.78	11.20	333.59	4404	0.577	2542	7.62
		60%	29.71	14.42	428.57	4781	0.681	3027	7.07
		65%	29.67	17.26	512.26	5093	0.771	3438	6.71
		70%	29.59	21.71	642.57	5476	0.906	4019	6.26
		75%	29.49	26.99	796.16	5800	1.034	4601	5.78
		80%	29.41	32.15	945.54	6147	1.169	5145	5.44
		90%	29.22	43.46	1269.83	6721	1.428	6224	4.90
		100%	29.01	55.77	1617.91	7201	1.672	7231	4.47
	APC14*7	40%	44.53	3.40	151.51	4778	0.202	1086	7.17	82(AmbientTemperature:/)
		45%	44.50	4.53	201.78	5356	0.258	1375	6.81
		50%	44.47	6.46	287.44	6077	0.339	1796	6.25
		55%	44.41	8.76	388.82	6659	0.418	2183	5.62
		60%	44.38	11.21	497.36	7306	0.509	2633	5.29
		65%	44.35	13.42	595.23	7783	0.586	2989	5.02
		70%	44.28	17.04	754.68	8371	0.699	3536	4.69
		75%	44.19	22.48	993.34	9045	0.837	4146	4.17
		80%	44.11	26.78	1181.17	9528	0.967	4686	3.97
		90%	43.89	39.41	1729.89	10475	1.290	5432	3.14
		100%	43.67	53.21	2323.39	11329	1.595	6283	2.70
	APC15*8	40%	44.32	4.37	193.70	4605	0.294	1431	7.39	85(AmbientTemperature:/)
		45%	44.31	5.73	253.89	5142	0.366	1779	7.01
		50%	44.25	8.48	375.21	5885	0.484	2342	6.24
		55%	44.20	11.61	513.33	6502	0.613	2928	5.70
		60%	44.13	15.12	667.08	7064	0.731	3484	5.22
		65%	44.07	18.52	816.06	7526	0.848	4010	4.91
		70%	44.01	22.29	981.04	8039	0.983	4569	4.66
		75%	43.84	30.92	1355.63	8623	1.208	5080	3.75
		80%	43.72	38.65	1689.88	9142	1.420	5694	3.37
		90%	43.43	55.53	2412.02	9931	1.801	6751	2.80
		100%	43.14	72.26	3117.41	10572	2.171	7787	2.50
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT4130Long ShaftKV450	APC17*10	40%	22.24	9.57	212.83	3706	0.397	1632	7.67	63(AmbientTemperature:/)
		45%	22.21	11.55	256.58	3969	0.457	1873	7.30
		50%	22.16	14.22	315.17	4285	0.533	2182	6.92
		55%	22.08	18.77	414.61	4705	0.655	2671	6.44
		60%	22.01	23.17	510.03	5078	0.764	3124	6.13
		65%	21.92	28.60	627.00	5418	0.885	3610	5.76
		70%	21.82	34.25	747.18	5733	0.993	4039	5.41
		75%	21.72	40.63	882.51	6090	1.113	4486	5.08
		80%	21.57	49.20	1061.39	6405	1.274	5113	4.82
		90%	21.31	65.24	1390.48	6926	1.540	6091	4.38
		100%	21.16	74.27	1571.68	7167	1.676	6534	4.16
	APC18*8	40%	22.24	9.57	212.80	3696	0.400	1778	8.35	81(AmbientTemperature:/)
		45%	22.21	11.36	252.32	3953	0.454	2016	7.99
		50%	22.16	14.17	314.14	4283	0.533	2356	7.50
		55%	22.09	18.30	404.33	4684	0.643	2830	7.00
		60%	22.01	23.22	511.02	5082	0.765	3374	6.60
		65%	21.93	28.09	615.93	5403	0.870	3824	6.21
		70%	21.84	33.66	735.00	5719	0.994	4355	5.93
		75%	21.72	40.51	879.75	6048	1.120	4908	5.58
		80%	21.60	47.54	1026.98	6360	1.248	5409	5.27
		90%	21.34	63.11	1346.94	6905	1.503	6471	4.80
		100%	21.18	72.70	1540.06	7201	1.641	7017	4.56
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
