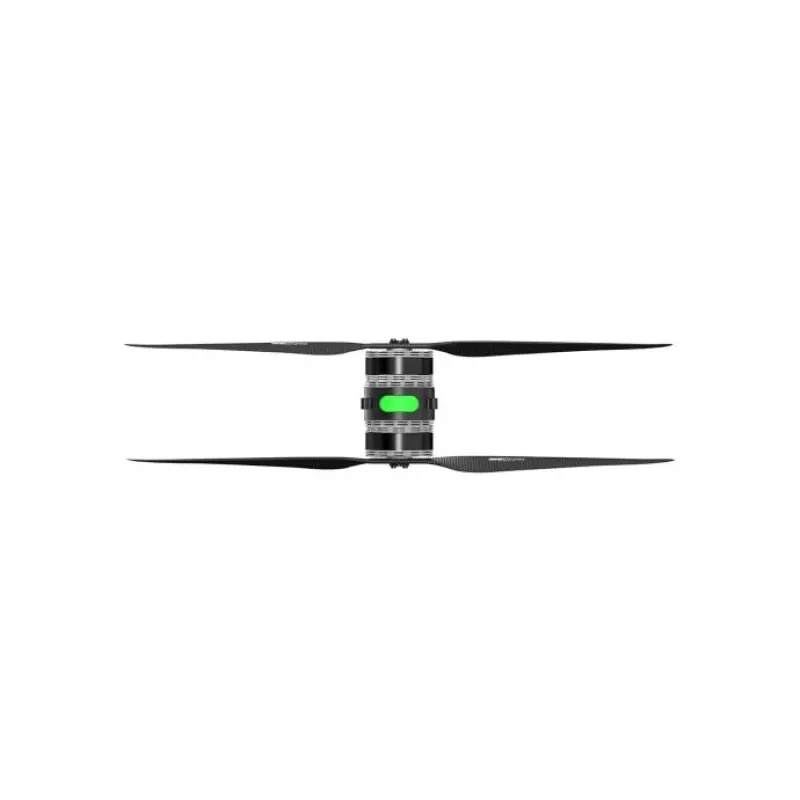

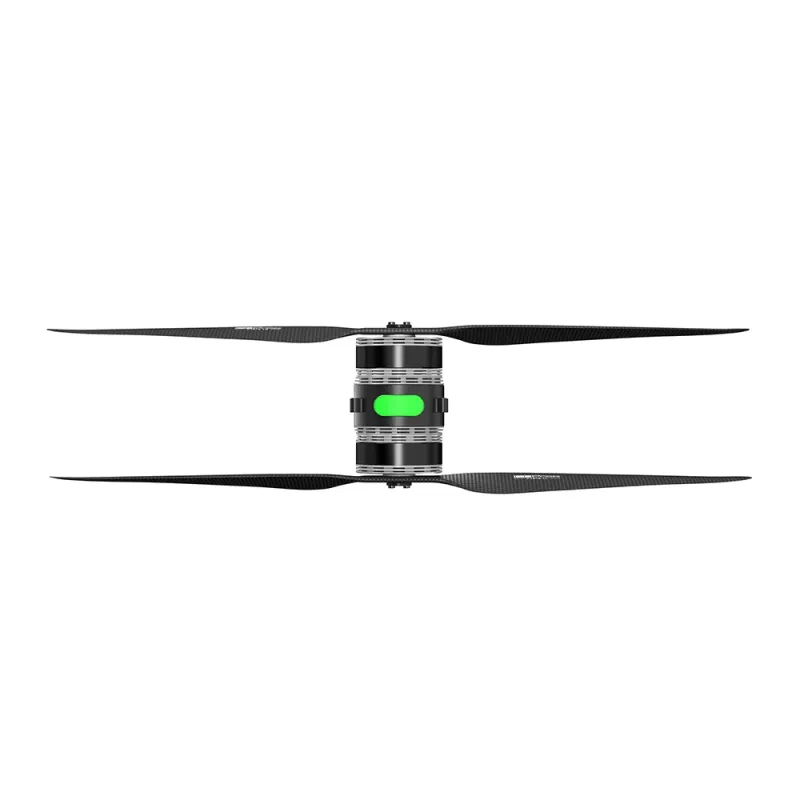

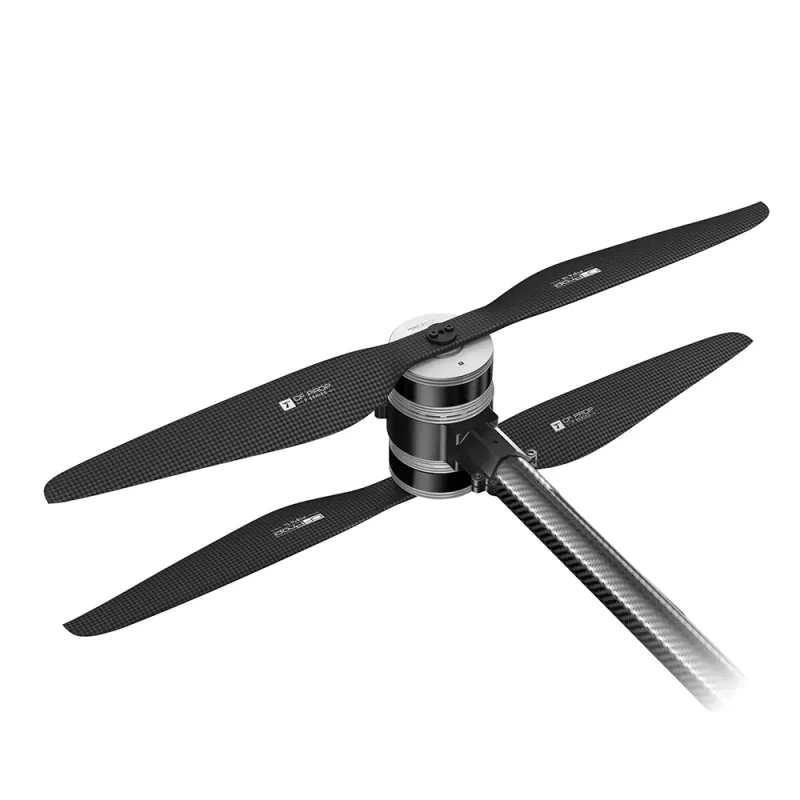

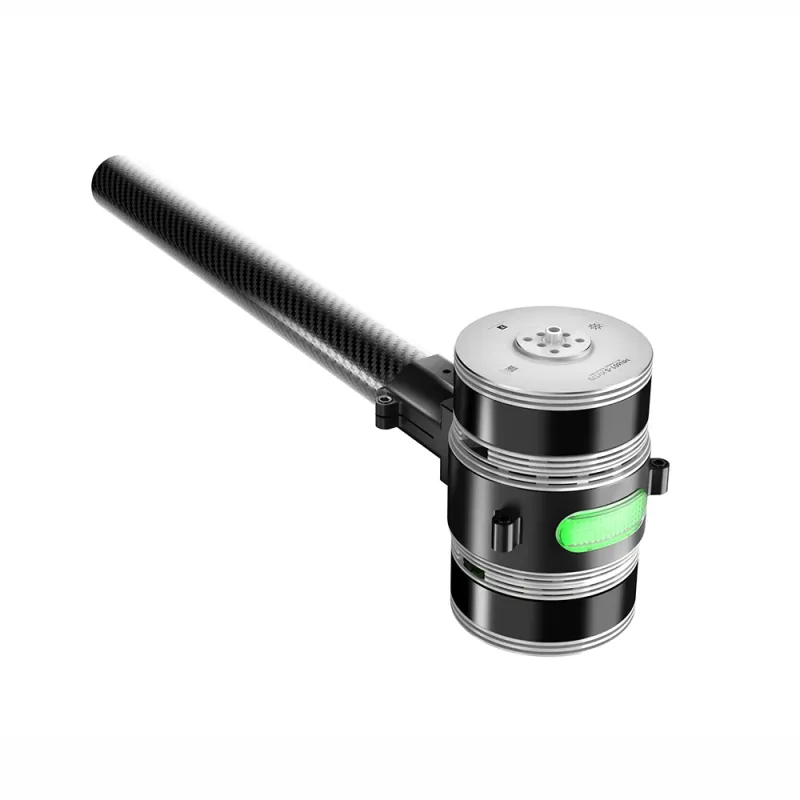

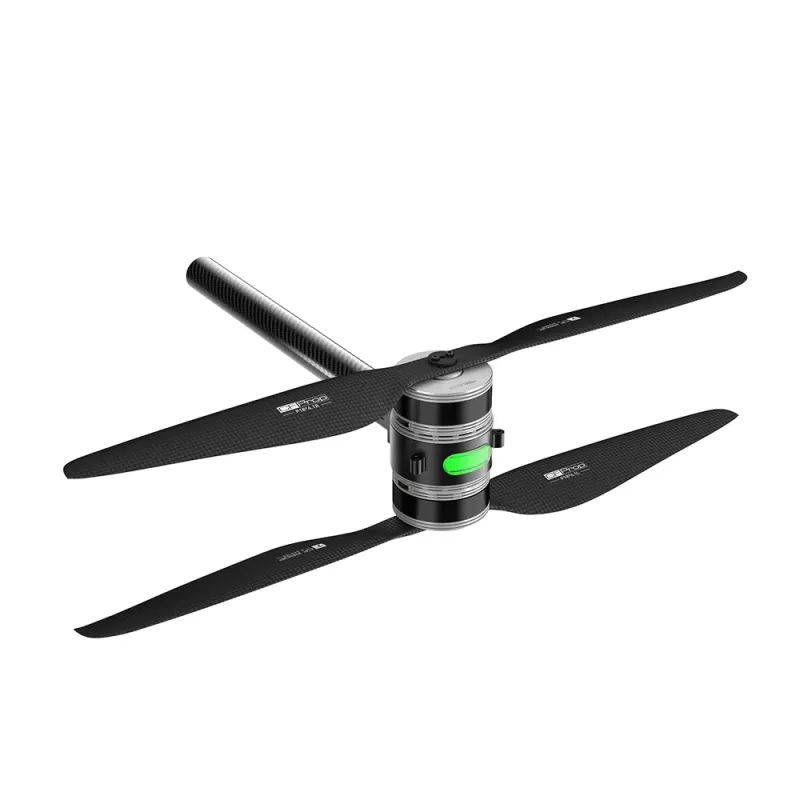

T-Motor X-605 Combo Pack Coaxial Type (Integrated Propulsion System ) UAV Motor 170/320KV

  • Brand:T-Motor
  • Product Code:T-MOTOR000809
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor X-605 Combo Pack Coaxial Type (Integrated Propulsion System ) UAV Motor 170/320KV is a T-Motor catalog item in Integrated Propulsion Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelX-605 Combo Pack Coaxial Type (Integrated Propulsion System ) UAV Motor 170/320KV
Manufacturer SKUT-MOTOR000809
KV320ALPHA 60A 6S
KV150ALPHA 60A 6S
KV100/
KV190/

Manufacturer technical and configuration tables

ModelX-605KV170Lead Cable Length630mm
Dimension124.8*72*121mmArm Set Weight(Incl. Cable)1100g
Configuration24N28PShaft DiameterIN:6mm OUT:6mm
Idle Current (24V)1.2ARated Voltage (Lipo)12S
Internal Resistance65mΩESCRecommendationALPHA 60A 12S
Max. Power (180s)536WPropellerRecommendationP22*6.6
ModelX-605KV320Lead Cable Length630mm
Dimension124.8*72*121mmArm Set Weight(Incl. Cable)1008g
Configuration24N28PShaft DiameterIN:6mm OUT:6mm
Idle Current (24V)3.4ARated Voltage (Lipo)6S
Internal Resistance21mΩESCRecommendationALPHA 60A 6S
Max. Power (180s)450WPropellerRecommendationP22*6.6
ModelX-605KV320Lead Cable Length630mm
Dimension124.8*72*121mmArm Set Weight(Incl. Cable)1008g
Configuration24N28PShaft DiameterIN:6mm OUT:6mm
Idle Current (24V)3.4ARated Voltage (Lipo)6S
Internal Resistance21mΩESCRecommendationALPHA 60A 6S
Max. Power (180s)450WPropellerRecommendationP22*6.6
TypeVoltage(V)Throttle(%)Current(A)Thrust(g)Torque(N.m)RPMMotorEfficiency(%)Efficiency(gf/W)OperatingTemperature(℃)
X-605+KV170（Alpha 60A 12S ）+P22*6.612S(48V)40%6.4925940.79286276.5013.0388（Ambient Temperature：25）
45%8.7732891.00318978.8911.86
50%11.6640451.22351980.4410.83
55%14.9248641.46384081.739.95
60%18.8557641.73416383.019.20
65%23.3967352.00447783.748.62
70%28.5777252.30478483.888.07
75%34.4187722.60508384.107.60
80%41.1198722.94538784.207.18
85%48.41109933.26567683.916.84
90%56.31121373.61595383.726.53
95%64.24131753.93620883.576.25
100%68.66137554.10633783.436.13
X-605+KV320（Alpha 60A 6S ）+P22*6.66S(24V)40%11.8514900.71270273.4010.1064（Ambient Temperature：25）
45%15.9018730.89300075.649.51
50%20.5922561.08328077.148.89
55%26.1126871.27355178.578.37
60%32.5431231.48381979.227.90
65%39.5835801.70406779.747.50
70%47.3940191.91429880.047.10
75%55.7944682.12451880.166.78
80%65.2849482.34472880.276.48
85%74.8053622.55491580.096.19
90%84.9657802.75509179.835.96
95%94.4761632.93525379.585.75
100%98.6764792.98535579.345.55
Arm SetCompatibleTube SizeMotorKVDefault ESCDefaultPropellerPropeller OptionsCustom ESC
501-X25mm/30mm(25mm=30mm+adapter)MN501-SKV240ALPHA 60A 12S V1.2MF1503P15*5, FA15.2*5FLAME 60A 12S
KV300ALPHA 40A 6SMF2009P20*6, FA20.2*6.6ALPHA 60A 12S V1.2,AIR 40A
KV360MF1806P18*6.1, FA18.2*5.9
505-XMN505-SKV320ALPHA 60A 6SMF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
KV380MF1806P18*6.1, FA18.2*5.9
601-XMN601-SKV170ALPHA 60A 12S V1.2MF2009P20*6, FA20.2*6.6FLAME 60A 12S
KV320ALPHA 60A 6SP20*6, FA20.2*6.6
605-XMN605-SKV170ALPHA 60A 12S V1.2MF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
KV320ALPHA 60A 6S
701-XMN701-SKV135ALPHA 80A 12SRoundMF2614P24*7.2-10mm Hole,G24*7.8, FA24.2*7.9/
705-XMN705-SKV125ALPHA 80A 12SRoundMF2614G26*8.5, FA26.2*8.5/
U8Ⅱ-XU8 Lite-XXU8-XU8ⅡU8 LiteXU8KV85ALPHA 60A 12S V1.2MF2815G28*9.2, FA28.2*9.2FLAME 60A 12S
KV100
KV150ALPHA 60A 6S
KV190
6007Ⅱ-X25mm/28mm6007ⅡKV160ALPHA 60A 12S V1.2MF2211FA22.2*7.2,NS22*6.6, P22*6.6FLAME 60A 12S
KV320ALPHA 60A 6S
P60-X25mm/30mm(25mm=30mm+adapter)P60KV170FLAME 60A 12SMF2211P22*6.6, G22*7.2/
P80-X30mm/35mmor 40mm(Notify us your tube size)P80KV100/KV120ALPHA 80A 12SMF3016P30*10, G30*10.5FLAME 80A 12S,FLAME 100A 14S
X-50125mm/30mm(25mm=30mm+adapter)MN501-SKV240ALPHA 60A 12S V1.2P15*5/FLAME 60A 12S
KV300ALPHA 40A 6SP20*6/ALPHA 60A 6S,AIR 40A
KV360P18*6.1/
X-505MN505-SKV320ALPHA 60A 6SP22*6.6/FLAME 60A 12S
KV380P18*6.1/
X-601MN601-SKV170ALPHA 60A 12S V1.2P20*6/FLAME 60A 12S
KV320ALPHA 60A 6S/
X-605MN605-SKV170ALPHA 60A 12S V1.2P22*6.6/FLAME 60A 12S
KV320ALPHA 60A 6S/
X-U8ⅡX-U8 LiteU8ⅡU8 LiteKV85ALPHA 60A 12S V1.2G28*9.2/FLAME 60A 12S
KV100/
KV150ALPHA 60A 6S/
KV190/
X-70130mm/35mm(30mm=35mm+adapter)MN701-SKV135ALPHA 80A 12SRoundP24*7.2-10mmHoleG24*7.8/
X-705MN705-SKV125ALPHA 80A 12SRoundG26*8.5//
* NOTE : order qty should be an EVEN number.
