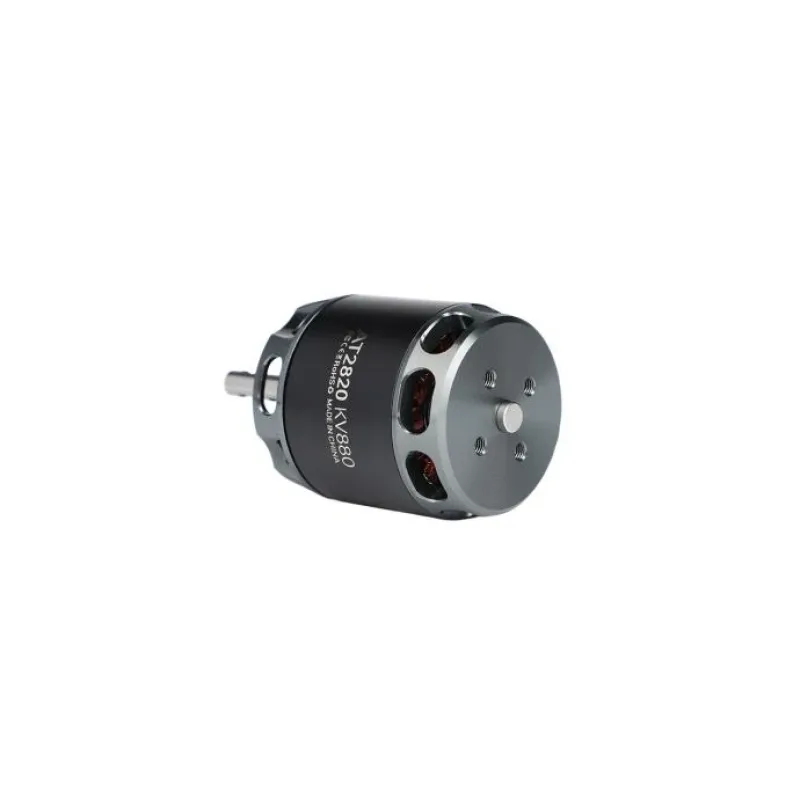

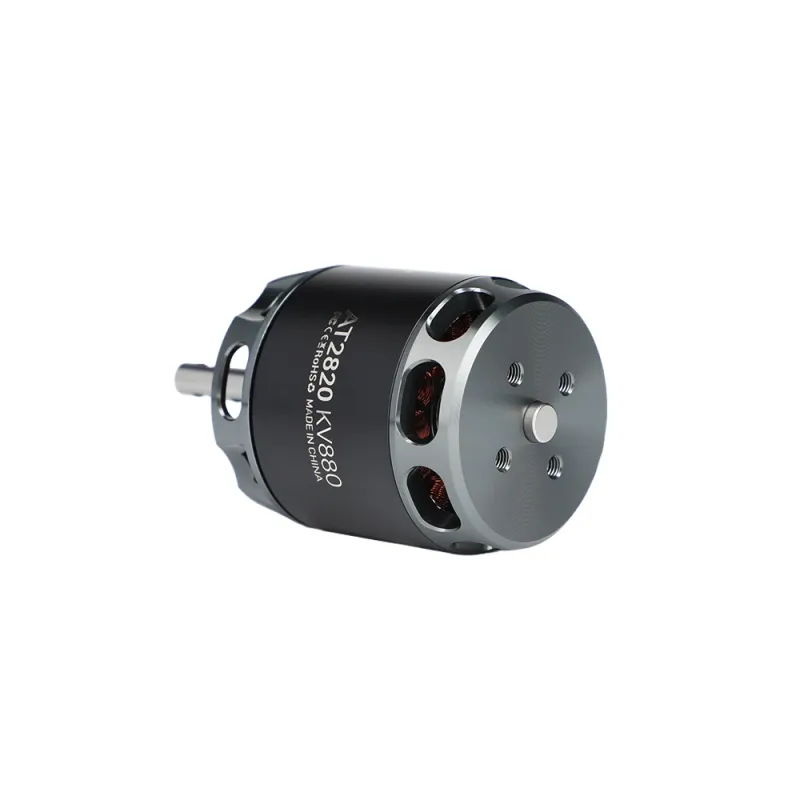

T-Motor AT2820 3D F3A Fixed Wing Long Shaft Fixed Wing Uav Motor KV880/KV1050/KV1250

T-Motor AT2820 3D F3A Fixed Wing Long Shaft Fixed Wing Uav Motor KV880/KV1050/KV1250

Brand:T-Motor
Product Code:T-MOTOR000792
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

T-Motor AT2820 3D F3A Fixed Wing Long Shaft Fixed Wing Uav Motor KV880/KV1050/KV1250 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	AT2820 3D F3A Fixed Wing Long Shaft Fixed Wing Uav Motor KV880/KV1050/KV1250
Manufacturer SKU	T-MOTOR000792

Manufacturer technical and configuration tables

Test Item	Long Shaft KV880	Weight (Incl. Cable)	139g
Motor Dimensions	Φ35.2*63.5mm	Internal Resistance	39mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mmOUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	1.6A	Peak Current(180s)	45A
Max Power (180S)	700W	Recommendation	/
Test Item	Long Shaft KV1050	Weight (Incl. Cable)	139g
Motor Dimensions	Φ35.2*63.5mm	Internal Resistance	28mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mmOUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.0A	Peak Current(180s)	65A
Max Power (180S)	900W	Recommendation	/
Test Item	Long Shaft KV1250	Weight (Incl. Cable)	141g
Motor Dimensions	Φ35.2*63.5mm	Internal Resistance	16mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mmOUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.7A	Peak Current(180s)	70A
Max Power (180S)	1000W	Recommendation	/

Test Item	Long Shaft KV1050	Weight (Incl. Cable)	139g
Motor Dimensions	Φ35.2*63.5mm	Internal Resistance	28mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mmOUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.0A	Peak Current(180s)	65A
Max Power (180S)	900W	Recommendation	/

Test Item	Long Shaft KV1250	Weight (Incl. Cable)	141g
Motor Dimensions	Φ35.2*63.5mm	Internal Resistance	16mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mmOUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.7A	Peak Current(180s)	70A
Max Power (180S)	1000W	Recommendation	/

Type	Propeller	Throttle	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N*m)	Thrust(g)	Efficiency(g/W)	OperatingTemperature(℃)
AT2820Long ShaftKV880	APC11*7	40%	15.15	8.76	132.79	5981	0.152	856	6.44	93(AmbientTemperature:/)
		45%	15.12	10.26	155.22	6333	0.171	955	6.15
		50%	15.10	11.91	179.75	6675	0.190	1064	5.92
		55%	15.07	13.53	203.93	6990	0.209	1162	5.70
		60%	15.04	15.15	227.85	7255	0.227	1266	5.56
		65%	15.00	17.47	261.99	7596	0.245	1390	5.30
		70%	14.96	20.06	300.02	7975	0.278	1543	5.14
		75%	14.91	23.03	343.28	8330	0.312	1707	4.97
		80%	14.84	26.77	397.30	8709	0.348	1893	4.77
		90%	14.70	35.62	523.47	9448	0.415	2275	4.35
		100%	14.64	39.03	571.30	9685	0.443	2362	4.13
	APC12*6	40%	15.15	8.88	134.43	5738	0.157	946	7.04	HOT
		45%	15.12	10.58	159.95	6114	0.176	1077	6.73
		50%	15.09	12.29	185.48	6461	0.195	1194	6.44
		55%	15.06	14.01	211.03	6734	0.215	1320	6.25
		60%	15.03	15.95	239.66	7033	0.242	1437	6.00
		65%	14.98	18.74	280.67	7422	0.270	1616	5.76
		70%	14.93	21.84	326.02	7801	0.303	1793	5.50
		75%	14.87	25.25	375.36	8141	0.337	1992	5.31
		80%	14.80	29.60	438.01	8514	0.382	2230	5.09
		90%	14.66	37.97	556.43	9174	0.444	2596	4.67
		100%	14.59	42.00	612.71	9413	0.472	2755	4.50
	APC13*6.5	40%	11.41	6.59	75.22	4168	0.104	642	8.53	81(AmbientTemperature:/)
		45%	11.39	7.88	89.74	4441	0.114	736	8.21
		50%	11.36	9.29	105.54	4692	0.132	831	7.87
		55%	11.34	10.67	120.98	4951	0.148	923	7.63
		60%	11.31	12.23	138.37	5211	0.167	1026	7.42
		65%	11.28	14.17	159.82	5524	0.189	1143	7.15
		70%	11.23	16.88	189.66	5862	0.216	1303	6.87
		75%	11.18	19.77	221.17	6162	0.245	1450	6.56
		80%	11.14	22.83	254.25	6464	0.274	1614	6.35
		90%	11.02	29.90	329.38	7018	0.332	1922	5.84
		100%	10.97	32.73	359.09	7225	0.349	2039	5.68
	APC14*7	40%	11.39	7.12	81.15	3856	0.135	708	8.73	94(AmbientTemperature:/)
		45%	11.37	8.37	95.19	4090	0.151	796	8.36
		50%	11.35	9.86	111.92	4326	0.172	900	8.04
		55%	11.32	11.67	132.04	4557	0.197	1023	7.75
		60%	11.27	14.49	163.33	4905	0.229	1188	7.27
		65%	11.22	17.27	193.82	5238	0.259	1341	6.92
		70%	11.17	20.42	228.16	5515	0.292	1504	6.59
		75%	11.11	24.03	266.95	5807	0.326	1678	6.29
		80%	11.04	28.30	312.38	6093	0.365	1864	5.97
		90%	10.91	36.09	393.87	6534	0.424	2154	5.47
		100%	10.86	39.48	428.63	6691	0.447	2269	5.29
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2820Long ShaftKV1050	APC11*5.5	40%	15.10	11.63	175.58	7044	0.168	1045	5.95	96(AmbientTemperature:/)
		45%	15.06	13.78	207.57	7454	0.192	1184	5.71
		50%	15.02	16.06	241.26	7836	0.213	1314	5.44
		55%	14.98	18.36	275.07	8161	0.235	1448	5.27
		60%	14.94	20.74	309.94	8483	0.253	1577	5.09
		65%	14.91	22.92	341.60	8741	0.277	1699	4.97
		70%	14.85	25.91	384.80	9093	0.302	1847	4.80
		75%	14.78	30.29	447.71	9548	0.343	2070	4.62
		80%	14.71	34.91	513.46	9976	0.379	2266	4.41
		90%	14.53	45.49	661.09	10726	0.459	2691	4.07
		100%	14.42	52.39	755.33	11048	0.502	2860	3.79
	APC11*8	40%	15.08	12.57	189.55	6316	0.197	1034	5.46	HOT
		45%	15.03	15.40	231.52	6775	0.228	1190	5.14
		50%	14.99	17.93	268.71	7162	0.254	1324	4.93
		55%	14.94	20.73	309.74	7452	0.282	1476	4.77
		60%	14.89	23.85	355.09	7826	0.311	1615	4.55
		65%	14.82	27.90	413.55	8247	0.347	1789	4.33
		70%	14.77	31.10	459.34	8570	0.375	1931	4.20
		75%	14.68	36.36	533.78	8998	0.419	2135	4.00
		80%	14.59	42.03	613.13	9405	0.460	2331	3.80
		90%	14.39	54.37	782.26	10043	0.547	2695	3.45
		100%	14.28	60.78	867.87	10356	0.581	2823	3.25
	APC12*6	40%	11.35	8.84	100.36	5187	0.129	765	7.62	82(AmbientTemperature:/)
		45%	11.32	10.43	118.07	5476	0.147	864	7.32
		50%	11.29	12.23	138.14	5790	0.165	969	7.01
		55%	11.26	13.94	156.96	6095	0.181	1064	6.78
		60%	11.23	15.61	175.35	6344	0.197	1161	6.62
		65%	11.20	17.40	194.97	6609	0.212	1249	6.41
		70%	11.16	20.23	225.72	6963	0.237	1399	6.20
		75%	11.11	23.16	257.21	7254	0.262	1539	5.98
		80%	11.04	27.34	301.75	7636	0.297	1739	5.76
		90%	10.90	35.69	389.18	8269	0.356	2077	5.34
		100%	10.83	40.02	433.53	8549	0.385	2215	5.11
	APC13*6.5	40%	11.34	9.19	104.22	4624	0.147	809	7.76	97(AmbientTemperature:/)
		45%	11.31	11.11	125.63	4954	0.168	931	7.41
		50%	11.27	13.29	149.84	5268	0.191	1063	7.10
		55%	11.24	15.42	173.28	5508	0.214	1192	6.88
		60%	11.21	17.51	196.23	5788	0.235	1303	6.64
		65%	11.14	21.32	237.42	6161	0.268	1487	6.26
		70%	11.08	24.78	274.57	6470	0.301	1667	6.07
		75%	11.01	28.76	316.76	6814	0.329	1833	5.79
		80%	10.94	33.15	362.71	7140	0.363	2007	5.53
		90%	10.78	43.09	464.60	7706	0.425	2351	5.06
		100%	10.71	47.69	510.55	7938	0.455	2496	4.89
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2820Long ShaftKV1250	APC9*6	40%	15.02	15.68	235.58	9026	0.172	1045	4.44	98(AmbientTemperature:/)
		45%	14.98	18.29	273.97	9437	0.194	1166	4.25
		50%	14.93	21.14	315.70	9975	0.216	1290	4.09
		55%	14.88	24.08	358.32	10391	0.238	1408	3.93
		60%	14.84	26.45	392.53	10766	0.255	1514	3.86
		65%	14.79	29.36	434.32	11114	0.275	1598	3.68
		70%	14.73	32.79	483.11	11398	0.297	1704	3.53
		75%	14.67	36.84	540.35	11780	0.319	1797	3.33
		80%	14.58	42.30	616.66	12354	0.359	1973	3.20

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
