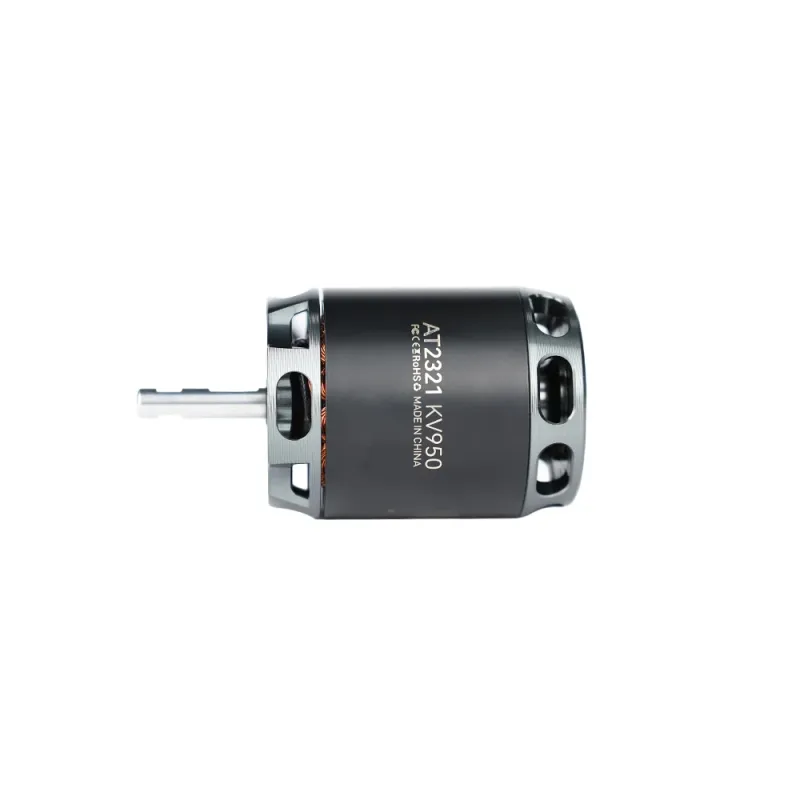

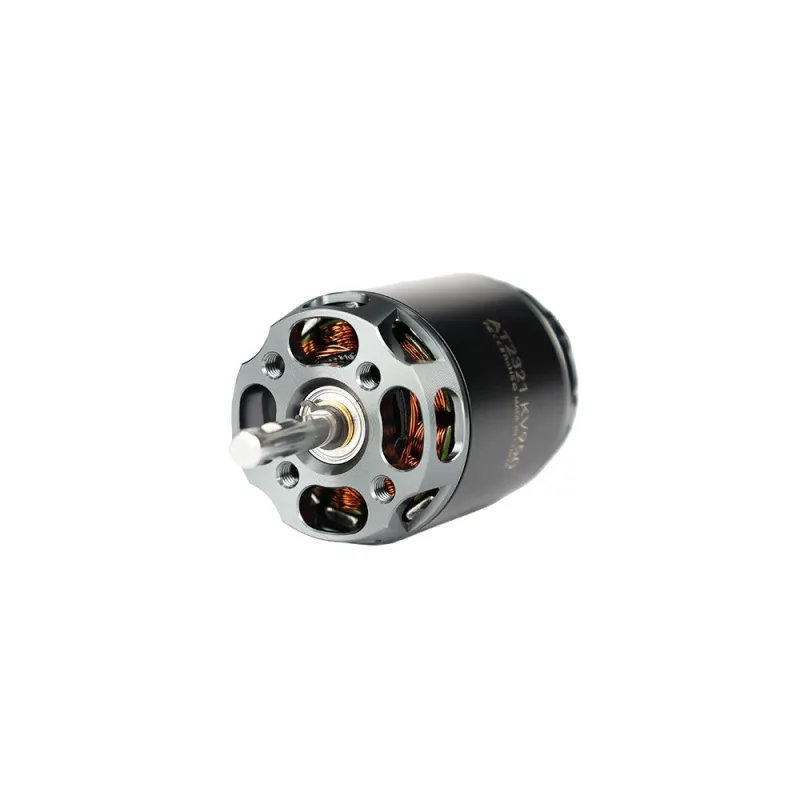

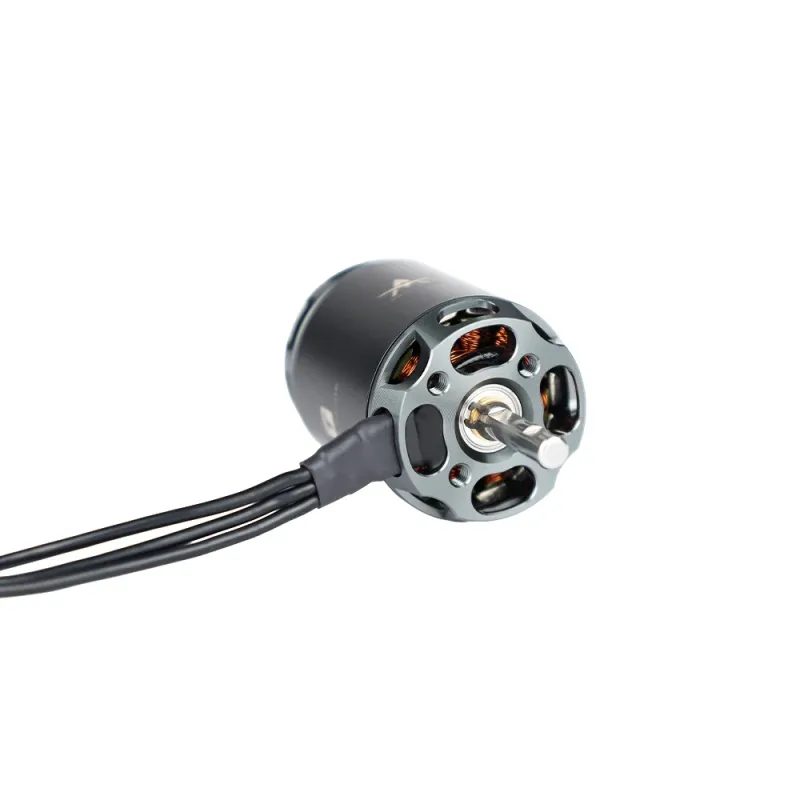

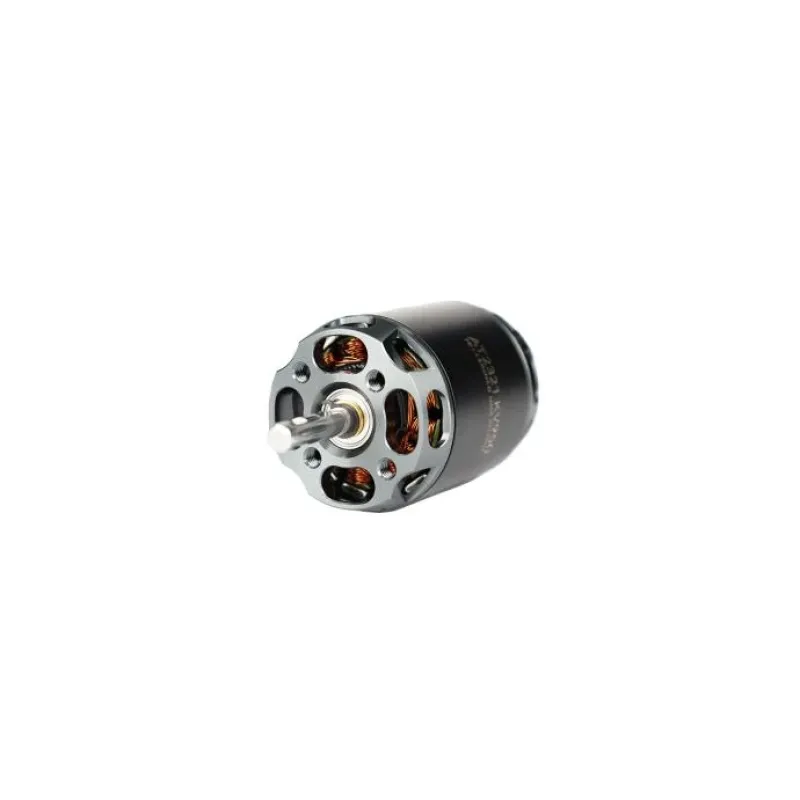

T-Motor AT2321 Long Shaft 3D Trainer Glider motor KV1250/KV950

T-Motor AT2321 Long Shaft 3D Trainer Glider motor KV1250/KV950

Brand:T-Motor
Product Code:T-MOTOR000790
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

T-Motor AT2321 Long Shaft 3D Trainer Glider motor KV1250/KV950 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	AT2321 Long Shaft 3D Trainer Glider motor KV1250/KV950
Manufacturer SKU	T-MOTOR000790

Manufacturer technical and configuration tables

Test Item	Long Shaft KV950	Weight (Incl. Cable)	93g
Motor Dimensions	Φ28.8*56mm	Internal Resistance	65mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.2A	Peak Current(180s)	30A
Max Power (180S)	450W	Recommendation	/
Test Item	Long Shaft KV1250	Weight (Incl. Cable)	94g
Motor Dimensions	Φ28.8*56mm	Internal Resistance	38mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.8A	Peak Current(180s)	45A
Max Power (180S)	700W	Recommendation	/

Test Item	Long Shaft KV1250	Weight (Incl. Cable)	94g
Motor Dimensions	Φ28.8*56mm	Internal Resistance	38mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.8A	Peak Current(180s)	45A
Max Power (180S)	700W	Recommendation	/

Type	Propeller	Throttle	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N*m)	Thrust(g)	Efficiency(g/W)	OperatingTemperature(℃)
AT2321Long ShaftKV950	APC10*4.7	40%	15.19	6.40	97.06	5762	0.108	696	7.17	73(AmbientTemperature:/)
		45%	15.16	7.57	114.61	6108	0.123	789	6.89
		50%	15.13	8.81	133.17	6428	0.138	874	6.56
		55%	15.10	10.06	151.81	6723	0.152	957	6.31
		60%	15.06	11.52	173.62	7044	0.168	1049	6.04
		65%	15.02	13.40	201.23	7381	0.187	1157	5.75
		70%	14.97	15.49	231.53	7759	0.208	1271	5.49
		75%	14.91	17.80	265.19	8101	0.230	1393	5.25
		80%	14.84	20.77	308.05	8481	0.255	1522	4.94
		90%	14.66	26.58	389.58	9143	0.299	1752	4.50
		100%	14.58	28.86	420.61	9378	0.312	1800	4.28
	APC11*5.5	40%	15.19	6.32	95.82	5847	0.106	733	7.65	78(AmbientTemperature:/)
		45%	15.16	7.48	113.35	6197	0.120	832	7.34
		50%	15.14	8.68	131.12	6501	0.134	918	7.00
		55%	15.11	9.90	149.36	6832	0.148	1001	6.70
		60%	15.07	11.23	169.11	7131	0.162	1093	6.46
		65%	15.03	13.00	195.80	7475	0.181	1211	6.19
		70%	14.98	15.06	225.35	7794	0.201	1327	5.89
		75%	14.92	17.55	261.64	8090	0.226	1491	5.70
		80%	14.85	20.35	302.02	8540	0.250	1616	5.35
		90%	14.67	26.35	386.51	9181	0.297	1860	4.81
		100%	14.58	28.86	420.71	9379	0.311	1912	4.54
	APC11*5.5	40%	11.35	4.34	49.16	4739	0.066	452	9.19	43(AmbientTemperature:/)
		45%	11.33	5.09	57.57	5026	0.075	512	8.89
		50%	11.31	5.87	66.26	5291	0.083	568	8.58
		55%	11.29	6.63	74.67	5525	0.091	623	8.34
		60%	11.28	7.37	83.10	5714	0.100	677	8.15
		65%	11.26	8.16	91.81	5930	0.107	733	7.98
		70%	11.23	9.31	104.44	6238	0.119	810	7.76
		75%	11.19	10.75	120.18	6556	0.132	901	7.50
		80%	11.15	12.50	139.21	6869	0.148	1006	7.23
		90%	11.05	16.72	184.58	7466	0.183	1226	6.64
		100%	11.00	18.72	205.81	7716	0.197	1304	6.34
	APC12*6	40%	11.41	4.76	54.19	4216	0.080	502	9.27	60(AmbientTemperature:/)
		45%	11.39	5.64	64.07	4492	0.091	569	8.88
		50%	11.37	6.55	74.40	4757	0.101	638	8.57
		55%	11.35	7.54	85.49	5007	0.113	716	8.38
		60%	11.32	8.58	96.89	5245	0.124	791	8.16
		65%	11.29	10.04	113.14	5541	0.139	893	7.90
		70%	11.24	12.02	135.04	5873	0.158	1003	7.43
		75%	11.20	13.87	155.08	6176	0.176	1123	7.24
		80%	11.15	16.00	178.16	6472	0.194	1233	6.92
		90%	11.02	20.97	230.96	7021	0.233	1452	6.28
		100%	10.96	23.04	252.41	7216	0.246	1492	5.91
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2321Long ShaftKV1250	APC9*6	40%	15.14	11.07	167.64	8299	0.134	794	4.74	92(AmbientTemperature:/)
		45%	15.11	13.07	197.46	8730	0.154	905	4.58
		50%	15.08	15.44	232.78	9243	0.171	1017	4.37
		55%	15.05	17.37	261.46	9599	0.186	1100	4.21
		60%	15.03	19.45	292.22	9927	0.203	1196	4.09
		65%	15.00	21.44	321.60	10306	0.218	1278	3.97
		70%	14.96	24.07	360.24	10698	0.240	1398	3.88
		75%	14.90	29.30	436.49	11380	0.276	1603	3.67
		80%	14.86	31.72	471.44	11667	0.290	1687	3.58
		90%	14.74	41.00	604.43	12564	0.341	1958	3.24
		100%	14.69	44.96	660.44	12786	0.362	2067	3.13
	APC10*4.7	40%	11.12	9.22	102.49	5766	0.108	698	6.81	73(AmbientTemperature:/)
		45%	11.07	10.86	120.07	6088	0.123	793	6.61
		50%	11.02	12.61	138.77	6395	0.137	874	6.29
		55%	10.97	14.34	157.08	6679	0.151	959	6.10
		60%	10.91	16.26	177.18	6969	0.165	1055	5.95
		65%	10.84	18.77	203.25	7320	0.183	1158	5.70
		70%	10.76	21.36	229.56	7649	0.200	1264	5.51
		75%	10.66	24.15	257.38	7973	0.219	1372	5.33
		80%	10.54	27.55	290.28	8206	0.238	1503	5.18
		90%	10.23	34.66	354.51	8838	0.273	1726	4.87
		100%	10.09	37.07	373.86	8886	0.284	1794	4.80
	APC11*5.5	40%	10.95	8.88	97.23	5799	0.103	697	7.17	75(AmbientTemperature:/)
		45%	10.90	10.45	113.73	6130	0.116	789	6.94
		50%	10.85	12.11	131.25	6443	0.130	873	6.65
		55%	10.80	13.72	147.98	6724	0.142	959	6.48
		60%	10.75	15.41	165.61	6999	0.155	1040	6.28
		65%	10.69	17.67	188.71	7332	0.172	1145	6.07
		70%	10.62	20.19	213.94	7655	0.189	1257	5.87
		75%	10.54	23.01	242.29	7959	0.207	1383	5.71
		80%	10.43	26.42	275.42	8264	0.229	1512	5.49
		90%	10.13	34.12	345.25	8723	0.269	1761	5.10
		100%	10.01	36.38	364.02	8854	0.280	1852	5.09
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
