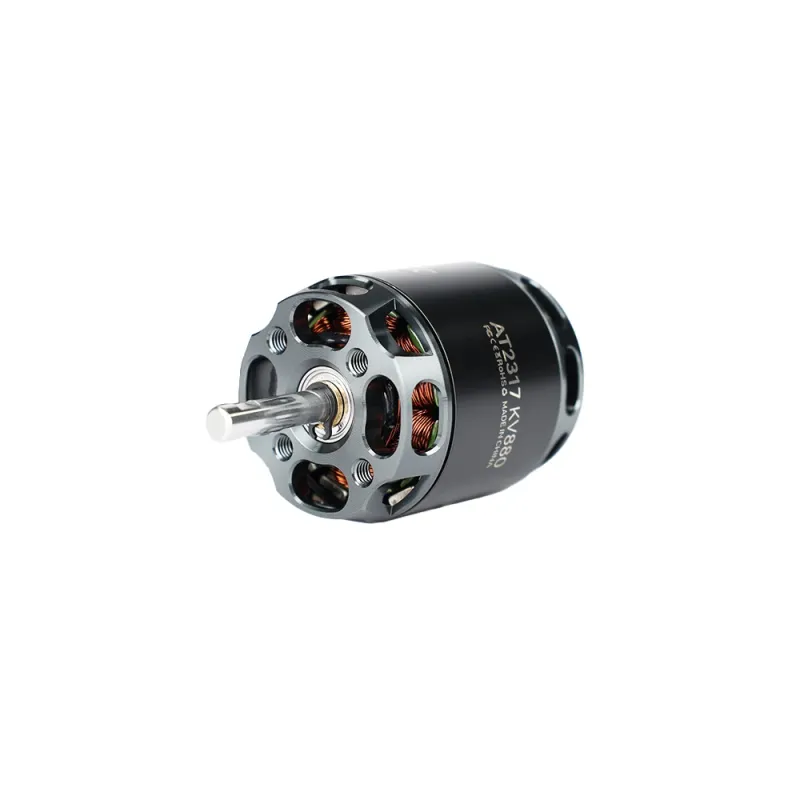

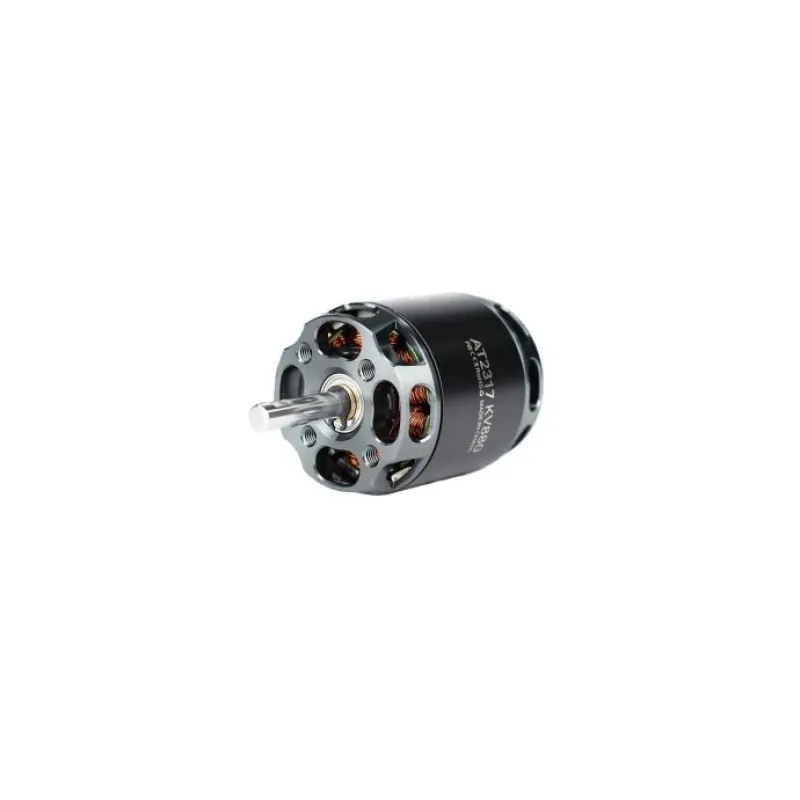

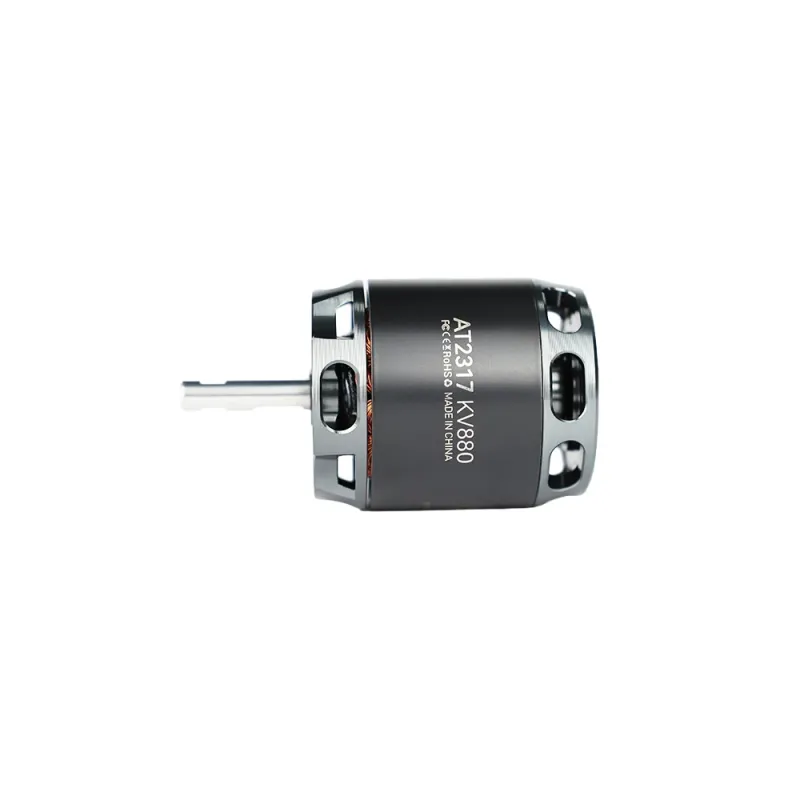

T-Motor AT2317 Long Shaft Outdoor 3D Trainer Glider Motor-KV1400/KV880/KV1250

T-Motor AT2317 Long Shaft Outdoor 3D Trainer Glider Motor-KV1400/KV880/KV1250

Brand:T-Motor
Product Code:T-MOTOR000789
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

T-Motor AT2317 Long Shaft Outdoor 3D Trainer Glider Motor-KV1400/KV880/KV1250 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	AT2317 Long Shaft Outdoor 3D Trainer Glider Motor-KV1400/KV880/KV1250
Manufacturer SKU	T-MOTOR000789

Manufacturer technical and configuration tables

Test Item	Long Shaft KV880	Weight (Incl. Cable)	79g
Motor Dimensions	Φ28.8*52mm	Internal Resistance	82mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	0.9A	Peak Current(180s)	25A
Max Power (180S)	350W	Recommendation	/
Test Item	Long Shaft KV1250	Weight (Incl. Cable)	79g
Motor Dimensions	Φ28.4*44.5mm	Internal Resistance	52mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.3A	Peak Current(180s)	40A
Max Power (180S)	550W	Recommendation	/
Test Item	Long Shaft KV1400	Weight (Incl. Cable)	80g
Motor Dimensions	Φ28.4*44.5mm	Internal Resistance	35mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.7A	Peak Current(180s)	45A
Max Power (180S)	700W	Recommendation	/

Test Item	Long Shaft KV1250	Weight (Incl. Cable)	79g
Motor Dimensions	Φ28.4*44.5mm	Internal Resistance	52mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.3A	Peak Current(180s)	40A
Max Power (180S)	550W	Recommendation	/

Test Item	Long Shaft KV1400	Weight (Incl. Cable)	80g
Motor Dimensions	Φ28.4*44.5mm	Internal Resistance	35mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mmOUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.7A	Peak Current(180s)	45A
Max Power (180S)	700W	Recommendation	/

Type	Propeller	Throttle	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N*m)	Thrust(g)	Efficiency(g/W)	OperatingTemperature(℃)
AT2317Long ShaftKV880	APC10*4.7	40%	14.70	4.91	72.01	5265	0.090	583	8.09	51(AmbientTemperature:/)
		45%	14.68	5.79	84.69	5561	0.102	653	7.71
		50%	14.66	6.79	99.33	5864	0.114	729	7.34
		55%	14.63	7.84	114.62	6196	0.127	812	7.08
		60%	14.60	9.21	134.38	6525	0.143	910	6.77
		65%	14.56	10.96	159.39	6920	0.162	1022	6.41
		70%	14.51	12.77	185.13	7270	0.179	1130	6.11
		75%	14.47	14.85	214.73	7608	0.199	1243	5.79
		80%	14.41	17.12	246.59	7974	0.219	1356	5.50
		90%	14.28	22.12	315.77	8604	0.258	1571	4.97
		100%	14.23	23.89	339.80	8686	0.272	1652	4.86
	APC11*5.5	40%	14.68	4.82	70.62	5297	0.087	592	8.38	72(AmbientTemperature:/)
		45%	14.66	5.68	83.25	5640	0.098	667	8.01
		50%	14.64	6.60	96.57	5950	0.110	743	7.69
		55%	14.62	7.61	111.15	6217	0.122	828	7.45
		60%	14.59	8.94	130.34	6585	0.137	928	7.12
		65%	14.55	10.68	155.23	6976	0.156	1049	6.76
		70%	14.51	12.43	180.15	7317	0.173	1161	6.45
		75%	14.46	14.39	207.80	7668	0.192	1282	6.17
		80%	14.40	16.69	240.15	8021	0.213	1402	5.84
		90%	14.27	21.86	311.81	8647	0.254	1627	5.22
		100%	14.23	23.36	332.14	8750	0.264	1670	5.03
	APC12*6	40%	11.21	3.74	41.84	3882	0.070	435	10.40	57(AmbientTemperature:/)
		45%	11.19	4.35	48.57	4098	0.077	488	10.05
		50%	11.19	5.12	57.19	4350	0.087	551	9.64
		55%	11.15	5.92	65.86	4595	0.096	615	9.33
		60%	11.19	7.16	79.99	4929	0.111	710	8.88
		65%	11.11	8.56	94.94	5250	0.126	807	8.50
		70%	11.05	10.03	110.84	5539	0.140	898	8.10
		75%	11.07	11.85	131.06	5860	0.158	1018	7.77
		80%	10.98	13.78	151.10	6098	0.175	1115	7.38
		90%	10.86	17.90	194.20	6631	0.207	1327	6.83
		100%	10.82	19.41	209.79	6720	0.218	1396	6.66
	APC13*8	40%	11.07	4.19	46.22	3289	0.085	463	10.01	79(AmbientTemperature:/)
		45%	11.15	5.10	56.69	3533	0.097	537	9.47
		50%	11.12	6.25	69.34	3813	0.113	623	8.98
		55%	11.08	7.68	85.00	4112	0.131	725	8.53
		60%	10.71	8.95	95.59	4295	0.143	794	8.31
		65%	10.70	10.94	116.82	4588	0.165	916	7.84
		70%	10.92	13.49	147.10	4939	0.190	1061	7.21
		75%	10.87	15.70	170.57	5169	0.210	1172	6.87
		80%	10.88	18.28	198.72	5406	0.232	1297	6.53
		90%	10.76	23.33	250.66	5778	0.268	1488	5.93
		100%	10.69	24.84	265.34	5809	0.277	1540	5.81
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2317Long ShaftKV1250	APC8*6	40%	15.12	8.13	122.92	8445	0.094	624	5.08	78(AmbientTemperature:/)
		45%	15.09	9.48	143.03	8889	0.106	698	4.88
		50%	15.05	10.83	162.81	9304	0.116	765	4.70
		55%	15.03	12.07	181.18	9612	0.126	820	4.52
		60%	14.99	13.47	201.69	9983	0.136	882	4.37
		65%	14.96	15.02	224.60	10305	0.148	943	4.20
		70%	14.93	16.40	244.54	10663	0.162	1014	4.15
		75%	14.85	19.05	283.40	11152	0.179	1105	3.90
		80%	14.78	22.03	325.32	11609	0.198	1207	3.71
		90%	14.56	28.80	419.00	12530	0.237	1406	3.36
		100%	14.49	30.61	443.19	12713	0.246	1451	3.27
	APC9*6	40%	15.09	9.06	136.63	7581	0.114	749	5.48	93(AmbientTemperature:/)
		45%	15.06	10.66	160.19	8013	0.128	840	5.24
		50%	15.02	12.37	185.59	8418	0.142	937	5.05
		55%	14.97	14.16	212.01	8774	0.156	1050	4.95
		60%	14.93	16.10	240.25	9130	0.171	1131	4.71
		65%	14.88	17.91	266.47	9474	0.185	1217	4.57
		70%	14.82	20.45	302.98	9880	0.203	1341	4.42
		75%	14.72	23.84	350.85	10287	0.227	1457	4.15
		80%	14.61	27.14	396.58	10619	0.249	1562	3.94
		90%	14.32	34.69	496.77	11369	0.288	1696	3.41
		100%	14.23	36.73	522.62	11500	0.295	1733	3.32
	APC9*6	40%	11.35	6.37	72.24	6179	0.074	486	6.73	57(AmbientTemperature:/)
		45%	11.33	7.42	83.98	6547	0.083	548	6.53
		50%	11.31	8.53	96.33	6876	0.092	606	6.29
		55%	11.28	9.60	108.10	7175	0.100	660	6.11
		60%	11.26	10.63	119.51	7431	0.108	711	5.95
		65%	11.23	11.85	132.86	7727	0.117	770	5.80
		70%	11.19	13.36	149.40	7977	0.129	836	5.60
		75%	11.15	15.22	169.60	8417	0.141	913	5.39
		80%	11.09	17.71	196.20	8820	0.157	1003	5.11
		90%	10.95	22.99	251.48	9518	0.188	1156	4.60
		100%	10.89	24.65	268.36	9735	0.196	1192	4.44
	APC10*4.7	40%	11.34	7.05	79.83	5328	0.092	583	7.30	79(AmbientTemperature:/)
		45%	11.31	8.25	93.30	5642	0.103	651	6.98
		50%	11.28	9.68	109.12	5923	0.115	732	6.70
		55%	11.24	11.22	125.91	6246	0.128	822	6.53
		60%	11.20	13.13	146.85	6569	0.144	914	6.23
		65%	11.14	15.55	173.09	6946	0.162	1024	5.92
		70%	11.09	17.77	196.83	7266	0.179	1118	5.68
		75%	11.02	20.41	224.79	7551	0.196	1220	5.43
		80%	10.94	23.41	255.66	7894	0.215	1327	5.19
		90%	10.73	29.63	317.60	8441	0.248	1494	4.70
		100%	10.65	31.44	334.79	8529	0.255	1523	4.55
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2317Long ShaftKV1400	APC8*6	40%	15.13	10.98	166.02	9128	0.115	701	4.22	78(AmbientTemperature:/)
		45%	15.10	12.79	193.18	9627	0.129	774	4.01
		50%	15.08	14.75	222.40	10115	0.142	852	3.83
		55%	15.05	16.75	252.09	10553	0.156	923	3.66
		60%	15.03	18.68	280.70	10904	0.170	994	3.54
		65%	14.99	21.36	320.23	11377	0.185	1085	3.39
		70%	14.97	23.11	345.91	11794	0.197	1179	3.41
		75%	14.91	27.02	403.03	12294	0.222	1309	3.25
		80%	14.85	32.01	475.25	12954	0.250	1437	3.02

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
