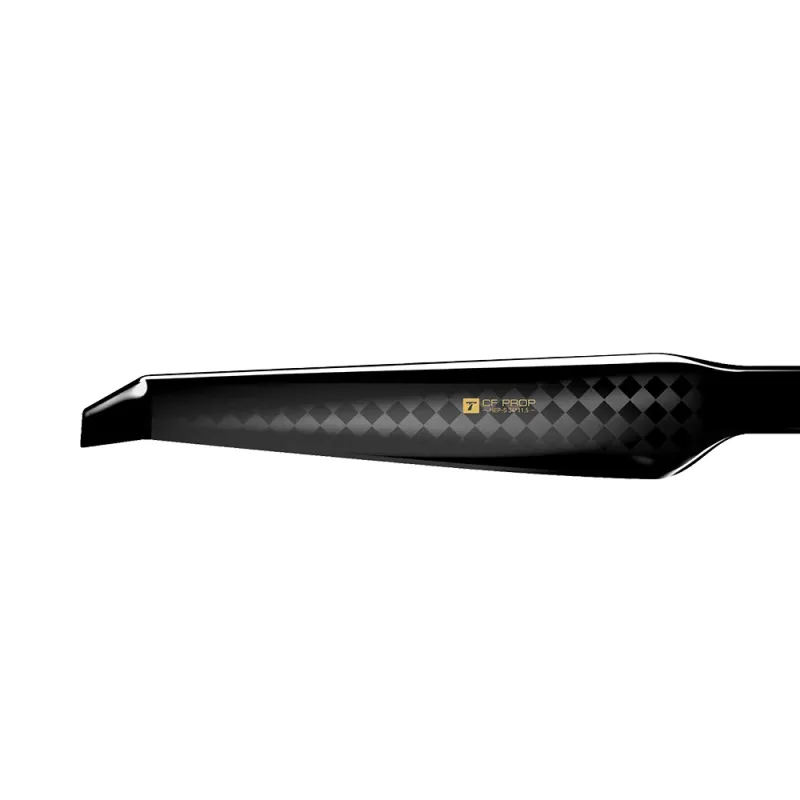

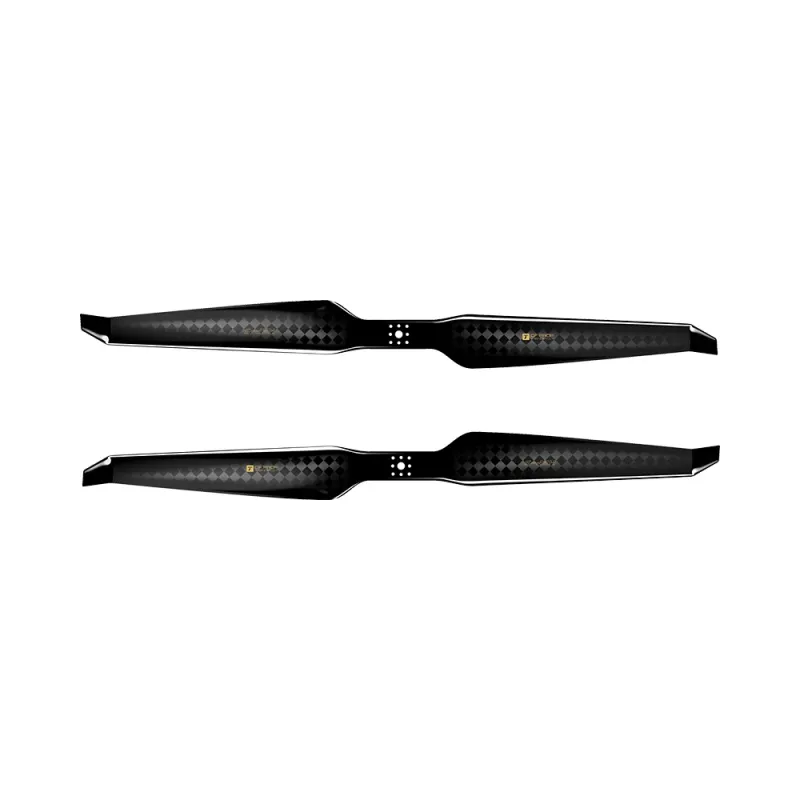

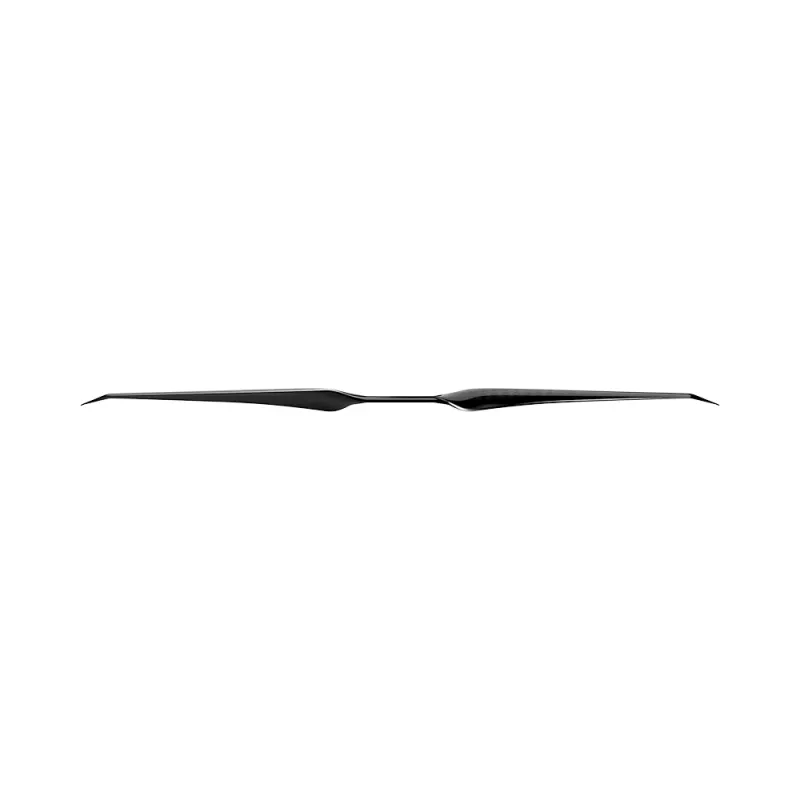

T-Motor HEP-S 34*11.5 HEP-S Series 34*11.5 High-Performance Heavy-Lift Carbon Fiber Propellers

  • Brand:T-Motor
  • Product Code:T-Motor AZP20010017
  • SKU:AZP20010017
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor HEP-S 34*11.5 HEP-S Series 34*11.5 High-Performance Heavy-Lift Carbon Fiber Propellers is a T-Motor catalog item in Civilian UAV Propellers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelHEP-S 34*11.5 HEP-S Series 34*11.5 High-Performance Heavy-Lift Carbon Fiber Propellers
Manufacturer SKUAZP20010017
RecommendedSolutionA10 KV120/MN1010 KV90/MN1015 KV70/MN1018 KV72

Manufacturer technical and configuration tables

Diameter (Inch)34 (868.1mm)Common Thrust Range (kg)8.2~13.7
Pitch (Inch)11.5 (292.1mm)Common SpeedRange (RPM)2480~3150
AverageSingleBlade Weight (g)117MaterialResin-BasedCarbonFiberComposite+PMIFoamCore
RecommendedMax RPM (RPM)4420Suface TreatmentGlossy
RecommendedMax Thrust (kg)35TypeOne-Piece Straight Propeller
Limit RPM (RPM)4940ApplicationHeavy-Lift Multirotor Drone

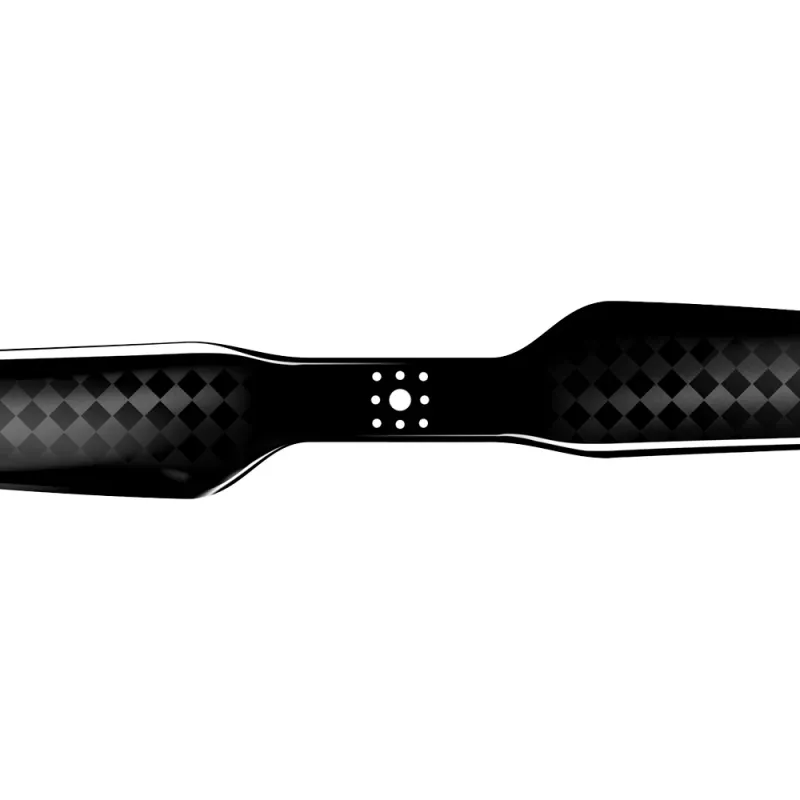

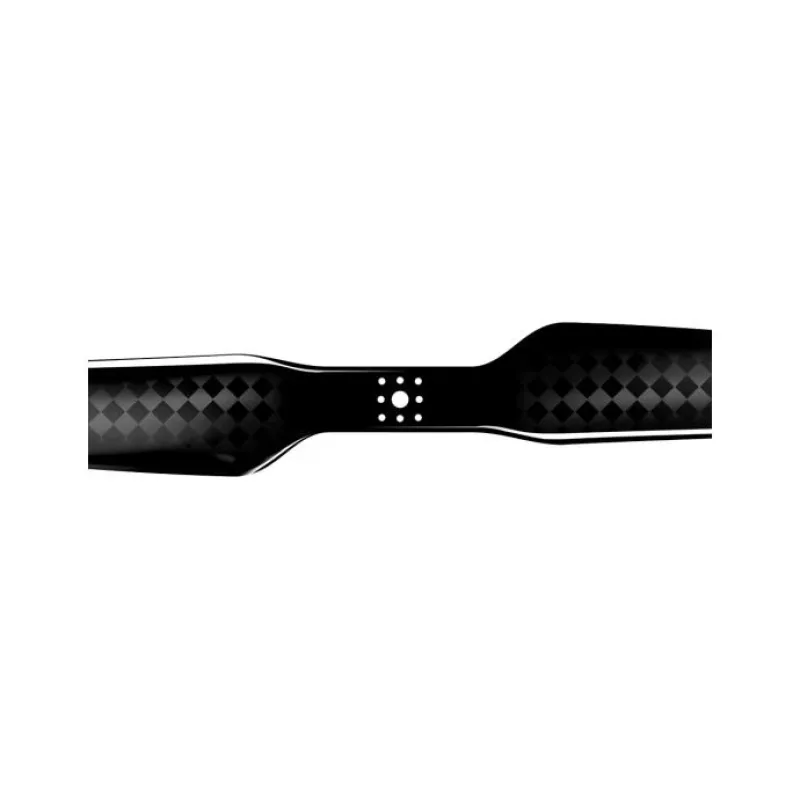

Limit Thrust (kg)44Connections &DimensionsFlange Mount, Ø10mm Center Hole, Ø23mm Bolt Circle, With 4*Ø4mm Mounting Holesn & Ø31mm Bolt Circle, With 4*Ø4mm Mounting Holes
Recommendations
RecommendedSolutionA10 KV120/MN1010 KV90/MN1015 KV70/MN1018 KV72
Recommendations
RecommendedSolutionA10 KV120/MN1010 KV90/MN1015 KV70/MN1018 KV72
Ambient Temperature: 22℃Altitude: 25mRPMTorque(N·m)Thrust(gf)OutputPower(W)Effciency(gf/W)
21403.147817703.6311.11
23403.769391922.3510.18
25404.45111221183.459.40
27405.20130091490.778.73
29406.00150521848.138.14
31406.87172522259.377.64
33407.80196082728.327.19
35408.79221213258.826.79
37409.84247903854.706.43
394010.95276164519.806.11
414012.13305975257.945.82
434013.36337366072.975.56
454014.66370306968.725.31
474016.01404817949.015.09
494017.43440899017.694.89
Important Notes: Data may vary under different testing standards due to factors such as equipment, methodology, and environment.Ensure compatibility between the propeller mounting holes and motors. Refer to the drawing above for details.
