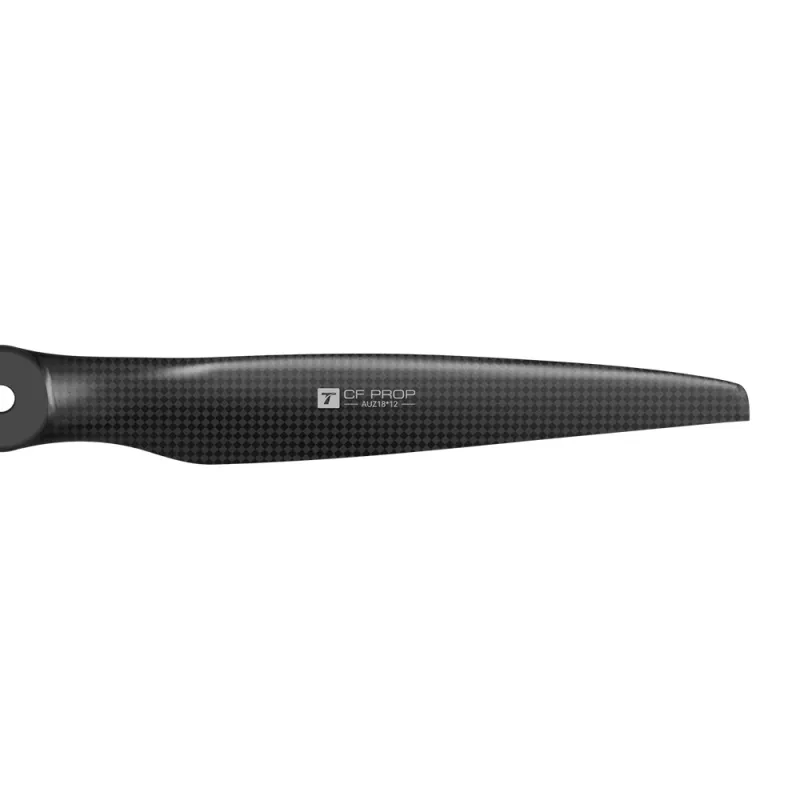

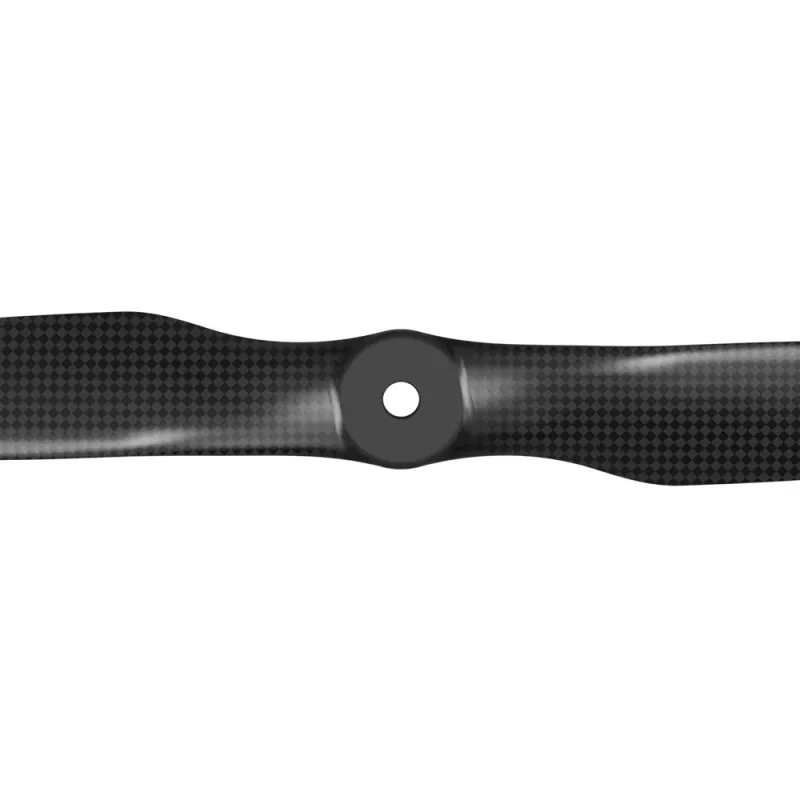

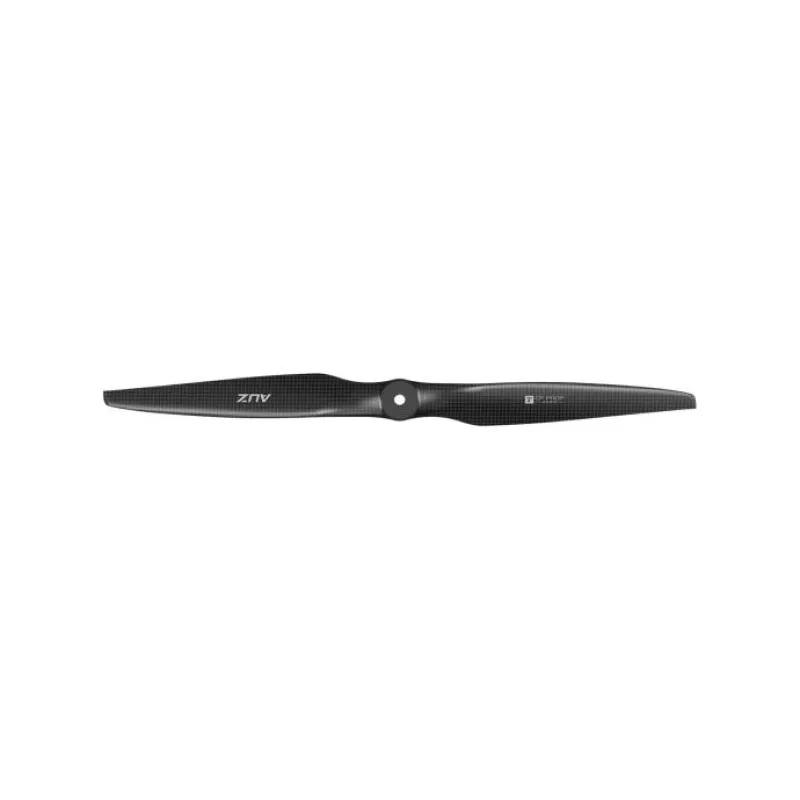

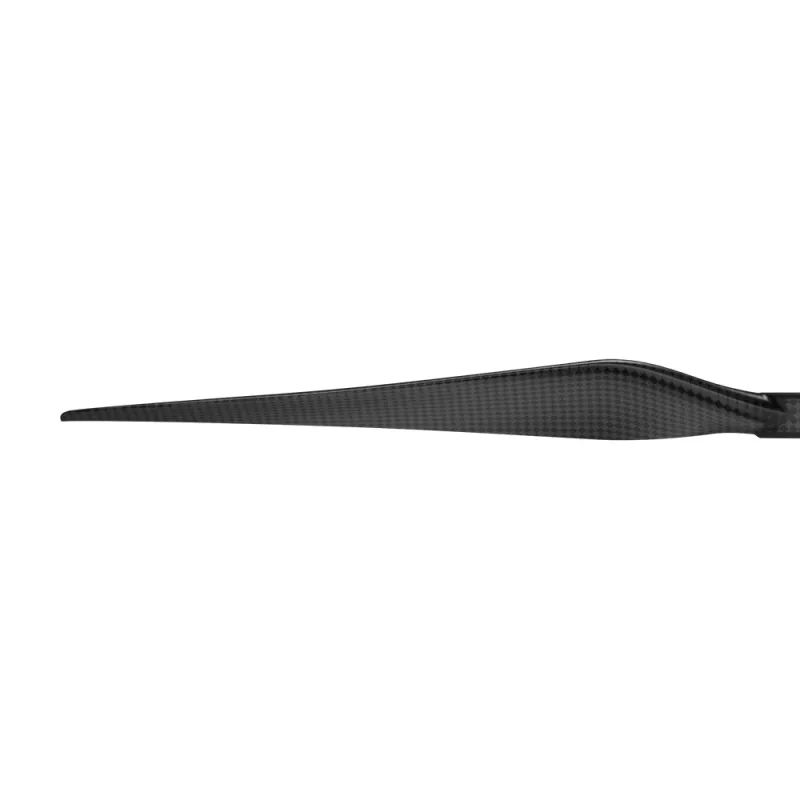

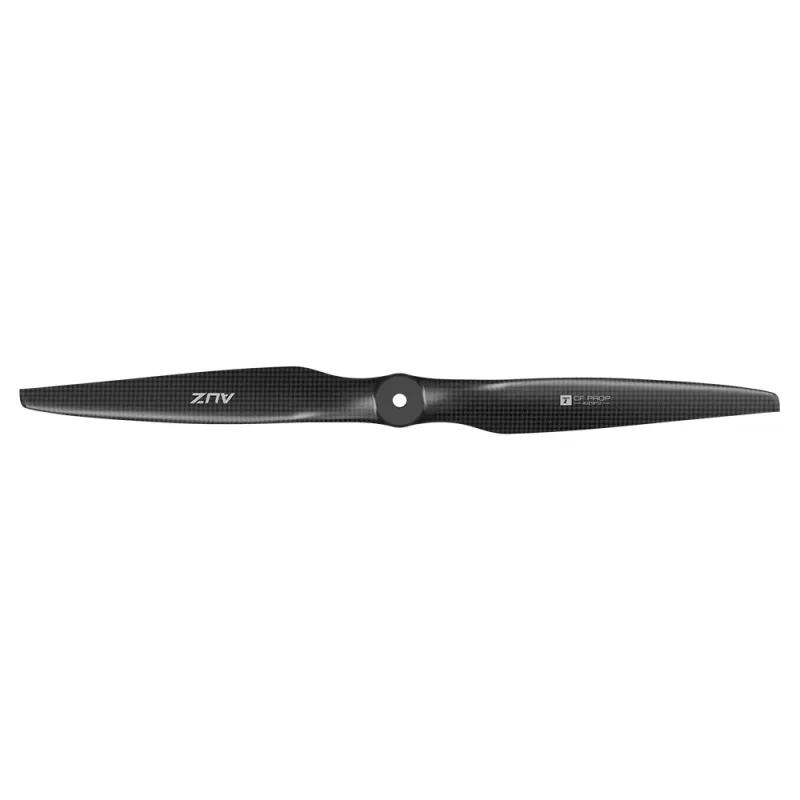

T-Motor AUZ 18*12

  • Brand:T-Motor
  • Product Code:T-Motor AZP08010009
  • SKU:AZP08010009
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor AUZ 18*12 is a T-Motor catalog item in Civilian UAV Propellers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelAUZ 18*12
Manufacturer SKUAZP08010009

Manufacturer technical and configuration tables

Diameter(Inch)18 (457.2mm)MaterialResin-basedCarbonFiberComposite+PMIFoamCore
Pitch(Inch)12 (304.8mm)Surface TreatmentMatte
AverageSingleBlade Weight(g)36TypeCarbonFiberStraightPropellers
RecommendedMax RPM8900ApplicationFixed-WingUAVPropellers
RecommendedMax Thrust(kg)12Connections &DimensionsØ8mm motor shaft central locking
Limit RPM(RPM)10100RecommendationsRecommended Solution: AT5220/AT5230/AT5330/AT7215+AUZ18*12
Limit Thrust(kg)15
Ambient Temperature: 22℃Altitude: 25mRPMTorque(N·m)RecommendedThrust(gf)OutputPower(W)Effciency(gf/W)
45000.843157396.307.97
49000.993794507.997.47
53001.174466647.666.90
57001.375173818.816.32
61001.6059151024.965.77
65001.8766921269.615.27
69002.1575041556.274.82
73002.4783511888.454.42
77002.8192332269.654.07
81003.19101512703.393.75
85003.59111033193.173.48
89004.02120913742.503.23
93004.47131134354.893.01
97004.96141715033.842.82
101005.47152645782.872.64
Important Notes
Data may vary under different testing standards due to factors such as equipment, methodology, and environment.Ensure compatibility between the propeller mounting holes and motors. Refer to the drawing above for details.
