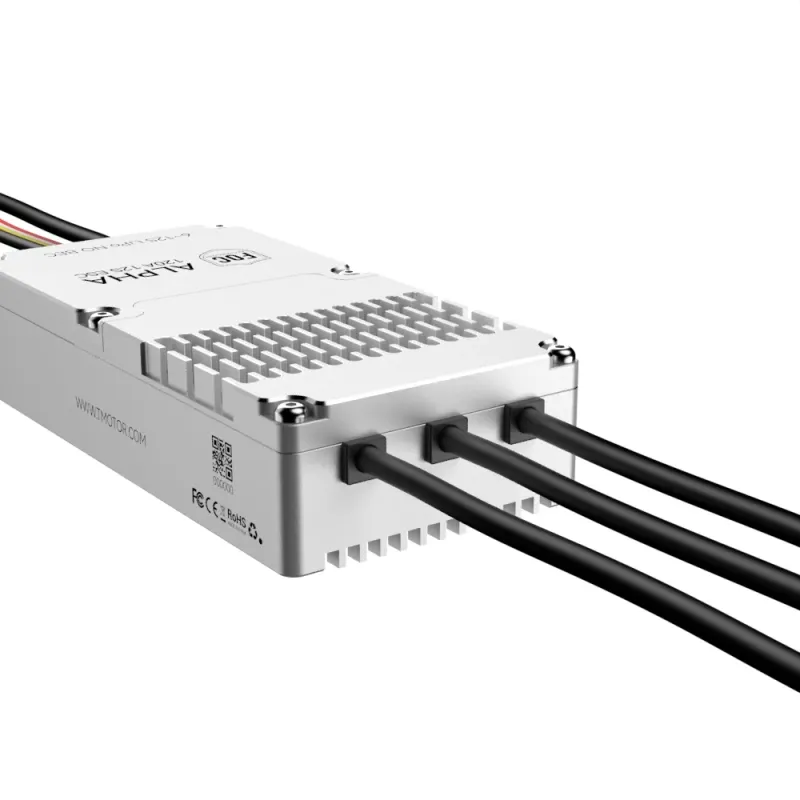

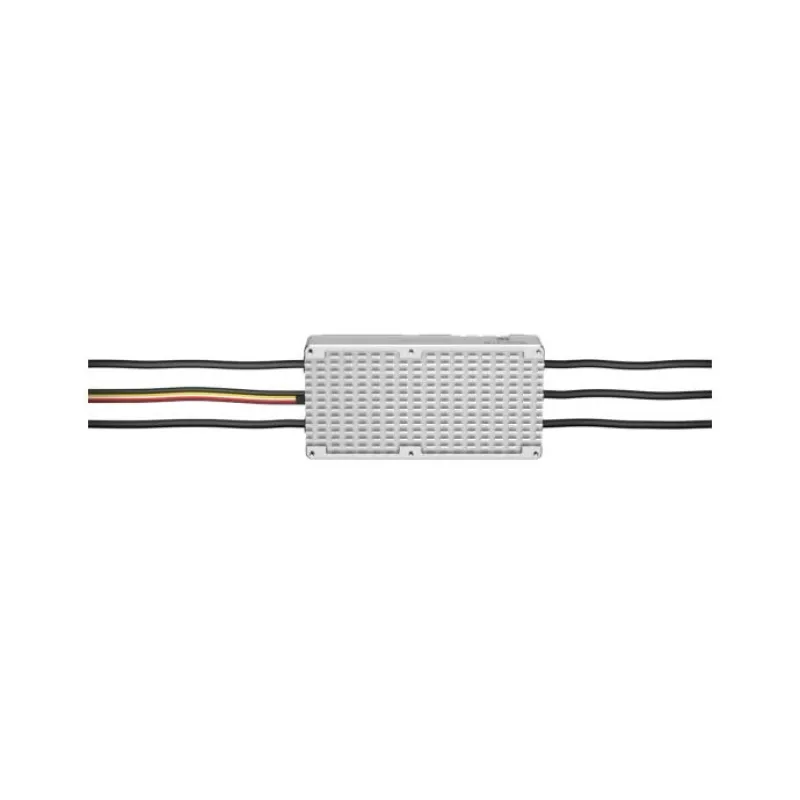

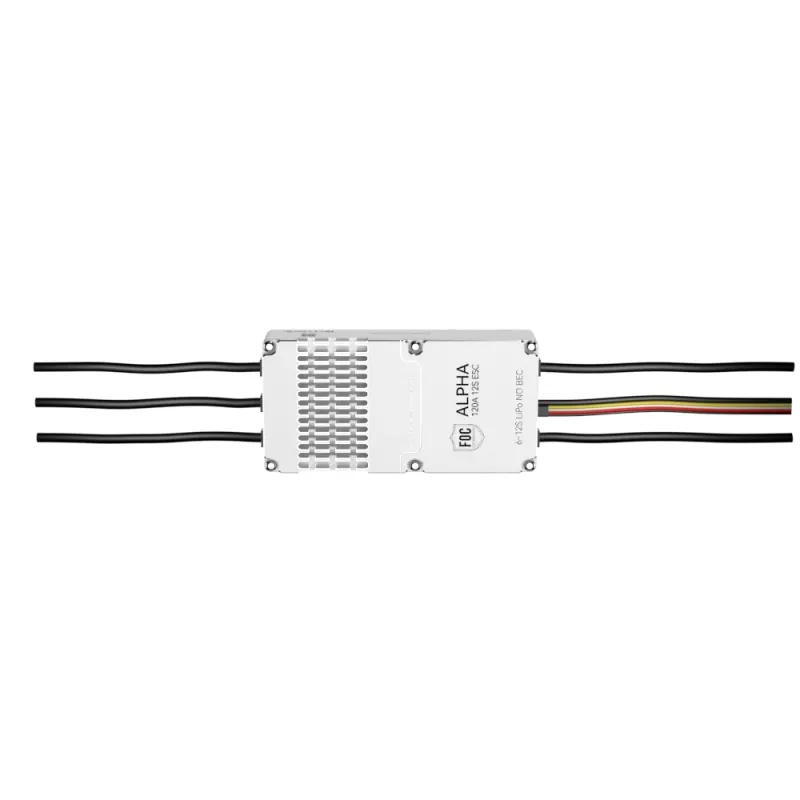

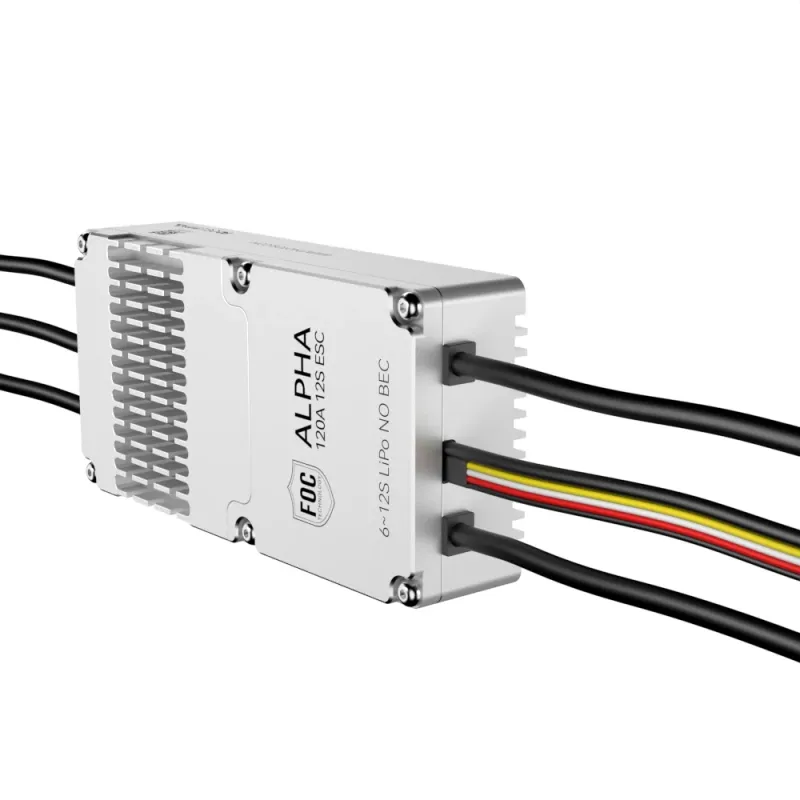

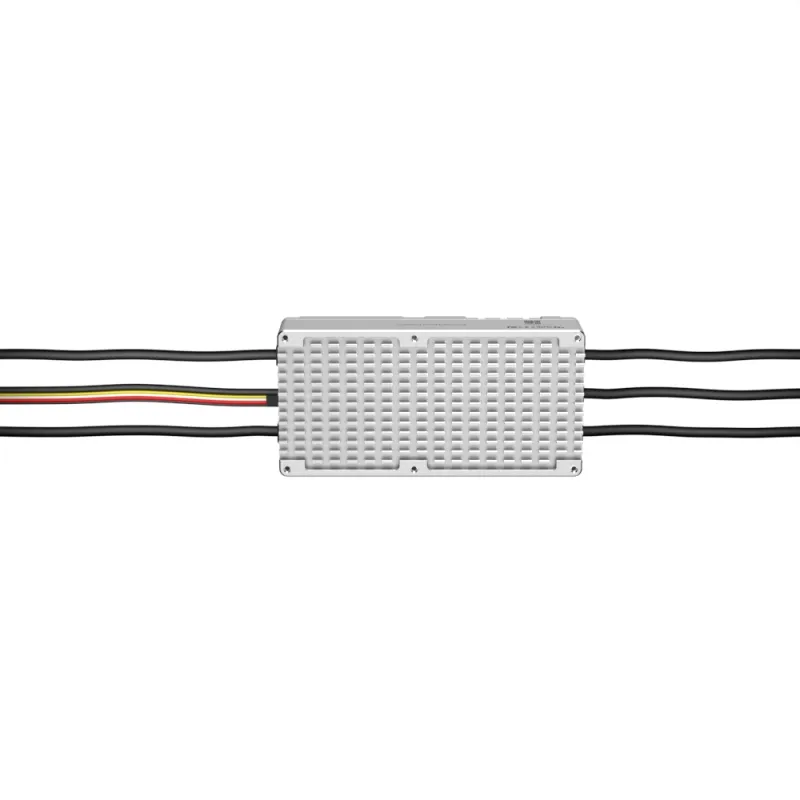

T-Motor ALPHA 120A 12S FOC Multi-Rotor UAVs ESC

  • Brand:T-Motor
  • Product Code:T-Motor AWT02010005
  • SKU:AWT02010005
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor ALPHA 120A 12S FOC Multi-Rotor UAVs ESC is a T-Motor catalog item in ESCs & Motor Controllers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelALPHA 120A 12S FOC Multi-Rotor UAVs ESC
Manufacturer SKUAWT02010005

Manufacturer technical and configuration tables

Size110*55*25mm（L*W*H）Signal CablePVC flat cable-30 core wires--2-400MM (white, blank, black/JP 3P male connector)
Weight(Incl. cables)359.5gprogramming CablePVC flat cable-30 core wires--3-400MM (black, red, white/JP 3P male connector)
Motor CableSilicone wire-deep orange-12AWG-75MM*3PCSIP67
Power CableSilicone wire-red/black-12AWG-130MM
Support Voltage(12S)18-50.4VBECNO
Con. Current100AThrottle Pos. Range1100-1940μs
Peak Current(10s)120AThrottle Refresh Frequency500Hz
Standby Consumption≤50mAThrottle Response Speed500ms at initial strat-up， 150ms afterwards
Support Voltage(12S)18-50.4VBECNO
Con. Current100AThrottle Pos. Range1100-1940μs
Peak Current(10s)120AThrottle Refresh Frequency500Hz
Standby Consumption≤50mAThrottle Response Speed500ms at initial strat-up， 150ms afterwards

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.

  • Original manufacturer model information
