T-Motor Air Gear 355 (Quick-Release Version)

  • Brand:T-Motor
  • Product Code:T-Motor AWD11010056
  • SKU:AWD11010056
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor Air Gear 355 (Quick-Release Version) is a T-Motor catalog item in Integrated Propulsion Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelAir Gear 355 (Quick-Release Version)
Manufacturer SKUAWD11010056

Manufacturer technical and configuration tables

KV1000Rated Voltage (LiPo)3~4S (4.2V/PC)/12.6V-16V
Idle Current (10V)0.5AInternal Resistance140±10mΩ(Lead Wire300mm）
Peak Current (180s)15A/ContinuousWeight (Incl. Cable)56±2g (Lead Wire300mm）
Max Power (180s)238W/ContinuousPackage Weight/

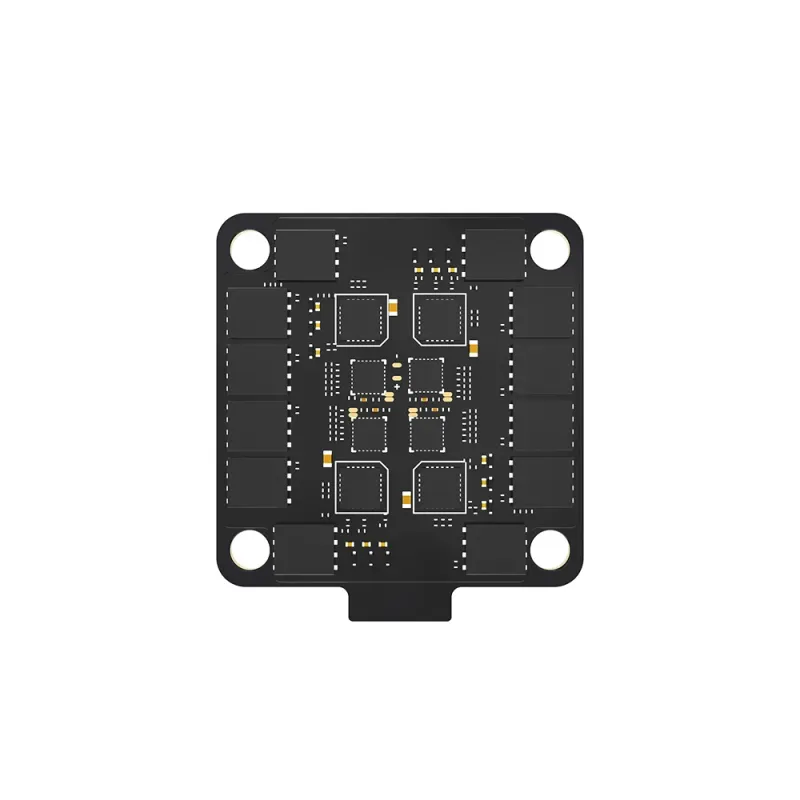

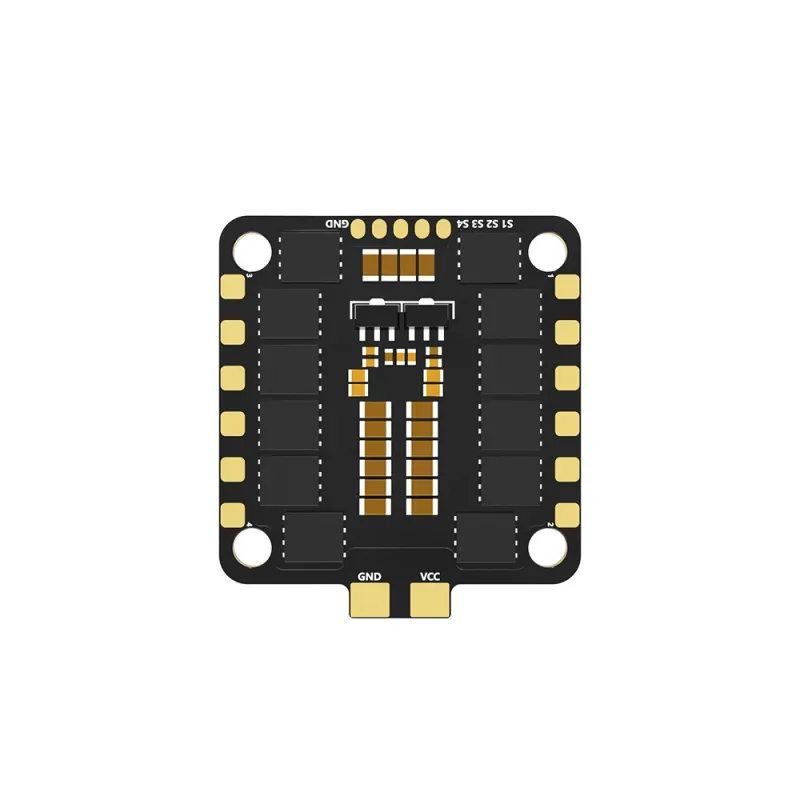

AIR 20A 4IN1-Specifications
Size (L*W*H)37.3*41.5*1.6mmRated Voltage (LiPo)2~4S
Continuous Current20ABEC/
Peak Current (10s)30AWeight (Incl. Cable)8.1g
Banana Plug30.5*30.5/φ4mmThrottle Signal Frequency50~400Hz

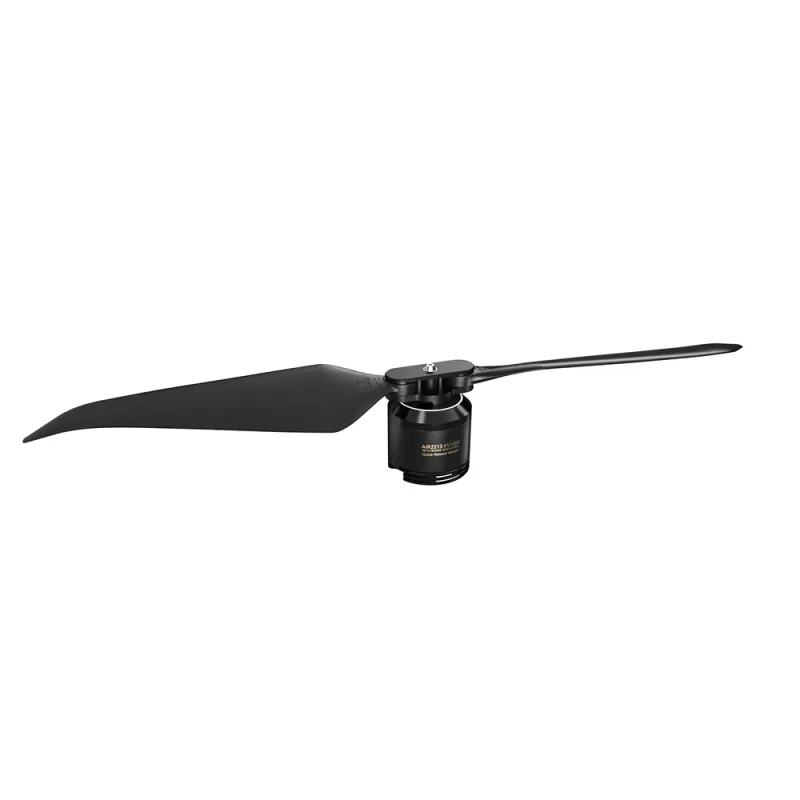

MF9545-Specifications
Plastic PropellerMF9545Working Temp-10~40℃
Weight (Single Propeller)3.36gStorage Temp10~35℃
MaterialNylon+Glass FiberStorage Humidity65±20% RH
Surface TreatmentMatte TechnologyOptimum RPM6000~7000RPM/min
Propeller TypePolymer PropellerThrust Limitation1.5kg
AIR 20A 4IN1-Specifications
Size (L*W*H)37.3*41.5*1.6mmRated Voltage (LiPo)2~4S
Continuous Current20ABEC/
Peak Current (10s)30AWeight (Incl. Cable)8.1g
Banana Plug30.5*30.5/φ4mmThrottle Signal Frequency50~400Hz
MF9545-Specifications
Plastic PropellerMF9545Working Temp-10~40℃
Weight (Single Propeller)3.36gStorage Temp10~35℃
MaterialNylon+Glass FiberStorage Humidity65±20% RH
Surface TreatmentMatte TechnologyOptimum RPM6000~7000RPM/min
Propeller TypePolymer PropellerThrust Limitation1.5kg
TypePropellerThrottleVoltage(V)Thrust(gf)Torque(N·m)Current(A)RPMPower(W)Efficiency(gf/W)OperatingTemperature(℃)
AIR2213-KV1000MF954530%16.051710.020.8240551313.0647(AmbientTemperature: 25)
35%16.052270.031.2046531911.85
40%16.052870.041.6652122610.83
45%16.053570.052.255801369.94
50%16.054270.052.926329479.17
55%16.044970.063.676828588.51
60%16.035730.074.547314727.94
65%16.016410.085.517754887.31
70%167240.096.4982021037.04
75%15.998030.107.5986311206.68
80%15.978830.118.8490461406.32
85%15.969630.1210.1694411606.02
90%15.9410430.1311.5898241825.73
95%15.9311230.1413.13101912065.45
100%15.9212020.1514.73105392305.22

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.

  • Original manufacturer model information
