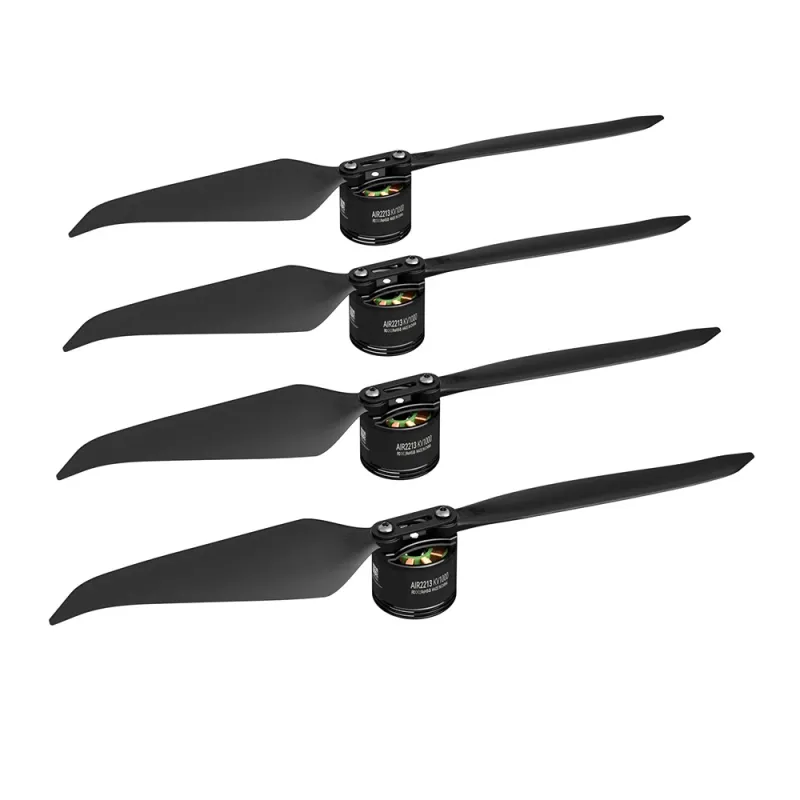

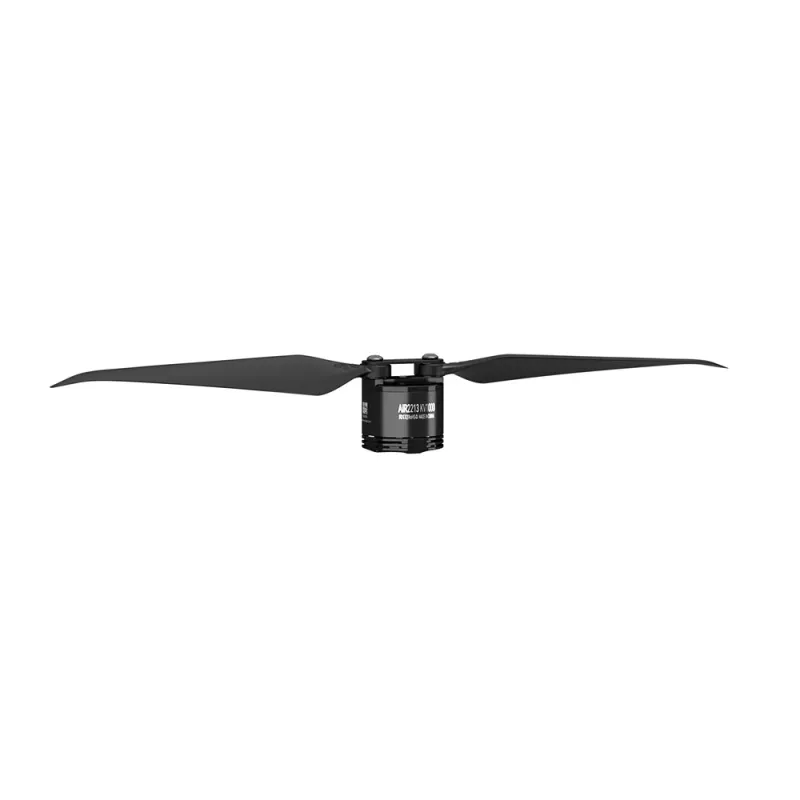

T-Motor Airgear 355 Combo Set Multi-Rotor UAV Power

  • Brand:T-Motor
  • Product Code:T-Motor AWD11010040
  • SKU:AWD11010040
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor Airgear 355 Combo Set Multi-Rotor UAV Power is a T-Motor catalog item in Integrated Propulsion Systems. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelAirgear 355 Combo Set Multi-Rotor UAV Power
Manufacturer SKUAWD11010040

Manufacturer technical and configuration tables

AIR2213-Specifications
KV1000Rated Voltage(Lipo)3S-4S（4.2V/PC）/ 12.6V-16V
Idle Current(10V)0.5AInternal Resistance130±10mΩ
Peak Current(180s)15AWeight (Incl. Cable)52±2g
Max Power (180S)238WPackage Weight/
AIR 20A-Specifications
Size(L x W x H)53x22x7mmRated Voltage(Lipo)3-4s
Con.Current20ABEC/
Peak Current(10s)30AWeight (Incl. Cable)21g
Banana Plug3.5mmThrottle Signal Frequency50Hz-600Hz
MF9545-Specifications
Plastic PropellerMF9545working Temp-10℃ ~40℃
Weight (Single Propeller)3.36gStorage Temp10℃ ~35℃
MaterialNylon+Glass fiberStorage Humidity65±20%RH
Surface TreatmentMatte TechnologyOptimum RPM6000-7000RPM/min
Propeller TypePolymer PropellerThrust Limitation1.5kg
AIR 20A-Specifications
Size(L x W x H)53x22x7mmRated Voltage(Lipo)3-4s
Con.Current20ABEC/
Peak Current(10s)30AWeight (Incl. Cable)21g
Banana Plug3.5mmThrottle Signal Frequency50Hz-600Hz
MF9545-Specifications
Plastic PropellerMF9545working Temp-10℃ ~40℃
Weight (Single Propeller)3.36gStorage Temp10℃ ~35℃
MaterialNylon+Glass fiberStorage Humidity65±20%RH
Surface TreatmentMatte TechnologyOptimum RPM6000-7000RPM/min
Propeller TypePolymer PropellerThrust Limitation1.5kg
TypePropellerThrottleVoltage(V)Thrust(g)Torque(N*m)Current(A)RPMPower(W)Efficiency(g/W)OperatingTemperature(℃)
AIR2213-KV1000MF954530%161790.021.0134191611.0447℃
35%162380.031.4138902310.54
40%163010.041.914378319.84
45%163570.052.464795399.04
50%164310.063.165256518.49
55%165170.074.055731657.96
60%166040.085.046186817.48
65%166910.096.136603987.04
70%167780.107.3069971176.66
75%168570.118.4673461356.33
80%169400.129.7676811566.02
85%1610200.1311.1379981785.74
90%1610990.1412.5882922005.48
95%1611800.1514.1385852255.24
100%1612330.1615.1787682415.11

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
