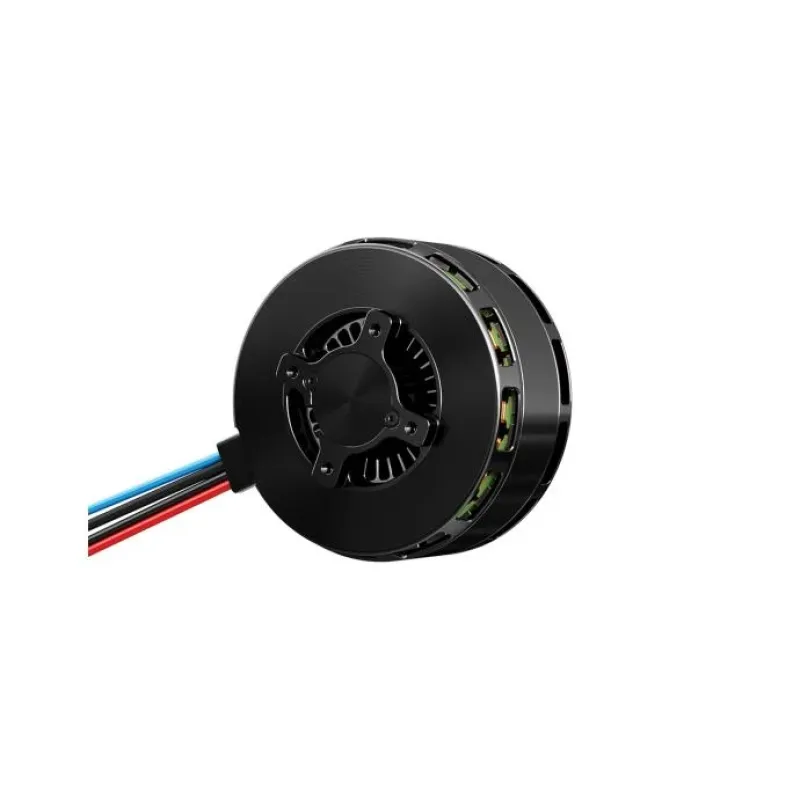

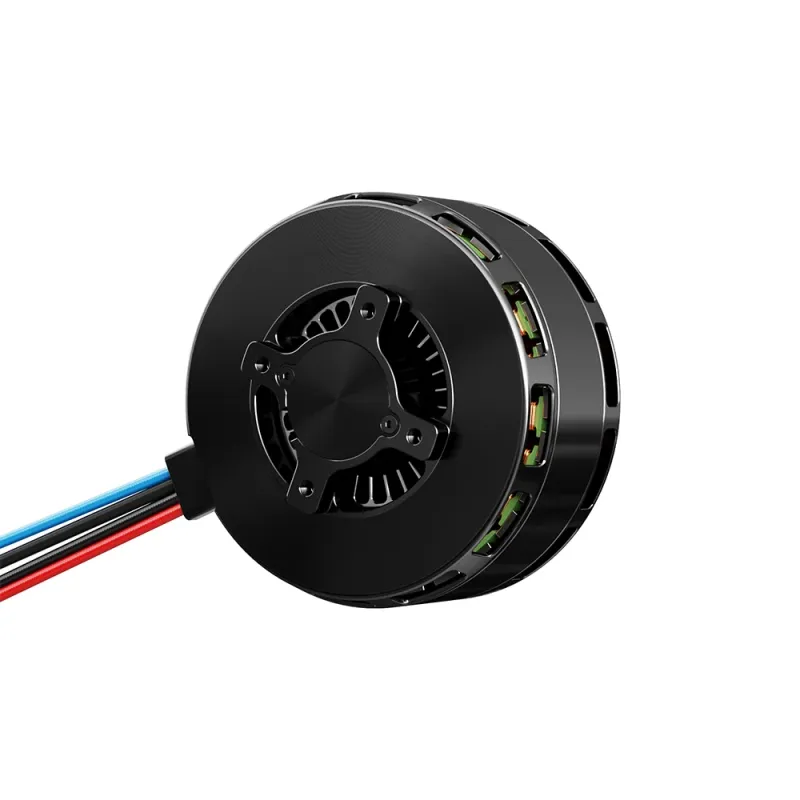

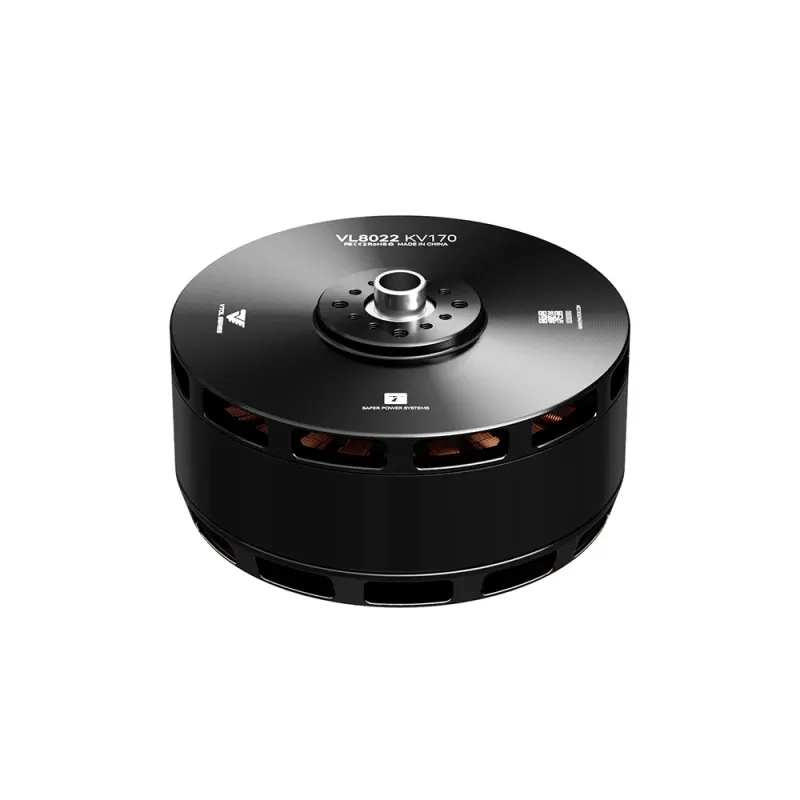

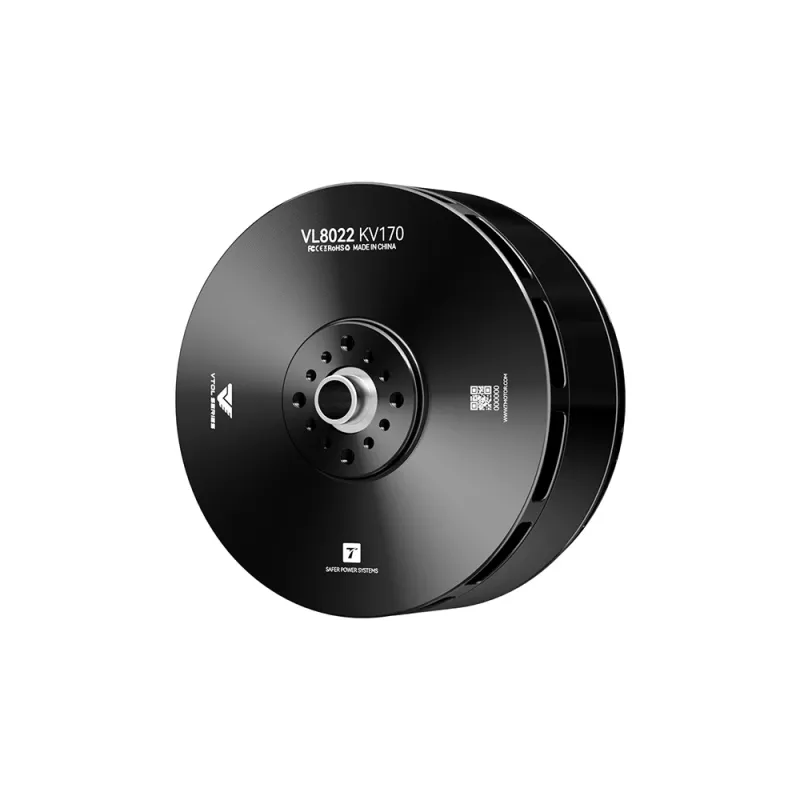

T-Motor VL8022

  • Brand:T-Motor
  • Product Code:T-Motor AWD10010029
  • SKU:AWD10010029
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor VL8022 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelVL8022
Manufacturer SKUAWD10010029

Manufacturer technical and configuration tables

Model No.VL8022Magnet Level180℃
Motor SizeΦ88.8*47.5mmLead CableSilicone wire13# 1000mm
Stator150°C high temperature-resisting coatingsCopper Wire220℃
Configuration24N28PCoil Insulation Test1000V/5s
Shaft DiameterIN: 12 OUT: 10Rotor Dynamic BalanceStandard≤10mg
BearingImported 6901IPIPX5
CentrifugalCooling DesignYESPackage Size150*120*57mm
Model No.VL8022KV (RPM/V)170
Rated Voltage (LiPo)12SIdle Current (15V)2.5A
Internal Resistance(25℃)30mΩPeak Current135A
Continuous Power(180s)2100WAmbient Temperature-30℃～55℃
Max. Thrust22.2kgMotor Weight(indl. Cable)785g
ESC specs.
Model No.V150AControlPWM/CAN
Max. Voltage60VProtocolDRONE CAN/UAV CAN
Peak Current (10s)160A (Under certain heat dissipation conditions)Propeller-lockingElectronicPropeller-locking
Continuous Current70A (Under certain heat dissipation conditions)Encoder cablesShielded cables-Black-24AWG-5C-400±10mm-M6 aviation connector
Standby Consumption≤50mAOutput CableSilicone wire-orange-10AWG-100±10mm
Throttle Pos. Range1040~1940us (fixed)Input CableSilicone wire-red/black-10AWG-130±10mm
Throttle RefreshFrequency50~500HzSignal CableShielded cables-Black-OD4.2-5C-460±10-JP-3P*2-Black blank white-green yellow gray
Throttle Response Speed300msWeight (Incl. cables)295g
Prop specs.
Model No.VZ29*11 inch (736.6*279.4mm)Weight (Single Blade)90±5g
Model No.VL8022KV (RPM/V)170
Rated Voltage (LiPo)12SIdle Current (15V)2.5A
Internal Resistance(25℃)30mΩPeak Current135A
Continuous Power(180s)2100WAmbient Temperature-30℃～55℃
Max. Thrust22.2kgMotor Weight(indl. Cable)785g
ESC specs.
Model No.V150AControlPWM/CAN
Max. Voltage60VProtocolDRONE CAN/UAV CAN
Peak Current (10s)160A (Under certain heat dissipation conditions)Propeller-lockingElectronicPropeller-locking
Continuous Current70A (Under certain heat dissipation conditions)Encoder cablesShielded cables-Black-24AWG-5C-400±10mm-M6 aviation connector
Standby Consumption≤50mAOutput CableSilicone wire-orange-10AWG-100±10mm
Throttle Pos. Range1040~1940us (fixed)Input CableSilicone wire-red/black-10AWG-130±10mm
Throttle RefreshFrequency50~500HzSignal CableShielded cables-Black-OD4.2-5C-460±10-JP-3P*2-Black blank white-green yellow gray
Throttle Response Speed300msWeight (Incl. cables)295g
Prop specs.
Model No.VZ29*11 inch (736.6*279.4mm)Weight (Single Blade)90±5g
TypeThrottleVoltage(V)Thrust(g)Torque(N*m)Current(A)RPMPower(W)Effciency(g/W)OperatingTemperature(℃)
VL8022 KV170+V150A 14S+VZ29*1140%44.4145171.5210.5623664699.63125(AmbientTemperature:25)
42%44.3850261.6812.2924945459.22
44%44.3455541.8614.1726206288.84
46%44.3160942.0316.2627447208.46
48%44.2666642.2218.5228668198.13
50%44.2272392.4120.9329869267.82
52%44.1878432.6123.56310310417.54
54%44.1384462.8126.35321811637.26
56%44.0790603.0229.34333112937.01
58%44.0297063.2332.52344114326.78
60%43.96103463.4435.89354915786.56
62%43.89109933.6639.43365417316.35
64%43.83116293.8743.13375718906.15
66%43.75122664.0946.99385720565.97
68%43.67129194.3051.07395522305.79
70%43.60135614.5255.31404724115.62
80%43.26160645.3773.74438831905.04
90%42.74188756.3399.88473342684.42
100%42.33203086.84119.59491650624.01
VL8022 KV170+V150A 14S+VZ29*1140%50.0756721.9113.1826546608.59125(AmbientTemperature:25)
42%50.0463052.1215.3627957698.20
44%50.0169732.3417.7529338887.85
46%49.9776652.5620.33306910167.55
48%49.9283562.7923.14320111557.23
50%49.8890683.0326.16333213056.95
52%49.8298053.2829.46346014686.68
54%49.75105743.5333.09358916466.42
56%49.68113353.7936.84370918316.19
58%49.61120944.0440.78382720235.98
60%49.54128024.2944.87394122225.76
62%49.46135434.5449.19405224335.57
64%49.38143104.8153.81415726575.39
66%49.30150225.0658.50425928845.21
68%49.20157585.3163.48435931235.05
70%49.10164685.5568.63445433704.89
80%48.53195646.6395.19483446204.23
90%47.95218207.41123.70508659323.68
100%47.70222687.56136.67514065193.42
