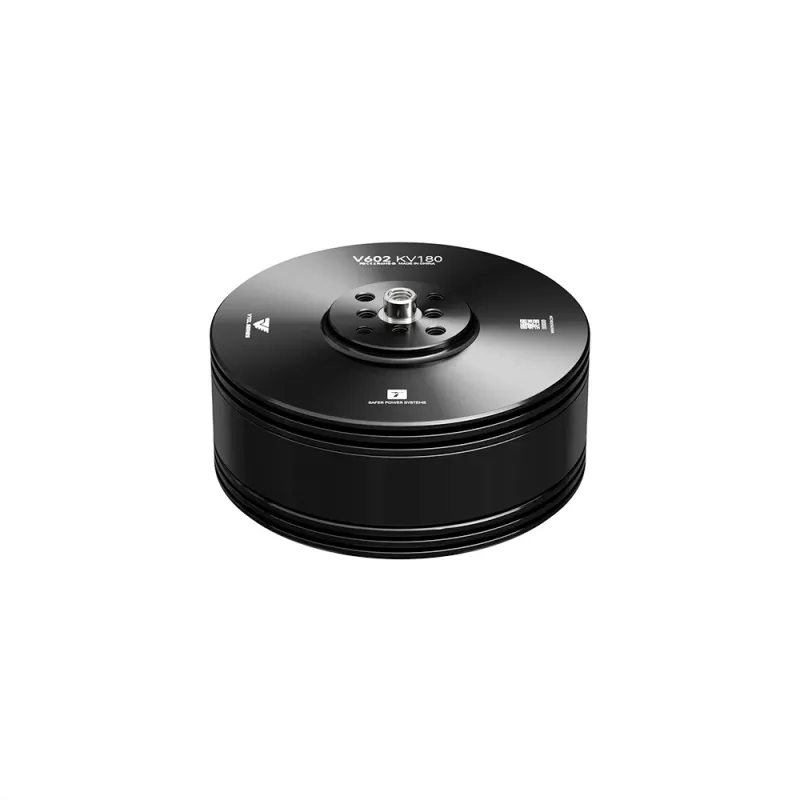

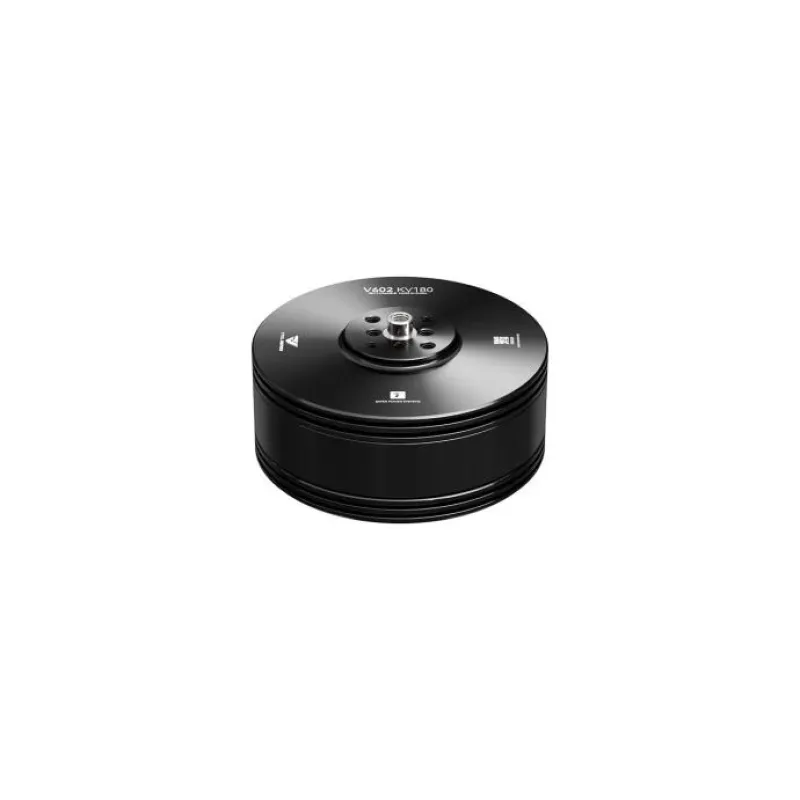

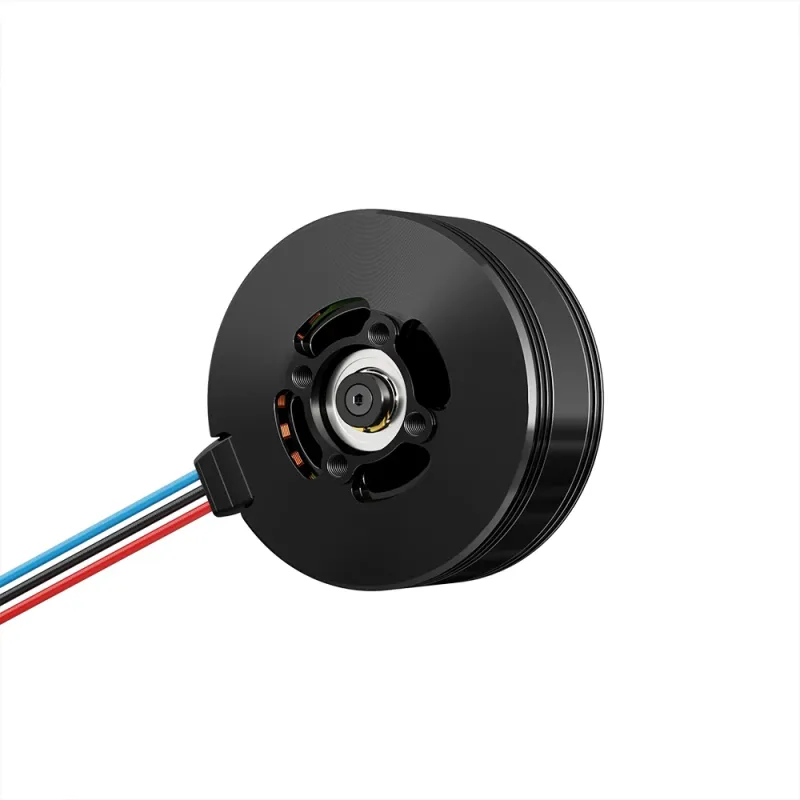

T-Motor V602 KV180 12S Vtol Brushless Drone Motor

  • Brand:T-Motor
  • Product Code:T-Motor AWD100100071
  • SKU:AWD100100071
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor V602 KV180 12S Vtol Brushless Drone Motor is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelV602 KV180 12S Vtol Brushless Drone Motor
Manufacturer SKUAWD100100071

Manufacturer technical and configuration tables

Model No./ KvV602 KV180Magnet Temperature Resistance GradeClass E 150℃
Motor Size（mm）Φ68.8*36.9Lead（mm）14AWG*600
Stator TechnologyAnti-rust treatment;180°C high temperature-resisting coatingsEnamelled Wires Temperature Resistance GradeClass C 220℃
Configuration24N28PCoil Withdraw Voltage500V/5s
Shaft Diameter（mm）IN:6 OUT:6Rotor Dynamic Balance Standard≤5mg
BearingImported 626ZZIPIP45
KV ValueKV180Battery (lipo)/Voltage Recommendation12S（4.2V/Sl）/42-52V
Idle Current（18V）0.9AESC RecommendationFLAME 60A 12S
Peak Current（A）45A/Continuous 180sPropeller RecommendationV22*7.4
Max. Power（W）2000W/Continuous 180sMotor Weight（g）300g（345g Weight (incl.cables)）
Internal Resistance（mΩ）88Package Weight（g）530g
KV ValueKV180Battery (lipo)/Voltage Recommendation12S（4.2V/Sl）/42-52V
Idle Current（18V）0.9AESC RecommendationFLAME 60A 12S
Peak Current（A）45A/Continuous 180sPropeller RecommendationV22*7.4
Max. Power（W）2000W/Continuous 180sMotor Weight（g）300g（345g Weight (incl.cables)）
Internal Resistance（mΩ）88Package Weight（g）530g
Item No.PropThrottleVoltage(V)Thrust(g)Torque(N*m)Current(A)RPMInputpower(W)Efficiency(g/W)OperatingTemperature℃)
V602-KV180T-MOTOR V22*7.440%47.7424070.625.113016243.919.8789℃
42%47.7127470.716.163202293.979.34
44%47.6929190.766.683289318.369.17
46%47.6731210.807.363395351.028.89
48%47.6533160.868.093498385.348.61
50%47.6335270.918.773594417.618.45
52%47.5937270.979.593690456.448.17
54%47.5739651.0310.433792496.127.99
56%47.5541931.0811.303881537.397.80
58%47.5144311.1412.233977580.987.63
60%47.4846461.2013.154069624.357.44
62%47.4548811.2614.244166675.617.22
64%47.4251181.3215.234251722.027.09
66%47.3752901.3716.094313762.386.94
68%47.3555041.4216.904392800.106.88
70%47.3157371.4818.024478852.566.73
76%47.2164721.6821.7147271025.026.31
80%47.1469861.8124.3448871147.416.09
86%47.0977642.0228.6951211351.055.75
90%47.0382022.1431.6052741485.925.52
100%46.8197492.5642.5057001989.624.90
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins.(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
