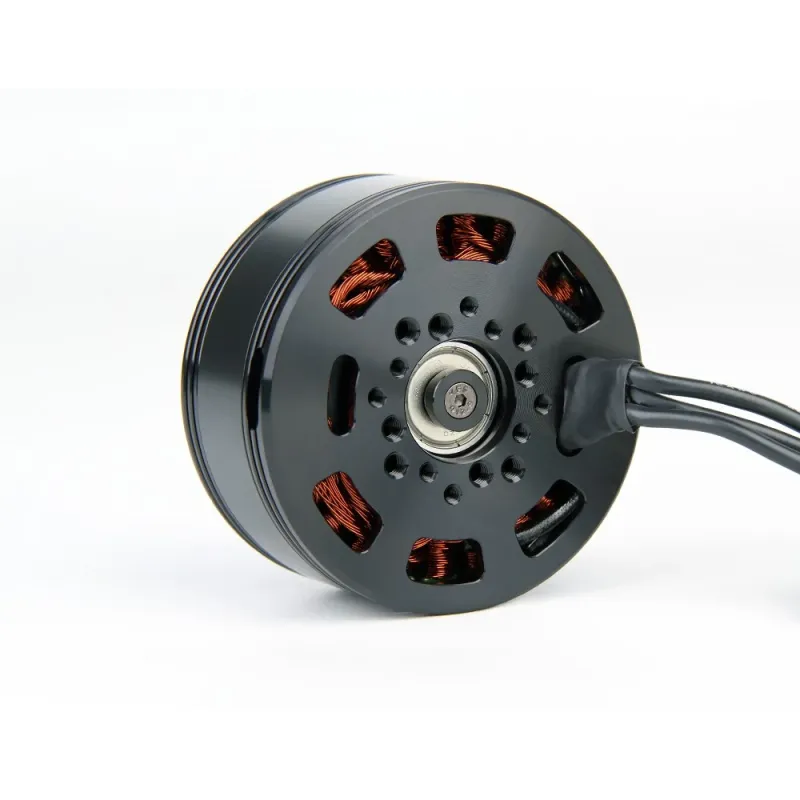

T-Motor P60 Without Pin Agricultural UAV Motor KV170

  • Brand:T-Motor
  • Product Code:T-Motor AWD09010061
  • SKU:AWD09010061
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor P60 Without Pin Agricultural UAV Motor KV170 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelP60 Without Pin Agricultural UAV Motor KV170
Manufacturer SKUAWD09010061

Manufacturer technical and configuration tables

Test ItemP60 KV170Report NO.P.00002
Internal Resistance80mΩConfiguration24N28P
Shaft Diameter6mmMotor DimensionsΦ69×37mm
Stator Diameter62mmStator Height15mm
AWG16#Cable Length600mm
Weight Including Cables375gWeight Excluding Cables345g
Max Power (180S)1800WMax Continuous current 180S38A
Test ItemP60 KV340Report NO.P.00001
Internal Resistance35mΩConfiguration24N28P
Shaft Diameter6mmMotor DimensionsΦ69×37mm
Stator Diameter62mmStator Height15mm
AWG16#Cable Length600mm
Weight Including Cables375gWeight Excluding Cables345g
Max Power (180S)1550WMax Continuous current 180S65A
Test ItemP60 KV340Report NO.P.00001
Internal Resistance35mΩConfiguration24N28P
Shaft Diameter6mmMotor DimensionsΦ69×37mm
Stator Diameter62mmStator Height15mm
AWG16#Cable Length600mm
Weight Including Cables375gWeight Excluding Cables345g
Max Power (180S)1550WMax Continuous current 180S65A
Item No.Voltage(V)PropThrottleCurrent(A)Power(W)Thrust(G)RPMEfficiency(G/W)OperatingTemperature(℃)
P60KV17048T-motor20*6CF50%5.4259.20211641528.1655
55%6.4307.20237144257.72
60%7.7369.60276247097.47
65%9.3446.40312550147.00
75%13.2633.60400256266.32
85%17.3830.40482161775.81
100%25.41219.20624669925.12
T-motor22*6.6CF50%6.6316.8280137038.8485
55%8.6412.8331240058.02
60%9.9475.2376342897.92
65%12.4595.2435645757.32
75%17.1820.8537250916.54
85%23.21113.6658256355.91
100%341632841463745.16
P60KV34024T-motor20*6CF50%10.4249.60191239607.6650
55%12.6302.40220742477.30
60%14.5348.00247244917.10
65%17408.00280547606.88
75%23.9573.60349352926.09
85%31.5756.00419157815.54
100%44.91077.60530264704.92
T-motor22*6.6CF50%14336268337327.9978
55%17.3415.2307539777.41
60%20.2484.8344441927.10
65%23552380244186.89
75%31.1746.4460948696.17
85%40.5972545952575.62
100%57.81387.2676258274.87
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
