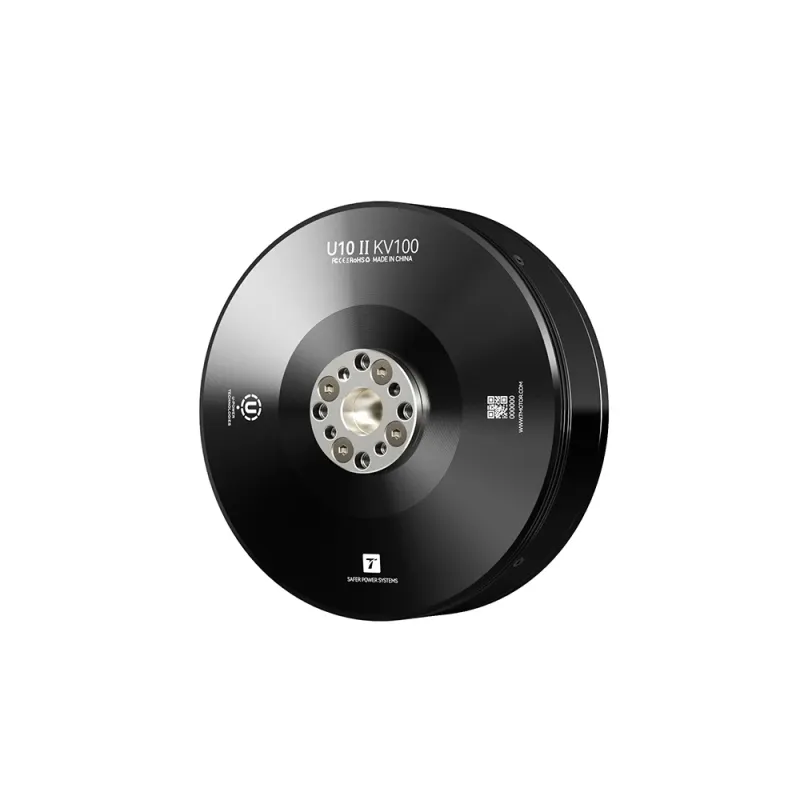

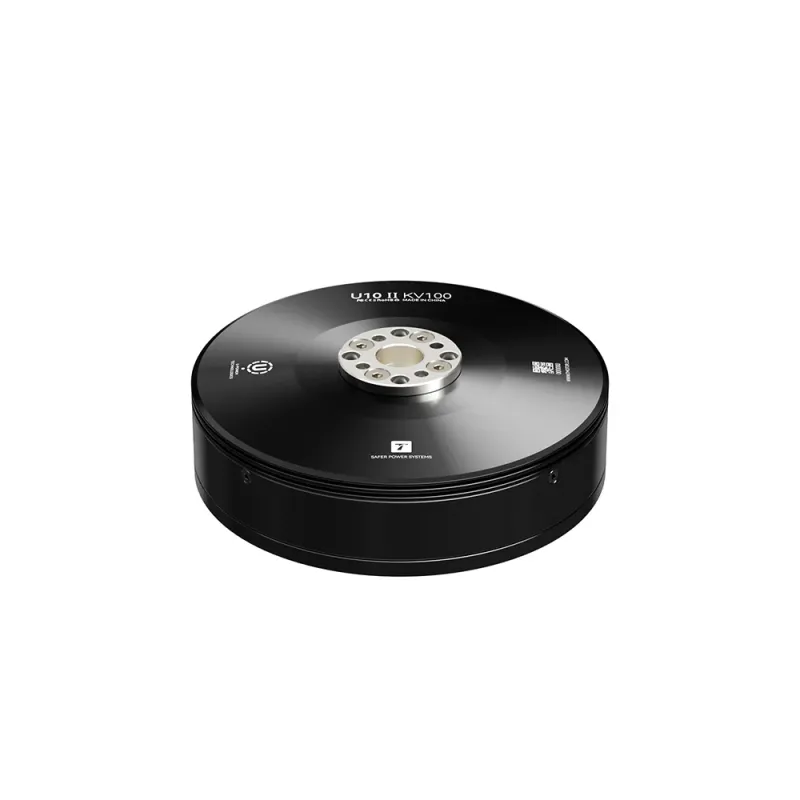

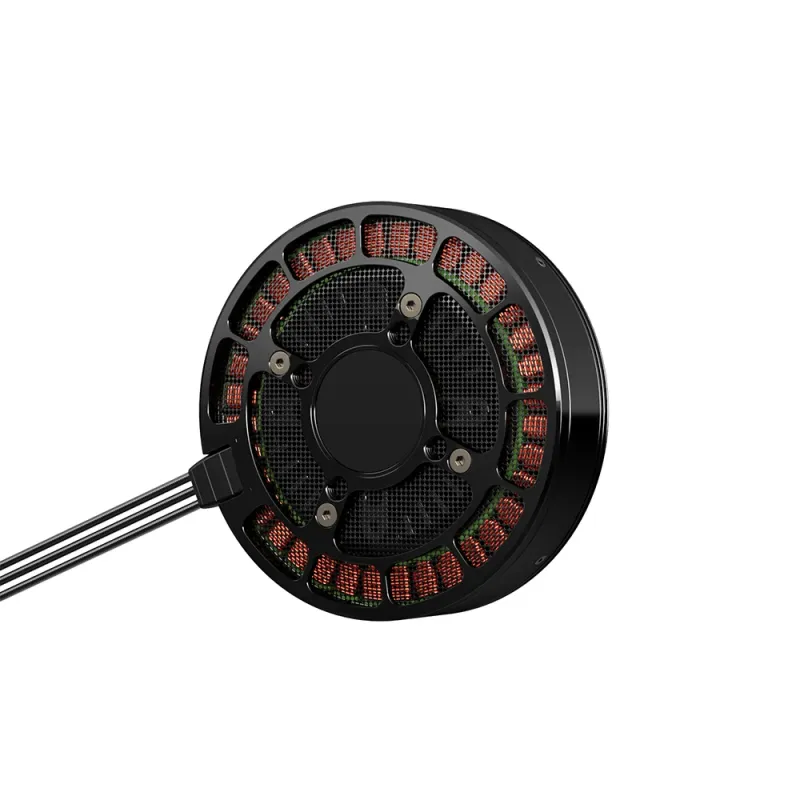

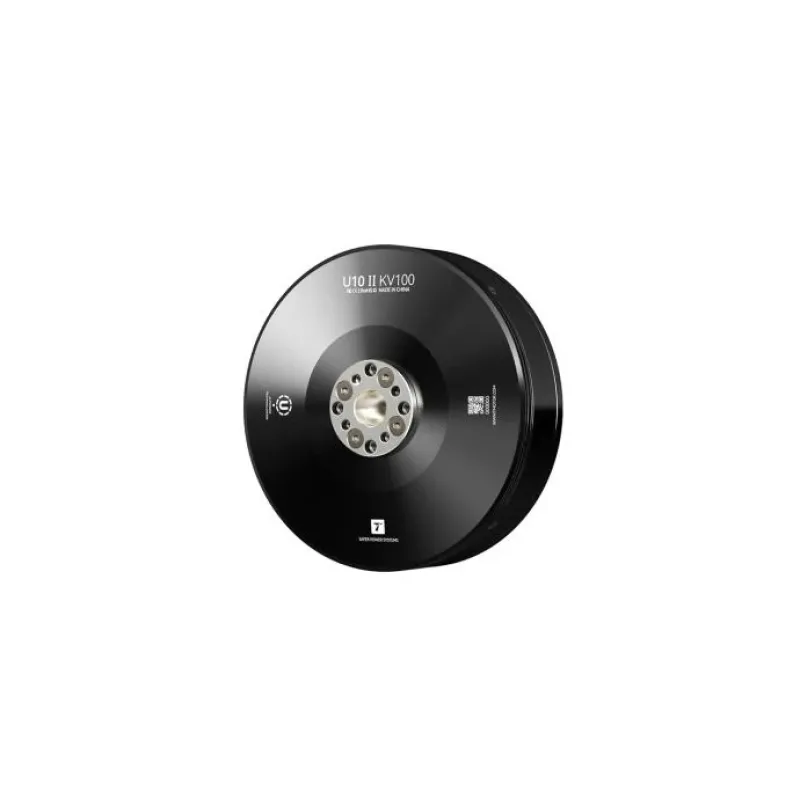

T-Motor U10Ⅱ Efficiency Multirotor UAV Motor KV100

T-Motor U10Ⅱ Efficiency Multirotor UAV Motor KV100

Brand:T-Motor
Product Code:T-Motor AWD06010117
SKU:AWD06010117
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

T-Motor U10Ⅱ Efficiency Multirotor UAV Motor KV100 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	U10Ⅱ Efficiency Multirotor UAV Motor KV100
Manufacturer SKU	AWD06010117

Manufacturer technical and configuration tables

Diameter	98.6mm	Lead Spec	AWG#16 90mm
Height	33.1mm	Ingress Protection Level	IP45
Shaft Diameter	15mm	Packing Size	16712958.5mm
Configuration	36N42P
KV	100	Rated Voltage（Lipo）	12S
Motor Weight (Incl. Cable)	415g	Propeller Recommendation	28-30”
Idle Current（18V）	1A	Quadcopter（28CF）	16kg
Internal Resistance	101±5mΩ	Hexacopter（28CF）	24kg
Peak Current（180s）	32.4A	Octocopter（28CF）	32kg
Max. Power（180s）	1600W

KV	100	Rated Voltage（Lipo）	12S
Motor Weight (Incl. Cable)	415g	Propeller Recommendation	28-30”
Idle Current（18V）	1A	Quadcopter（28CF）	16kg
Internal Resistance	101±5mΩ	Hexacopter（28CF）	24kg
Peak Current（180s）	32.4A	Octocopter（28CF）	32kg
Max. Power（180s）	1600W

Type	Voltage(V)	Propeller	Throttle	Thrust(g)	Torque(N*m)	Current(A)	RPM	Power(W)	Efficiency(g/W)	OperatingTemperature(℃)
U10IIKV100	8S(32V)	T-MOTORG29*9.5”CF	40%	1172	0.4	2.30	1009	73	16.01	/
			42%	1245	0.42	2.40	1043	79	15.82
			44%	1347	0.46	2.60	1076	86	15.75
			46%	1448	0.48	2.90	1140	93	15.57
			48%	1539	0.51	3.10	1193	102	15.09
			50%	1636	0.54	3.30	1233	109	15.04
			52%	1749	0.57	3.70	1283	119	14.72
			54%	1854	0.61	4.00	1337	128	14.44
			56%	1942	0.65	4.30	1385	139	13.93
			58%	2058	0.68	4.60	1435	150	13.71
			60%	2214	0.72	5.00	1484	162	13.7
			62%	2342	0.76	5.40	1534	174	13.45
			64%	2445	0.8	5.70	1584	186	13.14
			66%	2579	0.83	6.10	1631	199	12.98
			68%	2690	0.88	6.60	1676	213	12.62
			70%	2820	0.93	7.00	1719	227	12.4
			75%	3215	1.03	8.10	1823	264	12.17
			80%	3644	1.19	9.70	1950	314	11.6
			90%	4272	1.37	12.20	2171	398	10.73
			100%	5059	1.61	15.60	2386	509	9.94
U10IIKV100	8S(32V)	T-MOTORG30*10.5”CF	40%	1405	0.5	2.60	980	85	16.59	/
			42%	1487	0.53	2.80	1017	91	16.33
			44%	1597	0.56	3.10	1064	100	16.05
			46%	1714	0.6	3.30	1113	109	15.77
			48%	1817	0.63	3.60	1141	118	15.4
			50%	1934	0.67	3.90	1188	128	15.14
			52%	2048	0.71	4.30	1234	138	14.8
			54%	2180	0.75	4.60	1280	150	14.55
			56%	2307	0.8	5.00	1348	163	14.11
			58%	2431	0.84	5.40	1400	176	13.82
			60%	2586	0.88	5.80	1425	190	13.64
			62%	2749	0.93	6.30	1489	205	13.43
			64%	2879	0.98	6.70	1533	219	13.16
			66%	3032	1.03	7.20	1580	236	12.86
			68%	3161	1.07	7.70	1626	252	12.57
			70%	3297	1.12	8.20	1670	266	12.38
			75%	3655	1.24	9.50	1775	309	11.81
			80%	4144	1.39	11.30	1899	367	11.28
			90%	4899	1.62	14.30	2098	465	10.54
			100%	5717	1.9	18.20	2309	593	9.64
U10IIKV100	8S(32V)	T-MOTORG32*11”CF	40%	1651	0.62	3.20	949	105	15.75	/
			42%	1761	0.65	3.50	986	113	15.52
			44%	1882	0.69	3.80	1032	124	15.2
			46%	2000	0.73	4.10	1059	135	14.84
			48%	2133	0.78	4.50	1106	147	14.52
			50%	2257	0.83	4.90	1148	159	14.2
			52%	2403	0.86	5.30	1193	171	14.07
			54%	2538	0.91	5.70	1240	186	13.67
			56%	2689	0.96	6.10	1287	200	13.42
			58%	2828	1.02	6.70	1334	217	13.03
			60%	2935	1.07	7.20	1380	233	12.59
			62%	2964	1.12	7.70	1421	250	11.86
			64%	3245	1.19	8.20	1464	269	12.07
			66%	3418	1.24	8.80	1514	285	11.99
			68%	3511	1.3	9.30	1544	304	11.56
			70%	3739	1.36	10.00	1600	324	11.52
			75%	4119	1.51	11.50	1687	375	10.98
			80%	4535	1.65	13.20	1792	430	10.54
			90%	5518	2.04	17.50	1989	571	9.65
			100%	6430	2.38	22.10	2196	722	8.9
U10IIKV100	10S(40V)	T-MOTORG29*9.5”CF	40%	1733	0.58	3.00	1284	120	14.41	/
			42%	1856	0.61	3.30	1342	132	14.1
			44%	2007	0.66	3.60	1404	145	13.88
			46%	2172	0.7	4.00	1468	160	13.57
			48%	2295	0.76	4.30	1513	175	13.12
			50%	2371	0.8	4.70	1591	192	12.37
			52%	2619	0.86	5.20	1656	208	12.56
			54%	2804	0.91	5.60	1713	225	12.44
			56%	2960	0.95	6.00	1768	244	12.14
			58%	3199	1.01	6.50	1828	265	12.08
			60%	3422	1.1	7.40	1911	299	11.46
			62%	3584	1.15	7.80	1966	317	11.3
			64%	3742	1.2	8.30	2003	338	11.08
			66%	3963	1.26	8.90	2061	360	11
			68%	4082	1.3	9.40	2112	380	10.74
			70%	4272	1.35	10.00	2160	405	10.55
			75%	4688	1.48	11.50	2303	464	10.1
			80%	5177	1.63	13.10	2411	529	9.78
			90%	6145	1.95	16.80	2651	680	9.04
			100%	7200	2.28	21.40	2917	865	8.32
U10IIKV100	10S(40V)	T-MOTORG30*10.5”CF	40%	2038	0.7	3.50	1248	141	14.48	/
			42%	2236	0.75	3.80	1308	155	14.43
			44%	2300	0.81	4.20	1366	170	13.55
			46%	2479	0.86	4.60	1426	187	13.27
			48%	2702	0.93	5.10	1491	206	13.09
			50%	2875	0.98	5.60	1545	225	12.8
			52%	3037	1.04	6.10	1604	245	12.4
			54%	3235	1.1	6.60	1661	266	12.17
			56%	3397	1.16	7.10	1716	286	11.86
			58%	3670	1.23	7.70	1767	312	11.75
			60%	3829	1.29	8.30	1821	334	11.46
			62%	4147	1.39	9.30	1907	375	11.05
			64%	4282	1.43	9.80	1949	397	10.78
			66%	4458	1.52	10.40	1992	420	10.6
			68%	4719	1.58	11.00	2039	447	10.57
			70%	4846	1.64	11.70	2082	474	10.21
			75%	5335	1.78	13.40	2216	542	9.84
			80%	5819	1.94	15.30	2322	618	9.41
			90%	6912	2.29	19.60	2554	794	8.7

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
