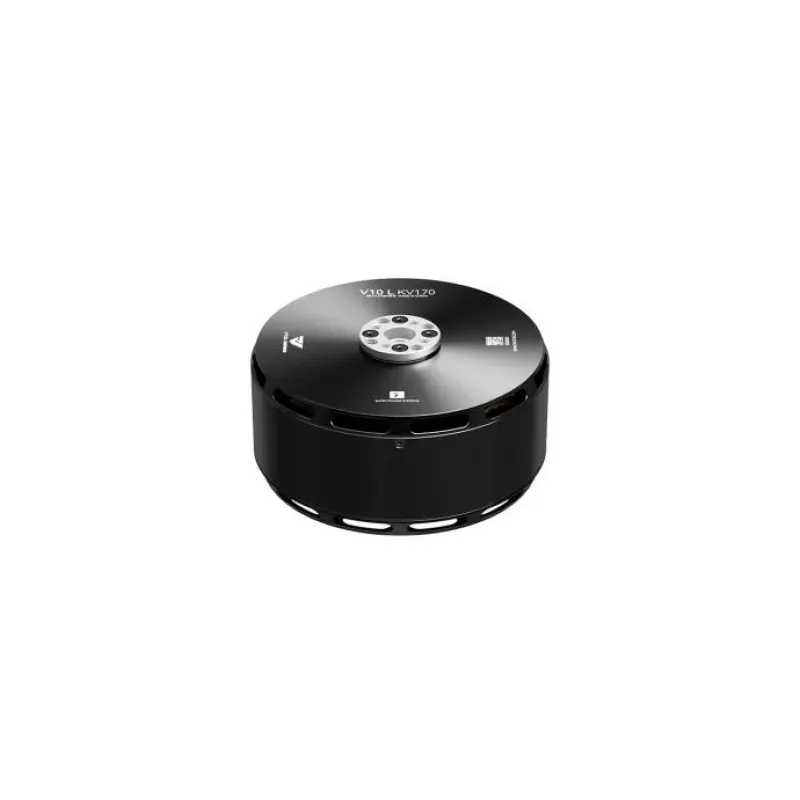

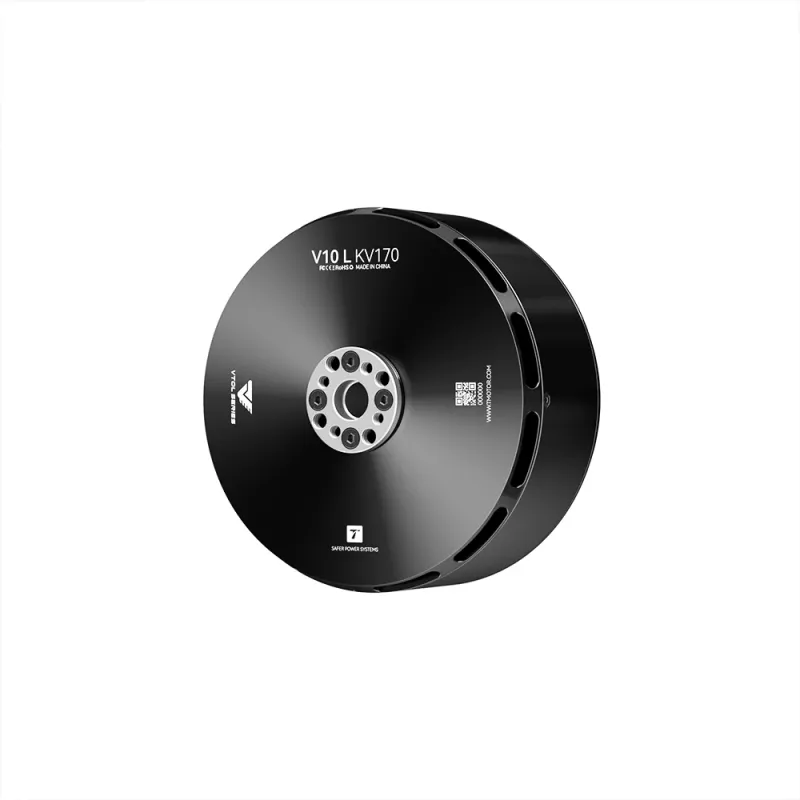

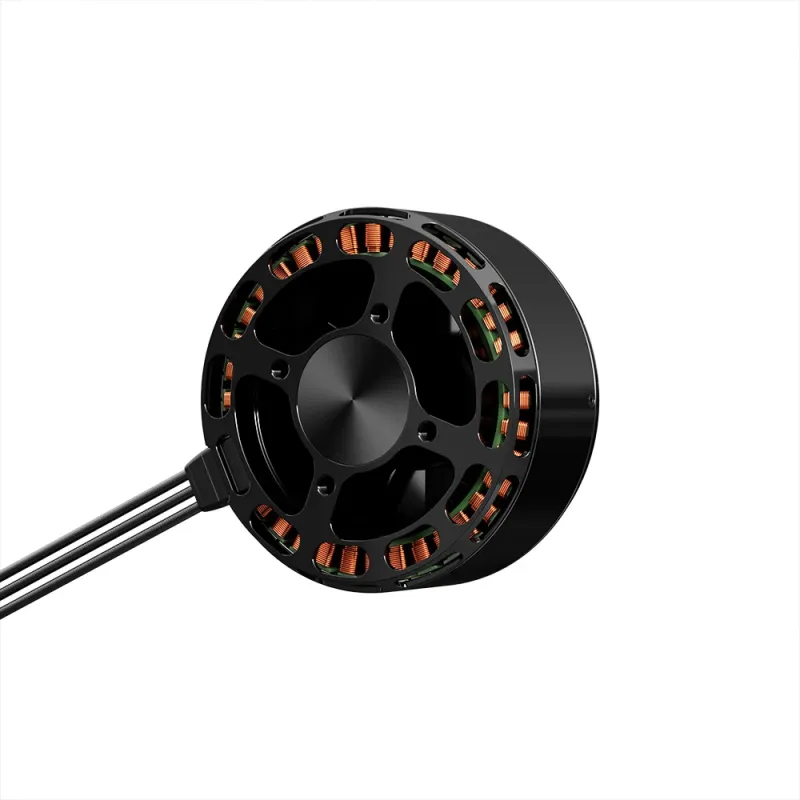

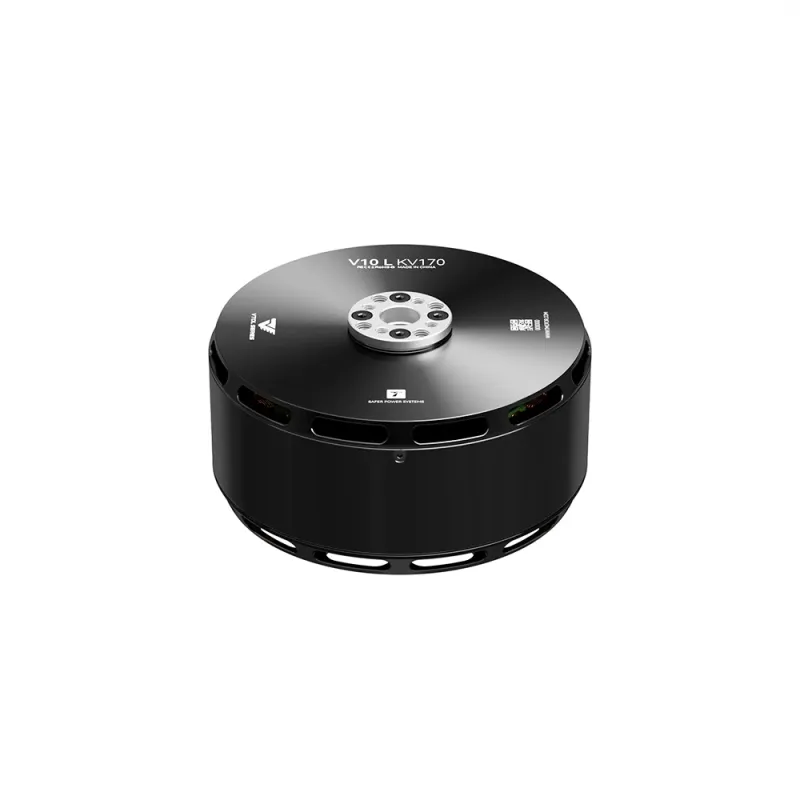

T-Motor V10L KV170 12S Brushless Vtol Drone Motor

  • Brand:T-Motor
  • Product Code:T-Motor AWD040100071
  • SKU:AWD040100071
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor V10L KV170 12S Brushless Vtol Drone Motor is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelV10L KV170 12S Brushless Vtol Drone Motor
Manufacturer SKUAWD040100071

Manufacturer technical and configuration tables

Model No./ KvV10L KV170Magnet Temperature Resistance Grade180℃
Motor Size（mm）Φ106.6*53Lead（mm）Enameled Wire 150mm
Stator TechnologyAnti-rust treatment;180°C high temperature-resisting coatingsEnamelled Wires Temperature Resistance GradeClass C 220℃
Configuration36N42PCoil Withdraw Voltage1000V/5s
Shaft Diameter（mm）IN:15Rotor Dynamic Balance Standard≤5mg
BearingImported 6202ZZIPIP35
KV ValueKV170Battery (lipo)/VoltageRecommendation12S（4.2V/Sl）/42-52V
Idle Current（18V）4.4AESC RecommendationFLAME 200A 14S
Peak Current（A）196A/Continuous 180sPropeller RecommendationG30*10.5
Max. Power（W）9000W/Continuous 180sMotor Weight（g）980g Weight (incl. cables)
Internal Resistance（mΩ）8Package Weight（g）1340g
KV ValueKV170Battery (lipo)/VoltageRecommendation12S（4.2V/Sl）/42-52V
Idle Current（18V）4.4AESC RecommendationFLAME 200A 14S
Peak Current（A）196A/Continuous 180sPropeller RecommendationG30*10.5
Max. Power（W）9000W/Continuous 180sMotor Weight（g）980g Weight (incl. cables)
Internal Resistance（mΩ）8Package Weight（g）1340g
Item No.PropThrottleVoltage(V)Thrust(g)Torque(N*m)Current(A)RPMInputpower(W)Efficiency(g/W)OperatingTemperature℃)
V10LKV170T-MOTOR G29*9.540%47.3965272.1520.292887961.706.79121℃
45%47.2979152.5926.2231771240.056.38
50%47.1795013.1233.2634721568.886.06
55%47.02112543.6941.8037591965.335.73
60%46.86129094.2450.4740032364.785.46
65%46.59146914.8160.5942542822.565.21
70%46.38165095.4272.0545093341.974.94
75%46.20184636.0884.0947513884.704.76
80%45.94204076.7398.3149784516.044.52
90%45.31244638.14131.1854465944.104.12
100%44.53288699.69172.3358887673.503.76
T-MOTORG30*10.540%47.3970332.4121.2527511007.106.98HOT
45%47.2489693.0829.5631081396.316.42
50%47.08108023.7137.8133921780.306.07
55%46.86127164.3848.0136692250.115.65
60%46.54146005.0358.2439032710.095.39
65%46.32163355.6669.3141283210.355.09
70%46.08185706.4182.5543653804.084.88
75%45.87206507.1497.1045984453.914.64
80%45.62228267.89113.2248085164.644.42
90%44.95271169.46149.6452476726.474.03
100%44.083179811.23196.2456518650.573.68
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins.(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
