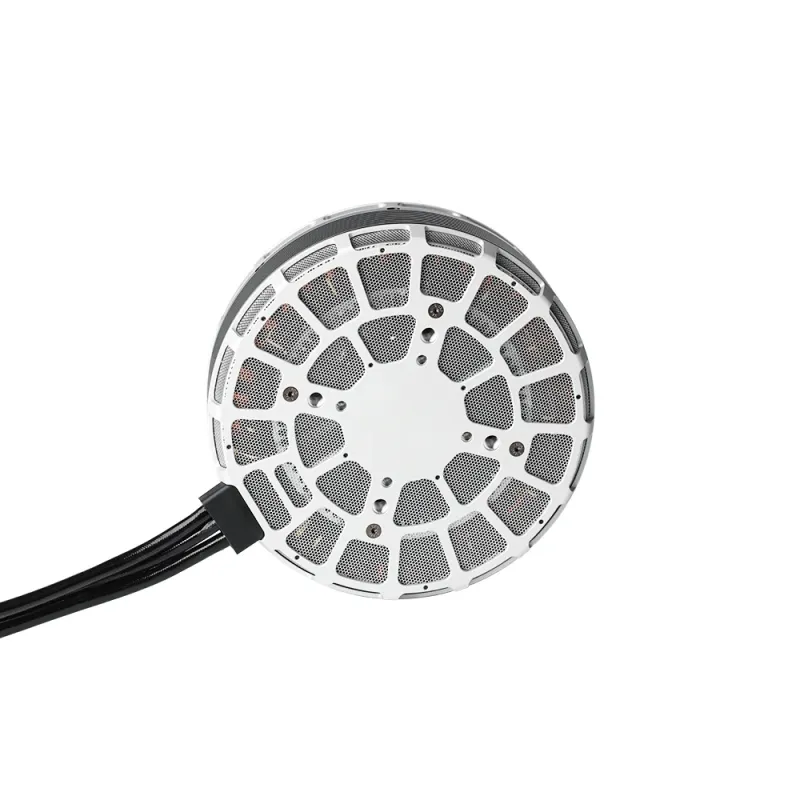

T-Motor MN1315 KV100

  • Brand:T-Motor
  • Product Code:T-Motor AWD01010264
  • SKU:AWD01010264
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor MN1315 KV100 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelMN1315 KV100
Manufacturer SKUAWD01010264

Manufacturer technical and configuration tables

Model No.MN1315Motor SizeΦ150*51mm
Stator Technology150℃ High Temperature-Resisting CoatingsCopper Wire220℃ High Temperature Resistance
Magnet Level180℃ High Temperature ResistanceCoil Insulation Test1000V Withstand Voltage Test
IPIP45Configuration36N42P
Rotor Dynamic Balance Standard≤30mgBearingImported 6904ZZ
Output Shaft Diameter/Wire Specification/ LengthEnameled Wire*150mm
Technical Parameters
KV Value100Idle Current (20V)5.7A
Max Power (180s)3300WInternal Resistance7.5mΩ
Rated Voltage (Lipo)14SPeak Current248A
Max Thrust50kgMotor Weight(Incl. Cable)1780g
Package Weight2400g
Recommended Combinations
MotorMN1315 KV100ESCM248A14S
PropellerVZ40x16.1Rated Voltage (Lipo)14S
Technical Parameters
KV Value100Idle Current (20V)5.7A
Max Power (180s)3300WInternal Resistance7.5mΩ
Rated Voltage (Lipo)14SPeak Current248A
Max Thrust50kgMotor Weight(Incl. Cable)1780g
Package Weight2400g
Recommended Combinations
MotorMN1315 KV100ESCM248A14S
PropellerVZ40x16.1Rated Voltage (Lipo)14S
TypePropellerVoltage(V)ThrottleCurrent(A)RPMThrust(gf)Power(W)Efficiency(g/W)Torque(N·m)OperatingTemperature(℃)
MN1315 KV100VZ40x16.154.0240%25.8419101179213968.455.5697℃(AmbientTemperature:25)
54.0242%29.7720041302116088.106.15
54.0344%33.9620971427118357.786.74
54.1046%38.2721851552120707.507.33
54.0748%43.2922821687323417.217.98
54.0550%48.4723721826526206.978.64
54.0452%54.1824611967229286.729.31
54.0754%60.2125492115732556.5010.01
54.0356%66.3526302257635856.3010.68
54.0558%73.8127192418439906.0611.46
54.0860%80.9928012580343805.8912.24
54.0862%88.7328822736147985.7012.99
54.0964%96.7929612895152355.5313.75
54.0966%104.9330343049756765.3714.50
54.0868%114.4731113224061915.2115.32
54.1070%123.6731813388166905.0616.12
54.1480%173.4534894164193914.4319.89
54.1190%228.82373048342123823.9023.22
54.13100%247.74379950170134113.7424.17
Notes: Motor temperature is the motor surface temperature aftering running on 80% for 10 min. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
