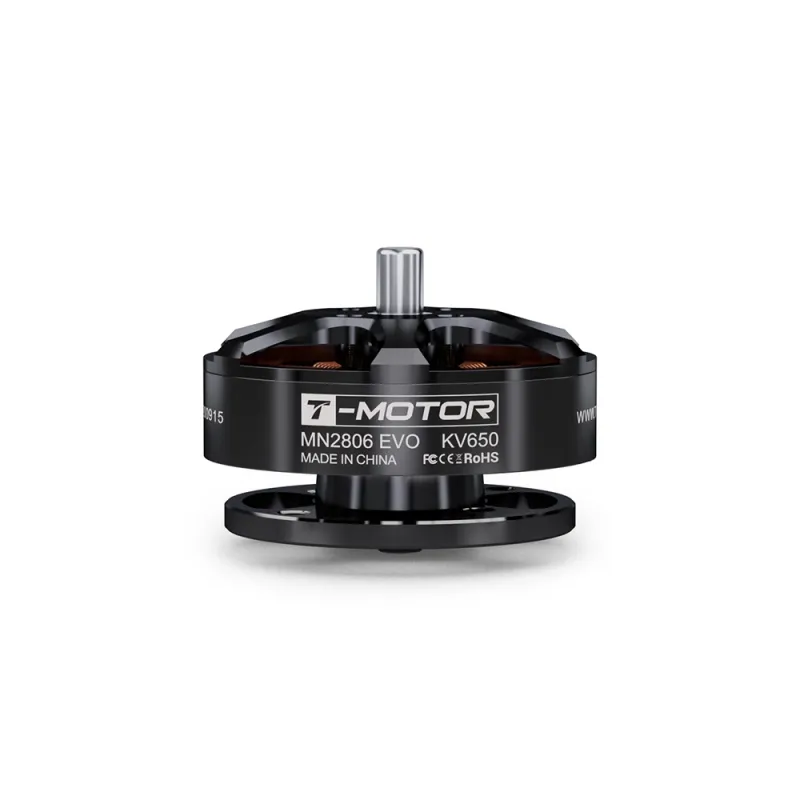

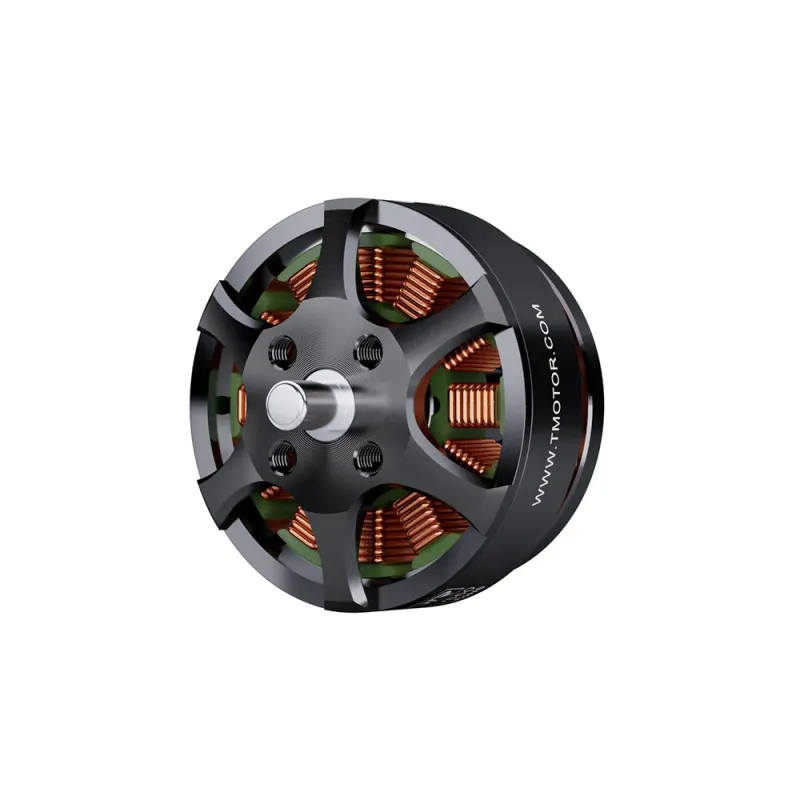

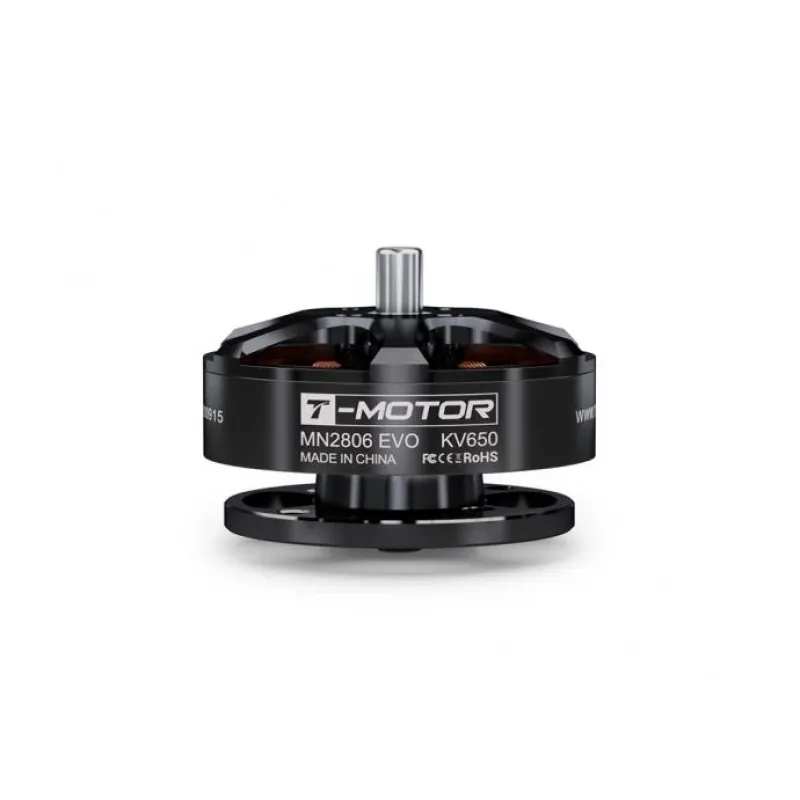

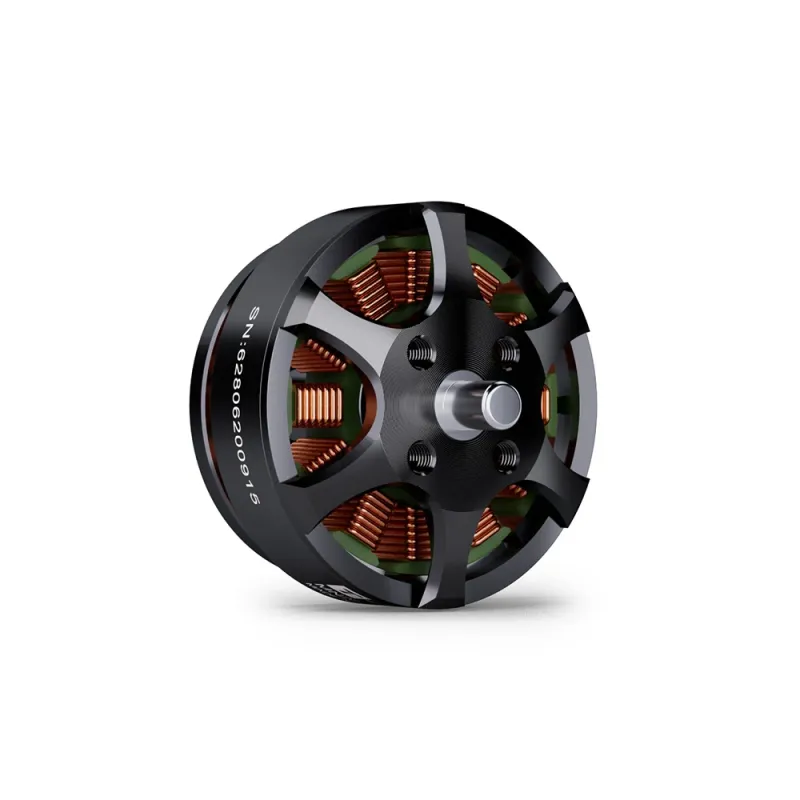

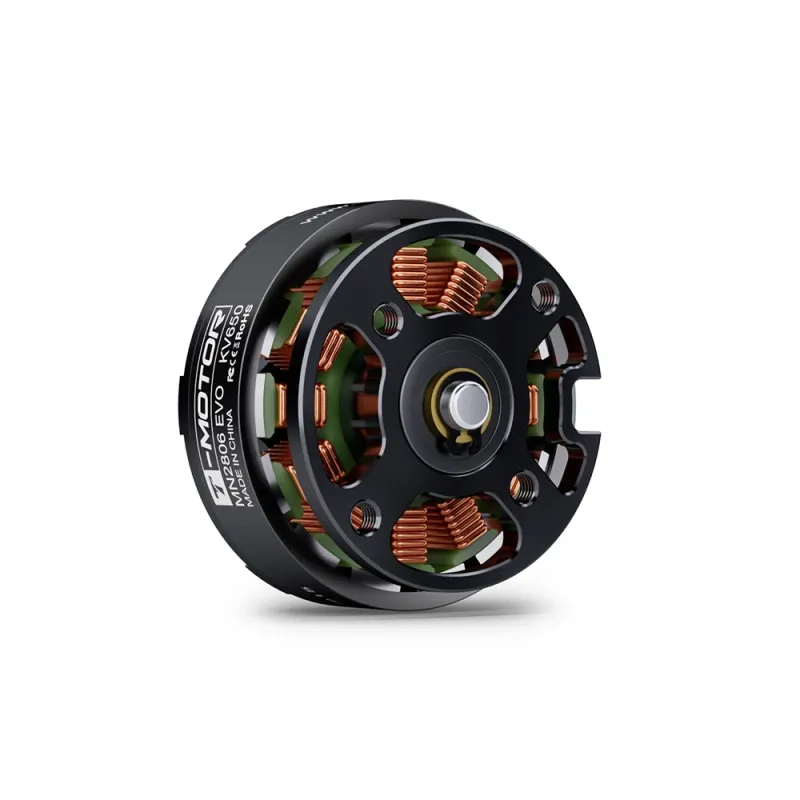

T-Motor Antigravity MN2806 EVO KV650

  • Brand:T-Motor
  • Product Code:T-Motor AWD01010230
  • SKU:AWD01010230
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor Antigravity MN2806 EVO KV650 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelAntigravity MN2806 EVO KV650
Manufacturer SKUAWD01010230

Manufacturer technical and configuration tables

Motor SizeΦ34*26mmMagnet Level150℃ high temperature resistance
Stator180℃ high temperature-resisting coatingsLeadEnameled Wire 50mm
Configuration12N14PCopper Wire220℃ high temperature resistance
Shaft DiameterIN：4mm，OUT：4mmCoil Insulation Test500V
BearingImported 694ZZ*2Package Size91*73*41mm
KV650Rated Voltage (LiPo)4S
Idle Current(10V)0.45AESC RecommendationAIR40A 6S
Peak Current(180s)16APropeller RecommendationP12*4/P13*4.4
Max Power (180S)160WWeight (Incl. Cable)45g
Internal Resistance201mΩPackage Weight105g
KV650Rated Voltage (LiPo)4S
Idle Current(10V)0.45AESC RecommendationAIR40A 6S
Peak Current(180s)16APropeller RecommendationP12*4/P13*4.4
Max Power (180S)160WWeight (Incl. Cable)45g
Internal Resistance201mΩPackage Weight105g
TypePropellerThrottleVoltage(V)Thrust(g)Torque(N*m)Current(A)RPMPower(W)Efficiency(g/W)OperatingTemperature(℃)
MN2806 EVOP1230%16.04161.960.030.69262011.0314.6868℃
35%16.03214.530.040.99299015.9113.49
40%16.02288.660.051.49344523.8812.09
45%16.01358.770.062.04382432.7210.99
50%16.00431.930.072.65418442.4210.18
55%15.99510.530.083.38454254.039.45
60%15.97593.180.104.19488766.888.87
65%15.95680.020.115.16523682.258.27
70%15.93766.480.126.19555898.667.77
75%15.91854.420.147.315863116.217.35
80%15.88947.680.158.576164136.056.97
85%15.861036.950.179.906448157.026.60
90%15.831126.540.1811.326716179.176.29
95%15.801212.800.1912.776958201.866.01
100%15.781275.960.2013.957131220.125.80
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
MN2806 EVOP1330%16.04186.980.030.78256312.4815.0098℃
35%16.03247.730.041.15291118.5013.40
40%16.02335.220.061.75334328.0511.96
45%16.00419.610.072.40371138.4110.93
50%15.99501.170.083.08404649.2610.18
55%15.97591.890.103.97439363.449.33
60%15.96678.030.114.85469977.428.76
65%15.94775.620.135.93501694.498.21
70%15.91867.180.147.065307112.347.72
75%15.89961.470.168.335582132.377.26
80%15.861058.890.179.745845154.446.86
85%15.831153.050.1911.206092177.276.50
90%15.801244.470.2012.736320201.216.18
95%15.771332.540.2214.306530225.595.91
100%15.751389.450.2315.486679243.815.70
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
