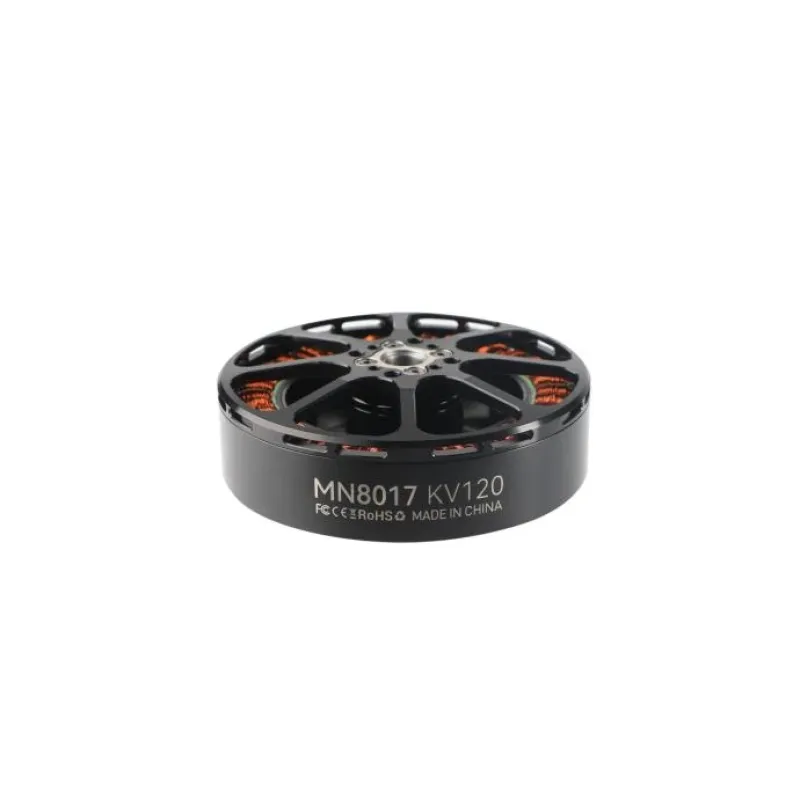

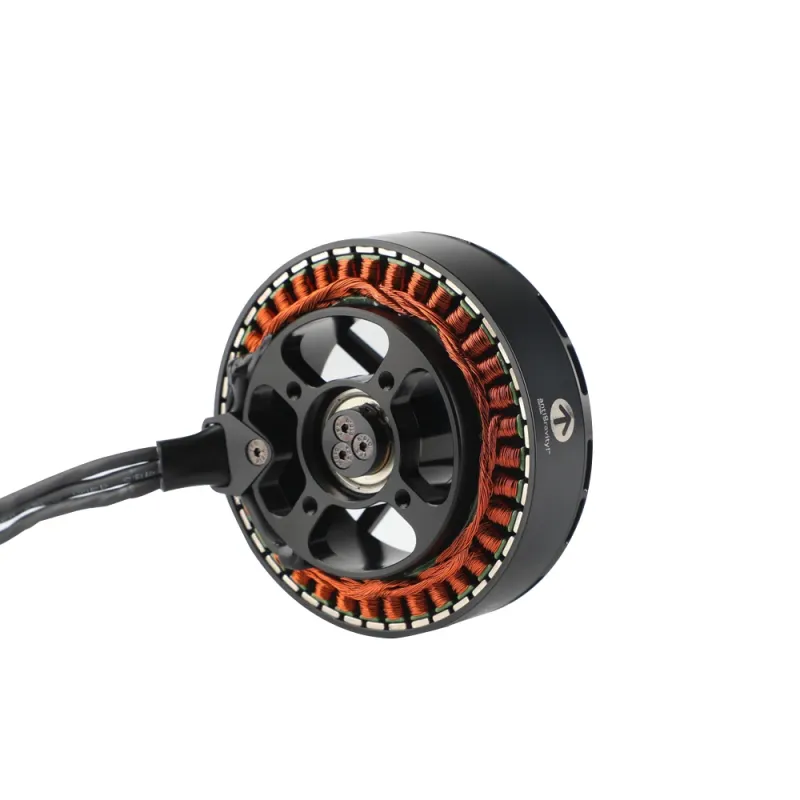

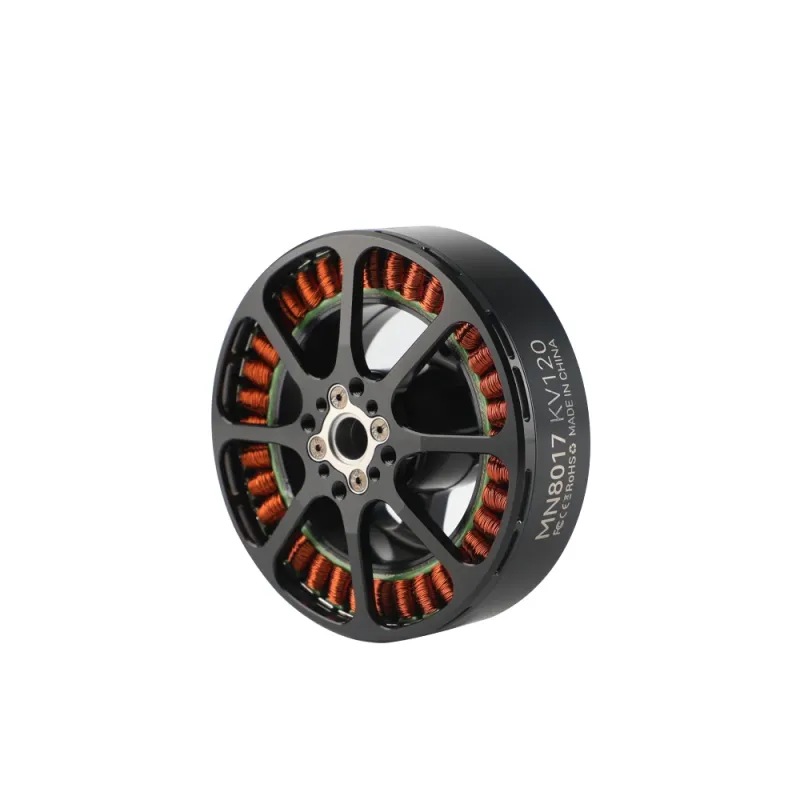

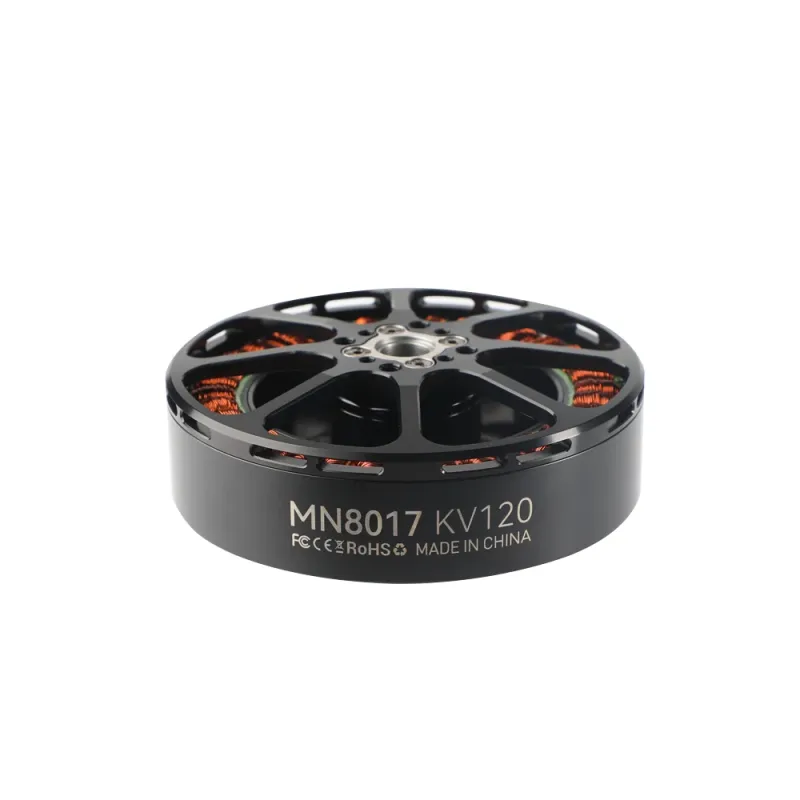

T-Motor MN8017 Antigravity Multirotor UAVs Motor KV120

  • Brand:T-Motor
  • Product Code:T-Motor AWD010102166
  • SKU:AWD010102166
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor MN8017 Antigravity Multirotor UAVs Motor KV120 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelMN8017 Antigravity Multirotor UAVs Motor KV120
Manufacturer SKUAWD010102166

Manufacturer technical and configuration tables

Motor SizeΦ87.8*34.5mmMagnet Level180℃ high temperature resistance
StatorAnti-rust treatment;180℃ high temperature-resisting coatingsLead90mm
Configuration36N42PCopper Wire220℃ high temperature resistance
Shaft DiameterIN：12mmCoil Insulation Test1000V/5s
BearingImported 6901ZZRotor Dynamic Balance Standard≤15Mg
KV120Rated Voltage(Lipo)12S
Idle Current（24V）1.8AInternal Resistance45mΩ
Peak Current（180s）68.6AWeight (Incl. Cable)453g
Max. Power （180s）3180WPackage Weight665g
KV120Rated Voltage(Lipo)12S
Idle Current（24V）1.8AInternal Resistance45mΩ
Peak Current（180s）68.6AWeight (Incl. Cable)453g
Max. Power （180s）3180WPackage Weight665g
TypePropellerThrottleVoltage(V)Thrust(g)Torque(N*m)Current(A)RPMPower(W)Efficiency(g/W)OperatingTemperature(℃)
MN8017KV120T-MOTORG29*9.5”40%47.6927360.925.12188124411.2176℃
45%47.6336511.227.51216635810.21
50%47.5845461.499.9524014739.60
55%47.5254431.7912.8726206128.90
60%47.4464702.1316.3628567768.34
65%47.3774032.4220.0030499477.81
70%47.2982622.7123.68321511207.38
75%47.2292403.0327.89339713177.01
80%47.14103083.3732.57357115356.71
90%46.83126214.1344.24392720726.09
100%46.53151114.9458.28426827115.57
T-MOTORG30*10.5”40%47.6330981.085.86184627911.09114℃
45%47.4339521.378.11207438510.28
50%47.3250301.7311.2023245309.49
55%47.2460752.0914.6225436918.80
60%47.2471682.4718.5727548778.17
65%47.1083892.9023.47297011057.59
70%47.0194073.2427.90313713127.17
75%46.94105183.6232.94330915466.80
80%46.84116734.0238.64347918106.45
90%46.63140884.8651.60380124065.86
100%46.35168415.8068.62412331815.29
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
