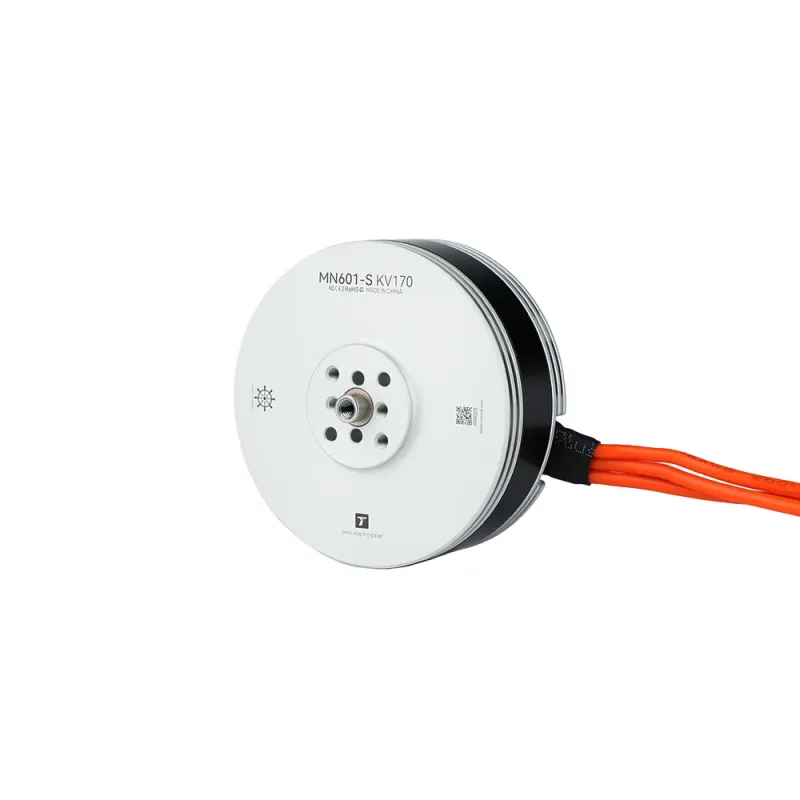

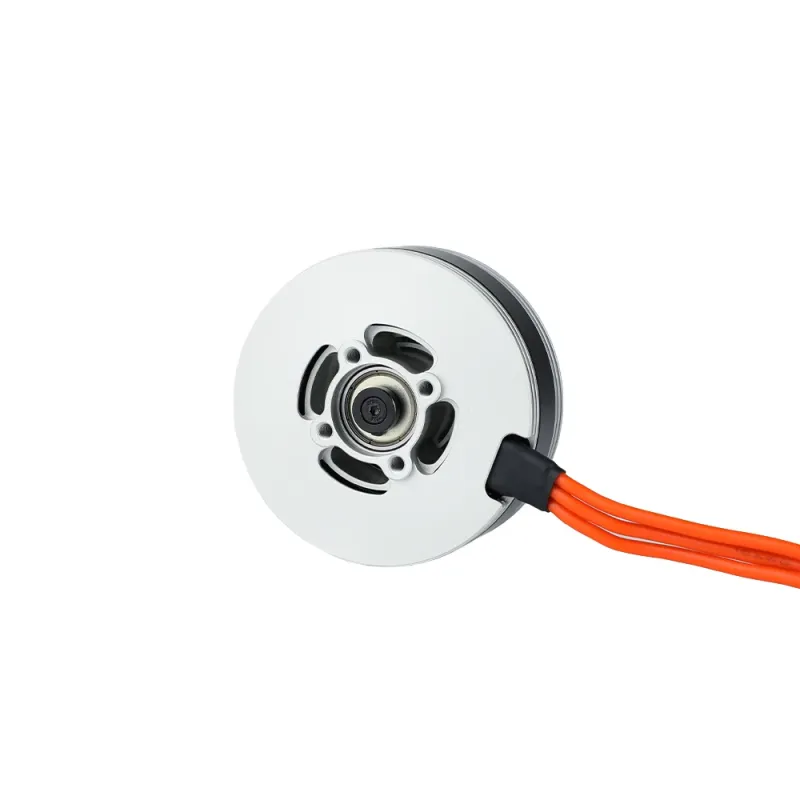

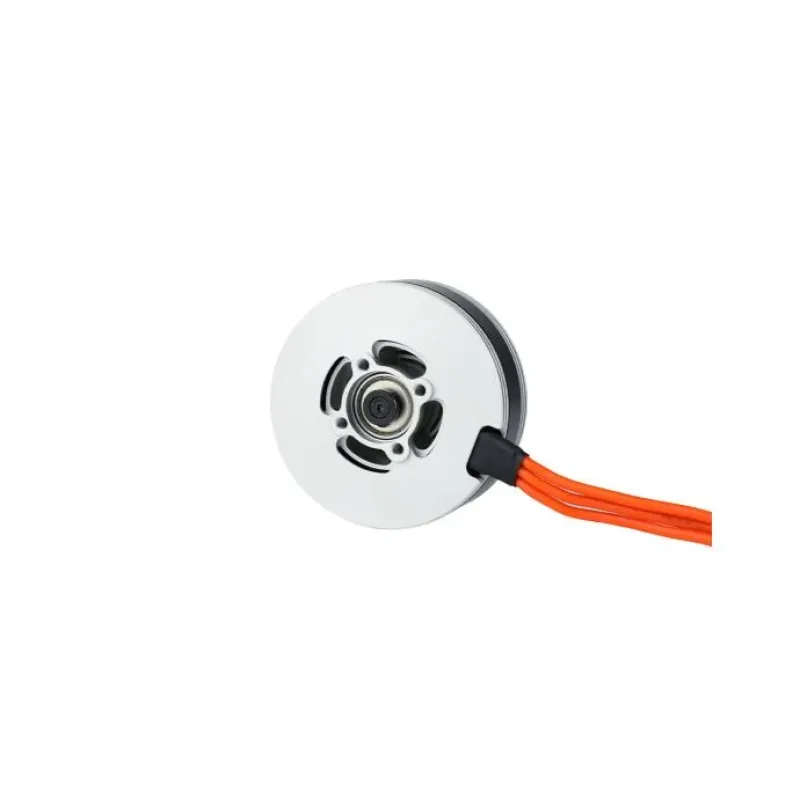

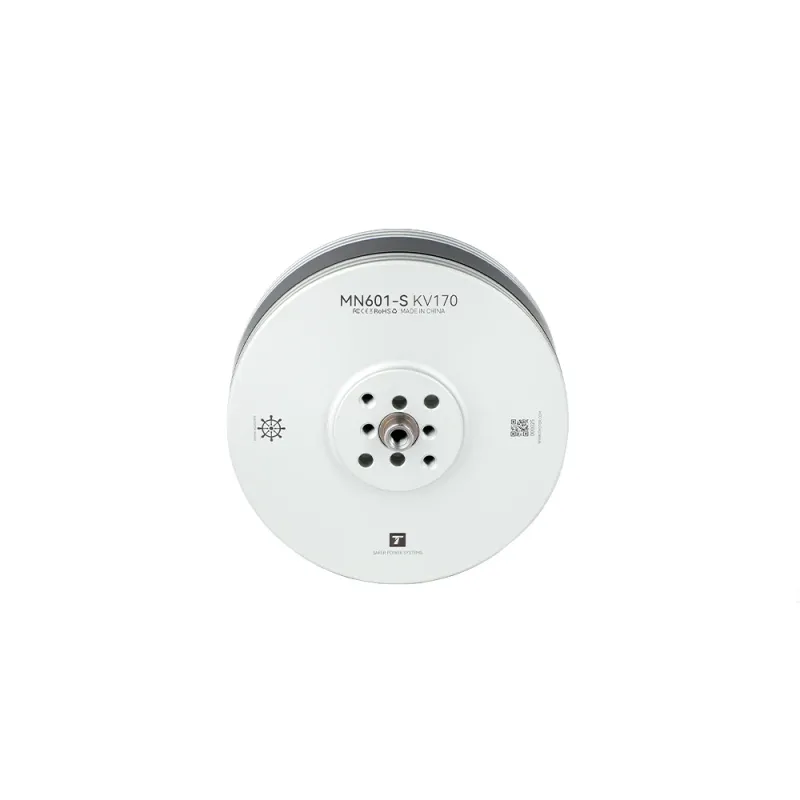

T-Motor MN601-S IP45 Multirotor Fixed Wing UAV KV170 2PCS/SET

T-Motor MN601-S IP45 Multirotor Fixed Wing UAV KV170 2PCS/SET

Brand:T-Motor
Product Code:T-Motor AWD01010165
SKU:AWD01010165
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

T-Motor MN601-S IP45 Multirotor Fixed Wing UAV KV170 2PCS/SET is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	MN601-S IP45 Multirotor Fixed Wing UAV KV170 2PCS/SET
Manufacturer SKU	AWD01010165

Manufacturer technical and configuration tables

Motor Size	Φ68.8*34.9mm	Copper Wire	180℃ high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm，OUT：6mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 626ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	150℃ high temperature resistance	IP	IP45
Lead Cable	16AWG*150mm
KV	170	Rated Voltage ( Lipo )	6-12S
Idle Current（20V）	0.8A	ESC Recommendation	FLAME 60A 12S
Peak Current（180s）	30A	Propeller Recommendation	20-21"
Max.Power（180s）	1500W	Motor Weight (indl. Cable)	250g
Internal Resistance	115mΩ	Package Weight	820g(2PCS/SET)
KV	320	Rated Voltage ( Lipo )	6S
Idle Current（17V）	1.6A	ESC Recommendation	FLAME 70A 6S
Peak Current（180s）	50A	Propeller Recommendation	20-21"
Max.Power（180s）	1200W	Motor Weight (indl. Cable)	246g
Internal Resistance	39mΩ	Package Weight	815g(2PCS/SET)

KV	170	Rated Voltage ( Lipo )	6-12S
Idle Current（20V）	0.8A	ESC Recommendation	FLAME 60A 12S
Peak Current（180s）	30A	Propeller Recommendation	20-21"
Max.Power（180s）	1500W	Motor Weight (indl. Cable)	250g
Internal Resistance	115mΩ	Package Weight	820g(2PCS/SET)

KV	320	Rated Voltage ( Lipo )	6S
Idle Current（17V）	1.6A	ESC Recommendation	FLAME 70A 6S
Peak Current（180s）	50A	Propeller Recommendation	20-21"
Max.Power（180s）	1200W	Motor Weight (indl. Cable)	246g
Internal Resistance	39mΩ	Package Weight	815g(2PCS/SET)

Type	Propeller	Throttle	Voltage (V)	Thrust(g)	Torque(N*m)	Current(A)	RPM	Power (W)	Effciency(g/W)	OperatingTemperature(℃)
MN601SKV170	T-MOTORP20*6	40%	47.96	1414	0.33	2.70	3272	129	10.92	67.5(AmbientTemperature:34.5℃)
		42%	47.95	1530	0.36	3.00	3389	144	10.64
		44%	47.94	1620	0.39	3.30	3506	158	10.24
		46%	47.93	1736	0.41	3.60	3624	173	10.06
		48%	47.92	1879	0.43	4.00	3753	192	9.80
		50%	47.90	1957	0.46	4.30	3851	206	9.50
		52%	47.89	2151	0.48	4.80	3994	230	9.36
		54%	47.88	2258	0.51	5.20	4121	249	9.07
		56%	47.85	2388	0.54	5.60	4225	268	8.91
		58%	47.84	2459	0.55	5.80	4228	277	8.86
		60%	47.82	2540	0.59	6.20	4362	296	8.57
		62%	47.81	2683	0.61	6.70	4481	320	8.38
		64%	47.79	2819	0.64	7.10	4589	339	8.31
		66%	47.76	2948	0.66	7.50	4690	358	8.23
		68%	47.74	3115	0.70	8.30	4791	396	7.86
		70%	47.73	3277	0.72	8.90	4923	425	7.71
		75%	47.67	3572	0.80	10.10	5144	481	7.42
		80%	47.62	3932	0.88	11.70	5395	557	7.06
		90%	47.48	4751	1.07	15.40	5901	731	6.50
		100%	47.34	5809	1.27	20.70	6482	980	5.93
MN601SKV170	T-MOTORP21*6.3	40%	48.00	1677	0.40	3.10	3272	149	11.27	85(AmbientTemperature:34.5℃)
		42%	47.98	1774	0.42	3.50	3389	168	10.56
		44%	47.97	1966	0.45	4.00	3506	192	10.25
		46%	47.96	2062	0.49	4.30	3624	206	10.00
		48%	47.94	2182	0.51	4.60	3753	221	9.89
		50%	47.92	2307	0.54	5.10	3851	244	9.44
		52%	47.91	2463	0.58	5.50	3994	264	9.35
		54%	47.88	2624	0.61	6.00	4121	287	9.13
		56%	47.86	2726	0.64	6.60	4225	316	8.63
		58%	47.85	2912	0.69	7.10	4228	340	8.57
		60%	47.82	3027	0.68	7.50	4362	359	8.44
		62%	47.81	3165	0.73	8.00	4481	382	8.27
		64%	47.78	3366	0.77	8.80	4589	420	8.01
		66%	47.75	3485	0.80	9.30	4690	444	7.85
		68%	47.73	3641	0.84	9.80	4791	468	7.78
		70%	47.70	3799	0.88	10.40	4923	496	7.66
		75%	47.63	4186	0.97	12.10	5144	576	7.26
		80%	47.55	4593	1.06	13.90	5395	661	6.95
		90%	47.38	5412	1.25	18.10	5901	858	6.31
		100%	47.21	6605	1.49	24.70	6482	1166	5.66
MN601SKV320	T-MOTORP20*6	40%	23.90	976	0.24	3.80	2751	91	10.75	54.5(AmbientTemperature:34.5℃)
		42%	23.89	1058	0.25	4.20	2850	100	10.54
		44%	23.87	1183	0.28	4.80	2996	115	10.33
		46%	23.85	1275	0.30	5.20	3088	124	10.28
		48%	23.83	1389	0.33	5.80	3235	138	10.05
		50%	23.82	1492	0.35	6.40	3376	152	9.79
		52%	23.79	1658	0.38	7.30	3520	174	9.55
		54%	23.76	1757	0.40	7.80	3618	185	9.48
		56%	23.73	1894	0.42	8.50	3699	202	9.39
		58%	23.71	1972	0.44	9.00	3829	213	9.24
		60%	23.69	2130	0.47	9.80	3924	232	9.17
		62%	23.66	2203	0.50	10.60	4044	251	8.78
		64%	23.62	2307	0.52	11.40	4142	269	8.57
		66%	23.59	2443	0.55	12.40	4268	293	8.35
		68%	23.56	2587	0.57	13.70	4372	323	8.01
		70%	23.53	2731	0.60	14.80	4505	348	7.84
		75%	23.44	3040	0.68	17.00	4748	398	7.63
		80%	23.35	3418	0.77	19.90	5017	465	7.36
		90%	23.13	4191	0.94	26.40	5511	611	6.86
		100%	22.92	4904	1.07	34.20	5980	784	6.26
MN601SKV320	T-MOTORP21*6.3	40%	23.89	1194	0.30	4.50	2644	108	11.11	76.2(AmbientTemperature:34.5℃)
		42%	23.87	1212	0.32	4.80	2777	115	10.58
		44%	23.85	1349	0.35	5.50	2915	131	10.28
		46%	23.83	1448	0.38	6.10	3022	145	9.96
		48%	23.81	1599	0.41	6.80	3165	162	9.88
		50%	23.78	1677	0.44	7.40	3272	176	9.53
		52%	23.75	1871	0.47	8.40	3420	200	9.38
		54%	23.71	2035	0.51	9.30	3563	221	9.23
		56%	23.68	2123	0.55	10.00	3650	237	8.97
		58%	23.65	2254	0.58	10.80	3729	255	8.82
		60%	23.61	2351	0.61	11.50	3814	272	8.66
		62%	23.58	2450	0.64	12.40	3954	292	8.38
		64%	23.54	2593	0.68	13.20	4045	311	8.34
		66%	23.50	2820	0.71	14.50	4154	341	8.28
		68%	23.46	2987	0.75	15.90	4281	373	8.01
		70%	23.42	3077	0.78	16.90	4394	396	7.77
		75%	23.32	3490	0.86	19.60	4616	457	7.64
		80%	23.20	3878	0.95	23.10	4851	536	7.24
		90%	22.94	4725	1.12	31.10	5369	713	6.62
		100%	22.70	5510	1.27	39.40	5755	894	6.16
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.(Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
