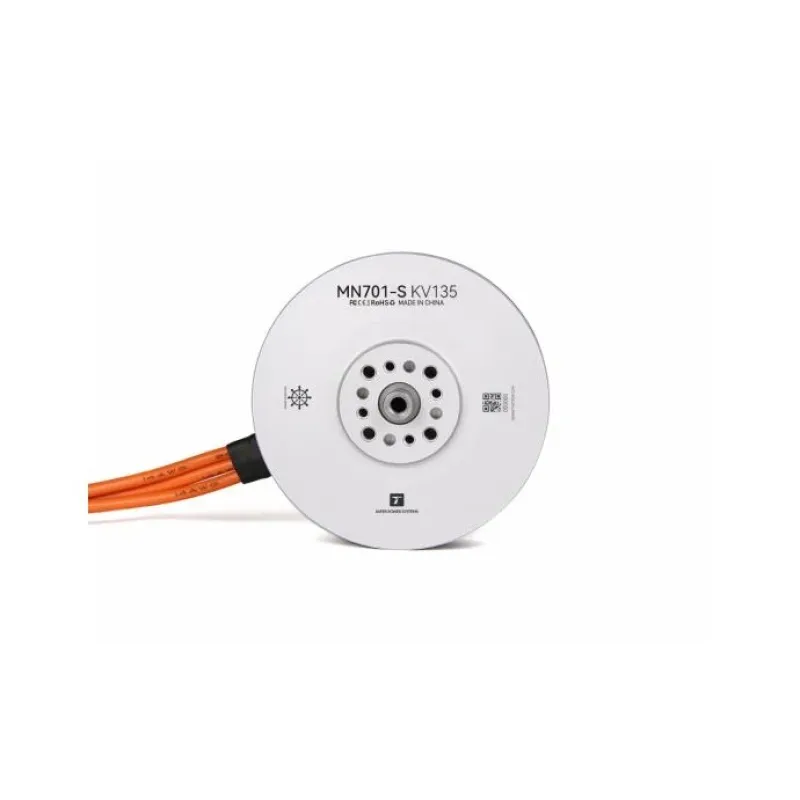

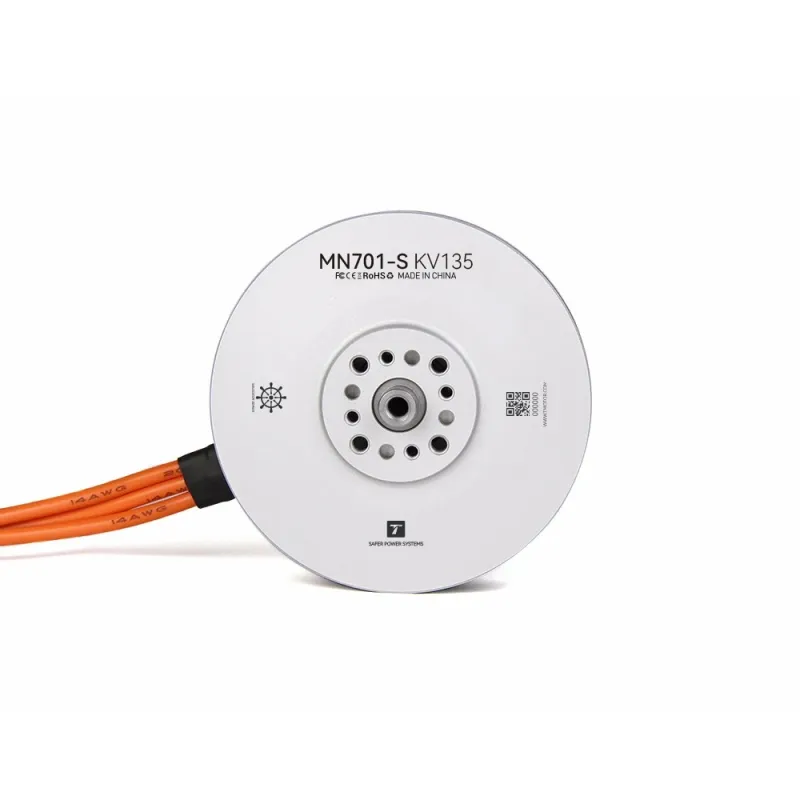

T-Motor MN701-S IP45 Multirotor Fixed Wing UAV Motor KV135 2PCS/SET

  • Brand:T-Motor
  • Product Code:T-Motor AWD01010163
  • SKU:AWD01010163
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor MN701-S IP45 Multirotor Fixed Wing UAV Motor KV135 2PCS/SET is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelMN701-S IP45 Multirotor Fixed Wing UAV Motor KV135 2PCS/SET
Manufacturer SKUAWD01010163

Manufacturer technical and configuration tables

Motor SizeΦ79.2*37.4mmCopper Wire220℃ high temperature resistance: Level C
StatorImported silicon steel sheet; Anti-rust treatment;180°Chigh temperature-resisting coatingsCoil Insulation Test500V
Configuration24N28PCentrifugal Cooling DesignYES
Shaft DiameterIN：8mm，OUT：8mmRotor Dynamic Balance Standard≤5Mg
BearingImported 608ZZMotor Dynamic Balance Standard≤10Mg
Magnet Level150℃ high temperature resistanceIPIP45
Lead Cable14AWG*150mm
KV135Rated Voltage ( Lipo )6-12S
Idle Current（20V）0.9AESC RecommendationFLAME 60A 12SFLAME 80A 12S V2.0
Peak Current（180s）42APropeller Recommendation24-26"
Max.Power（180s）1900WMotor Weight (indl. Cable)350g
Internal Resistance94mΩPackage Weight1050g(2PCS/SET)
KV280Rated Voltage ( Lipo )6S
Idle Current（17V）2.0AESC RecommendationFLAME 70A 6SFLAME 100A 6S
Peak Current（180s）65APropeller Recommendation24-26"
Max.Power（180s）1600WMotor Weight (indl. Cable)355g
Internal Resistance23mΩPackage Weight1068g(2PCS/SET)
KV135Rated Voltage ( Lipo )6-12S
Idle Current（20V）0.9AESC RecommendationFLAME 60A 12SFLAME 80A 12S V2.0
Peak Current（180s）42APropeller Recommendation24-26"
Max.Power（180s）1900WMotor Weight (indl. Cable)350g
Internal Resistance94mΩPackage Weight1050g(2PCS/SET)
KV280Rated Voltage ( Lipo )6S
Idle Current（17V）2.0AESC RecommendationFLAME 70A 6SFLAME 100A 6S
Peak Current（180s）65APropeller Recommendation24-26"
Max.Power（180s）1600WMotor Weight (indl. Cable)355g
Internal Resistance23mΩPackage Weight1068g(2PCS/SET)
TypePropellerThrottleVoltage (V)Thrust(g)Torque(N*m)Current(A)RPMPower (W)Effciency(g/W)OperatingTemperature(℃)
MN701SKV135T-MOTORP24*7.240%47.8718750.603.30248715811.8770(AmbientTemperature:34.5℃)
42%47.8519760.653.60256017211.47
44%47.8422200.704.20269220111.05
46%47.8223800.744.60277322010.82
48%47.8024770.804.90285323410.58
50%47.7926920.855.50297226310.24
52%47.7628120.906.0030582879.81
54%47.7431550.957.1032023399.31
56%47.7332391.007.4032733539.17
58%47.7033871.078.0034693828.88
60%47.6836251.138.8034564208.64
62%47.6638011.189.4035174488.48
64%47.6339341.2410.0036004768.26
66%47.6141651.2910.8036875148.10
68%47.5844031.3411.6037555527.98
70%47.5546281.4312.4038565907.85
75%47.4850471.5414.2040246747.49
80%47.3955611.7016.3042217727.20
90%47.2265152.0021.1045469966.54
100%47.0380112.3128.60498113455.96
MN701SKV135T-MOTORG26*8.540%47.7827740.985.10238024411.38HOT(AmbientTemperature:34.5℃)
42%47.7630671.045.70248427211.27
44%47.7432121.106.50256831010.35
46%47.7133781.166.90264332910.26
48%47.6935461.247.5027073589.91
50%47.6738371.308.3028123969.70
52%47.6440941.389.2029034389.34
54%47.6142791.469.8029624679.17
56%47.5844941.5310.6030375048.91
58%47.5349431.6312.2031725808.52
60%47.5050021.7112.6032125998.36
62%47.4752301.7713.5032856418.16
64%47.4454701.8314.5033626887.95
66%47.4156371.8915.5034467357.67
68%47.3758241.9616.4035167777.50
70%47.3360112.0417.4036178247.30
75%47.2466132.2120.1037309506.96
80%47.1371942.3922.90386910796.67
90%46.8983212.7229.60416413886.00
100%46.6497332.9839.50446818425.28
MN701SKV280T-MOTORP24*7.240%23.8215110.506.00226214310.5758(AmbientTemperature:34.5℃)
42%23.7916840.556.80238216210.41
44%23.7518100.597.40247617610.30
46%23.7220220.658.7025922069.80
48%23.6822520.719.8027542329.70
50%23.6324830.7711.4028802699.22
52%23.5826480.8312.6030042978.91
54%23.5428810.8914.0030963308.74
56%23.5030770.9415.3031933608.56
58%23.4532680.9916.6032603898.40
60%23.4334661.0218.2033124268.13
62%23.3636691.1019.6034634588.01
64%23.3138621.1621.2035554947.82
66%23.2540871.2322.8036385307.71
68%23.1942471.2924.4037245667.51
70%23.1444901.3527.1038206277.16
75%22.9949631.4930.8040047087.01
80%22.8553981.6135.3042068076.69
90%22.4666021.9248.10460410806.11
100%22.1076182.1760.60493513395.69
MN701SKV280T-MOTORG26*8.540%23.5521890.668.70216120510.68HOT(AmbientTemperature:34.5℃)
42%23.5023510.739.80223623010.21
44%23.4626030.8111.10233626010.00
46%23.4128540.8812.4024332909.83
48%23.3331000.9714.0025363279.49
50%23.2733761.0315.9026423709.12
52%23.2136751.0917.6027574099.00
54%23.1338791.1619.5028354518.60
56%23.0541441.2421.4029234938.40
58%22.9744411.3023.8030245478.12
60%22.9046121.3725.3030895797.96
62%22.8148311.4427.7031646327.65
64%22.7251801.5130.4032656917.50
66%22.6553551.5832.0033227257.39
68%22.5855551.6434.1033917707.21
70%22.5057821.7436.3034578177.08
75%22.2463901.9243.0036349566.68
80%22.0568602.0848.80377310766.38
90%21.5880052.4063.70407613755.82
100%21.1190402.6680.60433317015.31
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.(Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
