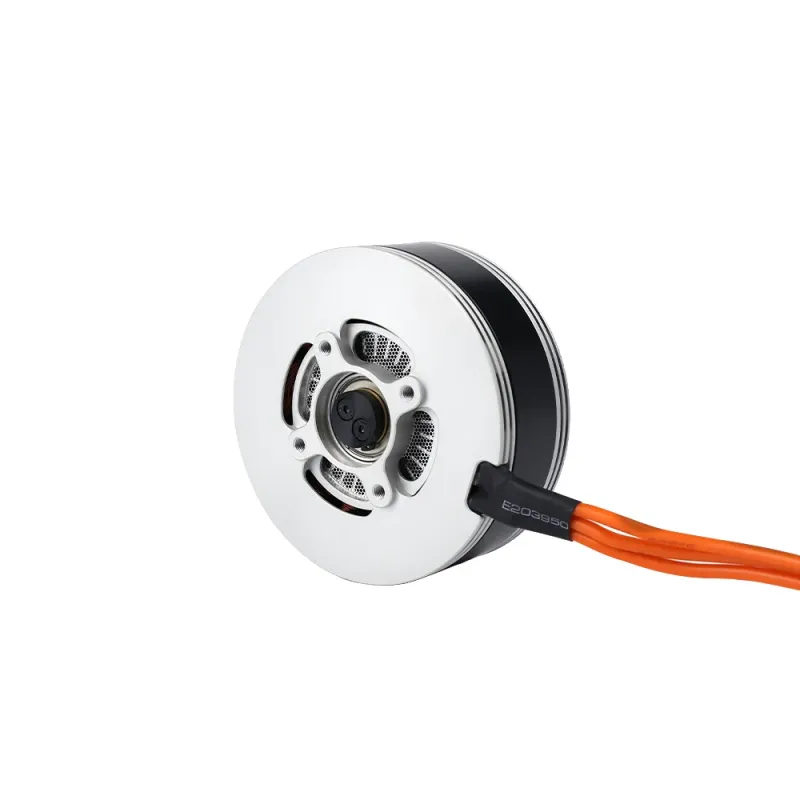

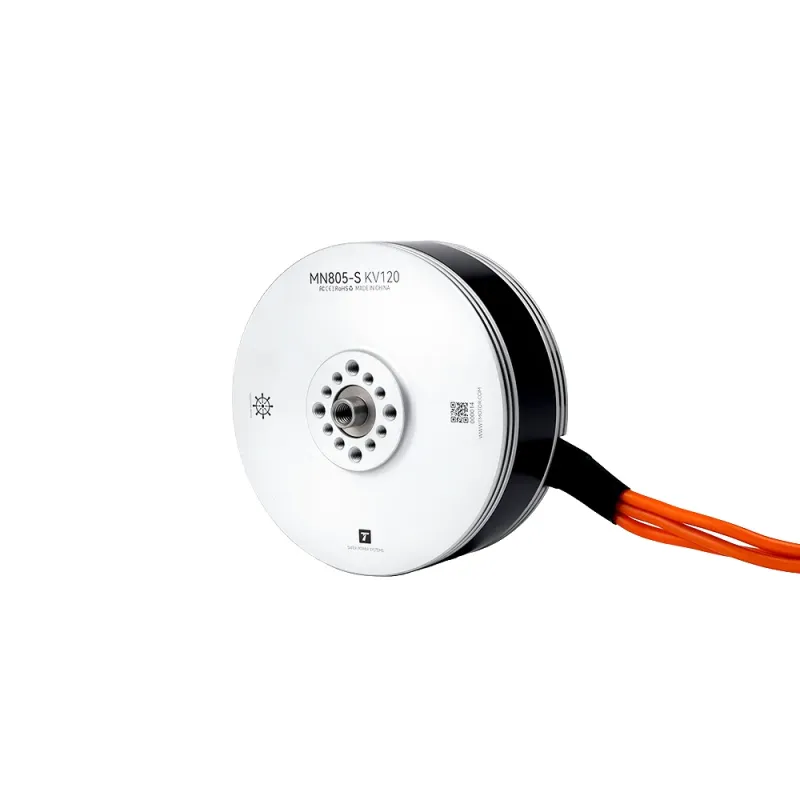

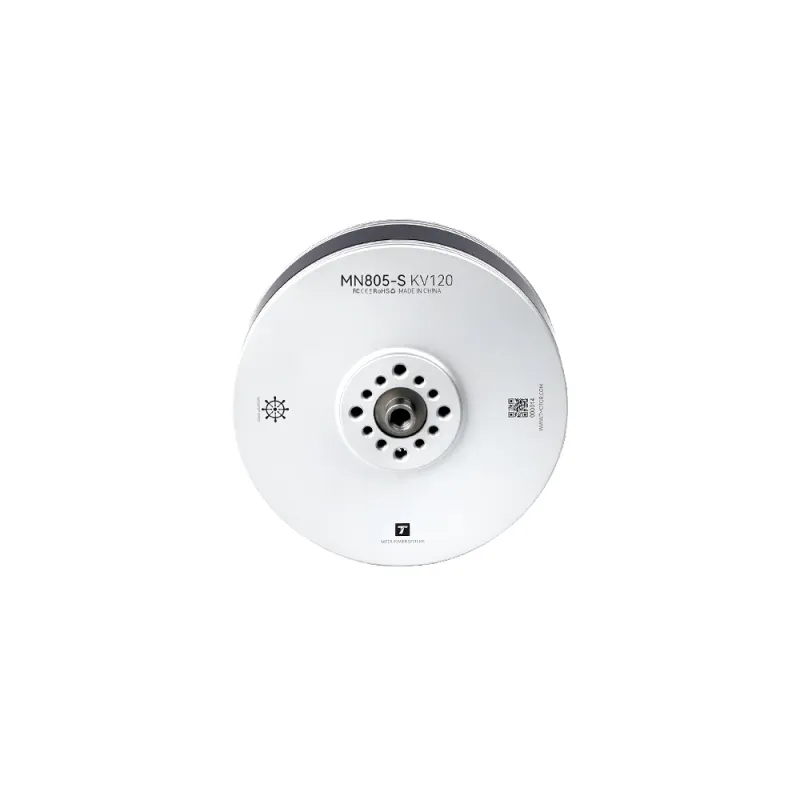

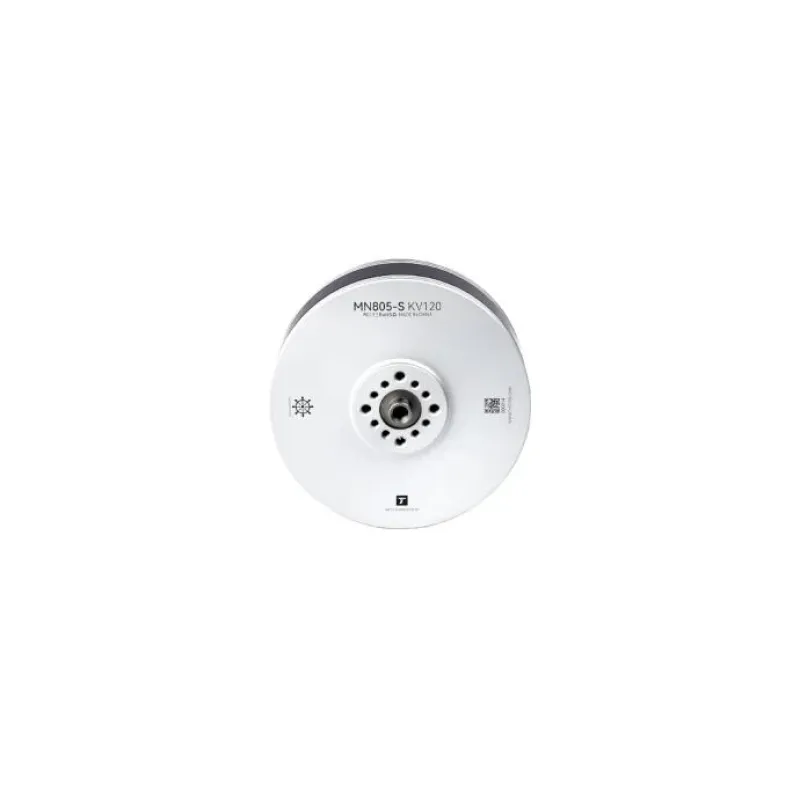

T-Motor MN805-S IP45 Multirotor Fixed Wing UAV Motor KV120

  • Brand:T-Motor
  • Product Code:T-Motor AWD01010045
  • SKU:AWD01010045
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor MN805-S IP45 Multirotor Fixed Wing UAV Motor KV120 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelMN805-S IP45 Multirotor Fixed Wing UAV Motor KV120
Manufacturer SKUAWD01010045

Manufacturer technical and configuration tables

Motor SizeΦ89*44.4mmCopper Wire220℃ high temperature resistance: Level C
StatorImported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatingsCoil Insulation Test500V
Configuration24N28PCentrifugal Cooling DesignYES
Shaft DiameterIN：12mm，OUT：8mmRotor Dynamic Balance Standard≤5Mg
BearingImported 6901ZZMotor Dynamic Balance Standard≤10Mg
Magnet Level180℃ high temperature resistanceIPIP45
Lead Cable14AWG*150mm
KV120Rated Voltage ( Lipo )6-12S
Idle Current（18V）1.6AESC RecommendationFLAME 80A 12S V2.0
Peak Current（180s）65APropeller Recommendation30-32"
Max.Power（180s）3200WMotor Weight (indl. Cable)620g
Internal Resistance48mΩPackage Weight750g
KV150Rated Voltage ( Lipo )6-12S
Idle Current（15V）2.2AESC RecommendationFLAME 80A 12S V2.0FLAME 100A 14S
Peak Current（180s）75APropeller Recommendation28-29"
Max.Power（180s）3600WMotor Weight (indl. Cable)625g
Internal Resistance32mΩPackage Weight750g
KV170Rated Voltage ( Lipo )6-12S
Idle Current（15V）2.6AESC RecommendationFLAME 100A 14S
Peak Current（180s）83APropeller Recommendation26-27"
Max.Power（180s）4000WMotor Weight (indl. Cable)625g
Internal Resistance28mΩPackage Weight750g
KV120Rated Voltage ( Lipo )6-12S
Idle Current（18V）1.6AESC RecommendationFLAME 80A 12S V2.0
Peak Current（180s）65APropeller Recommendation30-32"
Max.Power（180s）3200WMotor Weight (indl. Cable)620g
Internal Resistance48mΩPackage Weight750g
KV150Rated Voltage ( Lipo )6-12S
Idle Current（15V）2.2AESC RecommendationFLAME 80A 12S V2.0FLAME 100A 14S
Peak Current（180s）75APropeller Recommendation28-29"
Max.Power（180s）3600WMotor Weight (indl. Cable)625g
Internal Resistance32mΩPackage Weight750g
KV170Rated Voltage ( Lipo )6-12S
Idle Current（15V）2.6AESC RecommendationFLAME 100A 14S
Peak Current（180s）83APropeller Recommendation26-27"
Max.Power（180s）4000WMotor Weight (indl. Cable)625g
Internal Resistance28mΩPackage Weight750g
TypePropellerThrottleVoltage (V)Thrust(g)Torque(N*m)Current(A)RPMPower (W)Effciency(g / W)OperatingTemperature(℃)
MN805SKV120T-MOTORG30*10.540%47.9933211.056.28182830111.0386.3(Ambient Temperature:0℃)
42%47.9837271.157.39194235510.51
44%48.0040371.298.26203039610.19
46%47.9743991.419.2921234469.88
48%47.9847101.5110.2522004929.58
50%47.9750271.6211.2522795409.32
52%48.0053211.7112.2323465879.08
54%48.0056931.8213.4624236468.82
56%47.9960711.9514.7525007088.59
58%47.9763412.0415.7525597568.40
60%47.9666852.1416.9726188148.22
62%47.9570252.2518.3226888788.00
64%47.9674722.3920.0227799607.79
66%47.9878872.5621.77287210447.56
68%47.9782952.6823.46294111257.38
70%47.9787402.8225.22301712097.23
75%47.9596933.2230.62321014686.60
80%47.93104853.6036.31340517406.02
90%47.90121294.3949.00374423475.17
100%47.89143005.2264.69407030984.62
MN805SKV150T-MOTORG28*9.240%47.9237581.127.55234836210.3996.3(Ambient Temperature:0℃)
42%47.9439481.188.17241939110.08
44%47.9642751.279.0825184369.82
46%47.9645671.379.9626004789.56
48%48.0048821.4510.9026875239.33
50%47.9751821.5511.8727685709.10
52%47.9555821.6613.1028626288.89
54%47.9861301.8114.7929847108.63
56%47.9565861.9816.4630887898.34
58%47.9171372.1318.2332248738.17
60%47.9175872.2519.8033179497.99
62%47.9180402.3921.59342010347.77
64%47.9385472.5523.47351611257.59
66%47.9390932.7025.68362212307.39
68%47.9294812.8427.61370713237.16
70%47.9299182.9929.71378314246.97
75%47.92107313.3635.56402317046.30
80%47.92115283.7942.37422820305.68
90%47.90137784.6357.81463327694.97
100%47.80160285.4275.17501335934.46
MN805SKV170T-MOTORG26*8.540%48.0436080.957.8326693769.5887.5(Ambient Temperature:0℃)
42%48.0438601.028.6327644159.30
44%48.0542021.119.6428714639.07
46%48.0545181.1910.6629725128.82
48%48.0449001.3111.9031125728.57
50%48.0451981.4113.0632206278.28
52%47.9956971.5514.7033597058.07
54%47.9861741.6816.3434877847.87
56%47.9966911.8418.3636358817.59
58%47.9770831.9719.9937439597.38
60%47.9675412.1021.78384610457.21
62%47.9680232.2423.77396911407.04
64%47.9685632.3825.84407912396.91
66%47.9590852.5428.15419813506.73
68%47.9494802.6930.78432514756.43
70%47.9498712.8232.73441415696.29
75%47.91107243.1639.06466118715.73
80%47.93115903.5245.76490321935.28
90%47.88135424.3061.64534229514.59
100%47.84159935.0780.37575838454.16
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.(Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
