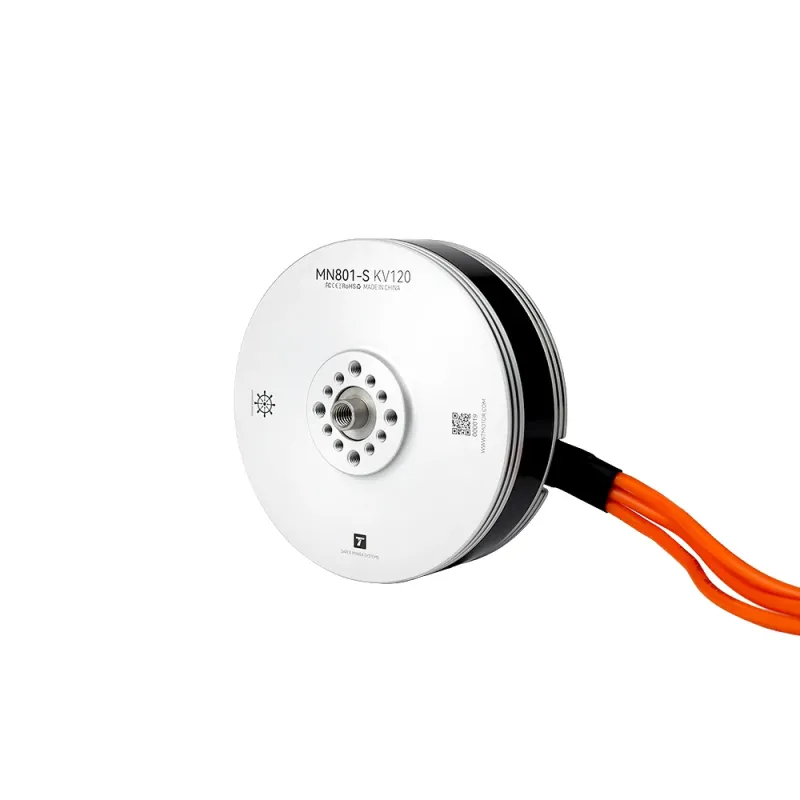

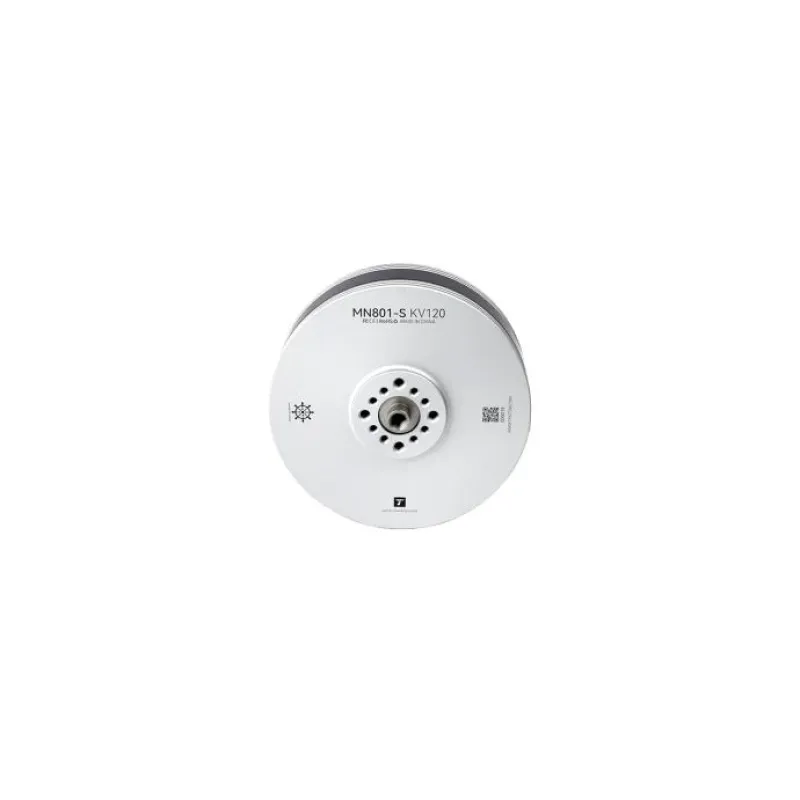

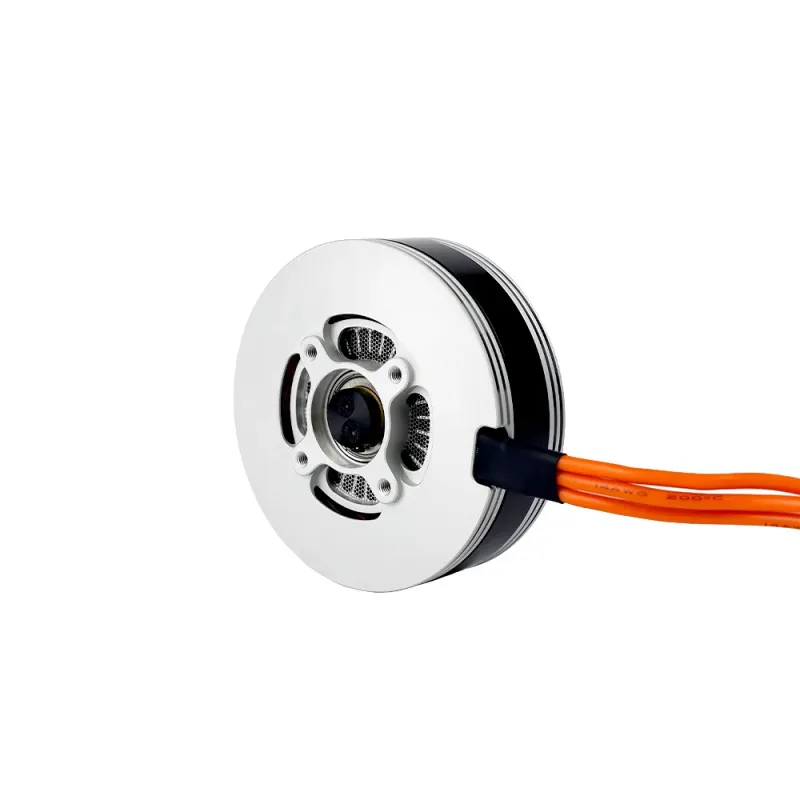

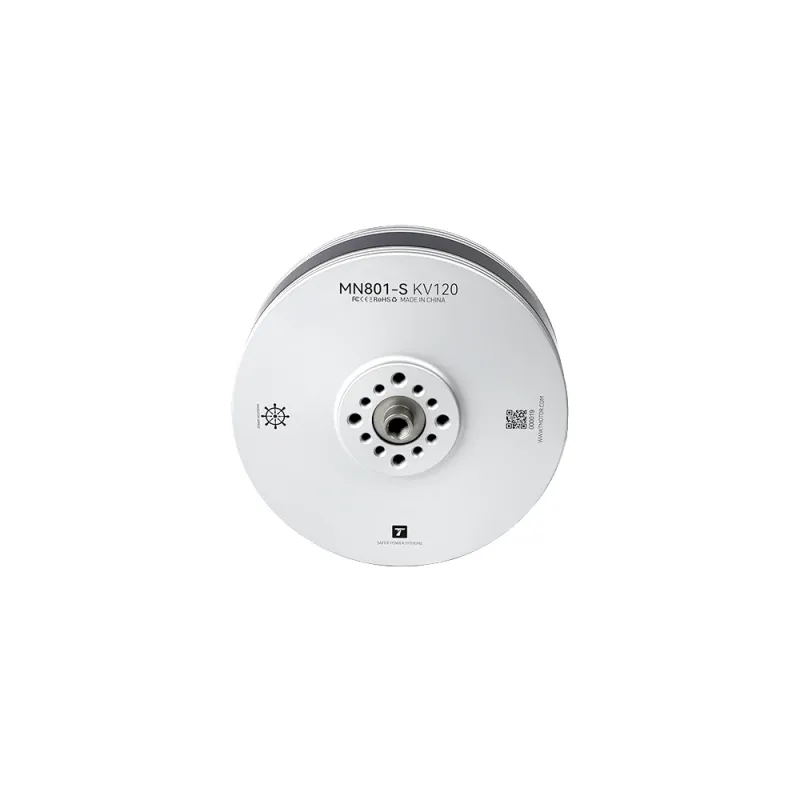

T-Motor MN801-S IP45 Multirotor Fixed Wing UAV Motor KV120

  • Brand:T-Motor
  • Product Code:T-Motor AWD01010043
  • SKU:AWD01010043
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor MN801-S IP45 Multirotor Fixed Wing UAV Motor KV120 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelMN801-S IP45 Multirotor Fixed Wing UAV Motor KV120
Manufacturer SKUAWD01010043

Manufacturer technical and configuration tables

Motor SizeΦ89*39.4mmCopper Wire220℃ high temperature resistance: Level C
StatorImported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatingsCoil Insulation Test500V
Configuration24N28PCentrifugal Cooling DesignYES
Shaft DiameterIN：12mm，OUT：8mmRotor Dynamic Balance Standard≤5Mg
BearingImported 6901ZZMotor Dynamic Balance Standard≤10Mg
Magnet Level180℃ high temperature resistanceIPIP45
Lead Cable14AWG*150mm
KV120Rated Voltage ( Lipo )6-12S
Idle Current（18V）1.1AESC RecommendationFLAME 60A 12S
Peak Current（180s）45APropeller Recommendation28-29"
Max.Power（180s）2200WMotor Weight (indl. Cable)470g
Internal Resistance80mΩPackage Weight600g
KV150Rated Voltage ( Lipo )6-12S
Idle Current（15V）1.4AESC RecommendationFLAME 60A 12SFLAME 80A 12S V2.0
Peak Current（180s）60APropeller Recommendation26-27"
Max.Power（180s）2800WMotor Weight (indl. Cable)480g
Internal Resistance50mΩPackage Weight600g
KV120Rated Voltage ( Lipo )6-12S
Idle Current（18V）1.1AESC RecommendationFLAME 60A 12S
Peak Current（180s）45APropeller Recommendation28-29"
Max.Power（180s）2200WMotor Weight (indl. Cable)470g
Internal Resistance80mΩPackage Weight600g
KV150Rated Voltage ( Lipo )6-12S
Idle Current（15V）1.4AESC RecommendationFLAME 60A 12SFLAME 80A 12S V2.0
Peak Current（180s）60APropeller Recommendation26-27"
Max.Power（180s）2800WMotor Weight (indl. Cable)480g
Internal Resistance50mΩPackage Weight600g
TypePropellerThrottleVoltage (V)Thrust(g)Torque(N*m)Current(A)RPMPower (W)Effciency(g/W)OperatingTemperature(℃)
MN801SKV120T-MOTORG28*9.240%47.8130830.855.42193025911.9078.5(AmbientTemperature:0℃)
42%47.8132590.915.84198427911.67
44%47.8335060.986.45207630911.36
46%47.8337241.047.05217433711.04
48%47.8439851.117.74226437010.76
50%47.8442471.198.48235640610.47
52%47.8244771.289.12243243610.26
54%47.8247461.359.91251247410.01
56%47.8250101.4310.7425975149.75
58%47.8252991.5111.6226765569.53
60%47.8255661.5812.4727755969.33
62%47.8358161.6613.3628576399.10
64%47.8360851.7414.3029426848.89
66%47.8563291.8115.2430207298.68
68%47.8567691.9416.9031388098.37
70%47.8070592.0317.9232048578.24
75%47.7977212.2420.6333969867.83
80%47.8084022.4523.59356711287.45
90%47.8199242.9030.65390314656.77
100%47.83104723.4440.28427719275.43
MN801SKV120T-MOTORG29*9.540%47.9136621.256.14190029412.44109.5(AmbientTemperature:0℃)
42%47.9138801.316.67195632012.13
44%47.9141541.407.35205435211.79
46%47.9143971.488.05213038611.39
48%47.9146941.578.79220842111.15
50%47.9249761.669.61229346010.81
52%47.9152841.7510.48237650210.52
54%47.9155571.8411.27245154010.30
56%47.9358911.9412.23253058610.04
58%47.9362472.0513.3326106399.78
60%47.9365962.1514.3626846889.58
62%47.9369302.2615.4627777419.35
64%47.9372052.3516.5428547939.09
66%47.9375152.4517.6429308458.89
68%47.9377962.5518.7731088998.67
70%47.9382772.7020.7231789938.33
75%47.9291082.9423.77337211397.99
80%47.9297933.1927.35343713107.47
90%47.92104263.7337.77377418105.76
100%47.92116834.1648.79404523384.99
MN801SKV150T-MOTORG26*8.540%47.9135090.837.03261633710.4186.5(AmbientTemperature:0℃)
42%47.9137350.907.72270237010.10
44%47.9140280.988.5428264099.84
46%47.9143171.059.3929284509.59
48%47.9046041.1310.2830704929.34
50%47.9250571.2711.9131745718.86
52%47.9052751.3312.6433026068.71
54%47.9055741.4213.7634386598.45
56%47.9158781.5114.7935847098.29
58%47.9062191.5915.8836977618.17
60%47.9063831.6917.0737988177.81
62%47.9167701.7818.2939128767.73
64%47.9170331.8619.4040299297.57
66%47.9073601.9520.7641489947.40
68%47.9077102.0422.09427810587.28
70%47.9080052.1323.45436911237.12
75%47.8987542.3527.02449612946.76
80%47.8596042.5930.86452514766.50
90%47.79107243.1040.20480619215.58
100%47.76120763.7557.34524727384.41
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.(Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
