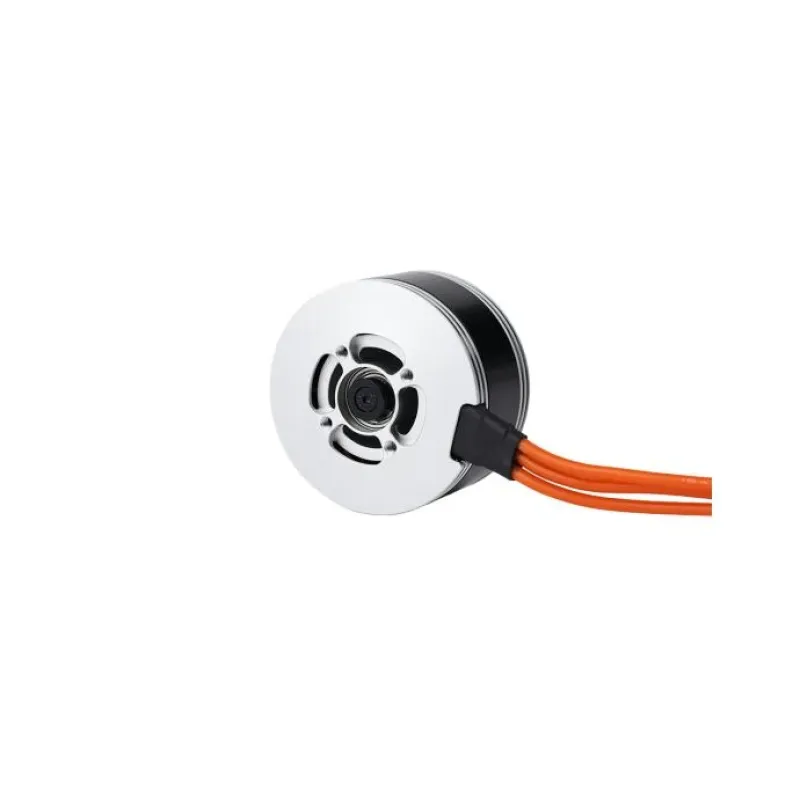

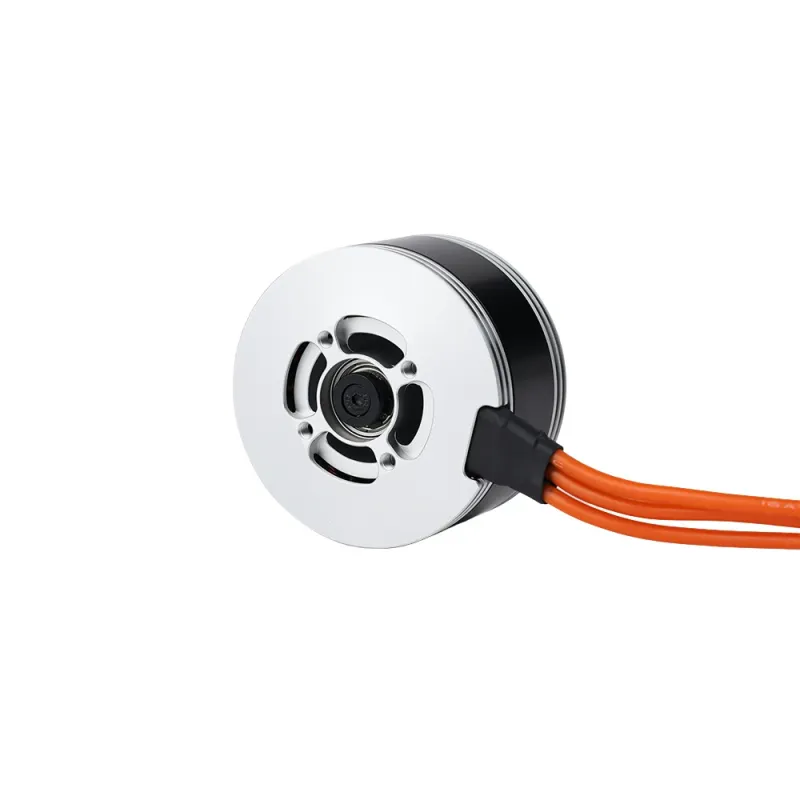

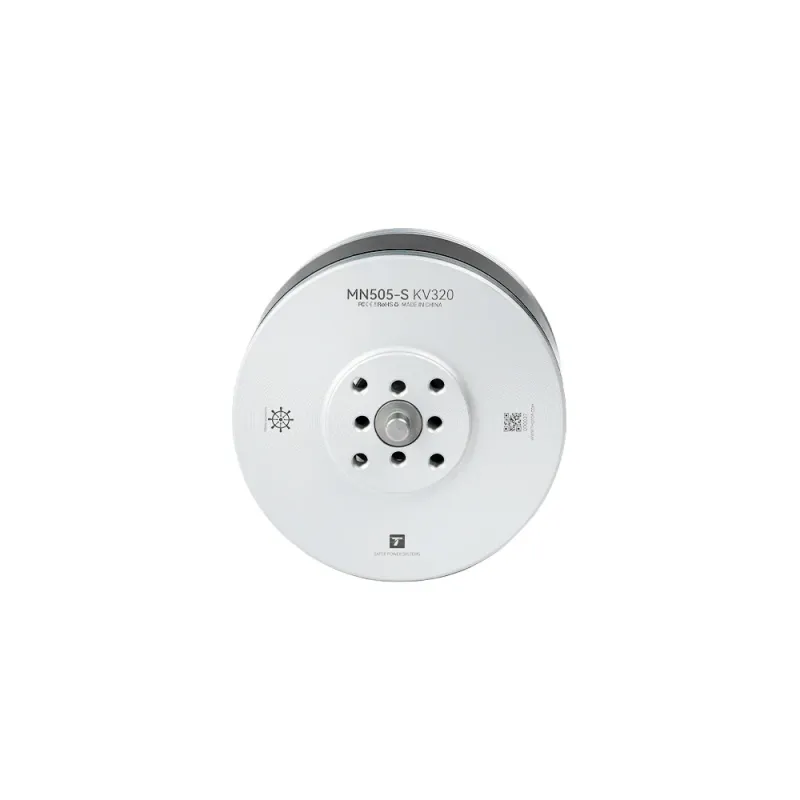

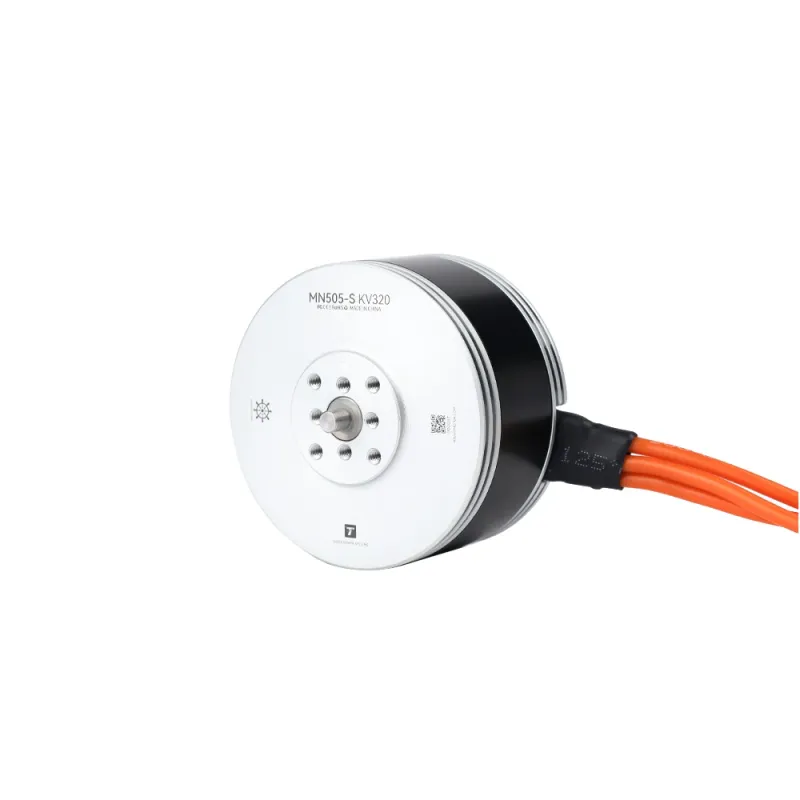

T-Motor MN505-S IP45 Navigator Type UAV Multi-Motor KV320

  • Brand:T-Motor
  • Product Code:T-Motor AWD01010039
  • SKU:AWD01010039
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor MN505-S IP45 Navigator Type UAV Multi-Motor KV320 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelMN505-S IP45 Navigator Type UAV Multi-Motor KV320
Manufacturer SKUAWD01010039

Manufacturer technical and configuration tables

Motor SizeΦ55.6*38.9mmCopper Wire220℃ high temperature resistance: Level C
StatorImported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatingsCoil Insulation Test500V
Configuration24N28PCentrifugal Cooling DesignYES
Shaft DiameterIN：6mm，OUT：4mmRotor Dynamic Balance Standard≤5Mg
BearingImported 696ZZMotor Dynamic Balance Standard≤10Mg
Magnet Level180℃ high temperature resistanceIPIP45
Lead Cable16AWG*150mm
KV320Rated Voltage ( Lipo )6S
Idle Current（18V）1.8AESC RecommendationFLAME 60A 12S
Peak Current（180s）55APropeller Recommendation20-22"
Max.Power（180s）1300WMotor Weight (indl. Cable)225g
Internal Resistance38mΩPackage Weight400g
KV380Rated Voltage ( Lipo )6S
Idle Current（15V）2.0AESC RecommendationFLAME 60A 12S
Peak Current（180s）50APropeller Recommendation17-18"
Max.Power（180s）1200WMotor Weight (indl. Cable)225g
Internal Resistance28mΩPackage Weight400g
KV320Rated Voltage ( Lipo )6S
Idle Current（18V）1.8AESC RecommendationFLAME 60A 12S
Peak Current（180s）55APropeller Recommendation20-22"
Max.Power（180s）1300WMotor Weight (indl. Cable)225g
Internal Resistance38mΩPackage Weight400g
KV380Rated Voltage ( Lipo )6S
Idle Current（15V）2.0AESC RecommendationFLAME 60A 12S
Peak Current（180s）50APropeller Recommendation17-18"
Max.Power（180s）1200WMotor Weight (indl. Cable)225g
Internal Resistance28mΩPackage Weight400g
TypePropellerThrottleVoltage (V)Thrust(g)Torque(N*m)Current(A)RPMPower (W)Effciency(g/W)OperatingTemperature(℃)
MN505SKV320T-MOTORP20*640%24.0810680.164.1027299910.8365.3(AmbientTemperature:9.5℃)
42%24.0711510.174.50282810910.59
44%24.0812640.205.10294712210.36
46%24.0713570.225.60306913510.03
48%24.0714540.246.1031891489.83
50%24.0715430.266.8032861649.42
52%24.0616660.297.5034101819.19
54%24.0618040.328.4035592018.97
56%24.0519750.359.3037052248.82
58%24.0620820.3810.1038182428.60
60%24.0521780.4111.0039382648.24
62%24.0523110.4412.0040502898.00
64%24.0524860.4713.0041513137.96
66%24.0426590.5114.2043083427.77
68%24.0427650.5315.3044073677.53
70%24.0329210.5716.3046113937.44
75%24.0233760.6519.4049734667.25
80%24.0137670.7322.7052305446.92
90%23.9945140.9129.7056987136.33
100%23.9653721.1038.5062769215.83
MN505SKV320T-MOTORP22*6.640%24.0114240.275.50257313210.8388.5(AmbientTemperature:9.5℃)
42%24.0215250.296.10266814510.49
44%24.0116570.336.70277016210.24
46%24.0117880.367.5028731809.95
48%24.0119590.398.3029902009.79
50%24.0020900.439.2031972219.46
52%24.0022670.4610.3033122469.20
54%24.0024130.5111.4034392728.86
56%24.0025860.5512.6035653018.59
58%23.9927990.6014.0036893358.36
60%23.9929680.6415.2037903648.15
62%23.9931490.6916.6038883987.90
64%23.9832980.7317.9039804297.69
66%23.9734770.7719.3040714647.50
68%23.9736650.8120.9041825007.33
70%23.9638430.8522.2043755337.21
75%23.9543490.9626.7046236406.80
80%23.9448281.0831.0049367436.50
90%23.9057471.3141.1053469835.85
100%23.8766801.5452.40562512495.35
MN505SKV380T-MOTORP17*5.840%24.029030.404.6032871108.2066.5(AmbientTemperature:9.5℃)
42%24.019870.425.1034611238.02
44%24.0110760.445.7036311377.84
46%24.0111530.466.3037701517.64
48%24.0112450.486.9039161657.55
50%24.0013860.447.7040961867.47
52%24.0015040.488.6042552067.31
54%24.0016280.489.4044172257.24
56%24.0017450.5010.2045572457.11
58%23.9918770.5211.2047152686.99
60%23.9919750.5512.0048442876.87
62%23.9821220.5713.1049833136.78
64%23.9822240.5814.1051363376.60
66%23.9823440.6115.2052723646.44
68%23.9724810.6316.4054043926.33
70%23.9725900.6517.4055274166.22
75%23.9629160.7120.2058304846.02
80%23.9531760.7623.4061345615.67
90%23.9238600.8831.0067267405.21
100%23.8945501.0139.8073249504.79
MN505SKV380T-MOTORP18*6.140%24.0210710.055.3031961278.4383.5(AmbientTemperature:9.5℃)
42%24.0211600.085.9033351418.22
44%24.0112870.106.6035011588.16
46%24.0014140.127.4036521777.98
48%24.0115450.158.2038131967.89
50%24.0016760.189.0039612167.78
52%24.0018430.2110.1041182427.63
54%24.0019850.2411.2043032707.36
56%23.9920840.2712.2044302937.10
58%23.9822160.3013.3045683206.93
60%23.9823470.3314.5047073486.75
62%23.9824860.3615.6048313756.63
64%23.9726450.3816.9049544066.52
66%23.9728060.4218.3050734396.40
68%23.9629360.4519.6052074716.24
70%23.9630910.4821.0053305046.13
75%23.9434560.5624.5055955875.89
80%23.9338180.6628.6058846855.58
90%23.9046060.8237.7064399015.11
100%23.8654441.0248.80697511634.68
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.(Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
