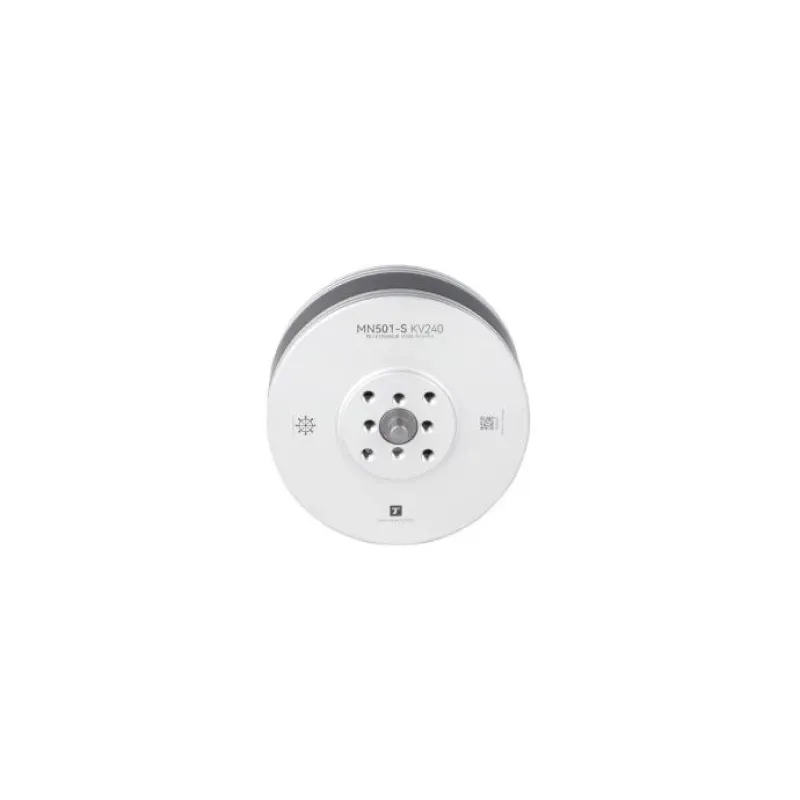

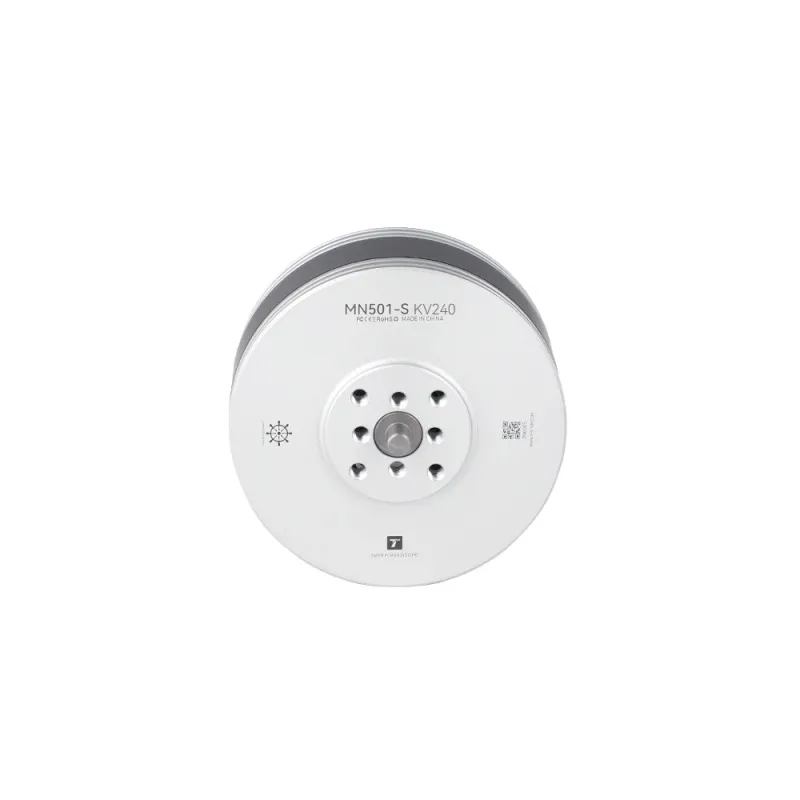

T-Motor MN501-S IP45 Multirotor Fixed Wing UAV Motor KV240

T-Motor MN501-S IP45 Multirotor Fixed Wing UAV Motor KV240

Brand:T-Motor
Product Code:T-Motor AWD01010036
SKU:AWD01010036
Availability:Availability on request

Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

View quote request 0 Ask about this product

Description

T-Motor MN501-S IP45 Multirotor Fixed Wing UAV Motor KV240 is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

Brand	T-Motor
Model	MN501-S IP45 Multirotor Fixed Wing UAV Motor KV240
Manufacturer SKU	AWD01010036

Manufacturer technical and configuration tables

Motor Size	Φ55.6*33.9mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm，OUT：4mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 696ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	180℃ high temperature resistance	IP	IP45
Lead Cable	16AWG*150mm
KV	240	Rated Voltage ( Lipo )	6-12S
Idle Current（18V）	0.9A	ESC Recommendation	AIR 40A
Peak Current（180s）	25A	Propeller Recommendation	14-15 / 20-22"
Max.Power（180s）	1200W	Motor Weight (indl. Cable)	170g
Internal Resistance	85mΩ	Package Weight	350g
KV	300	Rated Voltage ( Lipo )	6-8S
Idle Current（15V）	1.1A	ESC Recommendation	AIR 40A
Peak Current（180s）	40A	Propeller Recommendation	20-22"
Max.Power（180s）	1000W	Motor Weight (indl. Cable)	170g
Internal Resistance	63mΩ	Package Weight	350g
KV	360	Rated Voltage ( Lipo )	6S
Idle Current（15V）	1.4A	ESC Recommendation	AIR 40A
Peak Current（180s）	40A	Propeller Recommendation	17-18"
Max.Power（180s）	1000W	Motor Weight (indl. Cable)	175g
Internal Resistance	45mΩ	Package Weight	350g

KV	240	Rated Voltage ( Lipo )	6-12S
Idle Current（18V）	0.9A	ESC Recommendation	AIR 40A
Peak Current（180s）	25A	Propeller Recommendation	14-15 / 20-22"
Max.Power（180s）	1200W	Motor Weight (indl. Cable)	170g
Internal Resistance	85mΩ	Package Weight	350g

KV	300	Rated Voltage ( Lipo )	6-8S
Idle Current（15V）	1.1A	ESC Recommendation	AIR 40A
Peak Current（180s）	40A	Propeller Recommendation	20-22"
Max.Power（180s）	1000W	Motor Weight (indl. Cable)	170g
Internal Resistance	63mΩ	Package Weight	350g

KV	360	Rated Voltage ( Lipo )	6S
Idle Current（15V）	1.4A	ESC Recommendation	AIR 40A
Peak Current（180s）	40A	Propeller Recommendation	17-18"
Max.Power（180s）	1000W	Motor Weight (indl. Cable)	175g
Internal Resistance	45mΩ	Package Weight	350g

Type	Propeller	Throttle	Voltage (V)	Thrust(g)	Torque(N*m)	Current(A)	RPM	Power (W)	Effciency(g/W)	OperatingTemperature(℃)
MN501SKV240	T-MOTORP14*4.8	40%	48.50	975	0.17	2.90	5011	141	6.93	57.5(Ambient Temperature:9.2℃)
		42%	48.49	1026	0.18	3.12	5182	151	6.79
		44%	48.50	1084	0.19	3.36	5337	163	6.65
		46%	48.49	1142	0.20	3.62	5508	176	6.50
		48%	48.49	1215	0.21	3.90	5667	189	6.42
		50%	48.53	1282	0.23	4.20	5834	204	6.30
		52%	48.53	1386	0.25	4.59	6035	223	6.22
		54%	48.53	1487	0.26	4.97	6213	241	6.16
		56%	48.52	1567	0.27	5.33	6383	259	6.06
		58%	48.53	1646	0.27	5.65	6413	274	6.00
		60%	48.52	1730	0.30	5.99	6655	290	5.96
		62%	48.52	1809	0.31	6.35	6829	308	5.87
		64%	48.52	1905	0.32	6.79	6993	329	5.78
		66%	48.52	1980	0.34	7.25	7161	352	5.63
		68%	48.56	2103	0.35	7.78	7340	378	5.57
		70%	48.55	2204	0.37	8.35	7534	405	5.44
		75%	48.55	2481	0.42	9.72	7947	472	5.26
		80%	48.54	2787	0.47	11.35	8376	551	5.06
		90%	48.53	3314	0.57	14.74	9161	715	4.63
		100%	48.52	3891	0.68	18.52	9870	899	4.33
MN501SKV240	T-MOTORP15*5	40%	48.59	1166	0.23	3.57	4887	174	6.72	78(Ambient Temperature:9.2℃)
		42%	48.58	1252	0.24	3.89	5067	189	6.64
		44%	48.58	1319	0.26	4.17	5198	203	6.51
		46%	48.58	1412	0.27	4.53	5365	220	6.42
		48%	48.58	1506	0.29	4.90	5536	238	6.32
		50%	48.58	1605	0.31	5.30	5684	258	6.23
		52%	48.58	1710	0.34	5.69	5855	277	6.18
		54%	48.57	1842	0.32	6.26	6057	304	6.05
		56%	48.57	1949	0.34	6.78	6242	329	5.92
		58%	48.57	2094	0.36	7.41	6411	360	5.81
		60%	48.57	2176	0.36	7.87	6513	382	5.70
		62%	48.57	2199	0.38	8.02	6632	389	5.65
		64%	48.57	2295	0.40	8.52	6804	414	5.55
		66%	48.56	2421	0.42	9.11	6960	442	5.47
		68%	48.56	2557	0.44	9.79	7145	475	5.38
		70%	48.56	2693	0.47	10.54	7317	512	5.26
		75%	48.56	3000	0.53	12.32	7729	598	5.02
		80%	48.55	3294	0.57	14.05	8076	682	4.83
		90%	48.54	3957	0.70	18.31	8840	889	4.45
		100%	48.52	4660	0.81	23.11	9532	1121	4.16
MN501SKV240	T-MOTORP22*6.6	40%	24.35	916	0.23	2.87	1914	70	13.09	68(Ambient Temperature:9.2℃)
		42%	24.35	999	0.24	3.21	2002	78	12.78
		44%	24.35	1088	0.26	3.59	2093	87	12.43
		46%	24.35	1166	0.28	3.92	2176	96	12.20
		48%	24.35	1246	0.30	4.31	2268	105	11.87
		50%	24.35	1339	0.33	4.75	2361	116	11.59
		52%	24.35	1453	0.35	5.28	2485	128	11.30
		54%	24.35	1566	0.38	5.86	2595	143	10.97
		56%	24.34	1684	0.41	6.46	2695	157	10.71
		58%	24.34	1796	0.43	7.07	2797	172	10.44
		60%	24.34	1900	0.46	7.69	2892	187	10.15
		62%	24.33	2020	0.49	8.35	2979	203	9.94
		64%	24.33	2147	0.52	9.16	3078	223	9.63
		66%	24.33	2273	0.55	9.82	3185	239	9.51
		68%	24.33	2394	0.57	10.60	3271	258	9.28
		70%	24.32	2509	0.60	11.32	3358	275	9.11
		75%	24.32	2823	0.68	13.44	3566	327	8.63
		80%	24.31	3038	0.75	15.63	3785	380	7.99
		90%	24.29	3454	0.90	20.62	4173	501	6.89
		100%	24.27	4187	1.02	25.21	4478	612	6.84
MN501SKV300	T-MOTORP20*6	40%	24.28	889	0.12	3.08	2594	75	11.89	86.5(Ambient Temperature:9.2℃)
		42%	24.32	968	0.14	3.45	2701	84	11.53
		44%	24.32	1058	0.16	3.87	2815	94	11.23
		46%	24.32	1172	0.18	4.39	2949	107	10.98
		48%	24.31	1271	0.20	4.89	3070	119	10.69
		50%	24.31	1382	0.22	5.43	3186	132	10.48
		52%	24.32	1489	0.25	6.06	3310	147	10.11
		54%	24.31	1592	0.27	6.71	3438	163	9.76
		56%	24.31	1712	0.30	7.35	3543	179	9.59
		58%	24.31	1829	0.32	8.01	3646	195	9.39
		60%	24.30	1944	0.34	8.68	3742	211	9.21
		62%	24.30	2078	0.37	9.37	3736	228	9.13
		64%	24.30	2163	0.40	10.22	3960	248	8.72
		66%	24.30	2310	0.42	10.99	4058	267	8.65
		68%	24.29	2424	0.45	11.73	4151	285	8.51
		70%	24.29	2535	0.47	12.62	4233	306	8.27
		75%	24.29	2852	0.53	14.75	4517	358	7.96
		80%	24.28	3068	0.60	17.13	4725	416	7.38
		90%	24.26	3710	0.73	22.59	5275	548	6.77
		100%	24.24	4284	0.85	27.75	5603	673	6.37
MN501SKV300	T-MOTORP22*6.6	40%	24.34	1204	0.22	4.25	2333	103	11.64	HOT(Ambient Temperature:9.2℃)
		42%	24.34	1305	0.24	4.72	2422	115	11.36
		44%	24.33	1421	0.27	5.28	2523	129	11.05
		46%	24.33	1540	0.30	5.90	2627	144	10.73
		48%	24.33	1666	0.33	6.62	2754	161	10.34
		50%	24.33	1824	0.36	7.40	2859	180	10.14
		52%	24.33	1980	0.40	8.23	2966	200	9.88
		54%	24.32	2139	0.43	9.11	3276	222	9.65
		56%	24.32	2266	0.46	9.94	3371	242	9.37
		58%	24.32	2381	0.50	10.87	3463	264	9.00
		60%	24.31	2530	0.54	11.83	3544	288	8.80
		62%	24.31	2645	0.56	12.79	3639	311	8.51
		64%	24.31	2803	0.60	13.98	3751	340	8.25
		66%	24.31	2941	0.64	15.08	3835	367	8.02
		68%	24.30	3008	0.67	16.11	3920	392	7.68
		70%	24.30	3096	0.71	17.28	4090	420	7.38
		75%	24.33	3507	0.80	20.38	4200	496	7.07
		80%	24.32	4027	0.89	23.68	4478	576	6.99
		90%	24.29	4655	1.06	31.11	4733	756	6.16

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
