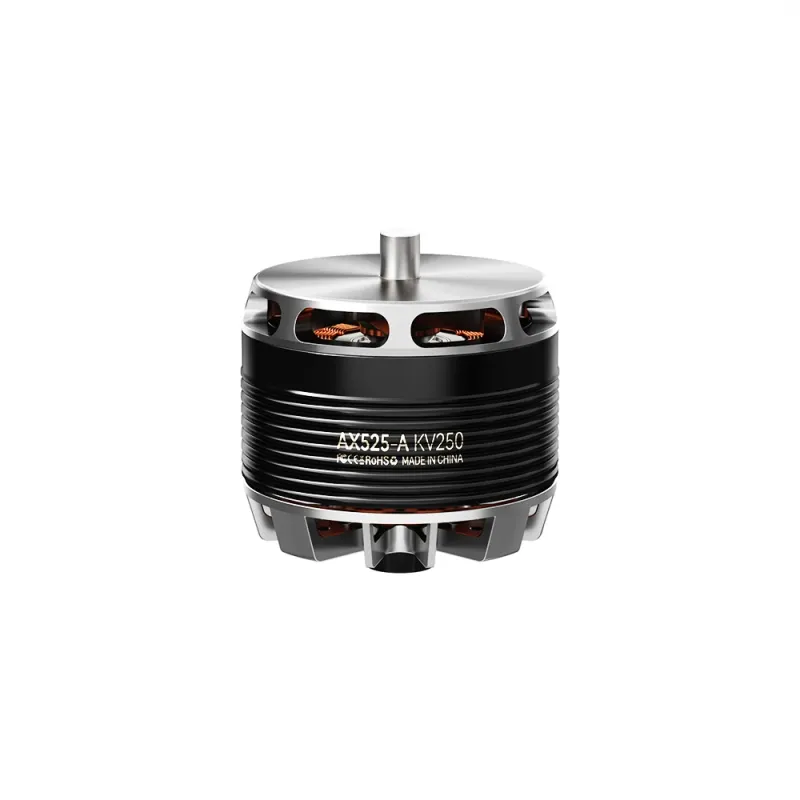

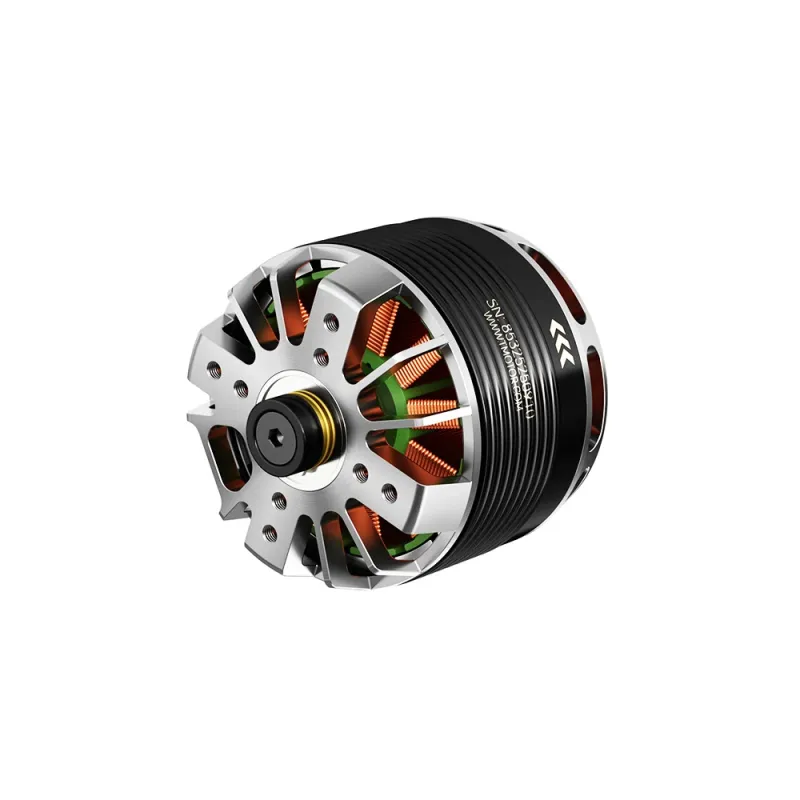

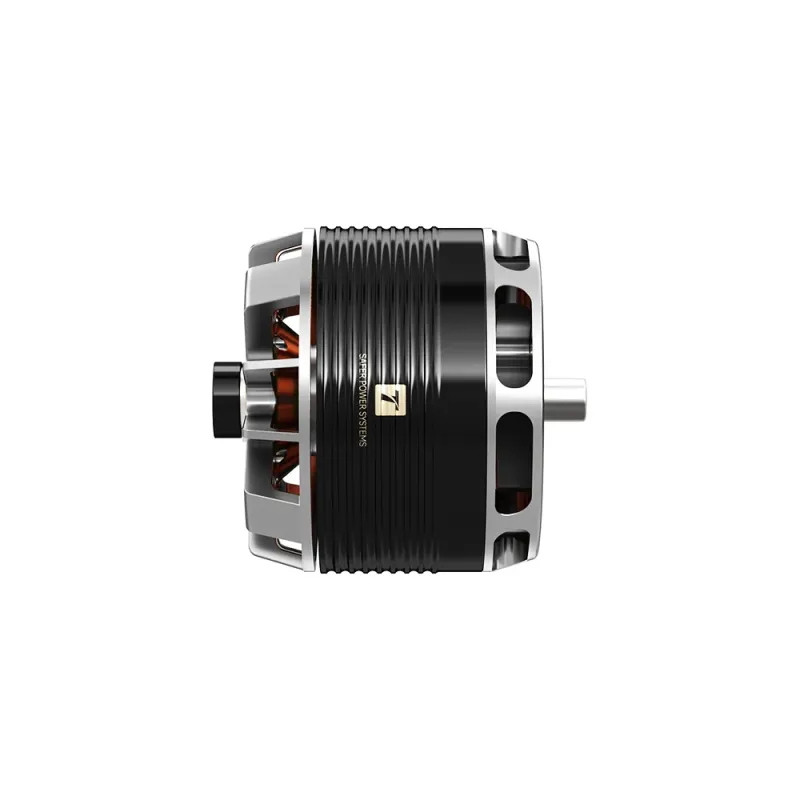

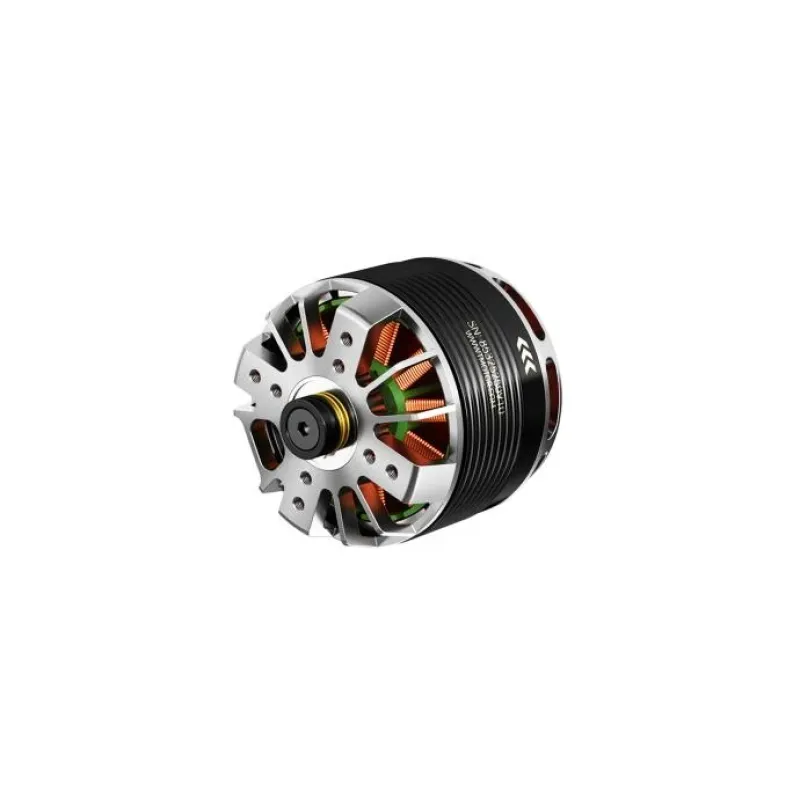

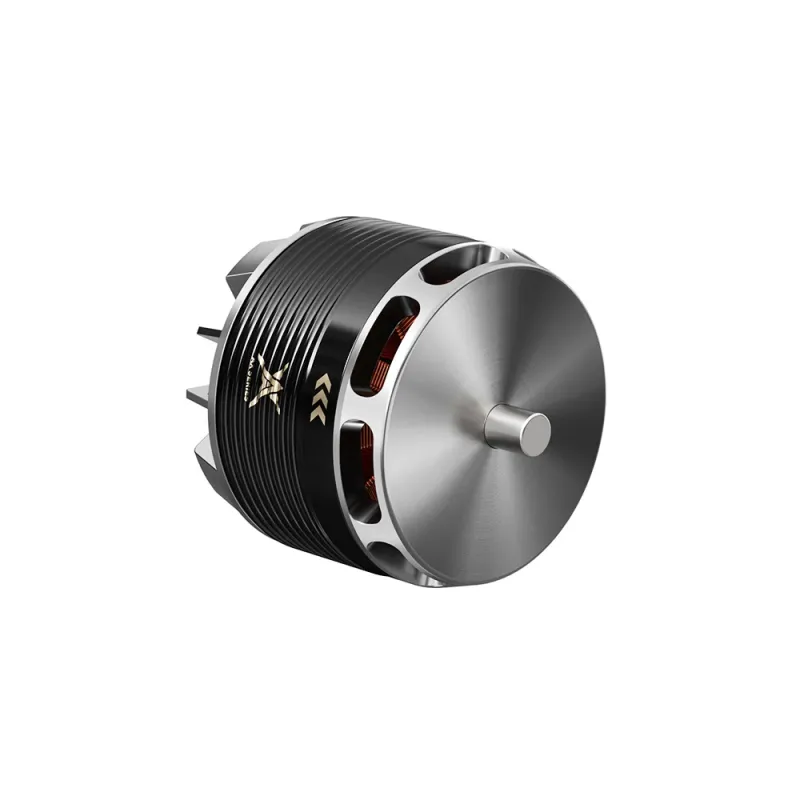

T-Motor AX525-A

  • Brand:T-Motor
  • Product Code:T-Motor AGD11010006
  • SKU:AGD11010006
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor AX525-A is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelAX525-A
Manufacturer SKUAGD11010006

Manufacturer technical and configuration tables

Model No.AX525-AMagnet Level180℃
Motor SizeΦ63.6*68mmLead CableEnameled Wire 150mm
Stator150°C high temperature-resisting coatingsCopper Wire220℃
Configuration12N14PCoil Insulation Test500V/5s
Shaft DiameterIN:10mm OUT:8mmRotor Dynamic BalanceStandard≤30mg
BearingImported 6800/6900ZZPackage Size197*104*75mm
Tech Specs
KV250Idle Current(15V)2.8A
Max Power2250WPeak Current100A
Rated Voltage (Lipo)12SInternal Resistance22mΩ
Max Thrust10kgWeight (incl.cable)600g
Tech Specs
KV250Idle Current(15V)2.8A
Max Power2250WPeak Current100A
Rated Voltage (Lipo)12SInternal Resistance22mΩ
Max Thrust10kgWeight (incl.cable)600g
TypePropellerThrottle(%)Voltage(V)Current(A)Power(W)RPMTorque(N·m)Thrust(g)Efficiency(g/W)OperatingTemperature(℃)
AX525-AKV250AUFZ 18*1440%44.687.0931738420.6219516.1699（AmbientTemperature：25）
45%44.649.2841442390.7723885.77
50%44.5712.5956147170.9629685.29
55%44.4917.1676352381.1836794.82
60%44.4021.7896756611.3842994.45
65%44.3226.41117060221.5748704.16
70%44.2132.09141963961.7855143.89
75%44.0839.12172467902.0762523.63
80%43.9247.04206671802.3670413.41
90%43.5566.83291078642.9884352.90
100%42.9896.52414985833.76100562.42
Notes：Motor temperature is the motor surface temperature aftering running at 100% for 1 mins.(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)
