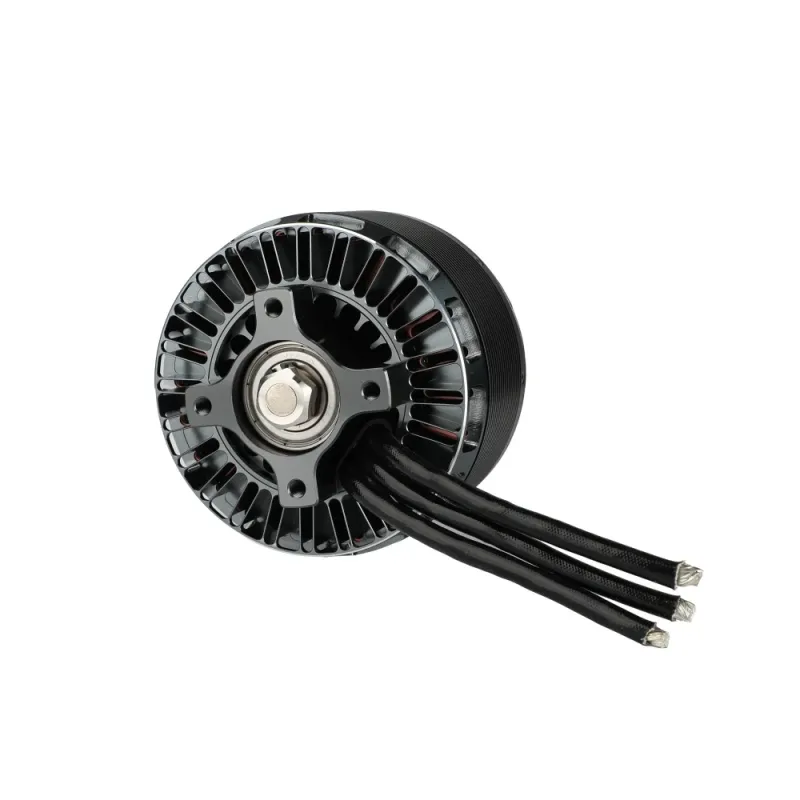

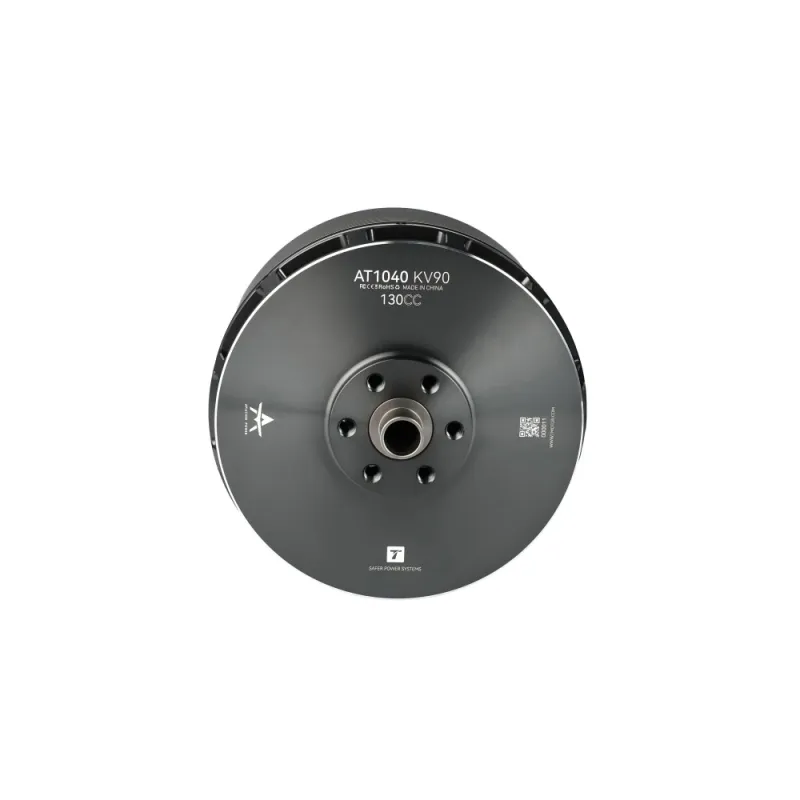

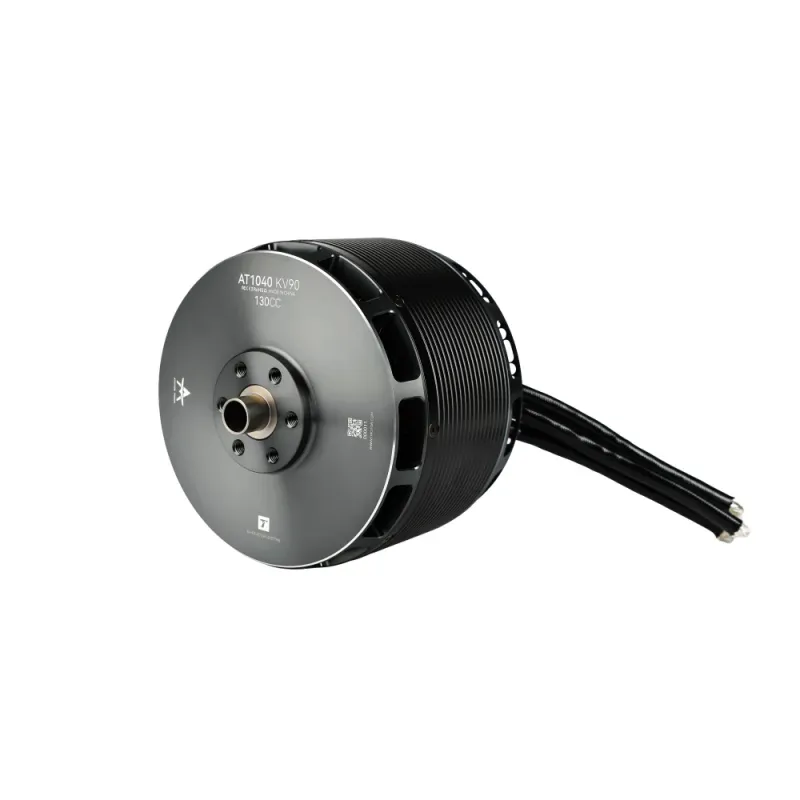

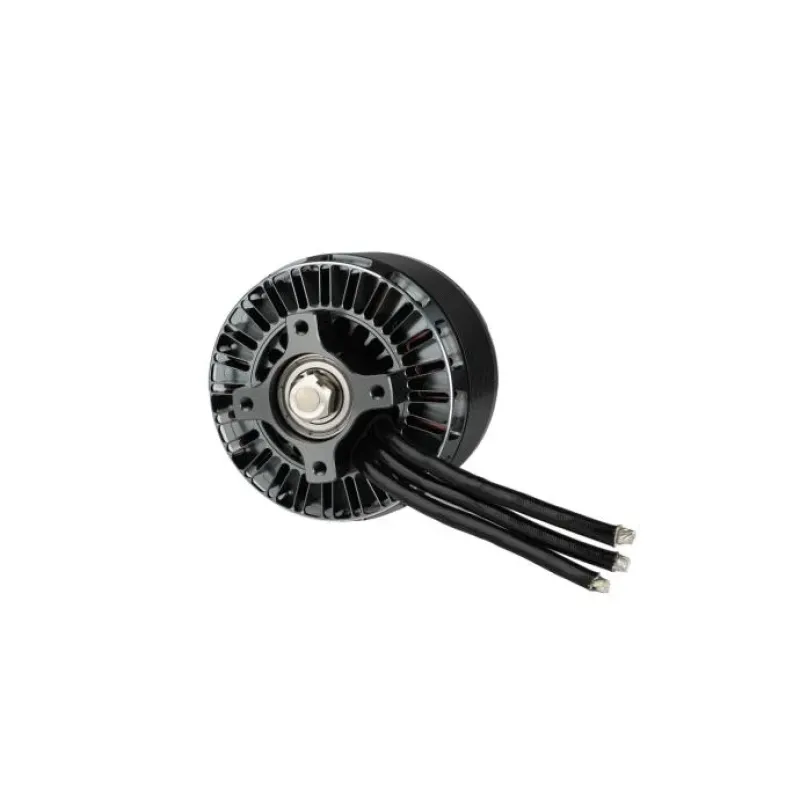

T-Motor AT1040 130CC
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
T-Motor AT1040 130CC is a T-Motor catalog item in Civilian UAV Motors. Review the model details below and request compatibility and supply information for civilian use.
Model specifications
| Brand | T-Motor |
|---|---|
| Model | AT1040 130CC |
| Manufacturer SKU | AGD01010092 |
Manufacturer technical and configuration tables
| Type | AT1040 | Magnet Temperature Resistance Grade | 180℃ |
| Motor Dimension | Φ110.6*109.8mm | Lead x Length | Enameled Wire 100mm |
| Stator Technology | 150°C High Temperature-resisting Coatings | Temperature Resistance Of Enameled Wires | 220℃ |
| Configuration | 24N28P | Coil Pressure-resistant | 1000V/5s |
| Shaft Diameter | IN:15mmOUT:12mm | Dynamic Balance Requirements Standards | ≤30mg |
| Bearings | 6902/6202ZZ Bearings | Packing Size | 246*162*139mm |
| KV | 90 | Idle Current (15V) | 4.9A |
| Max. Continuous Power | 6000W | Peak Current | 105A |
| Rated Voltage (LiPo) | 24S | Internal Resistance | 8.8mΩ |
| Max Thrust | 32kg | Weight (Incl.cable) | 2200g |
| KV | 90 | Idle Current (15V) | 4.9A |
| Max. Continuous Power | 6000W | Peak Current | 105A |
| Rated Voltage (LiPo) | 24S | Internal Resistance | 8.8mΩ |
| Max Thrust | 32kg | Weight (Incl.cable) | 2200g |
| Type | Propeller | Throttle(%) | Voltage(V) | Current(A) | Power(W) | RPM | Torque(N·m) | Thrust(g) | Efficiency(g/W) | OperatingTemperature(℃) |
| AT1040 KV90 | 27*12 | 40% | 88.31 | 24.40 | 2155 | 4052 | 3.74 | 10846 | 5.03 | 117（Ambient Temperature:33℃） |
| 45% | 88.23 | 29.58 | 2610 | 4346 | 4.35 | 12624 | 4.84 | |||
| 50% | 88.01 | 44.27 | 3896 | 5016 | 5.92 | 17111 | 4.39 | |||
| 55% | 87.95 | 47.71 | 4196 | 5155 | 6.28 | 18147 | 4.32 | |||
| 60% | 87.89 | 51.32 | 4511 | 5293 | 6.65 | 19175 | 4.25 | |||
| 65% | 87.83 | 55.92 | 4911 | 5458 | 7.13 | 20474 | 4.17 | |||
| 70% | 87.73 | 62.11 | 5449 | 5654 | 7.72 | 22122 | 4.06 | |||
| 75% | 87.62 | 68.25 | 5980 | 5834 | 8.31 | 23683 | 3.96 | |||
| 80% | 87.55 | 72.85 | 6378 | 5971 | 8.75 | 24875 | 3.90 | |||
| 90% | 87.33 | 86.73 | 7573 | 6312 | 9.96 | 28020 | 3.70 | |||
| 100% | 87.10 | 107.02 | 9321 | 6731 | 11.52 | 29953 | 3.21 | |||
| 28*10 | 40% | 88.37 | 23.88 | 2110 | 4095 | 3.63 | 10995 | 5.21 | 116（Ambient Temperature:33℃） | |
| 45% | 88.27 | 29.34 | 2590 | 4425 | 4.26 | 12882 | 4.97 | |||
| 50% | 88.04 | 42.82 | 3770 | 5058 | 5.67 | 17074 | 4.53 | |||
| 55% | 87.98 | 45.97 | 4045 | 5190 | 5.98 | 18075 | 4.47 | |||
| 60% | 87.93 | 49.62 | 4363 | 5332 | 6.33 | 19148 | 4.39 | |||
| 65% | 87.86 | 54.28 | 4768 | 5502 | 6.80 | 20481 | 4.30 | |||
| 70% | 87.75 | 60.03 | 5267 | 5695 | 7.35 | 22076 | 4.19 | |||
| 75% | 87.65 | 65.90 | 5776 | 5877 | 7.88 | 23646 | 4.09 | |||
| 80% | 87.59 | 69.67 | 6102 | 5992 | 8.24 | 24634 | 4.04 | |||
| 90% | 86.79 | 84.47 | 7331 | 6357 | 9.56 | 28170 | 3.84 | |||
| 100% | 86.36 | 104.38 | 9015 | 6765 | 11.14 | 32003 | 3.55 | |||
| 29*12 | 40% | 88.59 | 25.59 | 2267 | 3912 | 4.43 | 11864 | 5.20 | HOT（Ambient Temperature:33℃） | |
| 45% | 88.48 | 31.73 | 2808 | 4230 | 5.20 | 13961 | 5.00 | |||
| 50% | 88.41 | 39.03 | 3451 | 4535 | 6.10 | 16442 | 4.80 | |||
| 55% | 88.19 | 52.35 | 4617 | 5046 | 7.58 | 20445 | 4.40 | |||
| 60% | 88.25 | 57.79 | 5100 | 5204 | 8.15 | 22024 | 4.30 | |||
| 65% | 88.09 | 63.49 | 5593 | 5379 | 8.76 | 23661 | 4.20 | |||
| 70% | 88.03 | 70.21 | 6181 | 5544 | 9.47 | 25445 | 4.10 | |||
| 75% | 87.90 | 75.74 | 6658 | 5700 | 10.06 | 26733 | 4.00 | |||
| 80% | 87.95 | 81.56 | 7173 | 5814 | 10.60 | 27972 | 3.90 | |||
| 90% | 87.63 | 98.46 | 8628 | 6192 | 12.11 | 31458 | 3.60 | |||
| 100% | 87.27 | 120.52 | 10518 | 6591 | 13.94 | 33242 | 3.20 | |||
| Notes: Motor temperature is the bell temperature aftering running at 100% for 3 mins.（Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.） | ||||||||||
