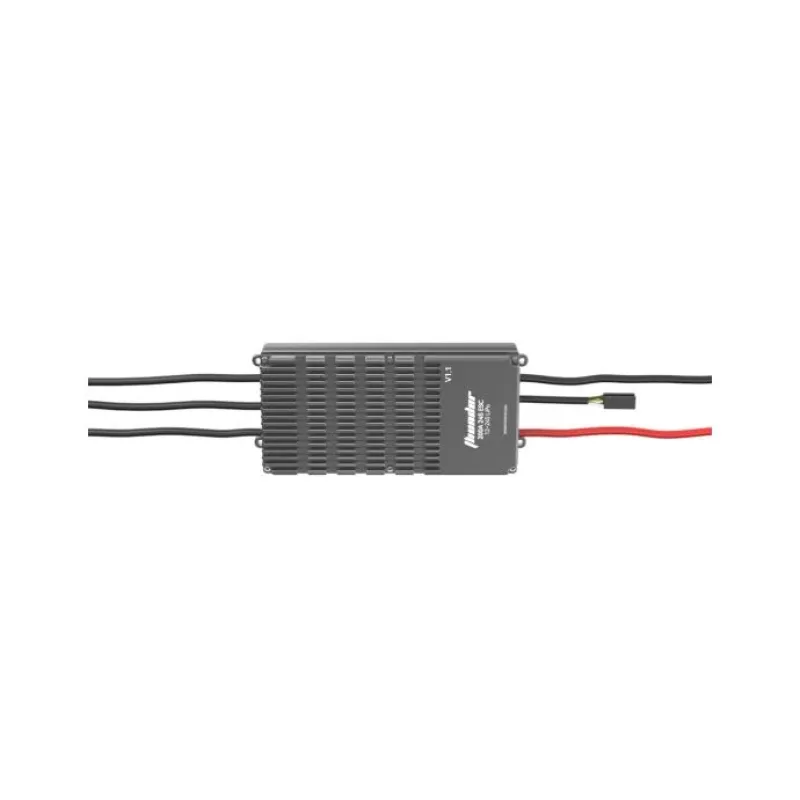

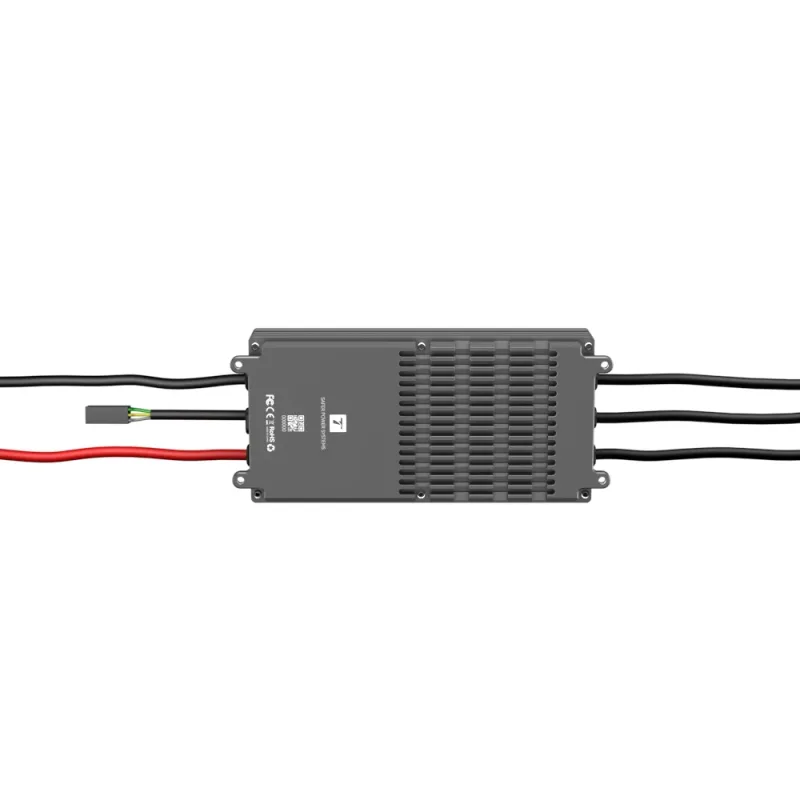

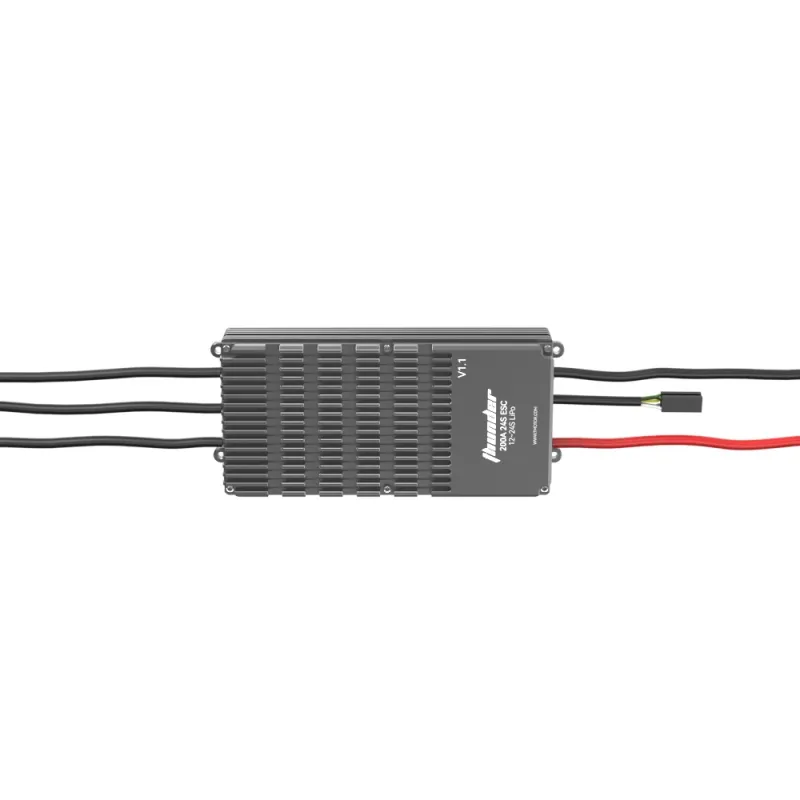

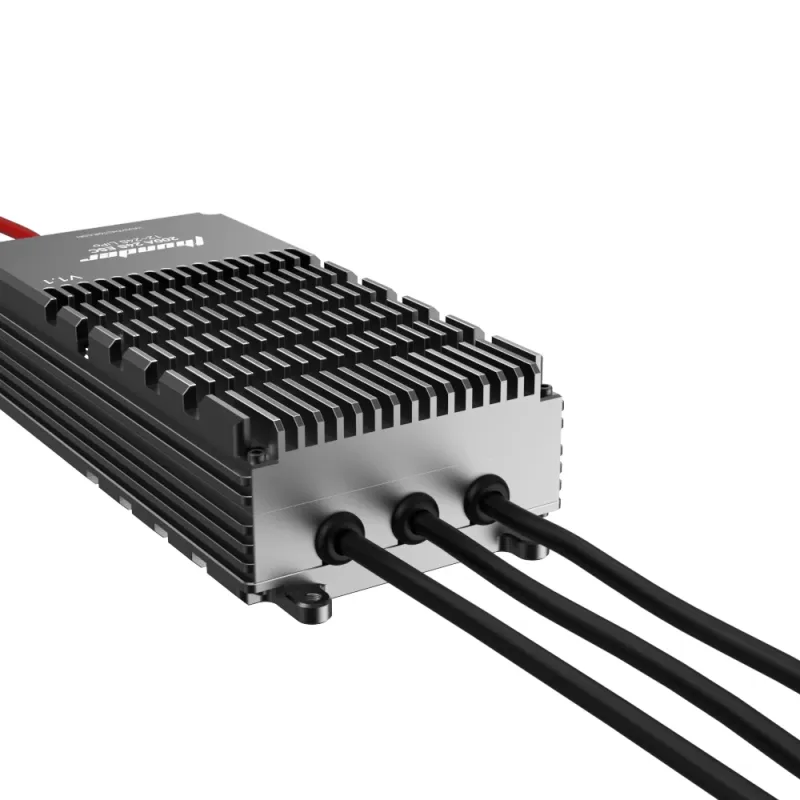

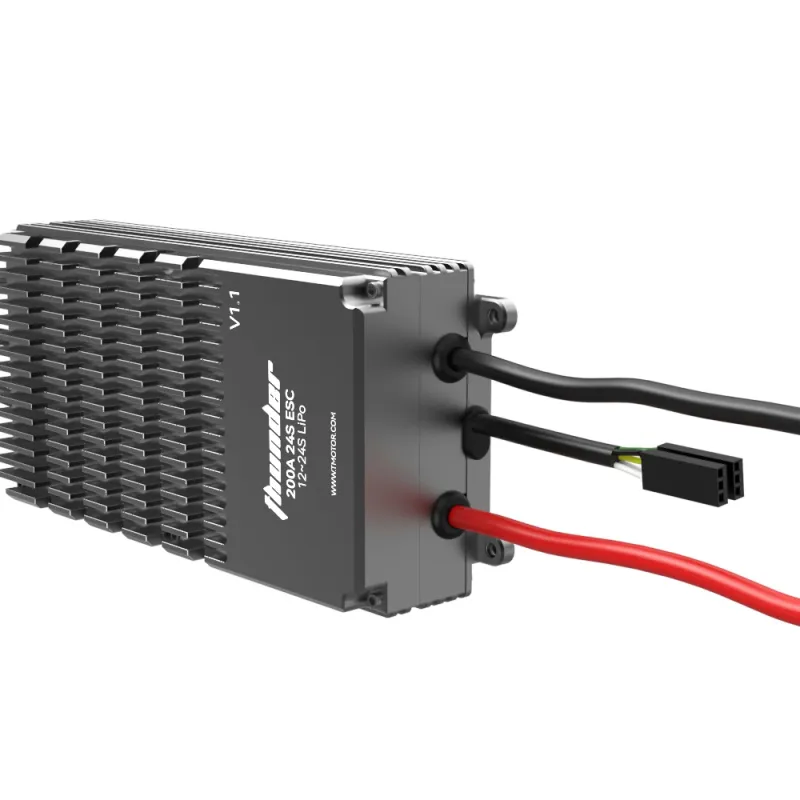

T-Motor Thunder 12~24S 200A High Power UAVs ESC

  • Brand:T-Motor
  • Product Code:T-Motor ADZ08010001
  • SKU:ADZ08010001
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

T-Motor Thunder 12~24S 200A High Power UAVs ESC is a T-Motor catalog item in ESCs & Motor Controllers. Review the model details below and request compatibility and supply information for civilian use.

Model specifications

BrandT-Motor
ModelThunder 12~24S 200A High Power UAVs ESC
Manufacturer SKUADZ08010001

Manufacturer technical and configuration tables

ModelTHUNDER 200A 24SCon. Current100A (good cooling space)
Weight (Incl. cables)620gPeak current220A (3s/good cooling space)
Size154.9*69.6*36.1mm(without wire length)StandbyConsumption≤50mA
IPIP54Workingtemperature-20℃~65℃
Support Voltage12~24SSignalPWM/CAN
Power WireSilicone wire-black/red-8AWG-150mmPWM throttlePos. rangeCalibratable
Motor WireSilicone wire-black-10AWG-150mmPWM voltage3.3~5V
Signal WireShielded cable - Black - 0D4.2 - 5C - 500mm - JP - 3P*2 - Black/White - Green/Yellow/GrayPWM frequency50~400HZ
Data feedbackchannelCAN

Product inquiry

Availability, price, package contents and hardware revision are confirmed on inquiry. This listing does not assert local stock, a delivery date or official distributor status. Confirm voltage, connectors, firmware and operating requirements before use.
