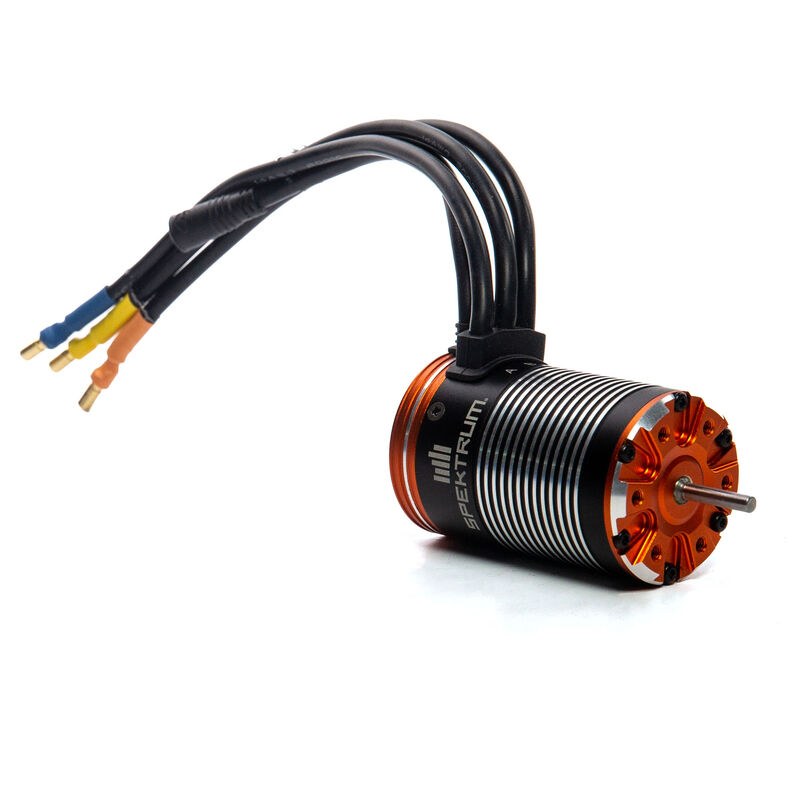

Firma 1400Kv Brushless Sensored Crawler Motor
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Firma 1400Kv Brushless Sensored Crawler Motor is a Spektrum product intended for surface RC vehicles, crawlers, bashers and race setups that need dependable Spektrum control electronics. This page presents the practical buying information a customer needs before ordering: fit, SKU, image, category, specifications and usage advantages.
The content is written for purchasing through RC-MODEL, without supplier prices or links to competing stores.
Key Advantages
- Organized under the Spektrum telemetry and sensor range.
- Intended for surface RC vehicles, crawlers, bashers and race setups that need dependable Spektrum control electronics.
- Check compatibility with Spektrum Smart equipment and the exact model requirements before ordering.
- Includes local product imagery and structured specifications for easier comparison inside RC-MODEL.
- Spektrum Smart compatibility is highlighted where relevant for batteries, chargers, ESCs or telemetry-aware systems.
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- Perfect for low speed, high torque applications such as competition crawlers
- High-quality 4-pole sintered rotor
Core Specifications
- Manufacturer: Spektrum
- Brand: Spektrum
- Product Code: SPMXSM3000
- Product Family: Spektrum telemetry and sensor range
- Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
- Compatibility Focus: Check compatibility with Spektrum Smart equipment and the exact model requirements before ordering.
- Spektrum Category: Cars & Trucks / Parts, Electronics & Accessories / Motors
- Input Voltage: 7.4 - 11.1V
- Motor Type: Brushless
- Bushing Or Bearing: Bearing
- Connector Type: 3.5mm Bullet
- Constant Wattage: 250-499W
- Forward: Yes
- Integrated ESC: No
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
How to choose the right propeller for an RC aircraft
Diameter, pitch, motor load, current measurement and how propeller choice changes thrust, speed, efficiency and heat.
How to choose the right ESC for an RC aircraft
ESC selection by maximum current, voltage, BEC, safety margin, cooling, connector choice and the real load from motor and propeller.
How to measure current draw with a Watt Meter
A step-by-step safety guide for measuring amps, watts and voltage sag so customers avoid overheating motors, ESCs and LiPo batteries.
How to prevent motor and propeller vibration
A safety and performance guide to propeller balance, spinner fit, bent shafts, motor mounts, firewall checks and protecting electronics from vibration.
| Technical Specifications | |
| Manufacturer | Spektrum |
| Brand | Spektrum |
| Product Code | SPMXSM3000 |
| Spektrum Category | Cars & Trucks / Parts, Electronics & Accessories / Motors |
| Connector Type | 3.5mm Bullet |
| Product Family | Spektrum telemetry and sensor range |
| Application | 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power |
| Compatibility Focus | Check compatibility with Spektrum Smart equipment and the exact model requirements before ordering. |
| Forward | Yes |
| Input Voltage | 7.4 - 11.1V |
| Maximum Continuous Current | 25A |
| Motor Output Lead | 3.5 |
| Product Length | 2.27" (58 mm) |
| Reverse | Yes |
| Motor Type | Brushless |
| Water-Resistant | Yes |
| Product Application | Crawling, Surface |
| Motor Size | 540-1400Kv Sensored Brushless |
| Number of Poles | 4 |
| RPM/Volt (Kv) | 1400Kv |
| Bushing Or Bearing | Bearing |
| Outer Diameter | 1.42" (36 mm) |
| Shaft Diameter | 0.125" (3 mm) |
| Motor Class | 1/10 Scale |
| Recommended Speed Control | Spektrum Firma 60A Sensored Brushless Smart Crawler ESC |
| Constant Wattage | 250-499W |
| Integrated ESC | No |
| Kv Rating | 1250-1499Kv |
| Sensor Type | Sensored FOC |
| Sensored | Yes |
| Main Motor Type | Brushless |
