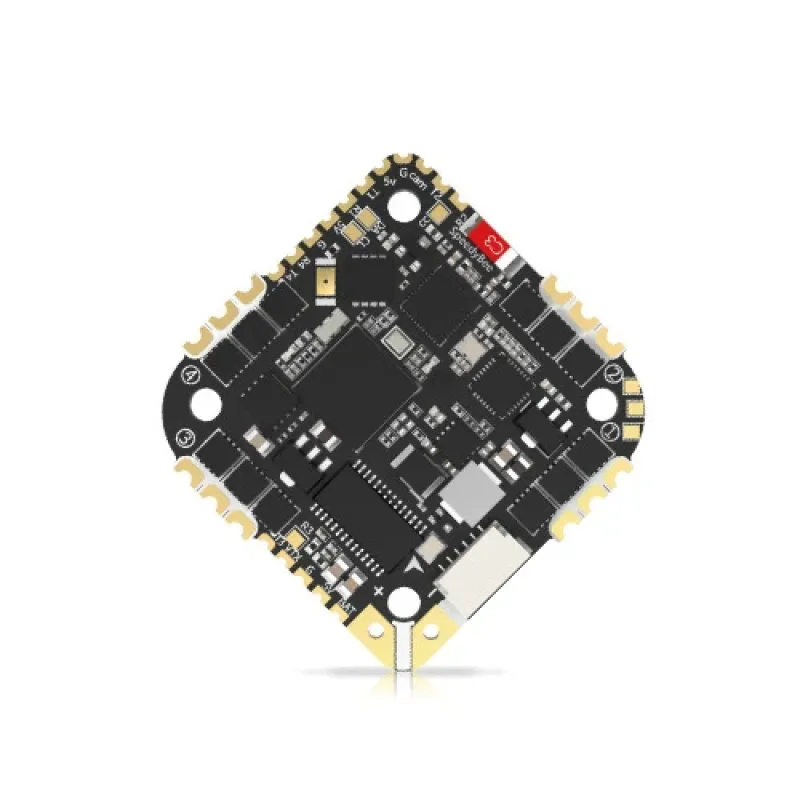

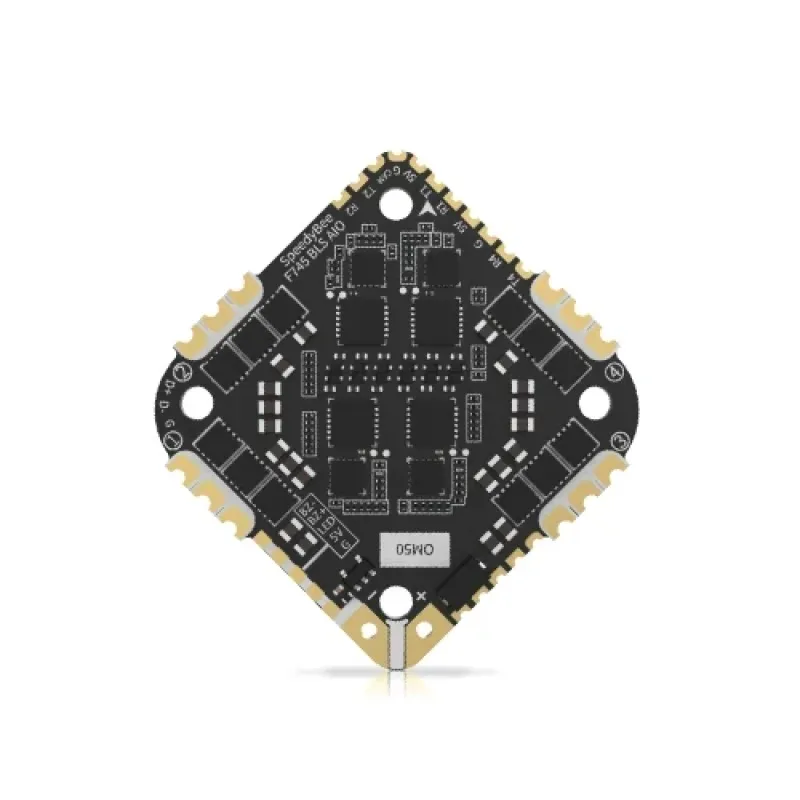

SpeedyBee F745 35A BLS 25.5x25.5 AIO Flight Controller
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
SpeedyBee F745 35A BLS 25.5x25.5 AIO Flight Controller: a recreational RC product. Model details and specifications are listed below.
Specifications
| Brand | SpeedyBee |
|---|---|
| Model | SpeedyBee F745 35A BLS 25.5x25.5 AIO Flight Controller |
| Manufacturer SKU | SB-F7-35A-AIO |
| Mounting | 25.5 x 25.5mm, 3mm hole diameter |
| Dimension | 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above |
| Weight | 10.1g |
| Flash FC Firmware Wirelessly | Supported |
| DJI Air Unit 6-pin Connector | Built-in. |
| BetaFlight Camera Control Pad | Yes(CC pad) |
| 5V Output | 4 groups of 5V output. The total current load is 2.5A. |
| 9V Output | None |
| ESC Signal Pads | M1 - M4 |
| ESC Telemetry UART | None |
| RSSI Input | Not supported |
| SmartPort | Not Supported |
| Supported Flight Controller | BetaFlight(Default) |
| Continuous Current | 35A * 4 |
| Burst Current | 45A(5seconds) |
| ESC Protocol | DSHOT300/600 |
| Power Output | VBAT |
Product inquiry
Availability, price and package contents are confirmed on inquiry. Specify the required model and version so radio, battery and equipment compatibility can be checked.
