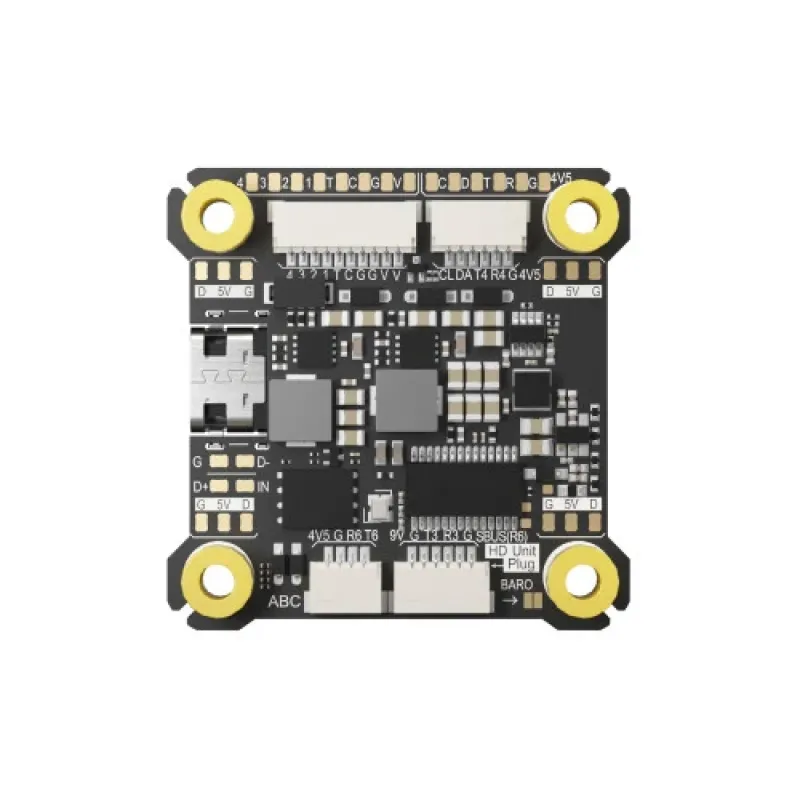

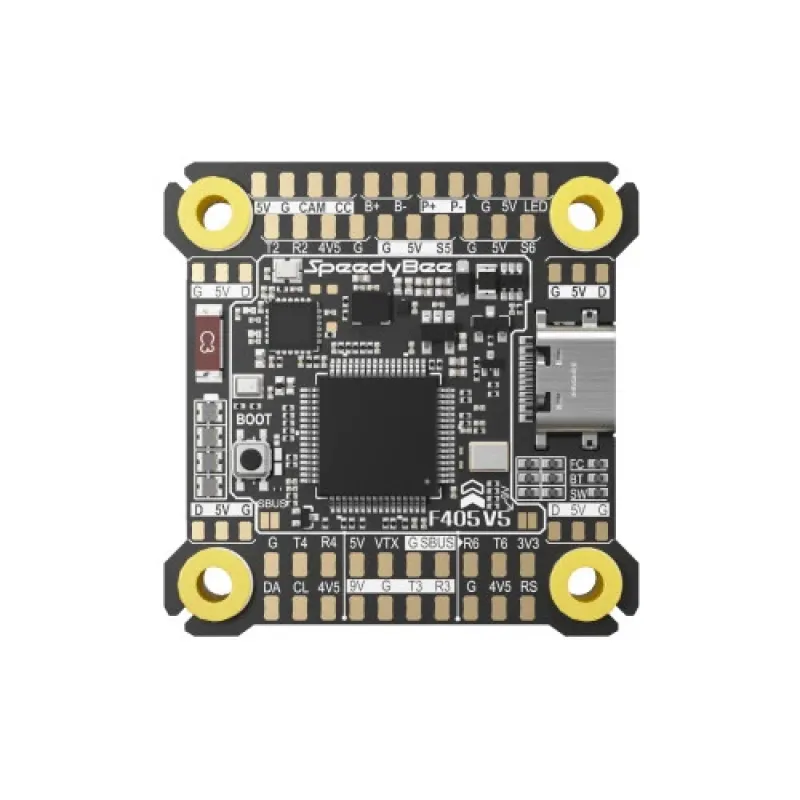

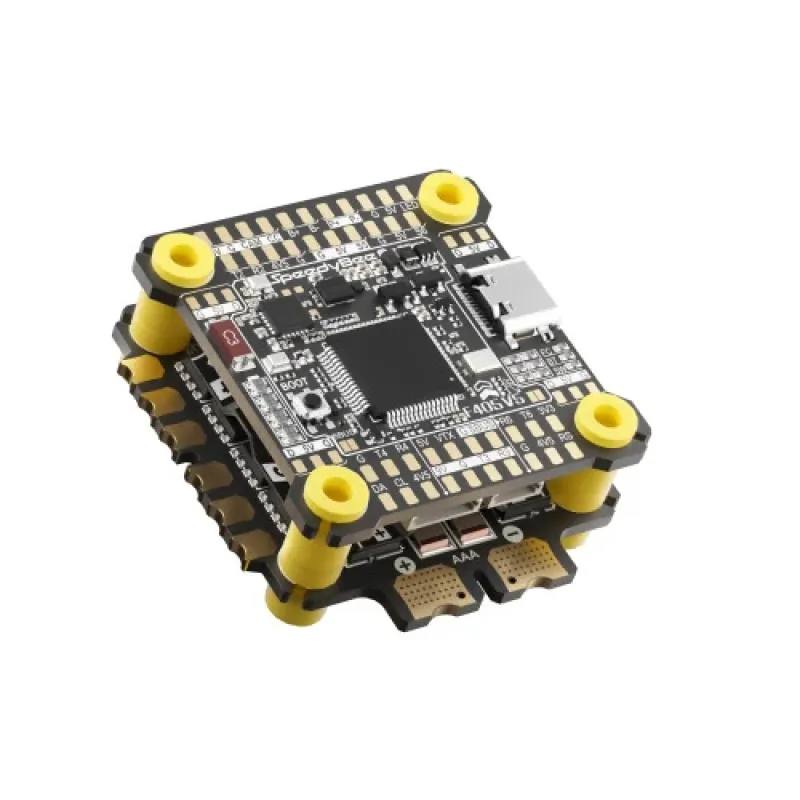

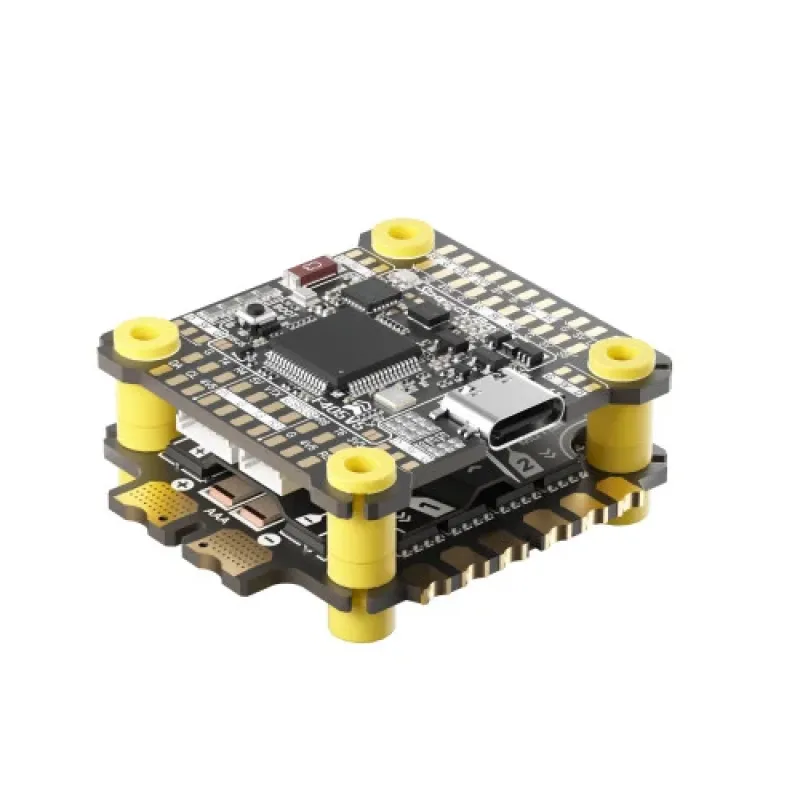

SpeedyBee F405 V5 OX32 55A 30x30 Model Aircraft FC&ESC Stack

  • Brand:SpeedyBee
  • Product Code:SB-F4V5-OX32-55-PRO-STACK
  • Availability:Availability on request
Prices are intentionally not displayed on the site. Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Quote quantity Choose the requested quantity, select options/variants if available, and add the item to one combined quote request.

These selections are sent with the SKU, model and quantity so we can check fit and availability.

View quote request 0 Ask about this product

SpeedyBee F405 V5 OX32 55A 30x30 Model Aircraft FC&ESC Stack: a recreational RC product. Model details and specifications are listed below.

Specifications

BrandSpeedyBee
ModelSpeedyBee F405 V5 OX32 55A 30x30 Model Aircraft FC&ESC Stack
Manufacturer SKUSB-F4V5-OX32-55-PRO-STACK
USB Port TypeNew Type-C interface
OSD ChipAT7456E
Wireless FC Firmware UpgradeSupported
Independent 5V BEC Output9 groups (4× +5V pads on front, 1× BZ+ buzzer pad, and 4× +5V pads at the corners for external LEDs). Total output current: 2.5A.
Independent 9V BEC Output2 groups (1x 9V pad on front, 1x 9V output in a connector on the back). Total output current: 2.5A. Supports PINIO remote on/off control.
MCU & Gyro PowerIndependent LDO
3.3V Output1 group (1× 3.3V pad on front)
4.5V Output3 groups (3× 4.5V pads on front). Can power receiver and GPS when FC is powered via USB. Max output current: 1A.
ESC SignalM1-M4 pads and 10-pin connector on the back
Servo SignalS5-S6 pads on the front
ESC Telemetry InputSupported (UART5)
Betaflight Camera Tuning PadSupported (CC pad on front)
SmartPortNot supported
Supported FC FirmwareBetaflight
Mounting Holes30.5 × 30.5mm (Ø4mm), side opening
Continuous Current55A (per channel) / 220A (4-in-1)
Maximum Current70A (per channel) / 280A (4-in-1)
ESC/Motor ProtocolDSHOT300/600

Product inquiry

Availability, price and package contents are confirmed on inquiry. Specify the required model and version so radio, battery and equipment compatibility can be checked.
