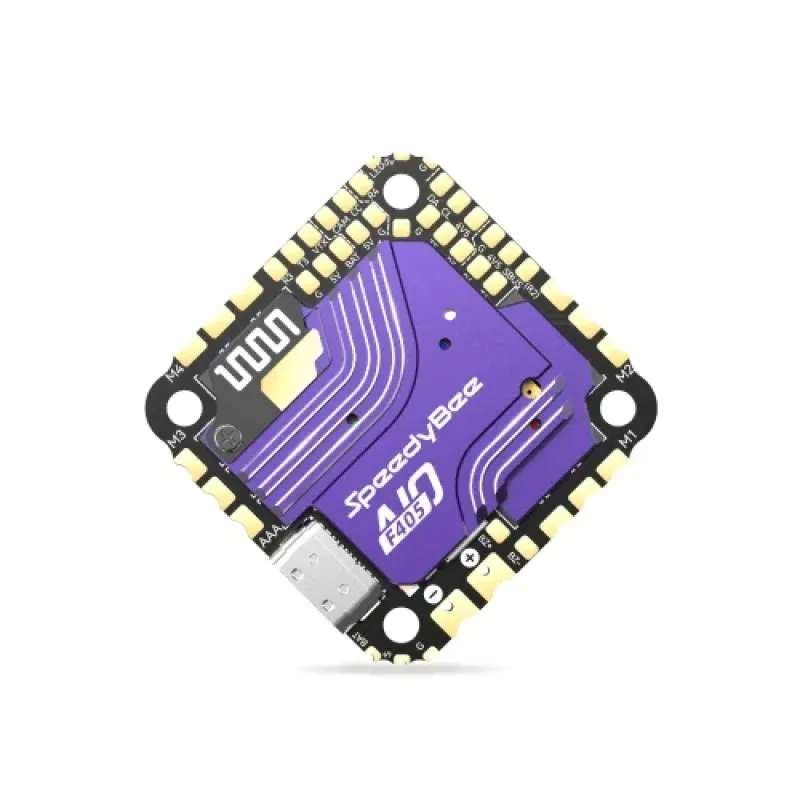

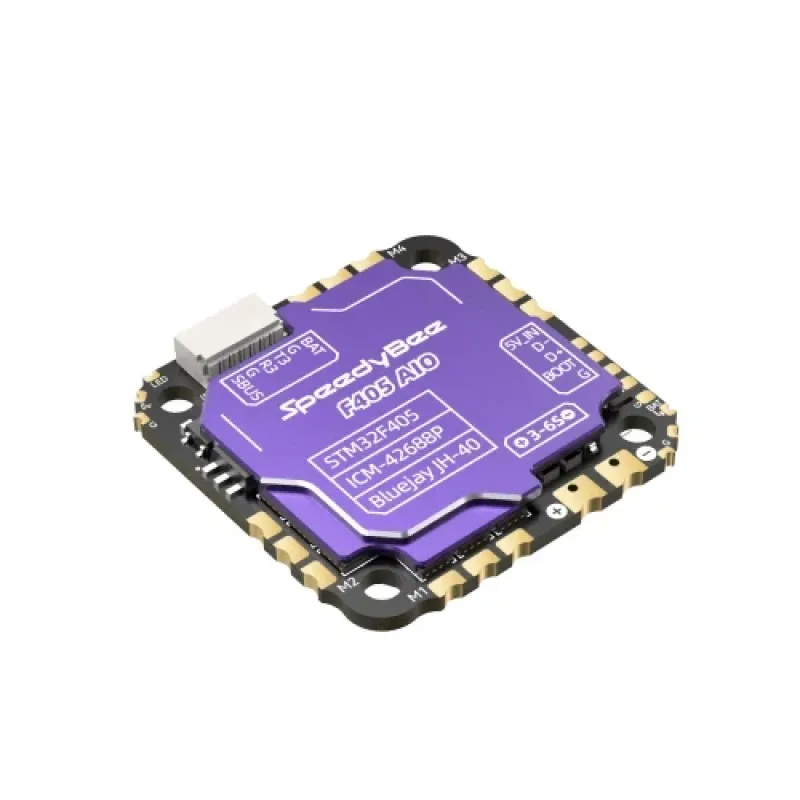

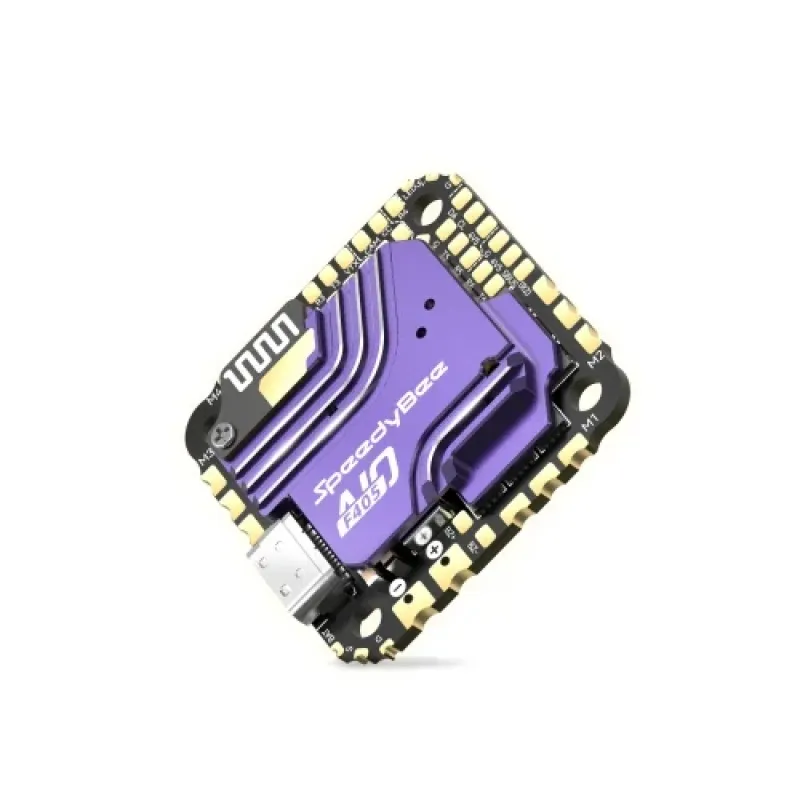

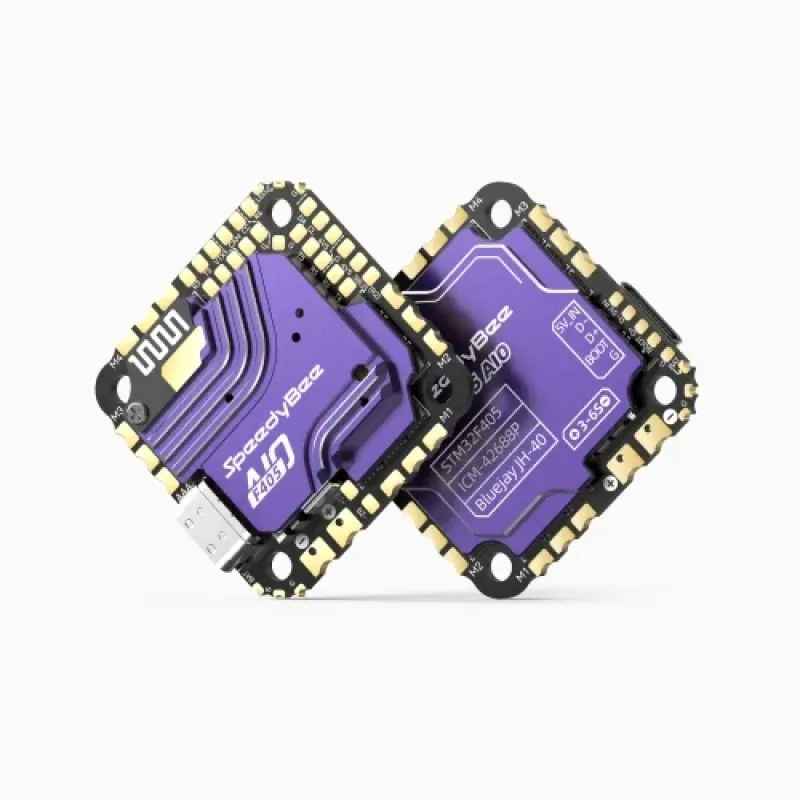

SpeedyBee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
SpeedyBee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller: a recreational RC product. Model details and specifications are listed below.
Specifications
| Brand | SpeedyBee |
|---|---|
| Model | SpeedyBee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller |
| Manufacturer SKU | SB-F4-40A-AIO |
| USB Port Type | Type-C |
| Wireless Flight Controller Firmware Update | Supported (no need to press physical BOOT button) |
| Wireless Download & BlackBox Analysis | Not supported |
| 6-pin DJI Sky Port Direct Insertion | Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order |
| Betaflight CC Pads (Camera Parameter Adjustment) | Supported |
| 4V5 Output | Two 4V5 outputs; total current 1A |
| 5V BEC Output | Three 5V outputs; total current 2A; shared with 4V5 |
| 9V BEC Output | None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A |
| MOTOR | M1-M4 |
| ESC Telemetry | None |
| SmartPort | Not supported |
| Supported Flight Controller Firmware | BetaFlight (Default) |
| Mounting | 25.5 x 25.5mm, 2mm hole diameter |
| Dimensions | 33.0mm (length) x 33.0mm (width) x 8mm (height) |
| Weight | 13.6g (including CNC) |
| Continuous Current | 40A |
| Burst Current | 45A (10s) |
| ESC Protocol | Supports DSHOT600/300; other protocols may cause severe errors, please use with caution. |
Product inquiry
Availability, price and package contents are confirmed on inquiry. Specify the required model and version so radio, battery and equipment compatibility can be checked.
