NEXUS Control System
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
NEXUS Control System is a RadioMaster product intended for RadioMaster RC systems, accessories and workshop use. This page presents the practical buying information in one place: compatibility, SKU, variants, radio protocol, use case and technical details.
The content is written for customer decision-making through RC-MODEL, without supplier prices or outbound purchase routes.
Key Advantages
- Organized for RadioMaster RC systems, accessories and workshop use.
- Part of the RadioMaster radio-control electronics.
- RF/protocol context: ExpressLRS / ELRS, EdgeTX.
- Compatibility note: our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included).
- Includes local product imagery and structured specifications for customer comparison.
Core Specifications
- Product Code: HP0157.0087
- Product Family: RadioMaster radio-control electronics
- Protocol / RF: ExpressLRS / ELRS, EdgeTX
- Compatibility: our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included)
- Weight: 16.8g
- Built-in Black Box: A large 128MB of onboard flash memory ensures you can log all your data for fine-tuning and adjustment

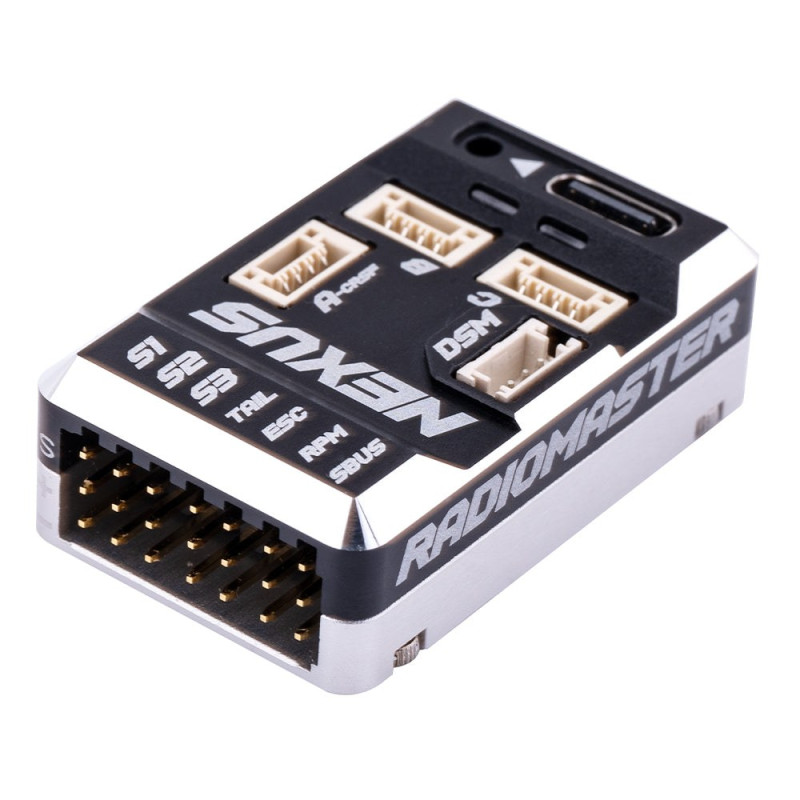

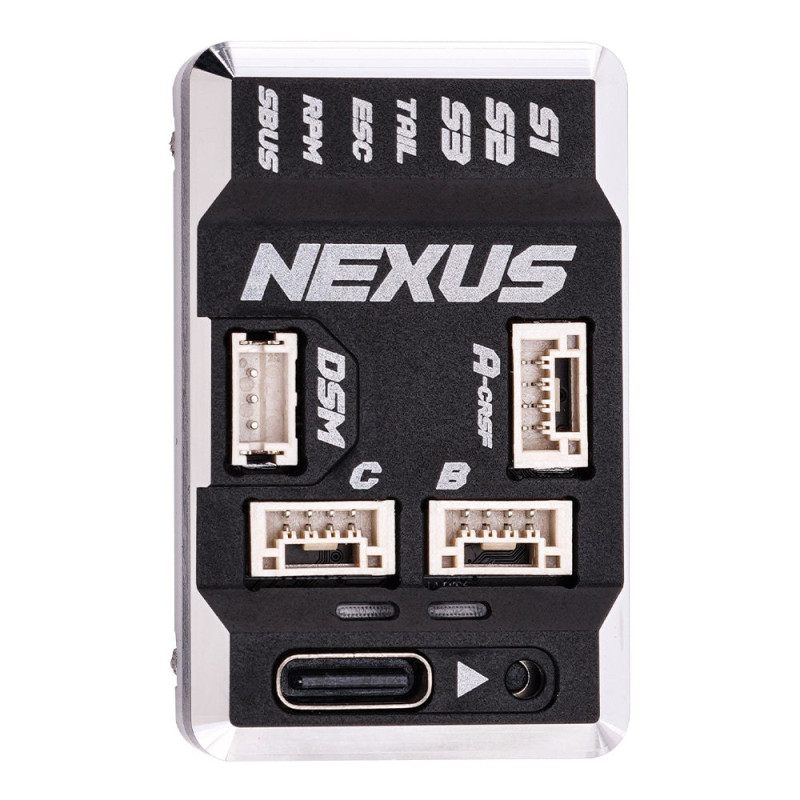

- Item: NEXUS Control System
- Firmware: RF 2.0
- MCU: STM32F722RET6
- Flash Memory (Black Box. IC): 128MB (W25N01GVZEIG)
- Barometer: SPL06-001
- Uart: 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3]
- Servo: 4 - S1, S2, S3, TAIL
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
How to bind an RC transmitter and receiver
A practical binding guide for matching protocol, bind mode, receiver power, model memory, control checks and common binding mistakes.
How to set failsafe correctly on an RC aircraft
Failsafe setup for electric and fuel aircraft: throttle behavior, receiver signal loss, switch positions and safe verification before flight.
How to set Dual Rates and Expo on an RC transmitter
Make an aircraft calmer for beginners by setting low rates, high rates and expo without hiding mechanical setup problems.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | RadioMaster |
| Brand | RadioMaster |
| Product Code | HP0157.0087 |
| All Variant SKUs | HP0157.0087 |
| Product Type | Control System |
| RadioMaster Collections | Control Systems |
| Product Family | RadioMaster radio-control electronics |
| Application | RadioMaster RC systems, accessories and workshop use |
| Item | NEXUS Control System |
| Weight | 16.8g |
| Compatibility | our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included) |
| Protocol / RF | ExpressLRS / ELRS, EdgeTX |
| Firmware | RF 2.0 |
| MCU | STM32F722RET6 |
| Flash Memory (Black Box. IC) | 128MB (W25N01GVZEIG) |
| Barometer | SPL06-001 |
| Uart | 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3] |
| Servo | 4 - S1, S2, S3, TAIL |
| Rpm Sensor | 1 - FROM ESC FREQUENCY SENSOR |
| Receiver Support | CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX |
| Voltage Supply(DC) | 5 - 12.6V |
| A-B-C Serial Port Power Output | 5V - 2.0A |
| Telemetry | S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS |
| Demensions | 41.3 X 25.4 X 13.1mm |
| Built-in Black Box | A large 128MB of onboard flash memory ensures you can log all your data for fine-tuning and adjustment |
| DSM Serial Port Power Output | 3.3V - 0.5A |
